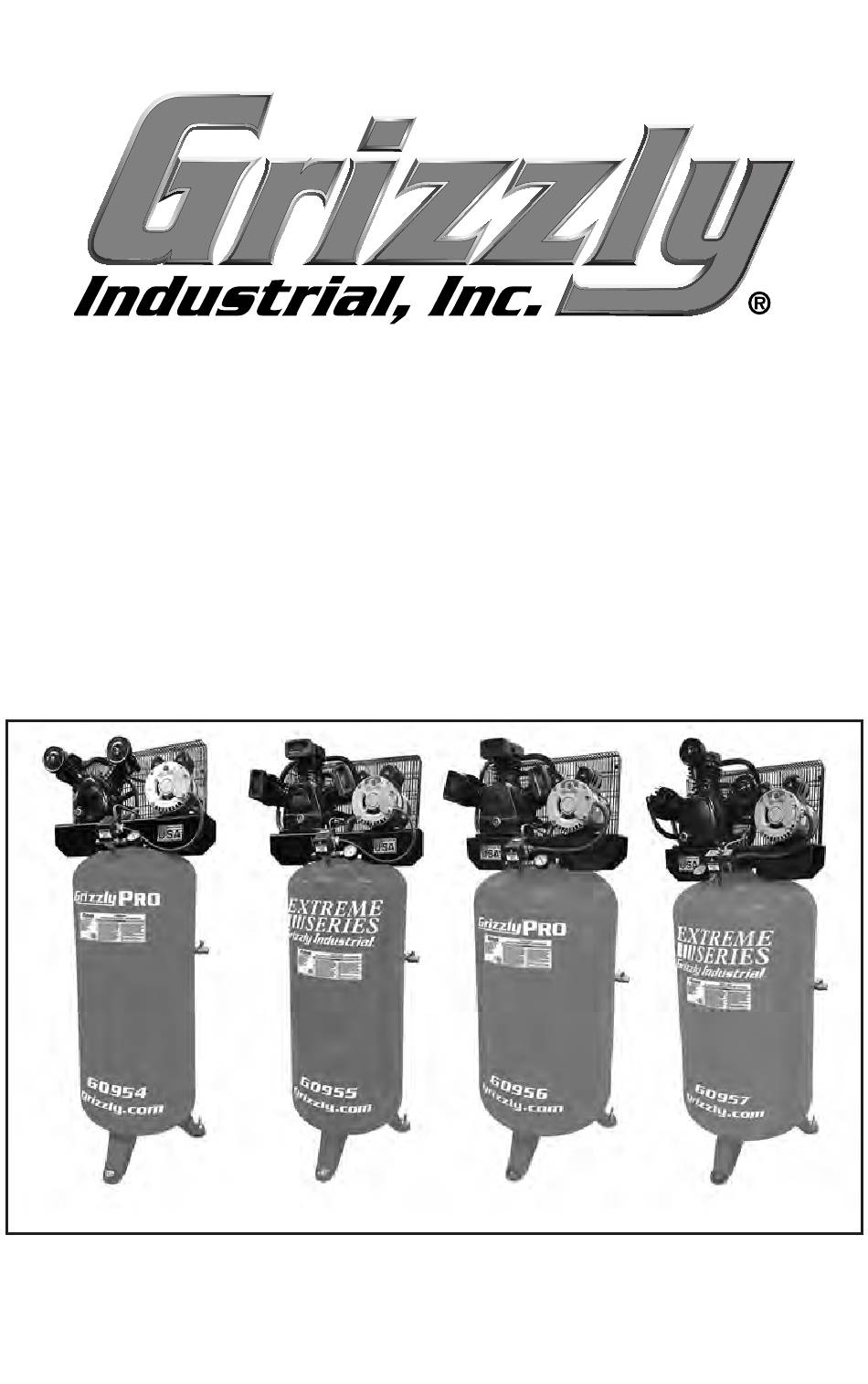

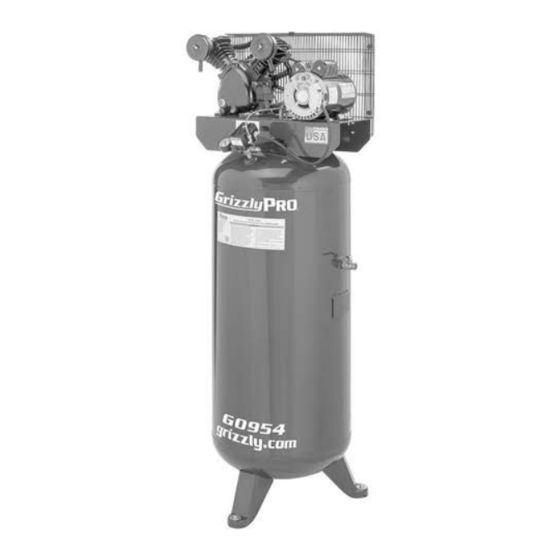

- Page 1 MODEL G0954/G0955/ G0956/G0957 STATIONARY AIR COMPRESSORS OWNER'S MANUAL (For models manufactured since 11/21) G0955 G0956 G0954 G0957...
- Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
-
Page 3: Table Of Contents
Table of Contents How To Contact Us Controls & Components Machine Data Sheet Table Safety Instructions for Machinery Safety Guidelines – Definitions Important Safety Instructions Before Using the Air Compressor Power Supply When Installing or Moving the Compressor Before Each Use Power Connection Plan Ahead to Protect Your Eyes, Hands, Face &... -
Page 4: How To Contact Us
The motor is equipped with an overload protector and an automatic reset. If the motor gets overheated, the overload protector will shut it down to prevent damage to the motor. When the motor sufficiently cools, it will automatically restart. (G0954 Shown) Compressor Controls Power Switch: This switch turns the compressor power ON and OFF. -
Page 5: Machine Data Sheet Table
Machine Data Sheet Table STATIONARY AIR COMPRESSORS Model # G0954 G0955 G0956 G0957 Product Dimensions Weight 305 lbs. 325 lbs. 380 lbs. Width (side- to-side)/Depth 30" x 22" x 31-1/2" x 26" 30" x 22" x 68" 26" x 32" x 68"... - Page 6 175 PSI Pressure Cut-In 95 PSI 145 PSI Pressure Duty Cycle 65/35 85/15 Tank Size 60 Gallons 80 Gallons Number of Cylinders Pump Grizzly Model T28041 or 100% Full Synthetic Non-Detergent Air Lubrication Compressor Oil Drain Valve Ball Valve Type Regulator...
- Page 7 Model # G0954 G0955 G0956 G0957 Output Port Information Connection Female Threaded Ball Valve Type Connection 1/2" NPT Size Number of Connections Hose Included Construction Information Tank Steel Valves Brass Paint Type/ Enamel Finish Other Specifications Country of Origin Warranty...
-
Page 8: Safety Instructions For Machinery
Safety Instructions for Machinery OWNER’S MANUAL. Read and understand this owner’s manual BEFORE using machine. TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. - Page 9 AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury. CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.
-
Page 10: Safety Guidelines - Definitions
Safety Guidelines - Definitions Safety is a combination of common sense, staying alert, and knowing how your compressor works. Read this manual to understand this compressor. DANGER means if safety information is not followed someone will be seriously injured or killed. WARNING means if safety information is not followed someone could be seriously injured or killed. -
Page 11: Power Supply
These machines are prewired to operate on a operations. power supply circuit that has a verified ground and meets the following requirements: Full-Load Current Rating (G0954): 15A Full-Load Current Rating (G0955): 22.5A G0954 Full-Load Current Rating (G0956): 22.5A Nominal Voltage: 208V/220V/230V/240V Full-Load Current Rating (G0957): 22.5A... - Page 12 Grounding Requirements Connection Type These machines must be grounded! In the event A permanently connected (hardwired) power of certain types of malfunctions or breakdowns, supply is typically installed with wires running grounding provides a path of least resistance for through mounted and secured conduit. A electric current in order to reduce the risk of disconnecting means, such as a locking switch electric shock.
-
Page 13: When Installing Or Moving The Compressor
When Installing or Moving the Compressor WARNING 6. A minimum clearance of 18 inches between the compressor and a wall is This compressor is extremely top heavy. It required because objects could must be bolted to the floor with vibration pads obstruct airflow. -
Page 14: Before Each Use
Before Each Use Inspect Your Work Area Inspect Your Compressor 1. Keep work area clean. Cluttered areas and To reduce the risk of injury from accidental benches invite accidents. starting, turn the switch off and disconnect power. 2. The floor must not be slippery from wax or dust. -
Page 15: Plan Ahead To Protect Your Eyes, Hands, Face & Ears
Plan Ahead to Protect Eyes, Hands, Face & Ears Dress for Safety WARNING 1. Wear safety glasses meeting ANSI Z87.1 (or in Canada CSA Z94.3-99) and use hearing Never operate the compressor without a belt protection when operating the unit. Everyday guard. -
Page 16: Spraying Precautions
Spraying Precautions WARNING WARNING Never point a nozzle or spray gun at yourself Spray in a well-ventilated area to keep fumes or any other person or animal. Accidental from collecting and causing serious injury and discharge may result in serious injury. fire hazards. -
Page 17: Glossary Of Terms
PSI indicated below: in the oil sight glass. G0957: 175 PSI Make sure all rags, tools, oil, etc. are away G0954/G0955/G0956: 125 PSI from the unit. Open the air system to free it of any pressure. CAUTION... -
Page 18: Draining The Tank
Draining the Tank Oil and moisture residue must be drained from the air receiver daily or after each use. Accumulations of oil residue in the receiver can be ignited by embers of carbon created by the heat of compression—causing an explosion, damage to property, and injury to personnel. -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE Low discharge pressure. 1. Compressor too small for 1. Reduce air demand or use a compressor application. with more air capacity. 2. Air leaks. 2. Listen for air leaks. Apply a soap solution to all fittings and connections. Bubbles will form at points of leakage. - Page 20 TROUBLESHOOTING GUIDE (Cont.) Tank does not hold 1. Malfunctioning check valve. 1. Replace check valve. pressure when not WARNING running and shut off valve is closed. Do not remove check valve with air pressure in tank. Loose fittings or connections. Tighten or replace fittings or connections.
-
Page 21: Maintenance Operations
Maintenance Operations 1. Do regular maintenance; keep all nuts, bolts, 4. Drain tanks of moisture after each day’s and screws tight to be sure equipment is in use. If unit will not be used for a while, it safe working condition. is best to leave the drain cock open until such time as it is to be used. -
Page 22: Wiring
Wiring WARNING WARNING Electrical connections must be properly ALL ELECTRICAL WIRING SHOULD BE grounded. Ground connections should be DONE BY A QUALIFIED ELECTRICIAN! connected at the grounding screw. Adequate wiring and motor protection should CAUTION be provided for all stationary compressors. Wiring used for other machinery should not be Overheating, short circuiting, and fire damage used. - Page 23 Parts G0954 Pump...
- Page 24 G0954 Pump Parts List REF DESCRIPTION REF DESCRIPTION CRANKCASE ELBOW FITTING 7/8" X 3/4" OIL DRAIN PLUG PISTON RING 65 X 2.5 X 4MM O-RING 20 X 0.3 PISTON RING 65 X 2.5 X 2.5MM OIL SIGHT GLASS PISTON OIL FILL PLUG...
- Page 25 G0954 Tank & Motor...
- Page 26 G0954 Tank & Motor Parts List REF DESCRIPTION REF DESCRIPTION TANK PUMP DISCHARGE LINE 12MM MOTOR 3HP 240V 1-PH DISCHARGE PIPE 6MM KEY 3/16 X 3/16 X 1-3/8 PRESSURE GAUGE 1/8" NPT MOTOR PULLEY FLANGE JOINT 1/2" NPT X 2"...
- Page 27 G0955/G0956 Pump 44 45...
- Page 28 G0955/G0956 Pump Parts List REF DESCRIPTION REF DESCRIPTION CRANKCASE LB40-3 LB40C CYLINDER 65MM M8-1.25 OIL DRAIN PLUG ZG 1/4" HEX NUT M8-1.25 STUD-SE M8-1.25 X 17, 10 CYLINDER HEAD 65MM M8-1.25 CRANKSHAFT BEARING SEAT CYLINDER HEAD GASKET CAP EXTENSION 1/4" M16-2 X 1.5 VALVE PLATE ASSEMBLY 65MM OIL SEAL AS 24 X 47 X 8 CAP SCREW M8-1.25 X 45...
- Page 29 G0955 Tank & Motor 124 123...
- Page 30 G0955 Tank & Motor Parts List REF DESCRIPTION REF DESCRIPTION TANK PUMP DISCHARGE LINE 12MM MOTOR 5HP 230V 1-PH DISCHARGE PIPE 6MM KEY 3/16 X 3/16 X 1-3/8 PRESSURE GAUGE 1/8" NPT MOTOR PULLEY FLANGE JOINT 1/2" NPT X 2" V-BELT A51 FLANGE JOINT 1/4"...
- Page 31 G0956 Tank & Motor...
- Page 32 G0956 Tank & Motor Parts List REF DESCRIPTION REF DESCRIPTION TANK PUMP DISCHARGE LINE 12MM MOTOR 5HP 230V 1-PH DISCHARGE PIPE 6MM KEY 3/16 X 3/16 X 1-3/8 PRESSURE GAUGE 1/8" NPT MOTOR PULLEY FLANGE JOINT 1/2" NPT X 2" V-BELT A51 FLANGE JOINT 1/4"...
- Page 33 G0957 Pump...
- Page 34 G0957 Pump Parts List REF DESCRIPTION REF DESCRIPTION CRANKCASE CYLINDER GASKET (UPPER) OIL DRAIN PLUG CYLINDER HEAD GASKET OIL SIGHT GLASS CYLINDER HEAD OIL FILL PLUG HEX BOLT M6-1 X 40 CRANKSHAFT HEX BOLT M8-1.25 X 50 BALL BEARING 6205-OPEN CYLINDER (STAGE 2) BEARING SEAT GASKET CONNECTING ROD (STAGE 2)
- Page 35 G0957 Tank & Motor...
- Page 36 G0957 Tank & Motor Parts List REF DESCRIPTION REF DESCRIPTION TANK MOTOR PULLEY FLANGE JOINT 1/4" MOTOR CORD 12G 3W 16" BALL DRAIN VALVE 1/4" V-BELT B53 5L560 BALL VALVE 1/2" HEX BOLT M8-1.25 X 25 FLANGE JOINT 1/2" FLAT WASHER 8MM THREADED CHECK VALVE 1/2"...
