Panasonic ER-GB37 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Electric Shaver
  5. ER-GB37
  6. Service manual
Panasonic ER-GB37 Service Manual

Panasonic ER-GB37 Service Manual

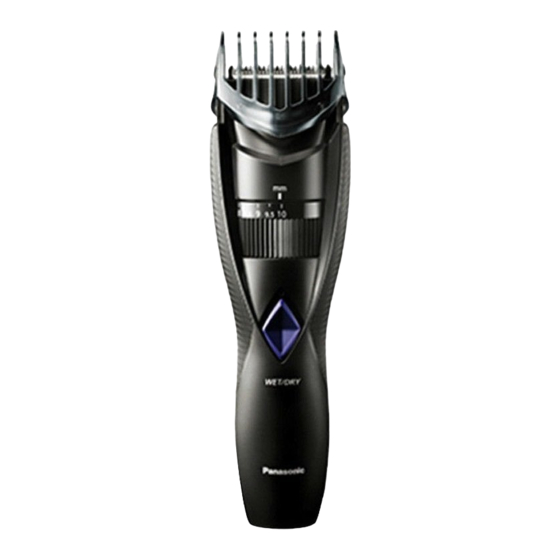

Rechargeable beard trimmer
Hide thumbs Also See for ER-GB37:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Wiring Connection Diagram ---------------------------------- 6
6 Schematic Diagram ---------------------------------------------- 6
Rechargeable Beard Trimmer
Model No.
PAGE
© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. SD1408A54CE
ER-GB37
Asia
Middle East

Advertisement

loading

Related Manuals for Panasonic ER-GB37

Summary of Contents for Panasonic ER-GB37

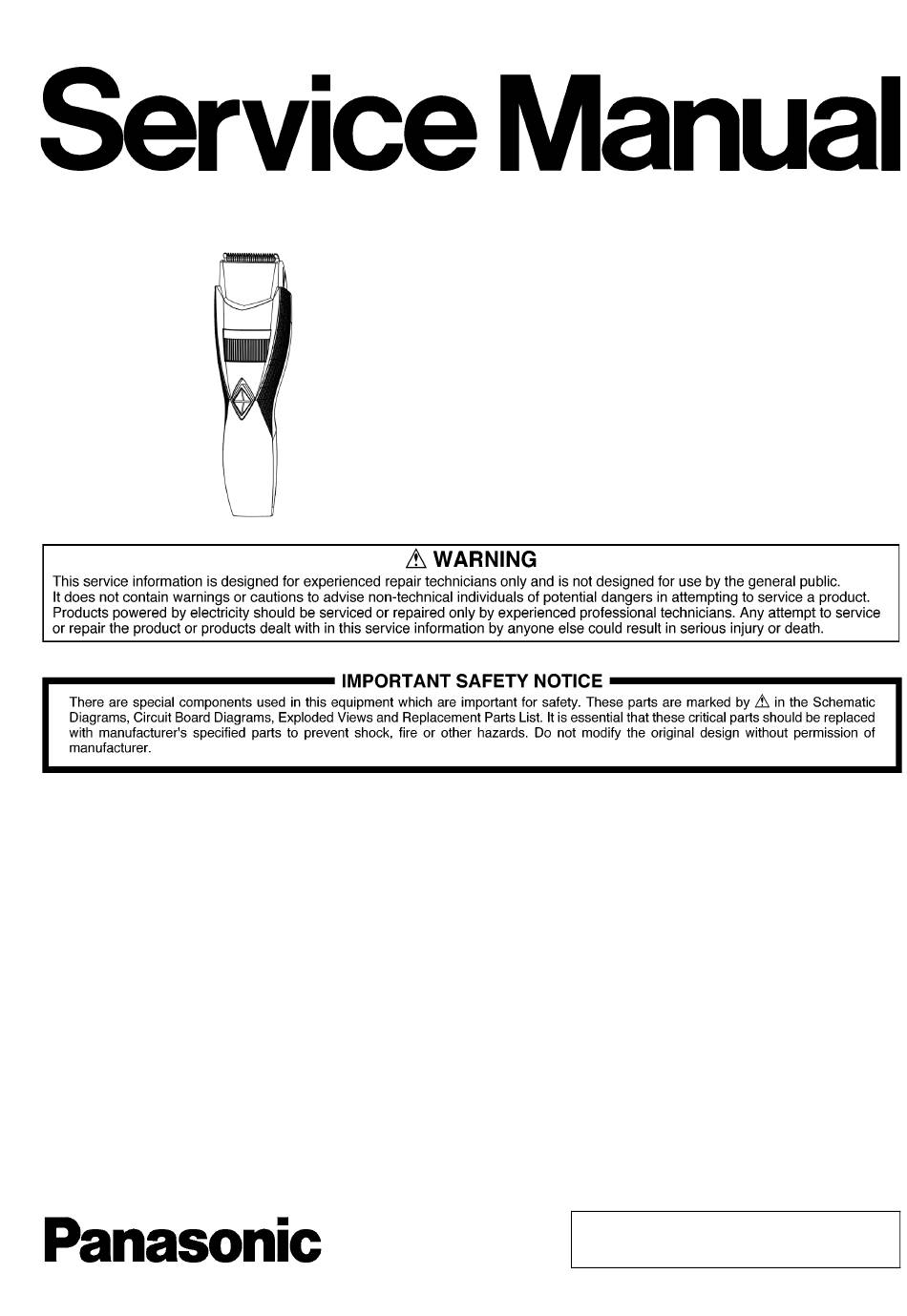

  • Page 1: Table Of Contents

    4 Disassembly and Assembly Instructions ---------------- 4 5 Wiring Connection Diagram ---------------------------------- 6 6 Schematic Diagram ---------------------------------------------- 6 7 Exploded View and Replacement Parts List ------------ 7 © Panasonic Corporation 2014 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Warning

    ER-GB37 1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70F (30 - 40) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20F (400 ± 10). In case of using high temperature soldering iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    ER-GB37 3 Troubleshooting Guide (Refer to WIRING CONNECTION DIAGRAM)

  • Page 4: Disassembly And Assembly Instructions

    ER-GB37 4 Disassembly and Assembly Instructions 4.1. Disassembly Instuctions Follow the procedure below to disassemble the main unit. 1. Remove the comb attachment and the blade. 4. Take out the front panel from the housing. 2. Loosen two screws and remove the blade holder.
  • Page 5 ER-GB37 4.2. Cautions in Assembly 7. Separate the housing B from the housing A. NOTE: When reassembling, replace the new waterproof rubber. Make sure whether there is NO foreign substance sticking around a part covered with water seal. NOTE: Make sure to assemble the battery last in order to avoid short-circuit.

  • Page 6: Wiring Connection Diagram

    ER-GB37 5 Wiring Connection Diagram 6 Schematic Diagram...

  • Page 7: Exploded View And Replacement Parts List

    ER-GB37 7 Exploded View and Replacement Parts List 7.1. Exploded View...
  • Page 8 ER-GB37 7.2. Replacement Parts List Safety Ref. Part No. Part Name & Description Quan- Remarks tity WER9605E BLADE BLOCK WES7025L9707 SCREW WER217L0967 O-RING B (6PCS/PK) WER504L0166 SPRING FOR CUTTER (2PCS/PK) WERGB37K1588 BLADE HOLDER WERGB37K3288 ADJUSTING DIAL WERGB37K3968 FRONT PANEL WERGB37K3058...
