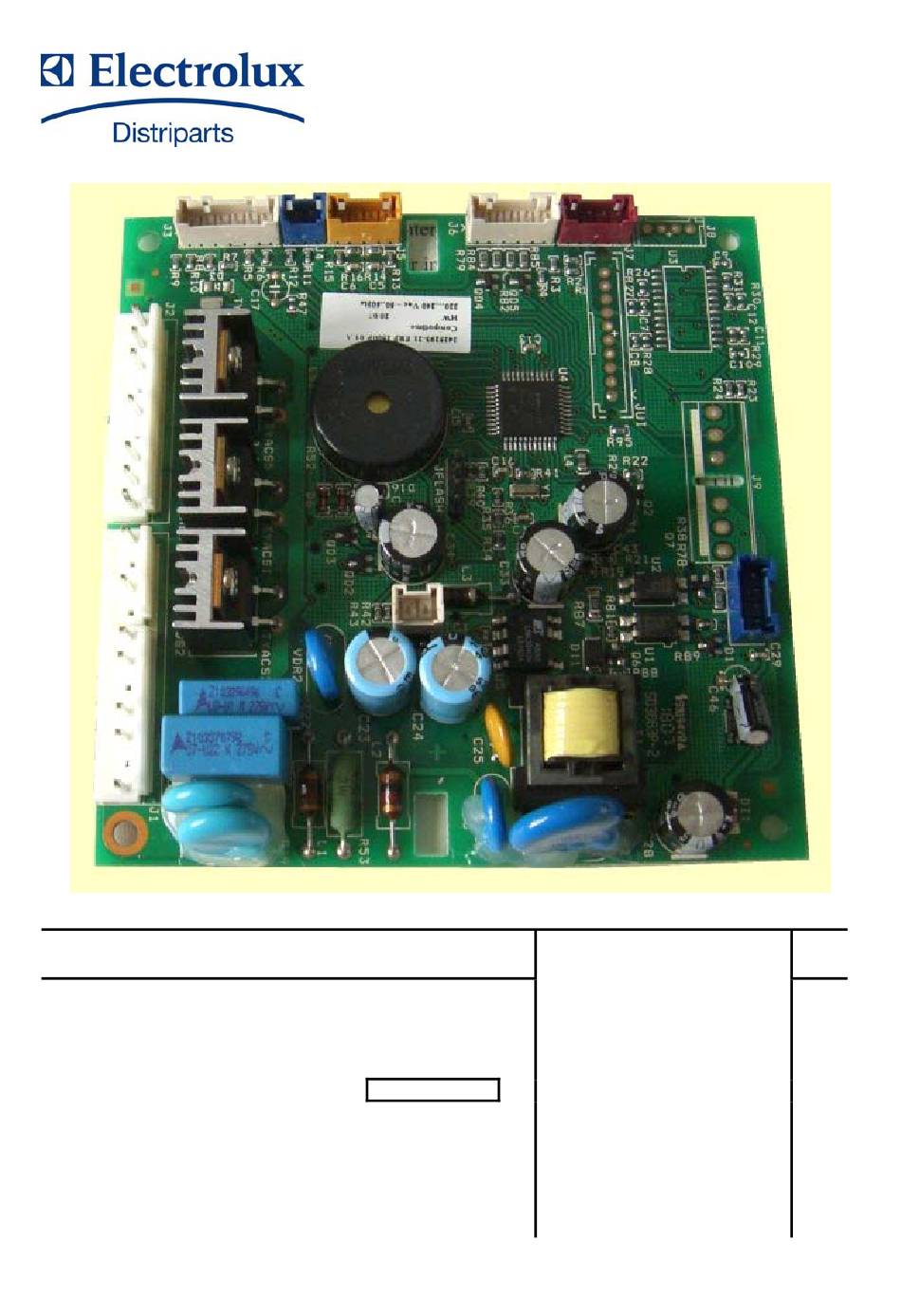

- Page 1 SERVICE MANUAL REFRIGERATION © ELECTROLUX ITALIA S.p.A. Publication no. Spares Operations Europe ERF2500 Corso Lino Zanussi, 30 I - 33080 PORCIA /PN (ITALY) 599 73 16-18 Generation Fax +39 0434 394096 Edition: 2010-09 SOE/TD - PR 599 73 16-18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Purpose Precautions General characteristics Service Mode Service Mode Activation Component test User Interface visual test AC output test Digital output test Damper test Digital input test Temperature probe test Software and Parameters 4.10 Life time display 4.11 Final phase REVISIONS: Revision... -
Page 3: Purpose
1 PURPOSE The purpose of this manual is to provide service personnel (who already have the basic knowledge necessary for repairing refrigerators) with information on appliances equipped with the ERF2500 electronic control system. This Manual describes: • User Interfaces that could be connected with •... -
Page 4: General Characteristics
ERF810 LCD on door ERF810 LCD on door user interface New Glass user interface New Glass ERF2500 ERF2500 Main electronic Main electronic ERF906 Australien LCD for Electrolux Kelvinator ERF906 Australien LCD for Electrolux Kelvinator SOE/TD - PR 599 73 16-18... -
Page 5: Service Mode
LCD on door with New Glass On LCD on or off ERF906 AUS LCD for Electrolux Kelvinator 4.3 User Interface visual test Depending on the version of the appliance, all notification on the display and LEDs are switched on. Pressing the push button „next“. -
Page 6: Ac Output Test
4.4 AC output test Are defined to be tested every AC component connected to the electronic. There are 5 ACS Triacs on the electronic for only 5 components to test. On the display is notified the index of component. When the Service Mode starts, all components are switched off. -
Page 7: Damper Test
Pressing the push button „action“ to switched on and off the component. Pressing the push button „next“ again to goes in the next phase. 4.6 Damper test When the Service Mode starts, the damper is closed. On the display is notified the index of the component. LED on: damper is open LED off: damper is closed Pressing the push button „action“... -
Page 8: Software And Parameters
Are defined to be tested every temperature probe connected to the electronic. If the sensor related to the probe detects an acceptable value of temperature: The display is notified the index. If the sensor has an interrupt: The display is notifying and blinking the current temperature index and message failure „Er“. Press the push button „next“, to activate the next component.
