Honeywell Performance Series Quick Installation Manual

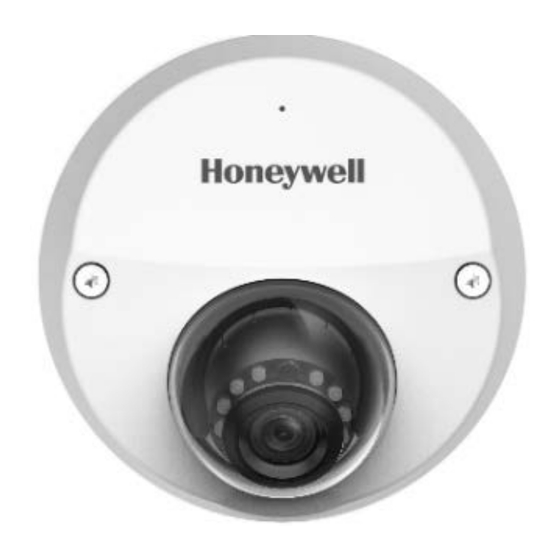

H2W4PER3 WDR 4 MP IR Micro-Dome
Camera
Quick Installation Guide
Thank you for purchasing a Honeywell Performance Series IP
camera. Follow the instructions in this guide to install and log in
to your camera. For instructions on configuring the camera, refer
to the user guide on the CD that came with your camera. If you
require additional assistance, call the number listed for your
region on the back cover.
Cautions and Warnings
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING To ensure compliance with electrical safety standards, this product is
intended for use with a Listed Power Adapter marked "Limited Power
Source" or "LPS" on the unit, output rated to 12 VDC, minimum 0.33 A,
TMA=60 deg C, or from Power over Ethernet (PoE) provided by Listed
Information Technology Equipment meeting IEEE 802.3af PoE standard.
CAUTION The Ethernet connection is not intended to be connected to exposed
(outside plant) networks. Do not connect two power sources to the camera
at the same time.
CAUTION Invisible LED radiation (850 nm). Avoid exposure to beam.
Important Safeguards
•
Read and keep these instructions.
•
Do not aim the camera toward a bright light source for extended periods to prevent damage to
the imager. Avoid operating the unit under or close to unstable light sources (may cause
flickering), or close to fluorescent lamps or objects reflecting light.
•
Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.
THIS SYMBOL INDICATES THAT
IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS
ACCOMPANY THIS UNIT.
•
Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where
the operating temperature is outside the recommended range of -22°F to 140°F (–30°C to
60°C).
•
Do not apply power to the camera before completing installation.
• Ensure that the installation surface can support at least three times the weight of the camera.
Before You Begin
Before you begin, check that you have received all the parts listed below. If any parts are missing or
damaged, contact your dealer immediately.
• Camera
•
Installation CD
•
Quick installation guide
• Allen key (L-wrench)
CAUTION Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
Preparing the Mounting Surface
Ins
1. pect the site where you want to install the camera. The mounting
surface must be flat and capable of supporting at least three times
the weight of the camera.
2. Remove the backing from the mounting template sticker and affix
the sticker to the mounting surface.
Note If you are using the side exit for the cable, note the orientation of
the cable exit notch. In outdoor installations, the notch should point
downwards to prevent water from entering the camera housing.
3. Drill screw holes at the locations indicated on the mounting
template sticker and insert the supplied plastic anchors in the holes.
4. If you are flush mounting the camera and want to store the cables
inside the wall or ceiling, drill a hole at the cable exit position on the
mounting template and then pull the cables through the hole.
Mounting the Camera
1. Use the supplied Allen key to remove the dome cover from the camera assembly and set it
aside.
2. If you are using a Micro SD card with the camera, insert the SD card into the SD card slot
before continuing. See figure below for details:
• Self-tapping screws (×4)
•
Plastic wall anchors (×4)
•
Mounting template
