(For SHARP dealers and service engineers)
Please read
"Important Information"

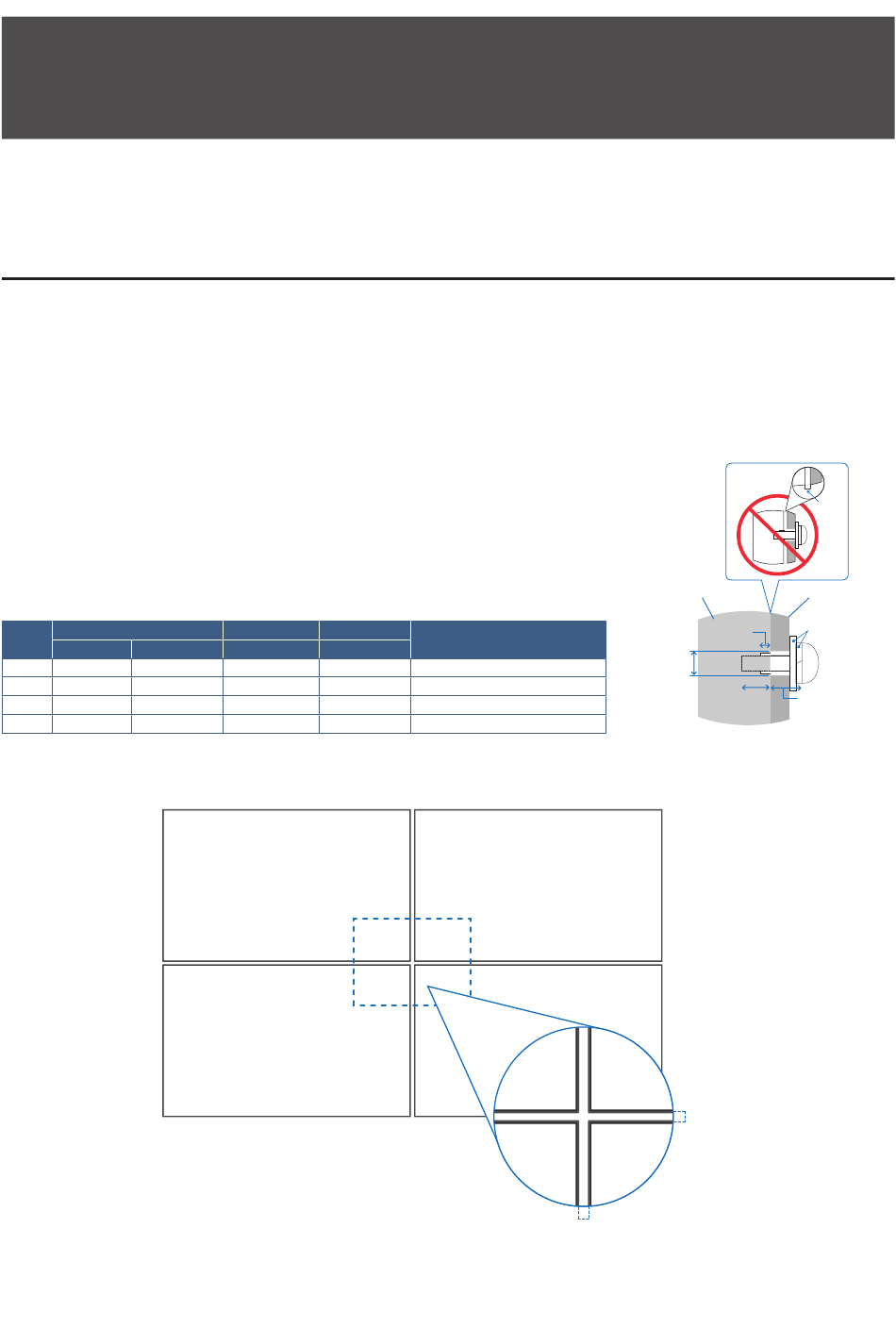

Mounting the monitor requires expertise and the work must be carefully performed by a trained service person in accordance
with the section.
Mounting (for Trained Installers)
Carefully inspect the location where the unit is to be mounted. Not all walls or ceilings are capable of supporting the weight
of the unit. The weight of this monitor is provided in the specifications (see
warranty does not cover damage caused by improper installation, re-modeling, or natural disasters. Failure to comply with these
recommendations could result in voiding the warranty.
To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at
least two points on the installation location.
Allow for adequate ventilation or provide air conditioning around the monitor, so that heat can
properly dissipate away from the monitor and from the mounting equipment.
Please note the following when mounting on a wall or ceiling:
•
We recommend mounting interfaces that comply with UL1678 standard in North America.
•
For detailed information, refer to the instructions included with the mounting equipment.
We strongly recommend using the screws as shown below.
If using screws longer than below mentioned, check the depth of the hole.
Screw Size
(A)
(B)
ME432
M6 (4 pcs)
MAX 14 mm
ME502
M6 (4 pcs)
MAX 14 mm
ME552
M6 (4 pcs)
MAX 14 mm
ME652
M8 (4 pcs)
MAX 14 mm
NOTE:
When used in a video wall configuration for a long time, slight expansion of the monitors may happen due to
temperature changes. It is recommended that a gap of over one millimeter is kept between adjacent monitor edges.
Mounting Precautions
carefully before installation.
Bracket Hole
No Thread
(C)
(D)
≤
8.5 mm
1 mm
Ø
≤
8.5 mm
1 mm
Ø
≤
8.5 mm
1 mm
Ø
≤
12 mm
1 mm
Ø
"Product Specifications" on page
Recommended Fasten Force
390-670 N•cm
390-670 N•cm
390-670 N•cm
950-1600 N•cm
English−65
51). Product
Unit
No thread
D
C
B
> 1 mm
> 1 mm
Gap
Gap
Mounting
Bracket
Washers
A
Thickness of
bracket and
washers
