E-Lins H685 Series User Manual

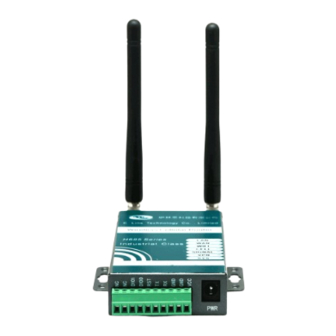

Industrial grade 2g 3g 4g cellular router
Hide thumbs Also See for H685 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
H685 User Manual
Industrial Grade 2G 3G 4G Cellular Router
User Manual
H685 Series
E-Lins Technology Co., Limited
PHONE: +86-755-29230581
Email: sales@e-lins.com
WEB: http://www.e-lins.com
ADDRESS: Rm.33, Unit B, Floor 12, U chuanggu, Xinniu Rd,
Minzhi, Longhua, Shenzhen, 518000, China
E-Lins Technology Co. Limited
Tel: +86-755-29230581 E-mail: sales@e-lins.com
www.e-lins.com

Advertisement

Table of Contents
loading

Related Manuals for E-Lins H685 Series

Summary of Contents for E-Lins H685 Series

  • Page 1 H685 User Manual Industrial Grade 2G 3G 4G Cellular Router User Manual H685 Series E-Lins Technology Co., Limited PHONE: +86-755-29230581 Email: sales@e-lins.com WEB: http://www.e-lins.com ADDRESS: Rm.33, Unit B, Floor 12, U chuanggu, Xinniu Rd, Minzhi, Longhua, Shenzhen, 518000, China E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...

  • Page 2: Table Of Contents

    3.5.7 SMS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 45 E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...
  • Page 3 3.6.16 Guest LAN(Guest WiFi) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 110 E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...

  • Page 4: Preparation Job Before Configuration

    1 Preparation job before configuration 1.1 Learn your router version and feature 1) H685 series contains different version and option feature. Please learn it before using it. H685 series defines the model as follows, Notes: please be informed the following features are option. Please indicate with your E-Lins Technology Co.
  • Page 5 For example: the following label indicates the version, type and inside module modem. The module modem name is “ME909s-120”, remember this and will select this module name while do configuration. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 6: Prepare Sim Card And Working Condition

    Please refer to chapter 3.5.1 to configure. Chapter 2 2 Hardware Installation This chapter mainly describes the appearance, model and function of H685 series and how to install and set the configurations. 1. Overall Dimension 2. Accessories Description 3. Installment E-Lins Technology Co.

  • Page 7: Overall Dimension

    H685 User Manual 2.1 Overall Dimension 2.2 The Ports Pictures: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 8 DIO0: digit I/O port 0 IDO1: digit I/O port 1 IDO2: digit I/O port 2 IDO3: digit I/O port 3 Antenna Connection Table Antenna Connector Marks Cell1 for main cell antenna E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 9: Installment

    Attention: Do not install H685 series or connect/disconnect its cable when it is power on. 2.4 SIM/UIM card installed If your router has SIM/UIM card protector, please remove it, insert the sim card correctly, and fix the protector.
  • Page 10 GND. Reset After giving the device a 1 sec low level, it will reboot.3 seconds, the device will restore factory settings General Purpose DIO0 E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 11: Grounding

    Pin 3 Notes: If not through, can switch Port4 and port5. 2.6 Grounding To ensure a safe, stable and reliable H685 series operation, Router cabinet should be grounded properly. 2.7 Power Supply H685 series can be applied to complicated external environment and usually the power range is very large.

  • Page 12: Led And Check Network Status

    Please connect the antenna after you successfully connect to the cable. And then insert the valid SIM/UIM card and provide the power to the H685 series via the cable. After provide the power to H685, if the SYS LED starts to blink in a few seconds, that means the system start-up is normal;...

  • Page 13: Software Configuration

    ( 0.5 seconds Signal bar is 3 for on, and 0.5 seconds for off) Chapter 3 3 Software configuration 1. Overview 2. How to log into the Router 3. How to config web E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 14: Overview

    H685 User Manual 3.1 Overview H685 series routers with built-in WEB interface configuration, management and debugging tools, user should configuration the parameters first; and it could be altered the parameters flexibility and software upgrades and simple testing. User can set up and manage the parameters of the router on its interface, detail step are bellow: 3.2 How to log into the Router...
  • Page 15 H685 User Manual After IP setting, check it by ping. Click Windows start menu, run, execute “cmd” command. Input “ping 192.168.1.1” in the DOS window. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 16 ⚫ Type User Name “admin” and Password “admin” in the Login page, and then press the “Login” button. ⚫ If you type into the correct User Name and Password, you will get the access into the Router’s status overview page. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 17: Router Status

    H685 User Manual 3.3 Router status 3.3.1 Status overview Click “Status” in the navigation bar, and then click “Overview”. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 18: Network Status

    H685 User Manual 3.3.2 Network status Network status pages show detail information of cell mobile interface, WAN and LAN. Cell mobile interface page: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 19 H685 User Manual WAN status page: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 20 H685 User Manual LAN status page: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 21: Firewall Status

    Firewall status page shows IPv4 and IPv6 rules and counters. The final user can reset counters and restart firewall functionality here. 3.3.4 Routes Routes page shows rules which are currently active on this router. And ARP table is displayed as well. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 22: System Log

    H685 User Manual 3.3.5 System log This page shows system log from system boot up. System log is not saved when router restarts. It can be exported by click button “Export syslog”. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 23: Kernel Log

    This page shows Kernel log from system boot up. This log is not saved when router restarts. It can be exported by click button “Export syslog”. 3.3.7 Reboot Log Shows device and cell module reboot event since last upgrade firmware or reset to factory default. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 24: Realtime Graphs

    Realtime Graphs page shows real time system load，interfaces traffic, etc.. 3.3.9 VPN Status VPN Status, include IPSec status, IPSec logs, OpenVPN status, PPTP and L2TP clients when device works as PPTP/L2TP server. And also Openconnect status. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 25: System Configuration

    H685 User Manual 3.4 System Configuration 3.4.1 Setup wizard When login in router at the first time, setup wizard pages show. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 26 H685 User Manual Note: pressing button “Save & Next” will save configuration and jump to the next page. All configurations will be applied after click button “Finish” at the final step (Step-WiFi). E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 27: System

    ⚫ Hostname: It is the router’s name, the default name is Cell_Router. ⚫ Time zone: Select a suitable time zone. The default value is UTC ⚫ Turn off LEDs: set all LEDs to off except LAN,WAN LED. Logging settings E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 28 ⚫ Log output level: Log level, the default is debug with highest level, Emergency is the lowest level. ⚫ Cron log level: It is log level for process Crond. ⚫ Record Cell Status: print cell status information in system log periodically. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 29: Password

    ⚫ New username: only needed when changing username. ⚫ New password: only needed when changing password. ⚫ Repeat new password: only needed when changing password. SSH Account only can be used on SSH login. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 30 Guest Account page to enable guest user and change guest password, guest account cannot change any configuration. 3.4.4 Certificates Cert file and key file for HTTPS access, the default cert and key file is self-signed file. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 31: Ntp

    H685 User Manual Enable/disable SSH password authentication, or SSH-Key access. 3.4.5 NTP E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 32 ➢ NTP server candidates: It is NTP server list, multiple NTP server is acceped. The final user can click the button to delete an entry, or click button to add a new entry. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 33: Backup/Restore

    Backup Config, save current config in flash, after factory reset, the configuration is still in flash. If “Restore after factory reset” is enabled, after reset router will use the configuration in flash as current configuration. Restore Config, restore configuration from flash to cover current configuration. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 34: Upgrade

    Router will do a basic checking for the uploaded file. If it is not compatible file, an error will be generated like this: If the firmware file is OK, it will go to the verify page, then click button “Proceed”, and system will restart soon. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 35: Reset

    Reset all configurations to factory default, after click buttong “Reset”, there is pop dialog to ask it’s really to reset, click button “cancel” will do nothing, click button “OK” will reset all configuration to default and restart system. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 36: Reboot

    3.5.1 ICMP check For router working with best stability, we highly suggest activate and use this feature. With this feature, the Router will automatically detect its working status and fix the problem. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 37 ⚫ Action when failed: there are “Restart module” and “Restart router”. “Restart module” will fix the problem from radio module, and “Restart router” will fix the problem from the whole system including radio module. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 38: Vrrp

    ⚫ Virtual ID: Routers with same IDs will be grouped in the same VRRP cluster. The legal number is from 1 to 255. ⚫ Priority: Router with highest priority in the same VRRP cluster will act as master. The legal number is from 1 to 255. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 39: Failover (Link Backup)

    ➢ Ping timeout: If ping packet is sent, the response packet is not received before timeout, then this ping is failed. ➢ Max retries: If the ping is failed, the failed counter will add one. If the failed counter is bigger or E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 40: Dtu

    ➢ DTU ID: The default DTU ID is the SN of router, the final user can re-write it if necessary. ➢ Forward delay: The unit is millisecond. It is delay time that forward data between serial port and network. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 41 “Add” to add a new center here. ➢ If the center is not needed, the final user can click button “Delete” to delete it, or set it to disabled. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 42: Snmp

    SNMP. ⚫ Contact: Set the contact information here ⚫ Location: set router’s installation address. ⚫ Name: Set the router’s in SNMP ⚫ Port: SNMP service port, the default value is 161. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 43 If it is set to Authorized, only Authentication method and password required. ⚫ Authentication: Authentication method, two options: MD5 and SHA. ⚫ Encryption: Encryption method, DES and AES supported. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 44: Gps

    If the GPS processor device is connected to the H685 Router via Serial Port, please choose “Serial”. If the GPS processor device is a remote server, please choose “Serial”. GPS to TCP/UDP Settings ➢ E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 45: Sms

    ⚫ serial baudrate: 9600/19200/38400/57600/115200bps for choice ⚫ serial parity: none/odd/even for choice ⚫ serial databits: 7/8 for choice ⚫ serial stopbits: 1/2 for choice ⚫ serial flow control: none/hardware/software for choice 3.5.7 SMS SMS Command ➢ E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 46 ⚫ DIO_0 Set Command: input the command for I/O port 0. For SMS feature, please keep the parameter default. ⚫ DIO_0 Reset Command: input the command for I/O port 0. For SMS feature, please keep the parameter default. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 47 Singal Quality Threshold, reset success counter to 0. If realtime signal strength is bigger than this threshold, success counter will add one. When signal alarm is not generated, if realtime signal strength is lower than Singal E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 48 ⚫ SMS alarm: this phone number can receive SMS Alarm. ⚫ DIO change: this phone number can receive DIO voltage changing event. ➢ SMS SMS log, all received and sent SMS are in the list. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 49 Password: it is the password configured in SMS Gateway page. Text: it is SMS content. Number: it is the SMS receiver phone number. ⚫ SMS sending response status: http://192.168.1.1/cgi-bin/sms_response?username=user2&password=abc123 ⚫ Read SMS: http://192.168.1.1/cgi-bin/sms_list?username=user2&password=abc123 ➢ DIO Mail E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 50 ⚫ Mail format: the mail title and content are user-defined or use device default. ⚫ DIO_X name: DIO_X name in mail. ⚫ Receiver Configuration: config receiver email addresses. ➢ DIO Default E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 51 ⚫ DIO_X Input Function: DIO value set high to turn on functionality, set low to turn off it. ⚫ DIO_X Output Function: toggle DIO status to other functionality, such as if cell is up, turn on DIO. Cell is down, turn off DIO. ➢ DIO SMS E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 52: Ddns

    ⚫ SMS text for DIOX changed from high to low: Max. length is 64 characters. 3.5.8 DDNS DDNS allows that router can be reached with a fixed domain name while have a dynamically changing IP address. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 53 ⚫ Enabled: enable this instance. ⚫ IP address version: IPv4 and IPv6 supported ⚫ DDNS Service provider: select a suitable provider. ⚫ Hostname/Domain: the Domain name that you can access router. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 54 ⚫ Log to syslog: Writes log messages to syslog. Critical Errors will always be written to syslog. ⚫ Log to file: Writes detailed messages to log file. File will be truncated automatically. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 55 The default setting of '0' will retry infinite. Read the log file of DDNS. Notes: If use DDNS server no-ip.com, please check the " Use HTTP Secure" and put "8.8.8.8" for the DNS-Server referring to following picture. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 56 H685 User Manual E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 57: Connect Radio Module

    ⚫ serial stopbit: support 1 bits and 2 bits ⚫ Serial Flow Control: support none/hardware/software 3.5.10 Modbus Modbus is conflict with DTU, since both functions are using RS232 or RS485 interface of router. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 58 ⚫ TCP server address: Binding IP address on modbus TCP, the default value 0.0.0.0 means any router IPs. ⚫ TCP port: TCP server port number. ⚫ Max connections: Maximum number of simultaneous TCP connections. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 59 ⚫ Get config interval: interval to get config from NMS. ⚫ Send status interval: interval to send device status to NMS,set 0 to disable it. 3.5.12 Captive Portal Remote Auth ➢ Use remote Radius server to authenticate hotspot. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 60 H685 User Manual E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 61 ⚫ UAM secret: Shared between device and authentication web server. ⚫ Login URL: URL of web server handling authentication. ⚫ DNS: Domain Name server. ⚫ Wi-Fi SSID: the Wi-Fi SSID provides network service. Local Auth ➢ E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 62 ⚫ AP IP addr: The IP address of the router on the hotspot network, such as 192.168.5.254/24. ⚫ Enable password: only password needed to access hotspot. ⚫ Session Timeout: Session remains time in seconds. Set it to 0 the session never E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 63 ⚫ Allowed clients: List of IP addresses or ranges which are allowed to use the proxy server. ⚫ Filter mode: Black list or White list. ⚫ URLs: URL list for block/allow. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 64 DNS Web Filter, the specified URLs will be allowed to be resolved or not to be resolved. ⚫ Filter mode: Black list or White list. ⚫ URLs: URL list for block/allow. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 65: Ipsec

    H685 User Manual 3.6 VPN Configuration 3.6.1 IPSEC E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 66 ⚫ DPD action: controls the use of the Dead Peer Detection protocol where DPD messages are periodically sent in order to check the liveliness of the IPsec peer. ⚫ DPD delay: defines the period time interval with which DPD messages exchanges are E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 67 ⚫ Remote subnet: the subnet of remote which connects to IPSEC VPN. Notes: All the configuration in Phase 1 Proposal and Phase 2 Proposal must match with the remote endpoint to establish IPSEC connection. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 68: Pptp

    H685 User Manual 3.6.2 IPSec Track 3.6.3 PPTP E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 69 “Delete” to delete an instance. ➢ PPTP Client configuration ⚫ Enable: enable this instance. ⚫ Server: domain name or IP address of PPTP server. ⚫ Username: server authentication user name. ⚫ Password: server authentication password. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 70 ⚫ Debug: Enabled debug will print detail log in system log. ➢ PPTP Server Configuration ⚫ PPTP Local IP: indicate server’s IP address. ⚫ PPTP Remote IP start: the remote IP address leases start E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 71: L2Tp

    This page is a list of configured L2TP instance and their state. The final user can click button “Edit” to modify it, or click button “Delete” to delete an instance. ➢ L2TP Client configuration E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 72 Set it to a value sufficient for a successful L2TP connection for you. It's mainly for the case that netifd sent the connect request yet xl2tpd failed to complete it without the notice of netifd. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 73 ⚫ ARP Proxy: if the remote IP has the same subnet with LAN, tick it for connecting each other. ⚫ Length bit: If ticked, the length bit present in the L2TP packet payload will be used. ⚫ IPSec saref: Use IPsec Security Association trackinng. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 74: Openvpn

    Note: for OpenVPN detail configuration page, you can put mouse on the title on item to get more help information. If the item you needed is not show in the main page, please check the “Additional Field” dropdown list at bottom of page. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 75: Gre Tunnel

    H685 User Manual 3.6.6 GRE tunnel E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 76: Network Configuration

    ⚫ Local Tunnel IP: Virtual IP address. cannot be in same subnet as LAN network. ⚫ Local Tunnel Mask: Virtual IP mask. ⚫ Keepalive: Send and receive GRE tunnel keepalive message. 3.7 Network Configuration E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 77: Operation Mode

    3.7.1.1 Gets two LAN Ethernet Port for H685 Check the " Wired-WAN port acts as LAN ". Notes: 1) If checked the " Wired-WAN port acts as LAN ", the H685 does not have WAN RJ45 port. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 78: Mobile Configuration

    Cell Modem Type was marked on the back of the router. For example, it shows the following picture. H685 is the router series name, H685w-W-RS232 is the part number name. And the EM820w Cell Modem is the Cell Modem name. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 79 Normally select None. If not work, try to use PAP or CHAP; Username: Fill in the related parameters. Get this parameter from the Sim Card Provider ⚫ or Carrier. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 80 Idle time (minutes): fill in the time. For example, fill in 5, the router will offline after 5 minutes if there is no data for transmission. Scheduled: router dialup or offline with schedule. One group is supported. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 81: Cell Mobile Data Limitation

    ⚫ Warning percent of data used: if the used data arrives this setting, a data limitation alarm SMS will be sent. ⚫ Used(MB): the data has been consumed during this period. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 82: Lan Settings

    ⚫ Bring up on boot: if checked, LAN interface will be set to up when system bootup. If unchecked, LAN interface will be down. Don’t set it to unchecked if don’t have special purpose. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...
  • Page 83 ⚫ Start: Lowest leased address as offset from the network address. ⚫ Limit: Maximum number of leased addresses. ⚫ Leasetime: Expiry time of leased addresses, minimum is 2 minutes(2m). 12H means 12 hours. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 84 ⚫ DHCPv6-Service: has same options with Router Advertisement-Service. ⚫ NDP-Proxy: three options: disabled, relay mode and hybrid mode. ⚫ Always announce default router: Announce as default router even if no public prefix is available. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 85: Wired-Wan

    ⚫ Protocol: the default protocol is DHCP client. If it should be changed to other protocol, such as PPPoE, select protocol PPPoE, then click button “Switch protocol”. After click button “Switch protocol”, the below is shown: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 86: Wifi Settings

    ⚫ Disable: set a wireless network to down. ⚫ Edit: modify detail information of wireless network. ⚫ Remove: delete a wireless network. ⚫ Associated Stations: it is a list of connected wireless stations. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 87: Wifi General Configuration

    ⚫ Transmit Power: from 0dBm to 20dBm supported. 3.7.6.2 WiFi Advanced Configuration ⚫ Country Code: Use ISO/IEC 3166 alpha2 country codes. ⚫ Distance Optimization: Distance to farthest network member in meters. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 88: Wifi Interface Configuration

    H685 User Manual ⚫ Fragmentation Threshold: ⚫ RTS/CTS Threshold: 3.7.6.3 WiFi Interface Configuration ⚫ ESSID: Extended Service Set Identifier. It is the broadcast name. ⚫ Mode: supported options. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 89 ⚫ Network: Choose the network(s) you want to attach to this wireless interface or fill out the create field to define a new network. ⚫ Hide Extended Service Set Identifier: hide SSID means this WiFi cannot be scanned by others. ⚫ WMM Mode: ⚫ Encryption: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 90: Wifi Ap Client

    MAC address into list. 3.7.6.4 WiFi AP client ⚫ Step 1) click button “AP Client” on wireless overview page, then system start to scan all WiFi signals. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 91 ⚫ Step 4) Click Submit if everything is configured. The below is Wi-Fi configuration page. Don’t change Operating frequency, make sure the ESSID and BSSID is from the Wi-Fi you want to join. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 92 H685 User Manual ⚫ Step 5) Click button “Save & Apply” to start AP client. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 93: Interfaces Overview

    H685 User Manual 3.7.7 Interfaces Overview Interfaces overview shows all interfaces status, including uptime, MAC-address, RX, TX and IP address. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 94: Firewall

    H685 User Manual 3.7.8 Firewall 3.7.8.1 General Settings 3.7.8.2 Port Forwards This page includes port forwards list and add new port forwards rule functionality. ⚫ Name: port forward instance name. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 95: Traffic Rules

    WAN ports on the router. The traffic rules overview page content the follow functionalities. Traffic rules list: Open ports on router and create new forward rules: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 96 Source NAT list and create source NAT rule: Traffic rule configuration page: This page allows you to change advanced properties of the traffic rule entry, such as matched source and destination hosts. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 97 H685 User Manual E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 98 ⚫ Source port: traffic rule check if the incoming packet’s TCP/UDP port is matched. ⚫ Destination zone: the zone that the traffic will go to. ⚫ Destination address: traffic rule check if the incoming packet’s destination IP address is E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 99: Dmz

    ⚫ IP Address: Please Enter the IP address of the computer which you want to set as DMZ host ⚫ Protocol: All protocols, TCP+UDP,TCP,UDP. Note: When DMZ host is settled, the computer is completely exposed to the external network; the firewall will not influence this host. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 100: Security

    ⚫ Ping from WAN to LAN: allow or deny ping from remote side to internal LAN subnet. ⚫ HTTPS access from WAN: allow or deny access router web management page from remote side. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 101: Static Routes

    ➢ 255.255.255.255. If the destination IP address is IP network segment, it must match with the Netmask. For ➢ example, if the destination IP is 10.0.0.0, and the Netmask is 255.0.0.0. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 102: Switch

    3. “Tagged” means the Ethernet frame transmits from this port is with VLAN tag. 4. “Off” means this port does not belong to VLAN. For default setting, port 0 belongs to VLAN1, but not belong to VLAN 2. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 103: Dhcp And Dns

    ⚫ Rebind protection: Discard upstream RFC1918 responses。 ⚫ Allow localhost: Allow upstream responses in the 127.0.0.0/8 range, e.g. for RBL services。 ⚫ Domain whitelist: List of domains to allow RFC1918 responses for. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 104 ⚫ Expand hosts: Add local domain suffix to names served from hosts files. ⚫ No negative cache: Do not cache negative replies, e.g. for not existing domains. ⚫ Strict order: DNS servers will be queried in the order of the resolvfile. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 105: Diagnostics

    ⚫ For example if I want to ping www.google.com, type the target domain name or IP address, then click button “Ping”. Wait couple of seconds, the result will be shown below. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 106: Loopback Interface

    H685 User Manual 3.7.13 Loopback Interface The default Loopback interface has IP address 127.0.0.1, the final user can change it here. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 107: Dynamic Routing

    Dynamic Routing is implemented by quagga-0.99.22.4. Dynamic Routing services can be enabled at here: ⚫ Zebra: Zebra is an IP routing manager. Telnet port number is 2601. ⚫ OSPF: Open Shortest Path First. Telnet port number is 2604. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 108: Qos

    OSPF, we need to set OSPF to “Enable” firstly, then open putty in windows: Input the password of OSPF. Then press key”?” for help. 3.7.15 QoS QoS(Quality of Service) can prioritize network traffic selected by addresses, ports or services. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 109 ⚫ Classification group: Specify classgroup used for this interface. ⚫ Calculate overhead: Decrease upload and download ratio to prevent link saturation. ⚫ Download speed: Download limit in kilobits/second. ⚫ Upload speed: Upload limit in kilobits/second. E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...

  • Page 110: Guest Lan(Guest Wifi)

    ⚫ Wi-Fi ssid: the ssid of guest Wi-Fi. ⚫ Wi-Fi device name: choose one Wi-Fi device to carry Guest Wi-Fi, the available device name is radio0 and radio1. Check Wi-FI overview page for the device name. for example: E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
  • Page 111 H685 User Manual E-Lins Technology Co. Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com...
