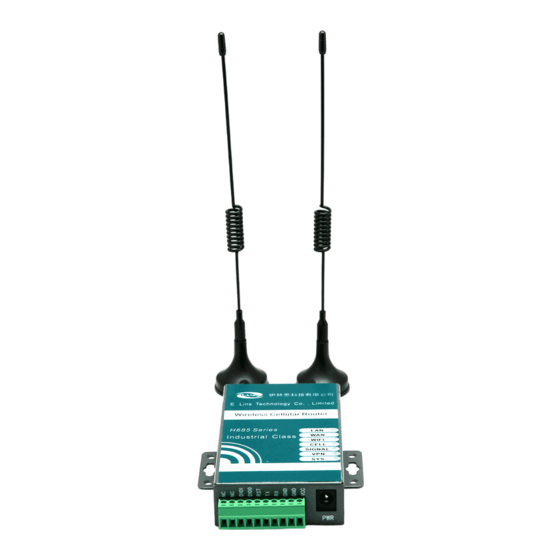

E-Lins H685 Quick Start Manual
Hide thumbs
Also See for H685:
- User manual (143 pages) ,
- Quick start (5 pages) ,
- User manual (111 pages)
Advertisement
Quick Links
Before Installation and Configuration
1. H685 router has different version. Study your router version before installation.
2. For GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA/HSPA+/4G LTE + 5G(SA) or 5G(NSA) version, please get
a SIM card with data business.
3. For CDMA2000 EVDO/CDMA1x version, please get a UIM card with data business or inform us before
order if the network uses non-ruim (nam-flashing).
4. Make sure the sim card or uim card is with enough data business and balance.
5. Make sure the signal is good enough where you test or install the router. Weak signal will make the router
no work. If you find your signal strength is not good, please contact us for high gain antenna.
6. Different countries and carriers use different network band and frequency. E-Lins packs units with free
world-wide-use antenna. It can work, but the data speed or signal may not be good at your sites. Please buy
dedicated high gain antenna from your local suppliers or contact E-Lins to OEM/ODM the antenna.
Notes: This quick start is for GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+/TD-SCDMA/4G LTE network only.
For EVDO network or CDMA network, please refer to manual or contact us freely.
Step 1) Confirm the sim card if can work with other 2G/3G/4G router or modem. If the sim card can not work, the
router will not work correctly.
Step 2) Connect the H685 Router LAN port to a PC via RJ45 cable. Make the PC automatically to get the IP,
Submask, DNS.
The PC will be get a IP of 192.168.1.xxx.
Step 3) At PC web browser, please type:
Username: admin
Step 4) System – Setup Wizard
4.1) General
Tel: +86-755-29230581 E-mail: sales@e-lins.com
http://192.168.1.1
Password: admin
E-Lins Technology Co.,Limited
www.e-lins.com www.szelins.com
H685 Quick Start
Advertisement
Related Manuals for E-Lins H685
Summary of Contents for E-Lins H685
- Page 1 Step 1) Confirm the sim card if can work with other 2G/3G/4G router or modem. If the sim card can not work, the router will not work correctly. Step 2) Connect the H685 Router LAN port to a PC via RJ45 cable. Make the PC automatically to get the IP, Submask, DNS.
- Page 2 H685 Quick Start a) Set the Web Login password; b) Sync with system time with clicking “Sync with browser”, or select the “Timezon”; c) Click “Save & Apply” button for next step; 4.2) Mobile E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com...
- Page 3 H685 Quick Start Item Description Enable Check it “DHCP mode” or “PPP mode”. Normally system will automatically select Mobile connection PIN code If the SIM card uses PIN code, please put here. Wrong PIN code makes router no work. If the SIM card doesn’t use PIN code, please keep blank here.
- Page 4 H685 Quick Start this feature to use. Second APN: configure it referring to “APN”; Second Authentication method: configure it referring to “Authentication method”; Network Type Select the network you want to use. Normally keep default settings Demand Normally keep default settings. For some models, there is no this option.
- Page 5 H685 Quick Start Notes: for security, it is highly recommend to set “Encryption” for the WiFi Radio. Step 5) once the router is online, it gets a WAN IP Address and Status Page will show similar info, also the “Cell LED”...
- Page 6 H685 Quick Start Step 6) In order to keep the router working stably, it’s highly recommended to activate the “ICMP Check” feature. E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com www.szelins.com...
- Page 7 H685 Quick Start Notes: 1) For router working with best stability, we highly suggest activate and use this feature. With this feature, the Router will automatically detect its working status and fix the problem. 2) You can fill in Host1 only, also you can fill in Host1 and Host2 together.
- Page 8 H685 Quick Start E-Lins Technology Co.,Limited Tel: +86-755-29230581 E-mail: sales@e-lins.com www.e-lins.com www.szelins.com...
