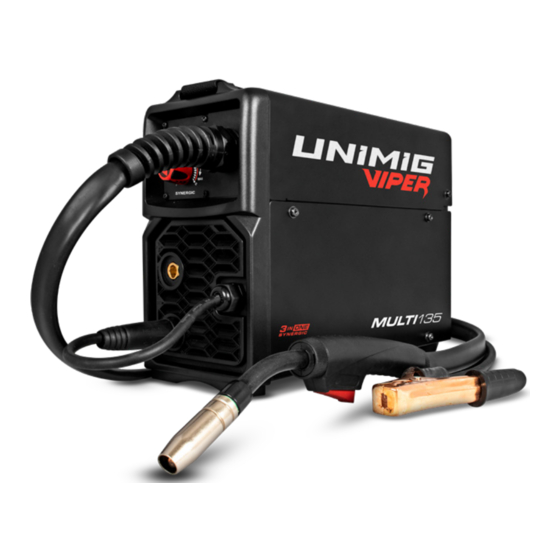

U11005K | Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Unimig VIPER MULTI 135

Summary of Contents for Unimig VIPER MULTI 135

  • Page 1 U11005K | Operating Manual...

  • Page 2: Table Of Contents

    VIPER MULTI 135 OPERATING MANUAL 1. Safety 2. Machine Features 3. Machine Specifications 3.1 Technical Data 3.2 MIG Specifications 3.3 TIG Specifications 3.4 STICK Specifications 3.5 Size & Weight 4. Machine Layout 4.1 Front Panel Layout 4.2 Rear Panel Layout 4.3 Interior Layout 5. Package Contents 6. MIG: Machine Setup (Gasless) 7. MIG: Machine Setup (Gas-Shielded) 8. MIG: Welding Guide...

  • Page 3: Safety

    VIPER MULTI 135 OPERATING MANUAL 1. Safety Welding and cutting equipment can be dangerous to both the operator and people in or near the surrounding working area if the equipment is not correctly operated. Equipment must only be used under the strict and comprehensive observance of all relevant safety regulations.
  • Page 4 VIPER MULTI 135 OPERATING MANUAL Fire hazard • Welding/cutting on closed containers, such as tanks, drums, or pipes, can cause them to explode. Flying sparks from the welding/cutting arc, hot workpiece, and hot equipment can cause fires and burns. Accidental contact of the electrode to metal objects can cause sparks, explosion, overheating, or fire.
  • Page 5 VIPER MULTI 135 OPERATING MANUAL Caution Working environment • The environment in which this welding/cutting equipment is installed must be free of grinding dust, corrosive chemicals, flammable gas or materials etc., and at no more than a maximum of 80% humidity.
  • Page 6 VIPER MULTI 135 OPERATING MANUAL Attention! - Check For Gas Leakage At initial set up and at regular intervals we recommend to check for gas leakage Recommended procedure is as follows: 1. Connect the regulator and gas hose assembly and tighten all connectors and clamps.

  • Page 7: Machine Features

    & flux-cored wires. Lightweight & Portable Gas & Gasless MIG Weighing just over 5kg, the VIPER MULTI 135 SYNERGIC This machine supports both gas-shielded MIG and gasless is ready to go anywhere you need it. Also included is a MIG wire, meaning you can easily run mild steel, stainless shoulder strap for extra comfort and portability.

  • Page 8: Machine Specifications

    VIPER MULTI 135 OPERATING MANUAL 3. Machine Specifications VIPER MULTI 135 3.1 Technical Data 3.3 TIG Specifications Parameter Values Parameter Values U11005K TIG Function Type DC Lift Arc Primary Input Voltage 240V Single Phase TIG Welding Current Range 20-120A Supply Plug 10 AMP TIG Duty Cycle @ 40°C...

  • Page 9: Machine Layout

    VIPER MULTI 135 OPERATING MANUAL 4. Machine Layout 4.1 Front Panel Layout 1. Power LED 2. Thermal Overload LED 3. Weld Mode Selector 4. Synergic MIG Programs 5. Synergic Control Knob 6. Positive Output (+) 7. Polarity Cable 8. Negative Output (-) 9.

  • Page 10: Interior Layout

    VIPER MULTI 135 OPERATING MANUAL 4.3 Interior Layout 13. Wire Spool Holder 14. Wire Feed Assembly...

  • Page 11: Package Contents

    VIPER MULTI 135 OPERATING MANUAL 5. Package Contents VIPER MULTI 135 2m Direct Connect MIG Torch 2m Earth Clamp & Lead 1 x 0.6-0.8mm “V GROOVE” 25/9 - SOLID WIRE 1 x 0.8-0.9mm “F GROOVE” 25/9 - GASLESS WIRE Drive Rollers...

  • Page 12: Mig: Machine Setup (Gasless)

    VIPER MULTI 135 OPERATING MANUAL 6. MIG: Machine Setup (Gasless) 1. Connect the polarity cable to the negative (-) dinse 2. Connect the earth clamp to the positive (+) dinse connection, twist to lock in place. connection, twist to lock in place.
  • Page 13 VIPER MULTI 135 OPERATING MANUAL 5. Unscrew the roller cap. 6. Ensure you have a Knurled (F Groove) drive roller installed. If not, fit correct roller and replace the roller cover. 7. Unscrew spool retaining nut and remove tension 8. Place 1kg wire spool onto the spool holder.
  • Page 14 VIPER MULTI 135 OPERATING MANUAL 9. Replace tension spring and spool holder bracket, then 10. Feed wire through the inlet guide tube to the outlet tighten spool retaining nut. guide tube. Ensure that the wire passes through the roller. 11. Pull down tension knob to lock wire in place. Twist to 12.
  • Page 15 VIPER MULTI 135 OPERATING MANUAL 13. Remove front end consumables from the MIG torch. 14. Hold down the torch trigger to feed wire through to the torch. If the wire slips or stops you will need to adjust the roller tension knob.
  • Page 16 VIPER MULTI 135 OPERATING MANUAL 17. Adjust synergic power knob according to material 18. Connect earth clamp to your workpiece. thickness. Use a higher value for thicker material, and a lower value for thinner material. 19. Line up the torch with your workpiece, then simply pull the trigger to initiate the weld.

  • Page 17: Mig: Machine Setup (Gas-Shielded)

    VIPER MULTI 135 OPERATING MANUAL 7. MIG: Machine Setup (Gas-Shielded) 1. Connect the polarity cable to the positive (+) dinse 2. Connect the earth clamp to the negative (-) dinse connection, twist to lock in place. connection, twist to lock in place.
  • Page 18 VIPER MULTI 135 OPERATING MANUAL 5. Unscrew the roller cap. 6. Ensure you have a V Groove drive roller installed. If not, fit correct roller and replace the roller cover. 7. Unscrew spool retaining nut and remove tension 8. Place 1kg wire spool onto the spool holder.
  • Page 19 VIPER MULTI 135 OPERATING MANUAL 9. Replace tension spring and spool holder bracket, then 10. Feed wire through the inlet guide tube to the outlet tighten spool retaining nut. guide tube. Ensure that the wire passes through the roller. 11. Pull down tension knob to lock wire in place. Twist to 12.
  • Page 20 VIPER MULTI 135 OPERATING MANUAL 13. Remove front end consumables from the MIG torch. 14. Hold down the torch trigger to feed wire through to the torch. If the wire slips or stops you will need to adjust the roller tension knob.
  • Page 21 VIPER MULTI 135 OPERATING MANUAL 17. Tighten securely with wrench. 18. Connect gas hose to the regulator outlet, and crimp in place. 19. Connect gas hose to the gas inlet on the rear of the 20. Adjust gas flow to 8-12L/min.
  • Page 22 VIPER MULTI 135 OPERATING MANUAL 21. Select wire size according to the wire spool installed. 22. Adjust synergic power knob according to material thickness. Use a higher value for thicker material, and a lower value for thinner material. 23. Connect earth clamp to your workpiece.

  • Page 23: Mig: Welding Guide

    VIPER MULTI 135 OPERATING MANUAL 8. MIG: Welding Guide 8.1 MIG (Metal Inert Gas) Welding MIG (Metal Inert Gas) welding, also known as GMAW (Gas Metal Arc Welding) or MAG (Metal Active Gas Welding), is a semi-automatic arc welding process in which a consumable wire electrode and a shielding gas are fed through a welding gun.
  • Page 24 VIPER MULTI 135 OPERATING MANUAL 8.3 Basic MIG Welding Good weld quality and weld profile depend on gun angle, the direction of travel, electrode extension (stick out), travel speed, the thickness of base metal, wire feed speed (amperage) and arc voltage. To follow are some basic guides to assist with your setup.
  • Page 25 VIPER MULTI 135 OPERATING MANUAL 8.4 Travel Angle The travel angle is the right to left, relative to the direction of welding. A travel angle of 5°- 15° is ideal and produces the right level of control over the weld pool. A travel angle higher than 20° will give an unstable arc condition with poor weld metal transfer, less penetration, high levels of spatter, weak gas shielding and a poor quality finished weld.
  • Page 26 VIPER MULTI 135 OPERATING MANUAL 8.7 Travel Speed Travel speed is the rate that the gun is moved along the weld joint and is usually measured in mm per minute. Travel speeds can vary depending on conditions and the welder's skill and is limited to the welder's ability to control the weld pool.
  • Page 27 VIPER MULTI 135 Using poor quality milled wire can result in poor performance and appearance. To ensure optimal performance when welding, use standards approved wire such as UNIMIG HYPERMIG wire. Welding Setup Guide Use a smaller diameter wire for thin base metals. For thicker materials use a larger wire diameter and larger machine.

  • Page 28: Mma: Machine Setup

    VIPER MULTI 135 OPERATING MANUAL 9. MMA: Machine Setup 1. For DC+ electrodes, connect earth clamp to the 2. For DC- electrodes, connect earth clamp to the negative (-) dinse connection, and electrode holder to positive (+) dinse connection, and electrode holder to the positive (+) dinse connection.
  • Page 29 VIPER MULTI 135 OPERATING MANUAL 5. Push down handle to open up electrode holder grip. 6. Place electrode into electrode holder. 7. Release handle to securely grip electrode. 8. Adjust amperage to desired setting.
  • Page 30 VIPER MULTI 135 OPERATING MANUAL 9. Connect earth clamp to your workpiece. 10. Strike electrode against workpiece to initiate arc. 11. Drag along workpiece to weld. Pull the electrode away from the workpiece to finish weld.

  • Page 31: Mma: Welding Guide

    VIPER MULTI 135 OPERATING MANUAL 10. MMA: Welding Guide One of the most common types of arc welding is Manual Metal Arc welding, also known as MMA welding. An electric current is used to strike an arc between the base material and a consumable electrode rod or ‘stick’. The electrode rod is made of a material that is compatible with the base material being welded.
  • Page 32 VIPER MULTI 135 OPERATING MANUAL 10.1 Electrode Selection As a general rule, the selection of an electrode is straight forward, in that it is only a matter of selecting an electrode of similar composition to the parent metal. However, for some metals, there is a choice of several electrodes, each of which has particular properties to suit specific classes of work.

  • Page 33: Tig: Machine Setup

    VIPER MULTI 135 OPERATING MANUAL 11. TIG: Machine Setup 1. Connect the TIG torch to the negative (-) dinse 2. Connect the earth clamp to the positive (+) dinse connection, twist to lock in place. connection, twist to lock in place.
  • Page 34 VIPER MULTI 135 OPERATING MANUAL 5. Place argon flowmeter regulator into your gas outlet. 6. Tighten securely with wrench. 7. Connect gas hose to the flowmeter outlet, and crimp in 8. Adjust gas flow to 6-12L/min. place.
  • Page 35 VIPER MULTI 135 OPERATING MANUAL 9. Set the welding current using the amperage control 10. Connect earth clamp to your workpiece. dial. 11. Turn on the gas valve located on the TIG torch handle. 12. Lay the outside edge of the gas cup on the workpiece...
  • Page 36 VIPER MULTI 135 OPERATING MANUAL 13. With a small movement rotate the gas cup forward so 14. Now rotate the gas cup in the reverse direction to lift that the tungsten electrode touches the workpiece. the tungsten electrode from the workpiece to create the arc.

  • Page 37: Tig: Welding Guide

    VIPER MULTI 135 OPERATING MANUAL 12. TIG: Welding Guide 12.1 DC TIG Welding The DC power source uses what is known as DC (direct current) in which the main electrical component known as electrons flow in only one direction from the negative pole (terminal) to the positive pole (terminal). In the DC electrical circuit, there is an electrical principle at work which should always be taken into account when using any DC circuit.
  • Page 38 VIPER MULTI 135 OPERATING MANUAL 12.3 TIG Welding Fusion Technique Manual TIG welding is often considered the most difficult of all the welding processes. Because the welder must maintain a short arc length, great care and skill are required to prevent contact between the electrode and the workpiece. Similar to Oxygen Acetylene torch welding, TIG welding typically requires two hands and in most instances requires the welder to manually feed a filler wire into the weld pool with one hand while manipulating the welding torch in the other.
  • Page 39 VIPER MULTI 135 OPERATING MANUAL TIG TUNGSTEN SELECTION GUIDE 12.5 TIG Tungsten Selection Guide LANTHANATED ZIRCONIATED THORIATED RARE EARTH CERIATED (GOLD) (WHITE) (RED) (PURPLE) (GREY)     AC CURRENT     DC CURRENT    ...
  • Page 40 VIPER MULTI 135 OPERATING MANUAL 12.7 Tungsten Preparation Always use DIAMOND wheels when grinding and cutting. While tungsten is a tough material, the surface of a diamond wheel is harder, and this makes for smooth grinding. Grinding without diamond wheels, such as aluminium oxide wheels, can lead to jagged edges, imperfections, or poor surface finishes not visible to the eye that will contribute to weld inconsistency and weld defects.

  • Page 41: Drive Roller Selection

    VIPER MULTI 135 OPERATING MANUAL 13. Drive Roller Selection The importance of smooth, consistent wire feeding during MIG welding cannot be emphasised enough. The smoother the wire feed, the better the welding will be. Feed rollers or drive rollers are used to feed the wire mechanically along the length of the welding gun.

  • Page 42: Mig Torch Consumables

    VIPER MULTI 135 OPERATING MANUAL 14. MIG Torch Consumables Description PCTH14 TIP HOLDER Description PGNS15 NOZZLE SPRING Description PCT0008-06 CONTACT TIPS - Steel 0.6mm PCT0008-08 CONTACT TIPS - Steel 0.8mm PCT0008-09 CONTACT TIPS - Steel 0.9mm Description PGN15CON GAS NOZZLE - Conical...

  • Page 43: Mig Troubleshooting

    VIPER MULTI 135 OPERATING MANUAL 15. MIG Troubleshooting 15.1 Excessive Spatter • Wire feed speed set too high: Select lower wire feed speed. • Voltage too high: Select a lower voltage setting. • Wrong polarity set: Select the correct polarity for the wire being used - see machine setup guide.
  • Page 44 VIPER MULTI 135 OPERATING MANUAL 15.6 Lack of penetration - Shallow fusion between weld metal and base metal • Poor or incorrect joint preparation: Material too thick. Joint preparation and design needs to allow access to bottom of groove while maintaining proper welding wire extension and arc characteristics. Keep the arc at the leading edge of the weld pool and maintain the gun angle at 5°...

  • Page 45: Tig Troubleshooting

    VIPER MULTI 135 OPERATING MANUAL 16. TIG Troubleshooting 16.1 Tungsten burning away quickly • Incorrect gas or no gas: Use pure argon. Check cylinder has gas is connected, turned on and torch valve is open. • Inadequate gas flow: Check the gas is connected, check hoses, gas valve and torch are not restricted.
  • Page 46 VIPER MULTI 135 OPERATING MANUAL 16.6 Arc wanders during DC welding • Poor gas flow: Check and set the gas flow between 6-12 L/min flow rate. • Amperage too low: Increase the amperage. • Incorrect arc length: Lower torch so that the tungsten is off of the work piece 2-5mm.

  • Page 47: Mma (Stick) Troubleshooting

    VIPER MULTI 135 OPERATING MANUAL 17. MMA (STICK) Troubleshooting 17.1 No arc • Incomplete welding circuit: Check earth lead is connected. Check all cable connections. • Wrong mode selected: Check the MMA selector switch is selected. • No power supply: Check that the machine is switched on and has a power supply.
  • Page 48 PH: (02) 9780 4200 PH: (07) 3333 2855 PH: (03) 8682 9911 PH: (08) 6363 5111 FAX: (02) 9780 4210 FAX: (07) 3274 5829 FAX: (03) 9333 7867 FAX: (08) 9417 4781 EMAIL: sales@unimig.com.au EMAIL: qld@unimig.com.au EMAIL: sales@unimig.com.au EMAIL: wasales@unimig.com.au...
