HIKVISION DS-K1T671TMW Quick Start Manual

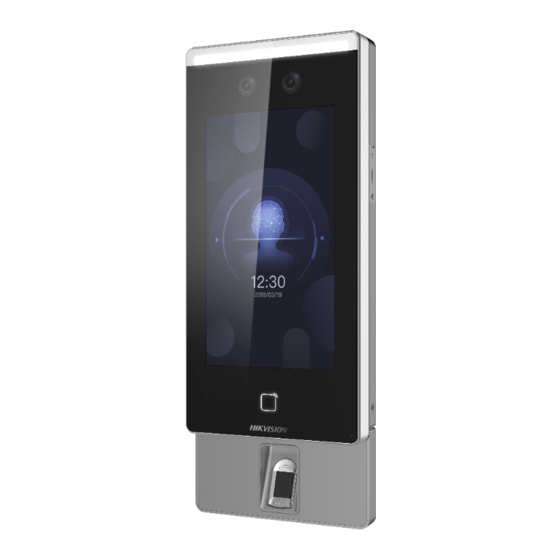

DS-K1T671 Series Face Recognition Terminal
Quick Start Guide
UD15607B-A
© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its
affiliates (hereinafter referred to as "Hikvision"), and it cannot be reproduced, changed,
translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not
make any warranties, guarantees or representations, express or implied, regarding to the
Manual, any information contained herein.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts,
images and all other information hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version of this Manual at the Hikvision
website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in
supporting the Product.
Trademarks Acknowledgement
and other Hikvision's trademarks and logos are the properties of Hikvision in
various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED
"AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTO-
RY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU
IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH
OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK,
HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,
HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND
YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE
APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A
MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING
WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA
PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS
OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR
EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS
ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To protect
data, the development of Hikvision devices incorporates privacy by design principles. For
example, for device with facial recognition features, biometrics data is stored in your
device with encryption method; for fingerprint device, only fingerprint template will be
saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in
accordance with the applicable data protection laws and regulations, including without
limitation, conducting security controls to safeguard personal data, such as, implementing
reasonable administrative and physical security controls, conduct periodic reviews and
assessments of the effectiveness of your security controls.
Scan the QR code to get the user manual for detailed information.
Note that mobile data charges may apply if Wi-Fi is unavailable.
Use only power supplies listed in the user instructions:
Model Manufacturer Standard
C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. CEE
C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd. BS
ADS-24S-12 1224GPG Shenzhen Honor Electronic Co., Ltd. CEE
1
Installation
Installation Environment:
Indoor and outdoor installation are supported. If installing the device
indoors, the device should be at least 2 meters away from the light, and
at least 3 meters away from the window or the door. If installing the
device outdoors, you should apply Sililcone sealant among the cable
wiring area to keep the raindrop from entering.
Make sure the environment illumination is more than 100 Lux.
10Lux 100~850Lux ＞1200Lux
2m
3m
Backlight Direct Sunlight
Close to Light
Indirect Sunlight Direct Sunlight
through Window through Window
2.1
Device Wiring (Without Secure Door Control Unit
When connecting door magnetic sensor and exit button, the device and the
RS-485 card reader should use the common ground connection.
The Wiegand terminal here is a Wiegand input terminal. You should set
the face recognition terminal's Wiegand direction to "Input". If you should connect
to an access controller, you should set the Wiegand direction to "Output". For details,
see Setting Wiegand Parameters in Communication Settings in the user manual.
The suggested external power supply for door lock is 12 V, 1A.
The suggested external power supply for Wiegand card reader is 12 V, 1 A.
Do not wire the device to the electric supply directly.
Before you start:
According to the baseline on the mounting template, stick the mounting template on the wall or
other surface, 1.4 meters higher than the ground.
Make sure the output of external power supply fulfils LPS.
Steps:
1 Drill holes on the wall or other surface according to the mounting template and install the gang box.
Use two supplied screws (4_KA4×22-SUS) to secure the mounting plate on the gang box.
2
Use another four supplied screws to secure the mounting plate on the wall.
Route the cables through the cable hole of the mounting plate, and connect to the corresponding
external devices' cables.
Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
3 Insert the fingerprint module to the holes at the bottom of the main part.
Align the device with the mounting plate and hang the terminal on the
4
mounting plate.
Make sure the two sheets on each side of the mount plate have been in the
5
holes at the back of the device.
Use two supplied screws (SC-M4×12TP10-SUS) to secure the device and the
mounting plate.
Apply
Silicone
The installation height here is the recommended height. You can change it according
sealant
to your actual needs.
You can also install the device on the wall or other places without the gang box. For
details, refer to the User Manual.
For easy installation, drill holes on mounting surface according to the supplied
mounting template.
87 mm
Hole1 Hole1
Mounting Template
4
Datum
Recommended Height:1.40 m.
1
2
Hole2
Hole3
Hole2 Hole2
3
Hole1 Hole1
Hole2
Network Interface
Dimensions:
IR Light IR Light USB Interface
116.5 mm 33 mm
White Light
Camera
Screen
Card Presenting
Area
Fingerprint
Scanner
SIM Card Card Slot
(Reserved)
Network
Interface
5
PSAM Card
Card Slot
5 (Reserved)
The figures are for reference only.
(NC)
(COM)
(NO)
Door Contact
BTN
Debugging
Port
(For debugging
only)
Power
Interface
Wiring
Terminal
