Summary of Contents for Omega OCG63X

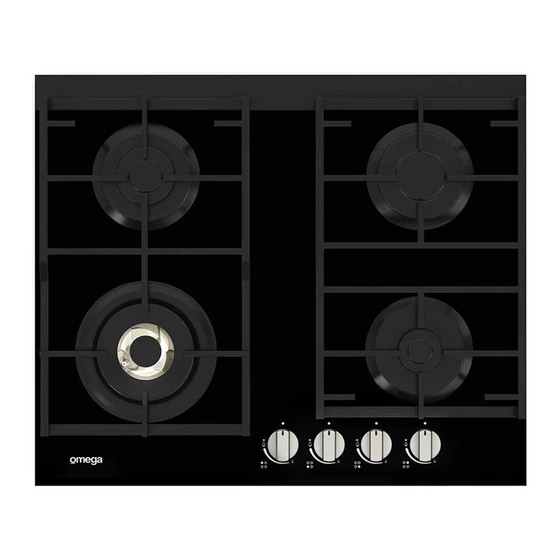

- Page 1 INSTRUCTIONS FOR THE INSTALLATION AND USE OF BUILT-IN HOT PLATES OCG63X / OCG63FX OCG75X / OCG75FX OCG90X / OCG90FX OCG63XB / OCG63FXB OCG75XB / OCG75FXB OCG90XB / OCG90FXB attaccare qui copia targhetta segnaletica Always serves you well. omegaappliances.com.au...
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that they can learn how to operate the appliance and read the corresponding notice. -
Page 3: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by authorised personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. - Page 4 INSTRUCTIONS FOR THE USER 1 - Burner 2 - Flame safeguard sensor (OCG63FX, OCG63FXB, OCG75FX, OCG75FXB, OCG90FX and OCG90FXB only) 3 - Injector 4 - Ignition spark plug If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call.
-
Page 5: Instructions For The Installer
INSTRUCTIONS FOR THE USER CLEANING Wash with warm soapy water and rinse with clean water. Where the stainless steel has become extremely dirty Before any operation, disconnect the appliance from with signs of surface discolouration (due to periods of the electrical supply. neglect or misuse) use a stainless steel cleaner Don’t use a steam cleaner for the cleaning the hob. -
Page 6: Installation Room
INSTRUCTIONS FOR THE INSTALLER Adjacent walls, cupboards and protection for Fastening the top combustible materials. Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting the Ensure that the appliance is installed in cook-top. - Page 7 INSTRUCTIONS FOR THE INSTALLER OPERATION ON N.G / S.N.G. The ½” tapered thread connects to the outlet of the regulator, and is sealed on the thread using Gas Connection approved thread sealing tape or approved thread sealing compound. This appliance is supplied for use with Natural The inlet of the regulator is a ½”...
-
Page 8: Testing Appliance Operation
INSTRUCTIONS FOR THE INSTALLER Electrical connection Adjusting the burners The appliance is supplied with a standard 10 The lowest flame point must always be properly Amp service cord terminated by a 3-pin plug for adjusted and the flame must remain on even if connection to a standard household socket. - Page 9 MAXIMUM MINIMUM...
- Page 10 Electrical Supply Gas Connection Cord MODEL: - OCG63X - OCG63XB - OCG63FX - OCG63FXB Depth of cooktop casing from benchtop surface : 44 mm Gas Connection Electrical Supply Cord MODEL: - OCG75X - OCG75XB - OCG75FX - OCG75FXB Depth of cooktop casing...
-
Page 11: Appliance Details
Adjust. 13.0 Universal LPG 2.75 12.5 DOUBLE CROWN Natural 1.00 Adjust. 12.5 WIRING DIAGRAM MODEL: - OCG63X - OCG75X - OCG90X - OCG63XB - OCG75XB - OCG90XB - OCG63FX - OCG75FX - OCG90FX - OCG63FXB - OCG75FXB - OCG90FXB TRIPOLAR... - Page 12 The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller Incorrect fitment Correct fitment Examples of positioning of mini-trivet MODEL: - OCG63X - OCG63XB - OCG63FX - OCG63FXB MODEL: - OCG75X - OCG75XB...
