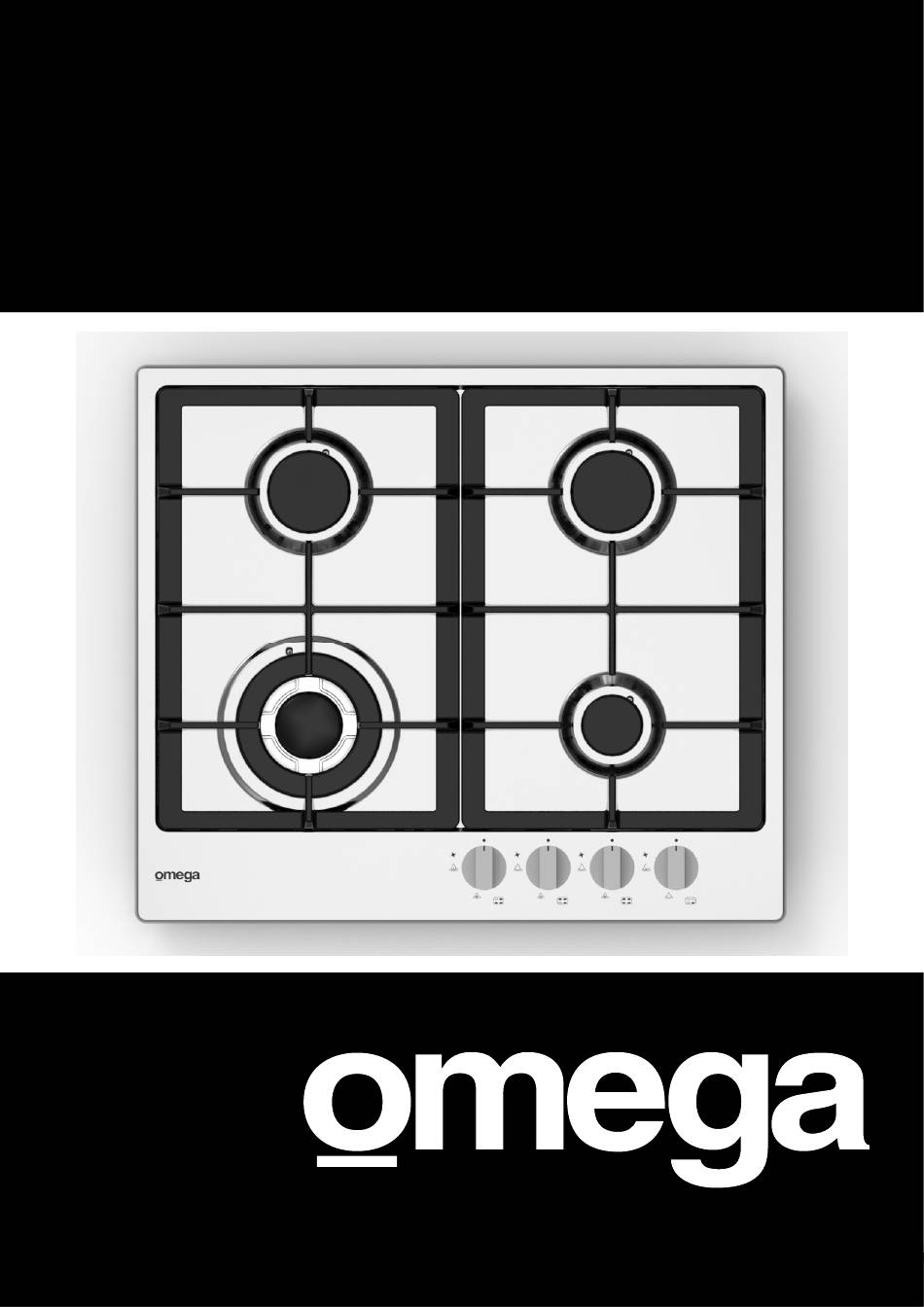

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR OMEGA 4 BURNER GAS COOKTOP Models Included: OCG62XA IMBERLEY INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS...
-
Page 2: Table Of Contents
It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
APPLIANCE DETAILS Gas Type: ULPG Burner Pressure: 2.75 kPa 1.00 kPa Injector Injector MJ/hr Rating MJ/hr Rating Diameter Diameter Injector Diameter: Auxiliary Burner Ø0.55 mm 4.0 MJ/ hr Ø0.90 mm 4.0 MJ/ hr Injector Diameter: Semi-Rapid Burners Ø0.70 mm 6.5 MJ/ hr Ø1.10 mm 6.2 MJ/ hr Injector Diameter: Wok Burner... -
Page 5: Gas Connections
GAS CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Check Gas Type and specifications plate placed on the bottom face of the unit. All gas fitting work, service and repairs can only be performed by an authorized person in accordance with the current edition of AS5601 and local gas regulations. - Page 6 ORIENTATION OF THE ELBOW The appliance is supplied with a gas connection oriented towards the centre of the cooking hob. The connection to the gas supply must be effected only from this side or in vertical position by turning the elbow downwards.
-
Page 7: Electrical Connections
LUBRICATION OF THE GAS TAPS This can only be performed by an authorized person. It may be required if the gas taps become stiff and difficult to turn. LEAK TESTING 1. Make sure gas control knobs are Off and turn the cylinder valve On. 2. -
Page 8: Installation
—connect the blue wire to the terminal marked with the letter N or coloured black; —connect the brown wire to the terminal marked with the letter L or coloured red. After having installed the appliance, the power switch or power plug must always be in an accessible position. Electrical connection diagram N.B For connections to the mains power supply, never use adapters, reductions or multiple power points as these may overheat and catch fire. - Page 9 INSTALLATION IN KITCHEN CABINET WITH DOOR The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
-
Page 10: Operating Instructions
CLEANING & STORAGE CLEANING Please follow the maintenance & cleaning guidelines below to keep your Omega cooktop in good working order. The cooktop should be cleaned regularly with all stains and boil overs being cleaned up. Do not allow stains and boil overs to become burnt onto the appliance. - Page 11 Burners and enameled components are only to be washed with soapy water & sponges. Do not use abrasive cleaners on these components. When cleaning burner components, please ensure that they are fully dry before re-placing on the cooktop and before use. Ensure that all components are placed back onto the cooktop correctly.
- Page 12 A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW 2208 IN AUSTRALIA: 1300 795 572 IN NEW ZEALAND: (09) 415 6000 www.omegaappliances.com.au IM Ref: OCG62XA 06/2015/02FC F O R I N D O O R U S E O N L Y...
