Relion 670/650 SERIES
670/650 series
Version 2.2 IEC
Quick start guide

Advertisement

Table of Contents
loading

Related Manuals for Hitachi Relion 670 Series

Summary of Contents for Hitachi Relion 670 Series

  • Page 1 Relion 670/650 SERIES 670/650 series Version 2.2 IEC Quick start guide...
  • Page 3 Document ID: 1MRK500129-UEN Issued: June 2023 Revision: J Product version: 2.2 © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 5: Table Of Contents

    Editing the network settings...............35 Setting up communication between PCM600 and the IED..........35 8.1.1 When IED has blank front panel..................36 8.1.2 When IED has front port with RJ-45..................36 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 6 Table of contents 1MRK500129-UEN Rev. J Section 9 Working with the PCM software..............41 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 7: Introduction

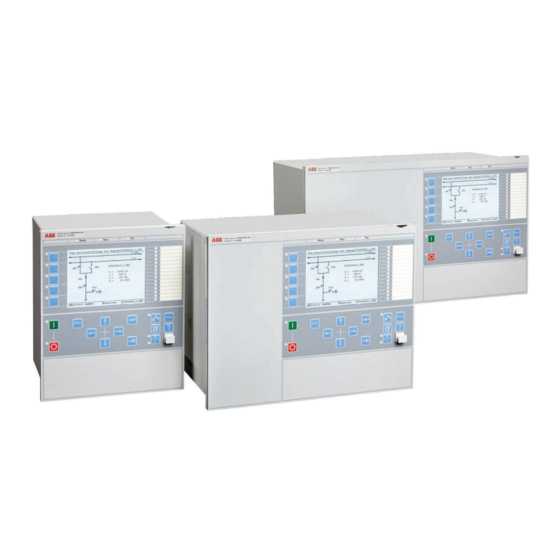

    IED. The guide describes basic instructions only. For complete information, see the IED manuals. GUID-CE76425E-C9C1-404F-8BB3-AD133E903EE7 V6 EN-US Figure 1: Sample of an IED 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 9: Safety Information

    IED and measuring circuitry may be damaged. GUID-BEDD698E-356C-4CF9-9DAE-64DB3CEADEAD v1 Dangerous voltages can occur on the connectors, even though the auxiliary voltage has been disconnected. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 10: Caution Signs

    Always use a conductive wrist strap connected to protective earth when replacing modules. Electrostatic discharge (ESD) may damage the module and IED circuitry. M2698-2 v2 Take care to avoid electrical shock during installation and commissioning. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 11 REX062 unit. The surface may be hot during normal operation. The temperature can rise 50°C in REX061 and 65°C in REX062 above the ambient temperature. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 13: Unpacking And Inspecting

    GUID-966A05ED-CD30-4F66-957E-00FF38943A73 v6 If damage has occurred during transport, appropriate actions must be taken against the latest carrier. Please inform the nearest Hitachi Energy office or representative. Notify Hitachi Energy immediately if there are any discrepancies in relation to the delivery documents.

  • Page 15: Ied Hardware

    Variants of case size with or without local HMI display M15024-3 v7 GUID-09FD09A7-9A33-4FC7-B700-7FDCD673A10D V1 EN-US Figure 2: Example of HMI without display IEC04000458 V3 EN-US Figure 3: 1/2 19” case with local HMI display. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 16 IED hardware IEC05000762 V3 EN-US Figure 4: 3/4 19” case with local HMI display. IEC04000460 V3 EN-US Figure 5: 1/1 19” case with local HMI display. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 17: Case From The Front And Rear Sides

    3/3A 4/3B 1MRK002801-AC-2-670-1.2-PG V.3 EN 1MRK002801-AC-2-670-1.2-PG V5 EN-US 1) SR LDCM, MR LDCM and LR LDCM 2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 18 X401 1/1A 2/1B 3/3A 4/3B 1MRK002801-AC-3-670-1.2-PG V5 EN-US 1) SR LDCM, MR LDCM and LR LDCM 2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 19 3/3A 4/3B 1MRK002801-AC-4-670-1.2-PG V.3 EN 1MRK002801-AC-4-670-1.2-PG V5 EN-US 1) SR LDCM, MR LDCM and LR LDCM 2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 20 3/3A 4/3B 1MRK002801-AC-5-670-1.2-PG V.3 EN 1MRK002801-AC-5-670-1.2-PG V5 EN-US 1) SR LDCM, MR LDCM and LR LDCM 2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 21 SLM and LDCM modules not used in RES670. 1) SR LDCM, MR LDCM and LR LDCM 2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 23: Powering Up The Ied

    Transformer designations Transformer input module, rated currents and voltages Optional, customer specific information Order number, dc supply voltage and rated frequency Product type, description and serial number 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 24: How To Connect To The Power Supply

    IED, and if necessary, it must be possible to disconnect manually from the power supply. A fuse or circuit breaker up to 6 A and 250 V should be close to the equipment. Ensure that the IED is earthed before starting it. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 25: Energizing The Ied

    Ready LED flashes. Further information on the error may be visible on the local HMI under Main menu/Diagnostics/IED status/General. Note down the displayed information as reference when contacting Hitachi Energy technical support. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 27: Lhmi Overview

    The keypad also contains programmable push-buttons that can be configured either as menu shortcut or control buttons. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 28 LHMI keypad with object control, navigation and command push-buttons and RJ-45 communication port 1...5 Function button Close Open Escape Left Down Right Enter Remote/Local Uplink LED Not in use Multipage Menu Clear Help 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 29 Changing the active digit of a parameter when entering a new setting value. Right • Activating the authorization procedure, when the user is not logged in. • Logging out, when the user is currently logged in. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 30: Display

    240 pixels. The character size can vary. The amount of characters and rows fitting the view depends on the character size and the view that is shown. The display view is divided into four basic areas. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 31 If text, pictures or other items do not fit in the display, a vertical scroll bar appears on the right. The text in content area is truncated from the beginning if it does not fit in the display horizontally. Truncation is indicated with three dots. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 32 Figure 12: Function button panel The indication LED panel shows on request the alarm text labels for the indication LEDs. Three indication LED pages are available. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 33: Leds

    OPENCLOSE_LED function block. For instance, OPENCLOSE_LED can be connected to a circuit breaker to indicate the breaker open/close status on the LEDs. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 34: Local Hmi Functionality

    The blocking of functions through the IEC 61850 protocol can be reset in Main menu/Test/Reset IEC61850 Mod. The yellow LED changes to either ON or OFF state depending on the state of operation. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 35 LatchedAck-F-S sequence: The activation signal is ON, or it is off but the indication has not been acknowledged. • LatchedAck-S-F sequence: The indication has been acknowledged, but the activation signal is still ON. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 37: Connecting To The Pcm600 Software

    Gigabit Ethernet is used in the system, a crossover cable is not required. If it is unsure whether the PC has this functionality, then use a crossover cable. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 38: Installing The Pcm600 Software

    RJ45 cable connection to the front port of the IED The default IP address of the front port of the IED, 10.1.150.3, is used to establish a connection. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 39: Editing The Network Settings

    Setting up communication between PCM600 and the SEMOD58570-5 v16 The communication between the IED and PCM600 is independent of the communication protocol used within the substation or to the NCC. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.

  • Page 40: When Ied Has Blank Front Panel

    An ethernet cable (max 2 m length) with RJ-45 connectors is needed to connect two physical Ethernet interfaces together without a hub, router, bridge or switch in between. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 41 Select Search programs and files in the Start menu in Windows. IEC13000057-1-en.vsd IEC13000057 V1 EN-US Figure 17: Select: Search programs and files Type View network connections and click on the View network connections icon. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 42 IEC13000059 V1 EN-US Figure 19: Right-click Local Area Connection and select Properties Select the TCP/IPv4 protocol from the list of configured components using this connection and click Properties. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 43 Select: Use the following IP address Close all open windows and start PCM600. The PC and IED must belong to the same subnetwork for this set-up to work. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 44 The same method is used as for connecting to the front port. The PC and IED must belong to the same subnetwork for this set-up to work. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 45 To operate with PCM600, there must be at least one IED Connectivity Package installed and selected to be used with the PCM600 version installed. See the PCM600 getting started guide detailed information about working with PCM600. 670/650 series Quick start guide © 2018 - 2023 Hitachi Energy. All rights reserved.
  • Page 48 ABB Power Grids Sweden AB Grid Automation Products SE-721 59 Västerås, Sweden Phone +46 (0) 10 738 00 00 https://hitachiabb-powergrids.com/protection-control Scan this QR code to visit our website © 2018 - 2023 Hitachi Energy. All rights reserved.
