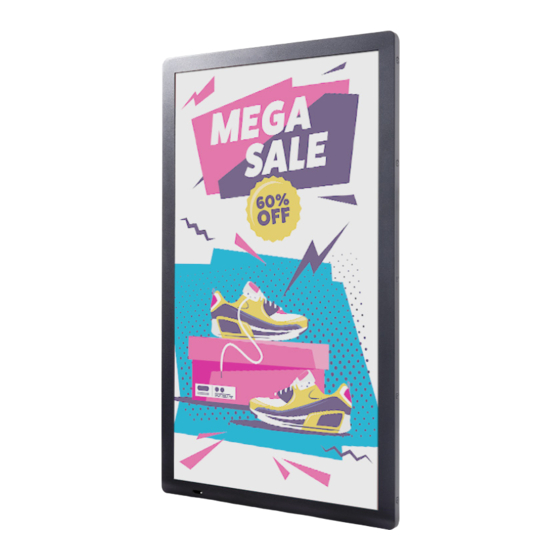

- Page 1 Tableaux Display 4000 Series 25BDL4050I User Manual (English) www.philips.com/ppds...
- Page 2 25BDL4050I Safety Instructions • Keep the display out of direct sunlight and away from stoves or any other heat sources. Warnings and Precautions • Keep the display away from oil, otherwise the plastic cover may be damaged. KNOW THESE SAFETY SYMBOLS •...
- Page 3 25BDL4050I 8. Do not install near any heat sources such as radiators, of the equalizer to maximum increases the heat registers, stoves, or other apparatus (including earphone and headphone output voltage amplifiers) that produce heat. and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an 9.
- Page 4 25BDL4050I Regulatory information Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 中国 RoHS Battery abuse or mishandling can cause overheating, liquid 根据中国大陆 《电器电子产品有害物质限制使用管理办法》 ， 以下 leakage, or an explosion. 部分列出了本产品中可能包含的有害物质的名称和含量。...
- Page 5 25BDL4050I 中国 RoHS 合格评定制度标识 为从源头上限制电器电子产品有害物质使用，减少产品废弃后对 环境造成的污染，增加绿色产品供给，促进绿色消费，本产品满 足《电器电子产品有害物质限制使用管理办法》引用的相关标准 要求 ; 根据《电器电子产品有害物质限制使用合格评定制度实施 安排》之规定，采用符合性申明之合格评定方式，按规定要求使 用如下合格评定标识： SDoC 仅适用于非热带气候条件下安全使用 : 仅适用于非热带气候条件下安全使用。 “注意 如果电池更换不当会有爆炸危险 只能用同样类型或等效类型的电池来更换” “接入本设备的有线网络天线必须与保护接地隔离 , 不 然可能会引起着火等危险！” 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) ○ ○ ○ ○ ○...
-
Page 6: Table Of Contents
4.2. Copy pictures ................5 4.3. Start picture carousel .............5 4.4. Carousel function setting .............5 4.5. Indicator ..................7 Cleaning and Troubleshooting ............8 5.1. Cleaning ..................8 5.2. Troubleshooting ..............9 Technical Specifications ..............10 Warranty policy for Philips Professional Display Solutions ..11... -
Page 7: Unpacking And Installation
I Line 25BDL4050I • Power cord • Power Adapter • Philips logo plate Quick start guide E-Paper Display Power Cord Adapter Philips logo plate * Items may differ in different locations * Display design and accessories may differ from the images shown. -
Page 8: Mounting On A Wall (Optional)
25BDL4050I 1.4. Mounting on a Wall (Optional) To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complied with TUV-GS and /or UL1678 standard in North America. Unboxing 1. -
Page 9: Parts And Functions
25BDL4050I Parts and Functions Introduction to the terminals Universal key Press the UNIVERSAL key to pause the picture (that is, stay at the current picture and not show the next one). Press it again to continue displaying the next pictures. Power key Turn the main power on or off. -
Page 10: Connecting External Equipment
25BDL4050I Connecting External Equipment 3.1. Connecting audio devices [Audio out] 3.1.1. Using network interface WiFi INTERNET 3.2. Connect USB USB2.0... -
Page 11: Operation Guide For Local Carousel Application
25BDL4050I Operation Guide for Local Carousel Application 4.1. Picture requirements 1. bmp, png, jpg, jpeg, webp formats 2. Resolution: The vertical screen supports a resolution of 1800 * 3200, and the horizontal screen supports a resolution of 3200 * 1800. 3. - Page 12 25BDL4050I Customize the carousel profile: • Follow this format for the config.xml content: <?xml version=”1.0”?> <epd_config> <sleep on="1"></sleep> <interval second="30"></interval> <remember on="1"></remember> <rotate degree="0"></rotate> <image path="img1.bmp" x="0" y="0"></image> <image path="img2.bmp" x="0" y="0"></image> <image path="img3.bmp" x="0" y="0"></image> </epd_config> Properties Value Description "0": The EPD device does not enter sleep mode (higher power consumption) sleep...
-
Page 13: Indicator
25BDL4050I 4.5. Indicator • Booting: Flashing green • Booting completed: Solid blue • After the screen is ready to be refreshed until the refresh is completed: Flashing blue • Sleep/Shut down: Off • The battery is less than 15%: The red light flashing means the battery needs to be replaced. •... -
Page 14: Cleaning And Troubleshooting
25BDL4050I Cleaning and Troubleshooting 5.1. Cleaning Caution When Using the Display • Be sure to disconnect all cables before moving the monitor. Moving the monitor with its cables attached may damage the cables and thus cause fire or electric shock. •... -
Page 15: Troubleshooting
25BDL4050I 5.2. Troubleshooting Problem Possible reason Solution No screen update. 1. The power cord is disconnected or the 1. Replace four fully charged batteries or plug battery may be dead. in the power cord. 2. The main power switch is not turned on. 2. -
Page 16: Technical Specifications
25BDL4050I Technical Specifications Display Item Specifications Screen Size (Active Area) 640 mm / 25.3 inches Aspect Ratio 16:9 Number of pixels 3200（H） x 1800（V） Pixel pitch 0.175 （H） x 0.175 （V） [mm] Displayable colors 60,000 colors In/Out Terminals: Item Specifications Audio Output (3.5mm phone jack x 1) 0.5V [rms] (Normal) / 2 Channel (L+R) USB input... -
Page 17: Warranty Policy For Philips Professional Display Solutions
LIMITED WARRANTY In the unlikely event the product requires service, we will arrange for your Philips product to be serviced free-of-charge within the warranty period, provided that the product was used in accordance with the user manual (e.g. in the intended environment). - Page 18 Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Standard warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow the local warranty statement.
- Page 19 Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. Specifications are subject to change without notice. Version: V0.04 2023-05-16...
