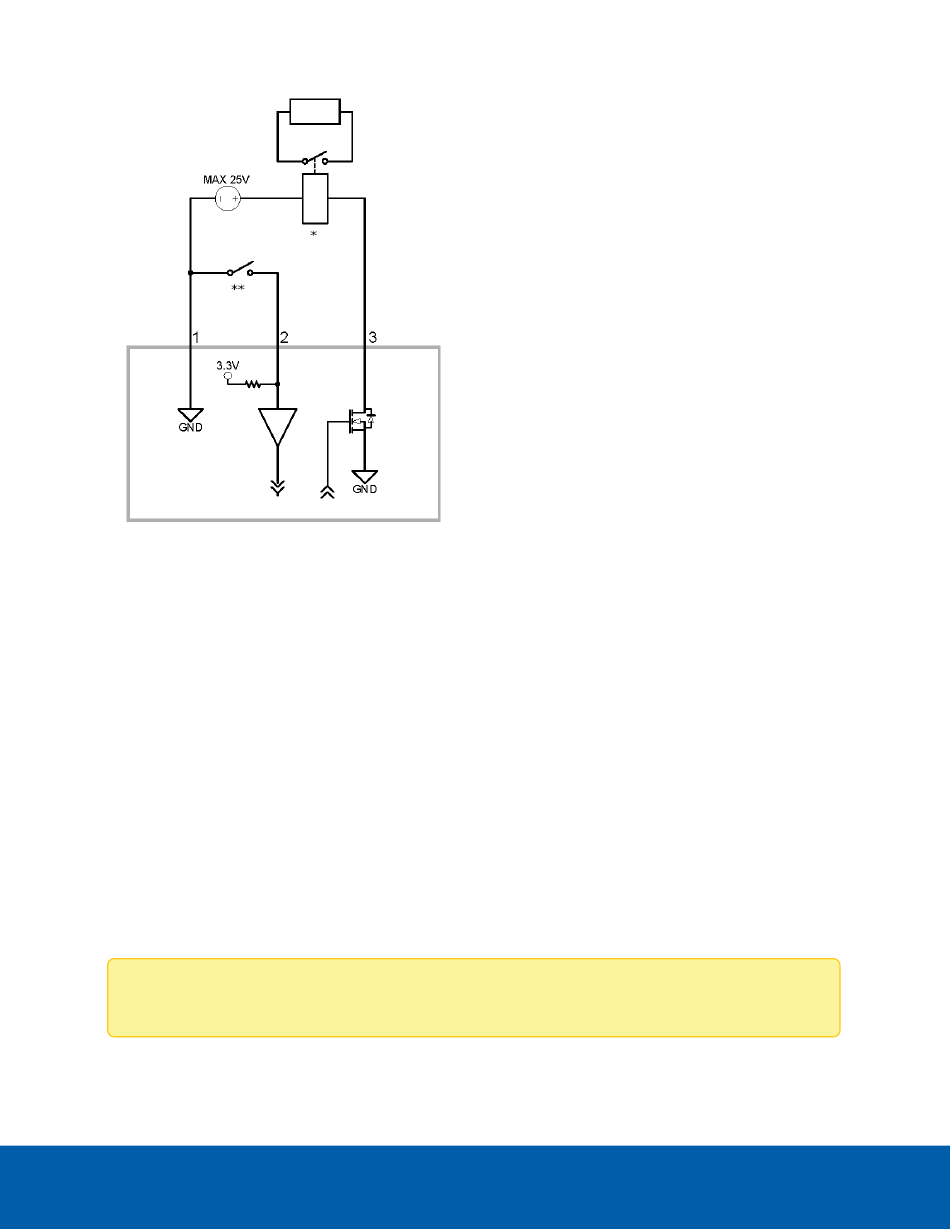

Figure 1:
Example application.
1. Ground
2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply
between 3-15 V.
3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when
inactive. Maximum load is 25 VDC, 120 mA.
* — Relay
l
** — Switch
l
Connecting to Microphones, Speakers, and Video
Monitors
The camera can be connected to an external microphone, speaker and video monitor through the mini-jack
(3.5 mm) audio/video connector (Avigilon part number CM-AC-AVIO1).
Only the 2.0 megapixel models can be connected to an external video monitor through the A/V connector.
Note: The camera only supports line level mono audio input and an NTSC or PAL video output.
Connecting to Microphones, Speakers, and Video Monitors
18
