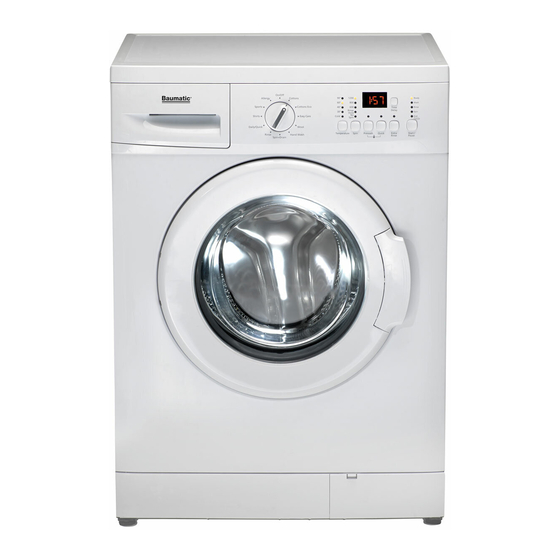

- Page 1 BAUMATIC BFL8KG Washing Machine User’s Manual Document Number 2820524829/ 15-06-15.(17:46)
-
Page 2: Important Instructions For Safety And Environment
1 Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack expe- rience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children must not play with the product. -
Page 3: Intended Use
• Place the product on a rigid, flat and level surface. • Do not place it on a long-pile rug or similar surfaces. • Do not place the product on a high platform or near the edge on a cascaded surface. • Do not place the product on the power cable. • Never use sponge or scrub materials. These will damage the painted, chrome plated and plastic surfaces. 1.2 Intended use • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • The product must only be used for washing and rinsing of laundry that are marked accordingly. • The manufacturer waives any responsibility arisen from incorrect usage or transporta- tion. 1.3 Children's safety • Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. • Electrical products are dangerous for the children. Keep children away from the pro- duct when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product. • Do not forget to close the loading door when leaving the room where the product is located. • Store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. -
Page 4: Compliance With Weee Directive
1.6 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers. Compliance with RoHS Directive: The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. 4 / EN Washing Machine / User’s Manual... -
Page 5: Installation
2 Installation 1. Loosen all the bolts with a suitable spanner until they rotate freely (C) . Refer to the nearest Authorised Service Agent for installation 2. Remove transportation safety bolts by turning them of the product. To make the product ready for use, review gently. the information in the user manual and make sure that the 3. Attach the plastic covers supplied in the User Manual bag electricity, tap water supply and water drainage systems are into the holes on the rear panel. - Page 6 3. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, 1. Loosen the lock nuts on the feet by hand. keep the taps closed when the machine is not in use. 2. Adjust the feet until the product stands level and 2.5 Connecting to the drain balanced.
- Page 7 3 Preparation 3.4 Initial use Before starting to use the product, make sure that all 3.1 Sorting the laundry preparations are made in accordance with the instructions in • Sort laundry according to type of fabric, colour, and sections “Important safety instructions” and “Installation”. degree of soiling and allowable water temperature. To prepare the product for washing laundry, perform first • Always obey the instructions given on the garment tags. operation in Drum Cleaning programme. If your product 3.2 Preparing laundry for washing is not equipped with Drum Cleaning programme, perform the Initial Use procedure in accordance with the methods • Laundry items with metal attachments such as,...
- Page 8 • Wash woolens with special detergent made specifically 3.6 Loading the laundry for woolens. 1. Open the loading door. 2. Place laundry items loosely into the machine. Use only detergents manufactured specifically warning 3. Push the loading door to close until you hear a locking for washing machines. sound. Ensure that no items are caught in the door. The loading door is locked while a programme is running. Do not use soap powder. warning The door can only be opened a while after the programme comes to an end. Adjusting detergent amount The amount of washing detergent to be used depends In case of misplacing the laundry, noise and...
- Page 9 • If the gel detergent thickness is not fluidal or in the shape detergent in the prewash compartment. As an alternative of capsule liquid tablet, put it directly into the drum before application, select a programme with extra rinse and add washing. the bleaching agent while the machine is taking water • Put tablet detergents into the main wash compartment from the detergent compartment during first rinsing step. (compartment nr. "2") or directly into the drum before • Do not use bleaching agent and detergent by mixing washing. them. • Use just a little amount (approx. 50 ml) of bleaching agent Tablet detergents may leave residues in the detergent and rinse the clothes very well as it causes skin irritation. compartment. If you encounter such a case, place the Do not pour the bleaching agent onto the clothes and do tablet detergent between the laundry, close to the lower...
- Page 10 4 Operating the product 4.1 Control panel 1 - Programme Selection knob (Uppermost position On / Off) 5 - Start / Pause button 2 - Display 6 - Auxiliary Function buttons 3 - Delayed Start button 7 - Spin Speed Adjustment button 4 - Programme Follow-up indicator 8 - Temperature Adjustment button 4.2 Preparing the machine 2. Select the desired programme with the Programme Selection button. Make sure that the hoses are connected tightly. Plug in your machine. Turn the tap on completely. Place the laundry in the Programmes are limited with the highest spin speed machine. Add detergent and fabric softener. appropriate for that particular type of fabric. 4.3 Programme selection When selecting a programme, always consider the type 1. Select the programme suitable for the type, quantity of fabric, colour, degree of soiling and permissible water and soiling degree of the laundry in accordance with temperature.
- Page 11 4.6 Special programmes For curtains and tulle, use the Synthetic 40˚C programme with prewash and anti-creasing functions selected. As their For specific applications, select any of the following meshed texture causes excessive foaming, wash the veils/ programmes. tulle by putting little amount of detergent into the main • Rinse wash compartment. Do not put detergent in the prewash Use this programme when you want to rinse or starch compartment. separately. • Woollen • Spin+Drain Use this programme to wash your woolen clothes. Select Use this programme to apply an additional spin cycle for the appropriate temperature complying with the tags of your your laundry or to drain the water in the machine.
- Page 12 4.9 Programme and consumption table Auxiliary functions Selectable temperature Programme range °C Cotton 2.60 1200 • • • Cold-90 Cotton 1.80 1200 • • • Cold-90 Cotton 0.90 1200 • • • Cold-90 Cottons Eco 40** 1.08 1200 Cold-40 Daily Express 2.20 1200 • Cold-90 Daily Express 1.13...
- Page 13 4.10 Auxiliary function selection Delayed Start With the Delayed Start function the startup of the Select the desired auxiliary functions before starting programme may be delayed up to 19 hours. Delayed start the programme. Furthermore, you may also select or time can be increased by increments of 1 hour. cancel auxiliary functions that are suitable to the running programme without pressing the Start / Pause button when Do not use liquid detergents when you set Delayed the machine is operating. For this, the machine must be in Start! There is the risk of staining of the clothes. a step before the auxiliary function you are going to select or cancel. Open the loading door, place the laundry and put detergent, If the auxiliary function cannot be selected or canceled, light etc. Select the washing programme, temperature, spin of the relevant auxiliary function will blink 3 times to warn speed and, if required, the auxiliary functions. Set the the user.
- Page 14 4.11 Starting the programme 4.13 Progress of programme Press Start / Pause button to start the programme. Progress of a running programme can be followed from the Programme follow-up light showing the startup of the Programme Follow-up indicator. At the beginning of every programme will turn on. programme step, the relevant indicator light will turn on and light of the completed step will turn off. If no programme is started or no key is pressed within You can change the auxiliary functions, speed and 1 minute during programme selection process, the temperature settings without stopping the programme flow machine will switch to Pause mode and the illumination while the programme is running.
- Page 15 5 Maintenance and cleaning 4.16 Canceling the programme To cancel the programme, turn the Programme Selection Service life of the product extends and frequently faced knob to select another programme. Previous programme problems decrease if cleaned at regular intervals. will be canceled. End / Cancel light will flash continuously to 5.1 Cleaning the detergent drawer notify that the programme has been canceled. Clean the detergent drawer at regular intervals (every Pump function is activated for 1-2 minutes regardless of the 4-5 washing cycles) as shown below in order to prevent programme step, and whether there is water in the machine accumulation of powder detergent in time. or not. After this period, your machine will be ready to start with the first step of the new programme. Depending on the step where the programme was canceled in, you may have to put detergent and softener again for the programme you have selected...
- Page 16 5.2 Cleaning the loading door and the drum For products with drum cleaning programme, please see Operating the product - Programmes. For products without drum cleaning, follow the below steps to clean the drum: Select Additional Water or Extra Rinse auxiliary functions. Use a Cottons programme without pre-wash. Set the temperature to the level recommended on the drum cleaning agent which can be provided from authorized services.
- Page 17 2. Open the filter cap. If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out towards yourself. If the filter cap is one piece, pull the cap from both sides at the top to open. You can remove the filter cover by slightly pushing downwards with a thin plastic tipped tool, through the gap above the filter cover. Do not use metal tipped tools to remove the cover. 3. Some of our products have emergency draining hose and some does not have. Follow the steps below to discharge the water. Discharging the water when the product has an emergency draining hose: a. Pull the emergency draining hose out from its seat b. Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end...
-
Page 18: Technical Specifications
6 Technical specifications BFL8KG Models (EN) Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 220-240 V / 50Hz Electrical input (V/Hz) Total current (A) Total power (W) 2000-2350 Spin speed (rpm max.) 1200 Technical specifications may be changed without prior notice to improve the quality of the product. Figures in this manual are schematic and may not match the product exactly. Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary. 18 / EN Washing Machine / User’s Manual... -
Page 19: Troubleshooting
7 Troubleshooting Program does not start after closing the door. • Start / Pause / Cancel button was not pressed. >>> *Press the Start / Pause / Cancel button. Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be cancelled. (See “Canceling the programme”) Water in the machine. - Page 20 20 / EN Washing Machine / User’s Manual...
