Honeywell SILENT KNIGHT 5860 Product Installation Document

2 Clintonville Road, Northford, CT 06472-1610 USA
03-484-7161 • FAX 203-484-7118 • www.silentknight.com
5860 Remote Fire Annunciator
The 5860, an optional 4x20 remote annunciator, is
shown in Figure 1, it can be surface or flush-
mounted.

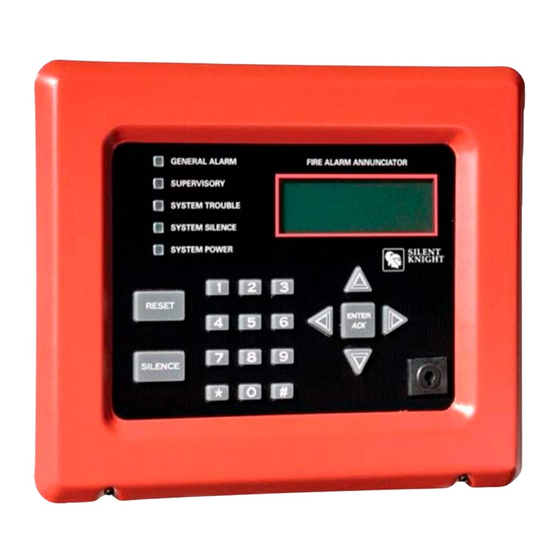

Figure 1: Model 5860 Remote Annunciator
Compatibility
The 5860 is compatible with Honeywell's Silent
Knight FACP's.
Note: For more information, see the FACP Installation manual.
Specifications
Parameter
Operating Voltage:
Standby: 25 mA
Current
Alarm:
Operating
Temperature:
Value
24 VDC
50 mA
0° to 49° C (32° to 120° F)
5860 Remote Annunciator
Product Installation Document
PN 151042:D 07/01/2017 ECN 16-0218
Figure 2: Annunciator Dimensions
Mounting
The annunciator can be flush or surface mounted.
Surface Mounting
The Model 5860TG (gray) and 5860TR (red) trim ring
kits are available for use when surface mounting.
Figure 3: Surface Mounting
