Wireless charging system
600W type
RCS600 for
12V・24V・48V
Standard head
Thank you very much for purchasing the Wireless charging system RCS600 of B&PLUS.
Please read the instruction manual before use and please use the products correctly.
Request for use
● This product, which is one of those high frequency utilization equipment of Radio Law.
In the case of using in Japan, please apply for a permission application for high frequency utilization
equipment permission to Ministry of Internal Affairs and Communications.
In the case of using the product out side Japan, please take appropriate action after confirming by
yourself the standards and regulations to which the customer's system should conform. If you have any
questions about the application, please contact our sales department.
● For the control communication device that is installed in the product, there is no need for (diploma)
radio station authorization of the Minister as it corresponds to" a weak radio station (weak radio
equipment)"to. However, please be careful when operating it as it may affect electronic devices (sensor
devices) and medical devices (pacemakers, etc.).
Disclaimer
● In principle, repairs will be charged in the event of failure or damage caused by fire, earthquake, acts by a third
party, other accidents, intentional or negligent use by the customer, misuse, or use under abnormal conditions.
● The Company is not liable for any incidental damages (loss of business profit, etc.) resulting from the use or
inability to use this machine.
● If this unit is used for purposes other than battery charging, we cannot guarantee it.
※ Specifications subject to change without notice.
If there is a point of notice about the contents of this document, hope you'll give me your contact us, thank you.
battery
Issue 2023.04.24
Ｎｏ． T318C05Oe
Manual
Long distance head
O
Advertisement
Table of Contents
Related Manuals for B&PLUS RCS600
Summary of Contents for B&PLUS RCS600
- Page 1 Standard head Long distance head Thank you very much for purchasing the Wireless charging system RCS600 of B&PLUS. Please read the instruction manual before use and please use the products correctly. Request for use ● This product, which is one of those high frequency utilization equipment of Radio Law.
- Page 2 For safety precautions Please read, please use it correctly and full attention to safety this "Safety Precautions" before use. Incorrect handling may cause not only malfunction or failure, leading to an accident or injury. Also in order to prevent damage or injury, please look after. ■...
- Page 3 Attention Please do not take any action in the hot-line state If you want to support the installation, maintenance, and failure, after confirming that the main circuit breaker (power board) is always out, please work. When working with hot-state, there is a potential for electric shock. Please use the power supply as set forth in the specification always If it is used in power outside of the specifications such as a power in excess of the rated voltage, there is a risk of overheating, fire or malfunction. ...
- Page 4 About the description in the manual ● The charging unit of this product have two specifications, normal open type and normal close type. normal open Pin1.charge start normal open normal close 12V type RCS600-CA12 RCS600B-CA12 dry contact 24V type RCS600-CA24 RCS600B-CA24 48V type RCS600-CA48 RCS600B-CA48 Please see P.17 for details.
- Page 5 ■ Index ■ 1. Product summary － System configuration ・・・・・・・・・・・・・・・・・・・・・・・・・・ － Basic Product Configuration ・・・・・・・・・・・・・・・・・・・・・・・ － Product information ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2. Basic operation － Various functions and protection ・・・・・・・・・・・・・・・・・・・・ 3. The name and specification of each part － Power Supply unit ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ － Active Head（Standard・Long Distance） ・・・・・・・・・・・・・・・・ －...
-
Page 6: Product Summary
The type code ending in “-NOP” is a model that does not come with a thermistor. The type code of the charging unit (normal open, normal close) is generally described after this in this manual. “RCS600 (B) -CA__” Product informaiton... -
Page 7: Basic Operation
Wireless charging system 600W specification 12V・24V・48V battery 2.Basic operation Various functions and protection 〇 Non-contact power transmission & signal transmission system Since power transmission and signal transmission are done in a non-contact manner by electromagnetic coupling method, there is no problem even if glass or plastic exists in the transmission space. 〇... -

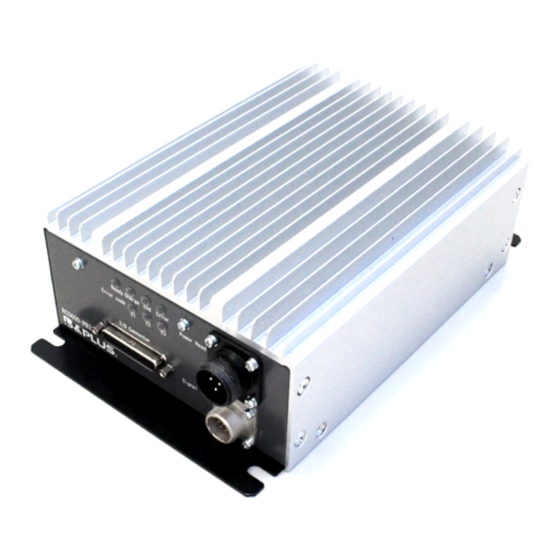

Page 8: Power Supply Unit
⑦ （16.5） ⑨ （12.5） （6） Type code RCS600-AC Applicable active head RCS600-AH, RCS600-AH-L Rated input voltage AC100V / AC200V Supply voltage AC 90V ...AC 220V Single phase 50/60 Hz Current consumption 9A (at 100V), 4.5A (at 200V) ① LED display Power, Ready, Charge, End, Error, E1 ～... - Page 9 3000 3P connector for power supply (3000) Standard Specification Active Head Long Distance Specification Active Head Type code RCS600-AH(3.0m),RCS600-AH-005(0.5m) RCS600-AH-L(3.0m), RCS600-AH-L-005(0.5m) Applicable unit RCS600-AC Rated gap Distance 0 ～ 20mm 20 ～ 40mm * Be sure to follow the specified distance.Using outside the specifications may damage the equipment.
-
Page 10: Charging Unit
Type code normal open RCS600-CA12 RCS600-CA24 RCS600-CA48 RCS600 RCS600 RCS600 normal close RCS600B-CA24 RCS600B-CA48 RCS600B-CA12 Applicable passive head RCS600-CH, RCS600-CH-L Applicable battery Lithium ion battery, Lead battery Output voltage Max.15V Max.35V Max.60V Output current Max.34A Max.25A Max.12A External input... - Page 11 Long Distance Specification Active Head Type code RCS600-CH(1.5m),RCS600-CH- RCS600-CH-L(1.5m), RCS600-CH-L-01(1.0m) 01(1.0m),RCS600-CH-005(0.5m) RCS600-CH-L-005(0.5m) Applicable unit RCS600(B)-CA24 or RCS600(B)-CA12 or RCS600(B)-CA48 Rated gap Distance 0 ～ 20mm 20 ～ 40mm * Be sure to follow the specified distance.Using outside the specifications may damage the equipment.
- Page 12 ■ Passive Head ／ RCS600-CH (mm) Active Head RCS600-AH Passive Head 57.5 87 non-metal non-metal RCS600-CH metal metal ■ Long Distance Specification Active Head ／ RCS600-AH-L ・給電ヘッド/RCS600-AH A＝45mm、D＝46mm ■ Long Distance Specification Passive Head ／ RCS600-CH-L ・受電ヘッド/RCS600-CH B＝57.5mm、C＝87mm、E＝45mm ■給電ヘッド/RCS600-AH-L (mm) 3-2 相互干渉 ■受電ヘッド/RCS600-CH-L ヘッドを取り付ける場合、相互干渉による影響を避けるため、必ず下記に示す値以上の間隔を...
-
Page 13: Side View
If you are installing in parallel head, to avoid the effects of mutual interference, please attach the head with an interval greater than or equal to the value shown in the table below always. ■ Standard Specification Head (mm) Type code RCS600-AH RCS600-CH ■ Long Distance Specification Head (mm) Type code... -
Page 14: Maintenance
For replacement filters, see P.25 in the section "9. Included and Optional Accessories". ◆ Filter（Type：RCS-FILTER01） This is a filter for the RCS600-AC. Please use it by attaching it to the air intake section. A separate instruction manual is available. (No.T320403) - Page 15 If there is a problem, please adjust and clean accumulation of dust, etc. around the equipment. 電源ユニット側 電源ユニットのみ Power 6.LED/IO connector for each units 電源ユニットのみ Power Charge Pin. LED output display Power supply unit（RCS600-AC） Charge Pin. Error Name 無電圧接点 Function Display Output Pin. Power...
- Page 16 Output those listed above may result in malfunction. 16,20 The abnormality are indicated by LED 17,20 Output lighting combinations of E1 to E3 18,20 Charging unit （RCS600(B)-CA ＿） Type code Normal open Normal close RCS600 RCS600B 12V type RCS600-CA12 RCS600B-CA12...
- Page 17 Pin. Pin. Input circuit specifications Pin. Error Charge Pin. Items Specification Error 無電圧接点 Pin. Type code RCS600-CA__ RCS600B-CA__ Pin. Error Contact Dry contact Dry contact （Normal open type） （Normal close type） Pin.1 Start charging Stop charging Rated voltage Rated current...
-
Page 18: Connection Diagram
2T/100mm以内 Within 2T/100mm E04SR401938 (フェライトコア) Power Supply unit Connector for ※ 2 Charging cable is not included. 2T/100mm以内 電源ユニット RCS600-AC power supply A cable of 5.5 sq or more is recommended. RCS600-AC RCS600 RCS600 RCS600 Battery depends on each specification ※バッテリは各仕様による... - Page 19 ※ 2 Charging cable is not included. ※ 3 2 turns 図 1 全体構成図（標準仕様） 1turn A cable of 5.5 sq or more is recommended. Power Supply unit 電源ユニット RCS600-AC Connector for power supply RCS600-AC RCS600 RCS600 RCS600 ※バッテリ数は各仕様による 24V仕様・・・12V x 2(直列）...
-
Page 20: Operation Methods
RFC-H13 Attach the Ferrite clamp to ■充電ユニット (Ferrite clamp) (フェライトコア) the unit side ・RCS600-CA24（24V仕様） サーミスタ Charging unit 2T/100mm以内 Within 2T/100mm ・RCS600-CA12（12V仕様） RCS600(B)-CA ＿ connector for ・RCS600-CA48（48V仕様） power supply AC 90～220V Passive Head RCS600-CH フェライトコア付き 受電ヘッド 給電ヘッド RFC-H13 電源ケーブル connector for... - Page 21 ⑥ When using two batteries in series, please fully charge each battery so that they have the same voltage before connecting them in series. If you operate with a voltage difference, the battery may be damaged. RCS600 12V type CC / CV ＊...
-
Page 22: Charge Control
(CV) and charge end operation are performed as in the (CC / CV) charge control method type. 【Using RCS600(B)-CA12 】 Battery[ CYCLON-G G-16EP] 50%（8Ah）Charging characteristics after discharge （ CC Current 34A CV Voltage 15V）... - Page 23 Wireless charging system 600W specification 12V・24V・48V battery 【 Using RCS600(B)-CA24 】 Battery [SCIB SIP24-23] 50%（11Ah） Charge Characteristics After Discharge Constant power （600W）Max.25A CV Voltage 28.6V ) ※ When the charging current setting value is high, the characteristic graph shows that the current decreases as the voltage increases.
- Page 24 Wireless charging system 600W specification 12V・24V・48V battery 【 Using RCS600(B)-CA48】 Battery [CYCLON-G G-16EP(four 12V batteries connected in series] 50%（8A ｈ） Charge characteristics after discharge （Constant power(600W) Max.12A CV Voltage 57.6V） current(A) voltage(V) RCS600 time(s) Battery [CYCLON-G G-16EP(four12V batteries connected in series] 50%（8A ｈ）Charge characteristics after discharge...
-
Page 25: Specifications
M2.6X0.45 1-14:ショート ◆ Filter (Type code:RCS-FILTER01） 2-13,15-25:接続なし The filter for RCS600-AC. Both sides need to be attachd （each 8pcs. of filters and tapes are included. For optional purchase, 24pcs. of filters and 8pcs. of tapes） Attach the unit to the air inlet section.（See P.14）... - Page 26 リモートシステム システム構成 ユーザーズガイド リモートパワーサプライシステム 600W 用設定書き込み用ケーブル RCS600 RCS600 -CA ＿ -OP004 型式：RCS600-OP004 【本製品の機能】 ＊ Please turn over for English guide. 【Wiring table】 配線表 【Connector pin number】 600W 用設定書き込み用ケーブルは、RCS600 シリーズの充電 1:茶 14:青 未接続: 2,3,9,10,11,12,13 M2.6X0.45 ユニットに接続し、充電時の電圧、電流及び再充電電圧の設定を行 本製品取扱いのご注意 1：Brown 14：Blue 4:赤 Disconnected：2、3、9、 16:灰 15,21,22,23,24,25 うためのケーブルとなります。 【Specifications】 5:橙...
- Page 27 Battery connection cable B&PLUS K.K. ◆ Power cable (Model: AYCS-212 BK) This is an AC power cable that connects to the RCS600-AC. (Refer to P.18-20 connection diagram) ◆ Aluminum frame stand (model: RCS-STAND01) Bracket (stand) for mounting RCS600-AC and RCS600-AH.
- Page 28 70 ± 5 ° C Abnormality in 12V: Detect battery voltage 8 ± Use of different types of bat- Reset battery voltage ab- RCS600 battery voltage teries, such as rated voltage normality 0.5 to 16 ± 0.5 V or less ※１...
-
Page 29: Troubleshooting
Wireless charging system 600W specification 12V・24V・48V battery Reset means any of the following operations. Turn off the power supply unit, and then turn it on after one minute. Set the distance between the heads to 200mm or more and turn them on again after 1 minute. Turn off the charge start signal, hold it for 2 seconds or more, and then turn it on again. - Page 30 Wireless charging system 600W specification 12V・24V・48V battery Phenomenon Possible factors and remedies, etc. When using the write cable (RCS RCS-DATA-CBL), the software Please close the open software and plug/unplug the USB connec- seems to be communicating, but the screen shows The message tor side.
- Page 31 Wireless charging system 600W specification 12V・24V・48V battery - 31 -...
