B&PLUS RCS Series Manual

Wireless charging system 210w
Hide thumbs Also See for RCS Series:

Advertisement

Quick Links

Download this manual
Issue
2019.03.13
Ｎ ｏ．
Ｔ313401Me
M
Wireless charging system
210W specification Manual
RCS series
Thank you very much for purchasing the Wireless charging system RCS210 of B&PLUS lately.
Before using this Processor, read this manual carefully and operate properly, paying attention to the
safety aspects.

Advertisement

loading

Related Manuals for B&PLUS RCS Series

Summary of Contents for B&PLUS RCS Series

  • Page 1 Ｔ313401Me Wireless charging system 210W specification Manual RCS series Thank you very much for purchasing the Wireless charging system RCS210 of B&PLUS lately. Before using this Processor, read this manual carefully and operate properly, paying attention to the safety aspects.
  • Page 2 For safety precautions Please read, please use it correctly and full attention to safety this "Safety Precautions" before use. Incorrect handling may cause not only malfunction or failure, leading to an accident or injury. Also in order to prevent damage or injury, please look after. ■...
  • Page 3 　　Attention I do not take any action in the hot-line state If you want to support the installation, maintenance, and failure, after confirming that the main circuit breaker (power board) is always out, please work. When working with hot- state, there is a potential for electric shock. I use the power supply as set forth in the specification always If it is used in power outside of the specifications such as a power in excess of the rated voltage, there is a risk of overheating, fire or malfunction.　...
  • Page 4 Request for use on ● This product, which is one of those high frequency utilization equipment of Radio Law, In the case of useing in Japan, please apply for a permission application for high frequency utilizaion equipment permission to Ministry of Internal Affairs and Communications. In the case of using the product out side Japan, please take appropriate action after confirming by yourself the standards and regulations to which the customer’...
  • Page 5 ■ Index ■ 　1. Product summary ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・ System configuration and product configuration ・・・・・・・・・・・・・ 　2. Feature ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 　3. The name and specification of each part ・・・・・・・・・・・・・・・・・・ 　4. Notes at the time of installation (at the time of attachment) ・・・・・・・・ 11 　5.

  • Page 6: Product Summary

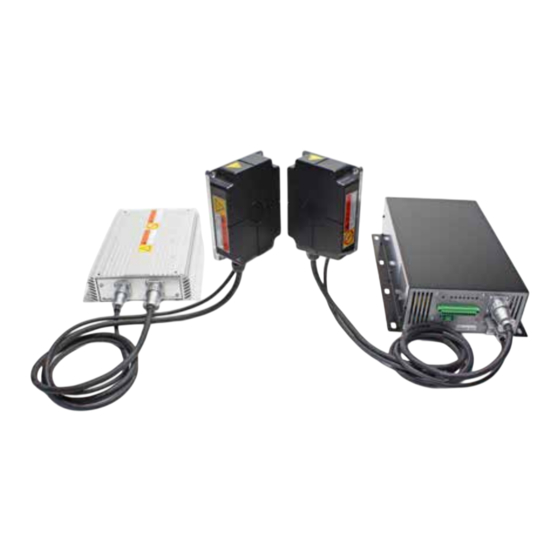

    Wireless charging system 210W specification 1.Product summary Create a high frequency from an AC power source, along with the transmitting power in a non-con- tact with the charge control circuit, this product is a revolutionary wireless charging system that has at the same time signal communication function. System configuration and product configuration Battery voltage : 24V DC Available lead batteries : charging current is a thing of 7A or more...
  • Page 7 Wireless charging system 210W specification 2.Feature ● Signal transmission system and non-contact power transmission The signal transmission and power transmission, because the electromagnetic coupling method, is car- ried out in a non-contact, no problem glass-plastic even in the presence of the transmission space. ●...
  • Page 8 Wireless charging system 210W specification 3.The name and specification of each part ● Charging unit Type code RCS210-PB24 Application battery lead battery Application passive head RCS240PH Output voltage Max.30V (It varies depending on battery temperature) Output current Max.7A External input (5.About the wiring P.13 reference)　...
  • Page 9 Wireless charging system 210W specification ● Power Supply unit 8-7X15 Type code RCS240-AC1 Apply active Head RCS240AH Rated input voltage AC100V / AC200V Power supply voltage AC85 ～ AC265V Single-phase 50/60Hz Current consumption Display function The status display by LED External input (5.About the wiring P.13 reference)　...
  • Page 10 Wireless charging system 210W specification ● Head 型式：RCS240PH ﾘﾓｰﾄｼｽﾃﾑ 伝送部 ■外形寸法 Passive Head 4-φ6.5 RCS240PH 1000 ■一般仕様 型式：RCS240AH ﾘﾓｰﾄｼｽﾃﾑ Active Head 適用充電ユニット RCS210-PB24 出力部 ■外形寸法 定格ギャップ 距離 10mm RCS240AH 軸ズレ ±10mm 使用周囲温度 0～50℃ 保存周囲温度 -10～50℃ 4-φ6.5 周囲湿度 30%～90% 絶縁抵抗 50MΩ以上 耐電圧...
  • Page 11 Wireless charging system 210W specification 4.Notes at the time of installation (at the time of attachment) ● Notes at the time of installation of the charging unit and power supply unit ・Location In order to obtain a good cooling effect, please keep as shown below the separation distance between the surrounding body so as not to block the airflow.
  • Page 12 Wireless charging system 210W specification ・Mutual Interference between the heads If you are installing in parallel head, to avoid the effects of mutual interference, please attach the head with an interval greater than or equal to the value shown in the table below always. Type code A(mm) RCS240AH...
  • Page 13 Wireless charging system 210W specification 5.About the wiring ● Charging side (RCS210-PB24) ③ 1234567891011121314 ④ ① ② ① Output terminal for Battery ② Thermistor terminal ③ Input signal (voltage monitor request signal) 　Other than at the time of charging, you can use if you want to output the battery voltage monitor signal. Charging unit ●...
  • Page 14 Wireless charging system 210W specification ● Power supply unit side (RCS240-AC1) ⑤ ② Ｐ ＬＭＨＦＣＩＮ ④ ① ③ ① Connector for the active head (Signal) ② Connector for the active head (Power) ③ Start-up signal Power supply unit ※ It is the ON / OFF signal of the power supply of the Active Head.To do with the ON / OFF operation with separate Internal circuit switch, please use always ON.

  • Page 15: Connection Diagram

    Wireless charging system 210W specification Connection diagram Details of the charging unit input and output Output cable Thermistor (1)24V lead battery Load (2)Thermistor with Cable 24V lead battery Charging unit Power Supply unit (1)External device (1)External communication cable device commu- (AWG24 ～...

  • Page 16: Method Of Operation

    Wireless charging system 210W specification 6.Method of operation How to switch on a power supply I turn on the power switch on the power supply unit back. (It becomes the "On" and press the switch to the white dot side) ・Active head and Passive head, when the power transmission coverage area: When the power is turned on, LED of the power supply unit (P) is lit, it will be intermittent oscilla- tion state.
  • Page 17 Wireless charging system 210W specification Image behavior of the output voltage and current value (Operating to charging current 1.5A) V（V ） Output current 1.5A reach Output voltage （ ） CV charging 充電時 Float charging time CC charging time time I（A） ７...
  • Page 18 Wireless charging system 210W specification Characteristics (Reference) 30Ah (5 hour rate)　Battery discharge about 50% CC · CV charging characteristics voltage current Charging voltage Charging current Time (minutes) - 18 -...

  • Page 19: About The Function

    Wireless charging system 210W specification 7.About the function ・As a display function, I can be found in the LED displays the status of the equipment. ・As a protective function, it has the ability to detect abnormalities such as overheating during charging.In that case, you can operate the protection circuitry to protect the equipment.
  • Page 20 Wireless charging system 210W specification [How to reset body] Reset can be done in one of the following methods. ・Turn OFF the power, turn ON after about a minute. (Restart) ・The 200mm or more away the head, and to face again in about one minute. ・The (OFF contact) OFF the start-up signal.
  • Page 21 Wireless charging system 210W specification Battery voltage monitor function A "battery voltage monitor function" is a function which a charge unit monitors battery voltage, and changes and outputs to three kinds of 【voltage monitor signals】. A【voltage monitor signal】 is outputted from both a power supply unit and a charging unit. Battery voltage monitor's timing differs <charge>...
  • Page 22 Wireless charging system 210W specification About the battery voltage monitoring for non-charging During non-charging, if [voltage monitor request] of a charging unit turns on, battery voltage will be monitored and a [voltage monitor signal] will be outputted. When a head moreover changes into the state where it does not oppose from a confrontation state in the state of ON in [a voltage monitor demand], the [voltage monitor signal] according to battery residual quantity is outputted in several seconds.
  • Page 23 Wireless charging system 210W specification - 23 -...
  • Page 24 Wireless Power Supply by Mail ：b-plus-usa@b-plus-kk.com Web ：http://www.b-plus-kk.com * Contents is subject to change without notice.
