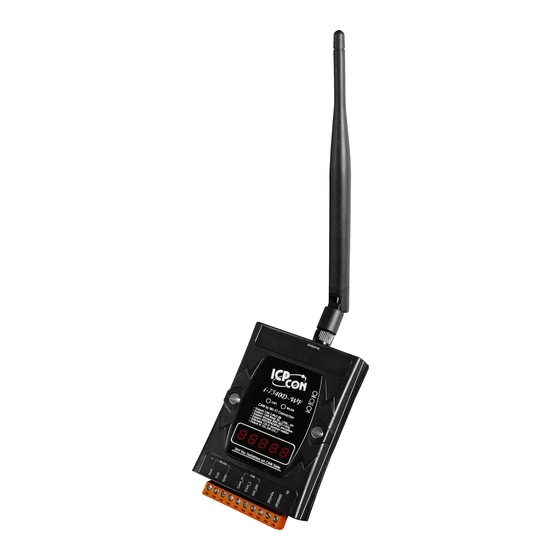

I-7540D
CAN to Ethernet Gateway
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/i_7540d.html
1. Introduction
This manual introduces the user to the methods used to implement the I-
7540D module into their applications in a quick and easy way. This will only
provide with the basic instructions. For more detailed information, please
refer to the I-7540D user manual located on the ICPDAS CD-ROM or
download it from the ICPDAS web site Fieldbus_CD:\CAN\Converter\I-
7540D\ or
http://www.icpdas.com/products/Remote_IO/can_bus/I-7540.htm
The goal of this manual is focused on helping users to quickly familiarize
themselves with the I-7540D module and the CAN-Ethernet communication
gateway. Here, we use two I-7540D modules (called the I-7540D_A and
the I-7540D_B) as the example will demonstrate how to use the I-7540D

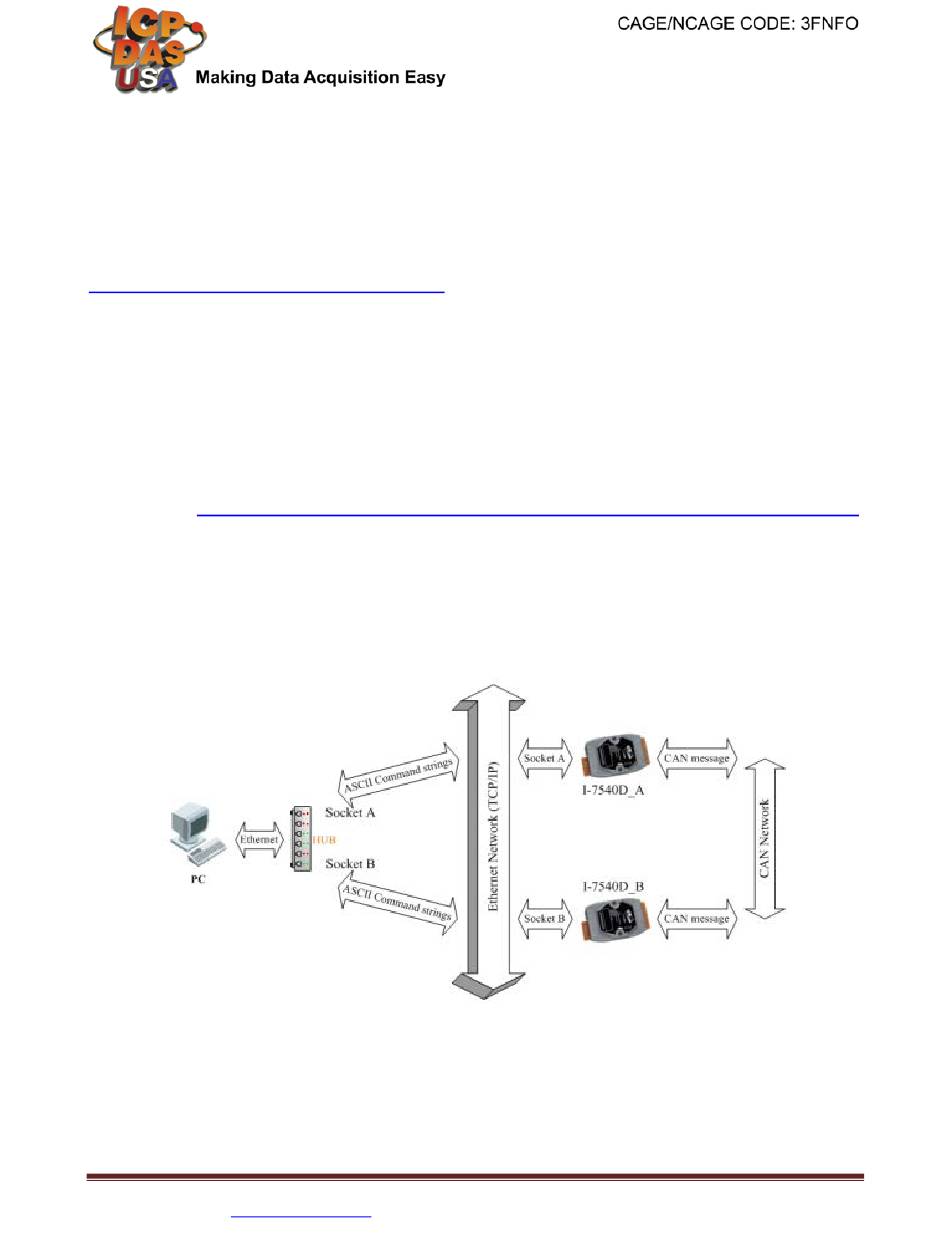

modules. The architecture of this example is depicted below.
When the I-7540D receives a valid message, with the ASCII strings format from
Ethernet port, it converts this message into a CAN message and transmits it into the
CAN network. Based on the same reasoning, when a CAN message is received via the
I-7540D, the CAN message will be transferred to a message by using the ASCII strings
format through the Ethernet port.
I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

loading

Related Manuals for ICP DAS USA I-7540D

Summary of Contents for ICP DAS USA I-7540D

  • Page 1 Ethernet port, it converts this message into a CAN message and transmits it into the CAN network. Based on the same reasoning, when a CAN message is received via the I-7540D, the CAN message will be transferred to a message by using the ASCII strings format through the Ethernet port.

  • Page 2: Hardware Installation

    2. Hardware Installation Users need to make a hardware connection between the CAN devices before the application. The details of this are illustrated below: I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...

  • Page 3: Parameters Configuration

    3. Parameters Configuration Before starting the I-7540D gateway tests, users need to configure the Ethernet & CAN parameters via the I-7540D Utility tool. The details of this procedure are shown below. Step1: The default network setting of the I-7540D is shown below.
  • Page 4 Step2: After changing the PC’s local area network setting, you must use the I-7540D Utility to make the “IP” of these two I-7540D different to each other. The I-7540D Utility tool is located in the fieldbus_CD:\\can\converter\I-7540\utility folder on the companion...
  • Page 5 Step4: Click the “Connect” button. If this process is successful, the I-7540D Utility shows the I-7540D_A communication information as below. I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 6 I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 7 I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 8 I-7540D CAN Ethernet Gateway- QuickStart (Jan/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
