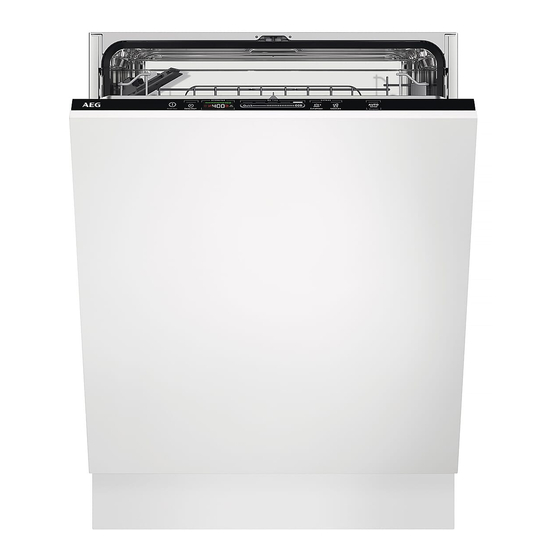

AEG FSB53607Z User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FSB53607Z
USER
MANUAL
EN
User Manual
Dishwasher

Advertisement

Table of Contents
loading

Related Manuals for AEG FSB53607Z

Summary of Contents for AEG FSB53607Z

  • Page 1 FSB53607Z User Manual Dishwasher USER MANUAL...

  • Page 2: Table Of Contents

    13. ENVIRONMENTAL CONCERNS..............26 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a...

  • Page 4: Safety Instructions

    Only a qualified person must install this appliance. www.youtube.com/electrolux www.youtube.com/aeg • Remove all the packaging. How to install your AEG/Electrolux • Do not install or use a damaged 60 cm Sliding Door Dishwasher appliance. • Follow the installation instructions supplied with the appliance.
  • Page 5 ENGLISH • Make sure that the parameters on the • If the water inlet hose is damaged, rating plate are compatible with the immediately close the water tap and electrical ratings of the mains power disconnect the mains plug from the supply.

  • Page 6: Product Description

    2.6 Disposal peripherals such as baskets and lids. • Concerning the lamp(s) inside this...

  • Page 7: Control Panel

    ENGLISH • When the programme is completed, a When AirDry is activated green light comes on. during the drying phase, the • When the appliance has a projection on the floor may malfunction, the red light flashes. not be completely visible. To Beam-on-Floor is off when see if the cycle is finished, the appliance is deactivated.

  • Page 8: Programme Selection

    Indicator Description Machine Care indicator. It is on when the appliance needs internal clean‐ ing with the Machine Care programme. Refer to "Care and cleaning". Drying phase indicator. It is on when you select a programme with the dry‐...
  • Page 9 ENGLISH 5.4 Programmes overview Programme Dishwasher Degree of soil Programme phases EXTRAS load Quick Crockery, Fresh • Dishwashing 50 °C • ExtraPower cutlery • Intermediate rinse • GlassCare • Final rinse 45 °C • AirDry Crockery, Fresh, lightly • Dishwashing 60 °C •...

  • Page 10: Basic Settings

    Consumption values Water (l) Energy (kWh) Duration (min) 1)2) Programme Quick 10.2 0.620 10.6 0.990 1h 30min 10.6 0.990 2h 40min 12.4 1.170 0.835 AUTO Sense 11.6 1.110 Machine Care 0.510 1) The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values.
  • Page 11 ENGLISH You can change the basic settings in To enter setting mode, press and hold setting mode. simultaneously about 3 seconds. When the appliance is in setting mode, The lights related to the Previous, OK the bars of the ECOMETER represent and Next are on.
  • Page 12 Water hardness German de‐ French de‐ mmol/l mg/l (ppm) Clarke Water softener grees (°dH) grees (°fH) degrees level 47 - 50 84 - 90 8.4 - 9.0 835 - 904 58 - 63 43 - 46 76 - 83 7.6 - 8.3...
  • Page 13 ENGLISH in the same cycle or at the beginning of Acoustic signals sound also the next programme. This activity when a malfunction of the increases the total water consumption of appliance occurs. It is not a programme by additional 4 litres and possible to deactivate these the total energy consumption of a signals.

  • Page 14: Before First Use

    6.6 Key tones The latest programme that was completed before the appliance The buttons on the control panel make a deactivation is saved. It is then selected click sound when you press them. You automatically after you activate the can deactivate this sound.

  • Page 15: Daily Use

    ENGLISH 7.2 How to fill the rinse aid CAUTION! dispenser Only use rinse aid designed specifically for dishwashers. 1. Press the release button (D) to open the lid (C). 2. Pour the rinse aid in the dispenser (A) until the liquid reaches the fill level 'max'.
  • Page 16 • The ECOMETER indicates the The appliance senses the type of load level of energy and water and adjusts a suitable wash cycle. consumption. During the cycle, the sensors operate • The display shows the several times and the initial program programme duration.

  • Page 17: Hints And Tips

    ENGLISH door, the appliance continues from the • When the programme is completed. point of interruption. • After 5 minutes if a programme was not started. If the door is opened for more than 30 seconds 8.10 End of the programme during the drying phase, the running programme ends.
  • Page 18 • The arrangement of the items in the results and hard-water filming or baskets is correct. spotting on the items. Using too much • The programme is suitable to the type detergent with soft or softened water of load and the degree of soil.

  • Page 19: Care And Cleaning

    ENGLISH 10. CARE AND CLEANING • Do not use abrasive products, WARNING! abrasive cleaning pads, sharp tools, Before any maintenance strong chemicals, scourer or solvents. other than running the • Wipe clean the door, including the programme Machine Care, rubber gasket, once a week. deactivate the appliance and •...
  • Page 20 5. Make sure that there are no residues of food or soil in or around the edge 1. Turn the filter (B) counterclockwise of the sump. and remove it. 6. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

  • Page 21: Troubleshooting

    ENGLISH 10.6 Cleaning the lower spray 3. To install the spray arm back, press it downwards. We recommend to clean the lower spray arm regularly to prevent soil from clogging the holes. Clogged holes can cause unsatisfactory washing results. 1. To remove the lower spray arm, pull it upwards.
  • Page 22 Problem and alarm code Possible cause and solution You cannot activate the ap‐ • Make sure that the mains plug is connected to the mains pliance. socket. • Make sure that there is no damaged fuse in the fuse box.
  • Page 23 ENGLISH Problem and alarm code Possible cause and solution The level of water inside the • Switch the appliance off and on. appliance is too high. • Make sure that the filters are clean. The display shows iF1. • Make sure that the outlet hose is installed at the right height above the floor.
  • Page 24 The PNC can be found on the rating WARNING! plate on the appliance door. You can We do not recommend using also check the PNC on the control panel. the appliance until the Before checking the PNC, make sure the problem has been appliance is in the programme selection.
  • Page 25 ENGLISH Problem Possible cause and solution Unusual foam during washing. • Use the detergent designed specifically for dishwash‐ ers. • Use a detergent from a different manufacturer. • Do not pre-rinse dishes under running water. Traces of rust on cutlery. •...

  • Page 26: Technical Information

    12. TECHNICAL INFORMATION Dimensions Width / height / depth (mm) 596 / 818 - 898 / 550 Voltage (V) 220 - 240 Electrical connection Frequency (Hz) Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 10 (1.0) Water supply max 60 °C...
  • Page 28 www.aeg.com/shop...
