WARNING:
DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.

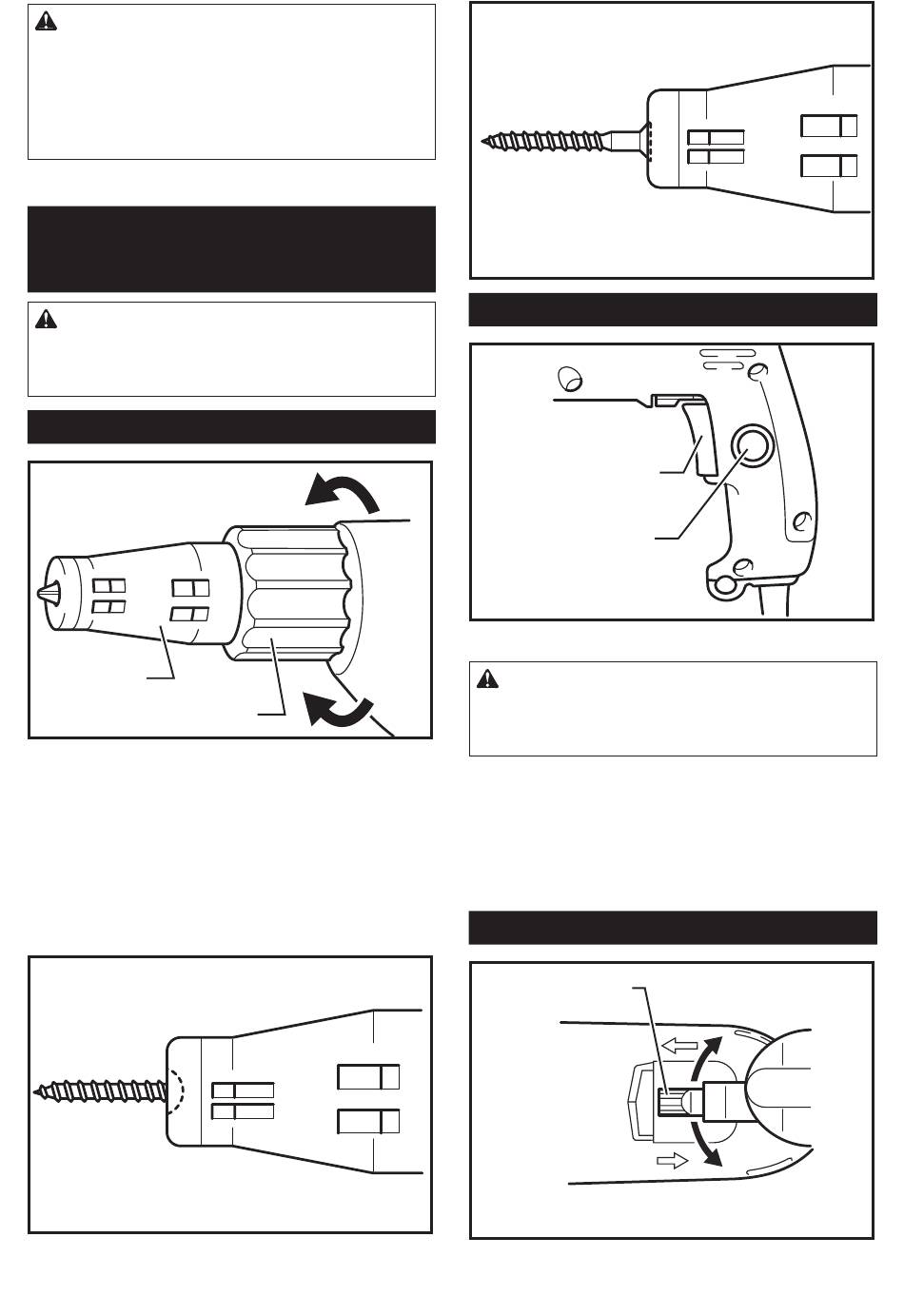

Depth adjustment

1
► 1 . Locator 2. Locking sleeve
The depth can be adjusted by turning the locking
sleeve. Turn it in "A" direction for less depth and in "B"
direction for more depth. One full turn of the locking
sleeve equals 2 mm change in depth.
Adjust the locking sleeve so that the tip of the locator
is flush with the base of the screw head. Drive a trial
screw into your material or a piece of duplicate material.
If the depth is still not suitable for the screw, continue
adjusting until you obtain the proper depth setting.
A
B
2
Switch action
► 1 . Switch trigger 2. Lock button
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
Reversing switch action
► 1 . Reversing switch lever
4 ENGLISH
1
2
1
A
B
