Gas-Fired, Self-Cleaning Rotisserie for CA/MX/US
Operation Manual
This manual is to be left with the customer for future reference.
INFERNO 4500
CUS-013-0028-09
Advertisement
Table of Contents
Related Manuals for Hardt INFERNO 4500
Summary of Contents for Hardt INFERNO 4500
- Page 1 INFERNO 4500 HARDT Gas-Fired, Self-Cleaning Rotisserie for CA/MX/US Responsive, Reliable Solutions Operation Manual Hardt Equipment Manufacturing Inc. 1400 50 Avenue, Lachine (Montreal) Quebec, Canada, H8T 2V3 Technical Support Tel: (800) 387-6847 (514) 631-7271 Fax: (514) 631-5443 Sales This manual is to be left with the customer for future reference.
-
Page 2: Important Information
Images shown in this manual are for reference only and may appear different from actual models. The terms Hardt®, Food Systems Resource®, Inferno®, Elemendt®, and the symbol depicting six circles, and other distinctive terms, are registered and unregistered trademarks of Hardt Equipment Manufacturing, Inc. and associated companies. -
Page 3: Table Of Contents
Table of Contents 1. Important Information .........................2 2. Before You Begin ..........................4 About This Manual ............................. 4 Equipment Safety ............................... 4 Food Safety ................................ 5 3. Equipment Diagrams ..........................6 Single Rotisserie ..............................6 Double-Stacked Rotisserie ..........................7 Control Panel Layout ............................8 4. -
Page 4: Before You Begin
This manual contains information necessary for the operation of the HARDT Equipment Manufacturing (hereafter referred to as Hardt) Inferno 4500 rotisserie. Retain this manual for future reference. To help the reader in the utilization of this manual, certain information has been highlighted using the following... -
Page 5: Food Safety
SPECIFIC TESTS. ALWAYS MEASURE THE INTERNAL TEMPERATURE OF A PRODUCT BEFORE ENDING THE COOKING. ACCEPTED INTERNAL TEMPERATURES SHOULD NOT BE LOWER THAN THOSE PUBLISHED FOR ESTABLISHED FOOD SAFETY STANDARDS. Consult Hardt if you need help setting up a food safety program. CUS-013-0028-09 Page 5 of 22... -
Page 6: Equipment Diagrams
3. Equipment Diagrams Single Rotisserie CHIMNEY END OF PROGRAM LIGHT (YELLOW) CONTROL PANEL AUTO CLEAN DEGREASER INLET HOSE AUTO CLEAN DEGREASER BOTTLE MANUAL DRAIN GREASE DRAIN VALVE HANDLE (COOK/CLEAN) CASTERS (OPTION) OPTIONAL ACCESSORIES POWER ADAPTER HEATED GREASE RESERVOIR Serial Nameplate PRESSURE HALOGEN LIGHT GAUGE... -

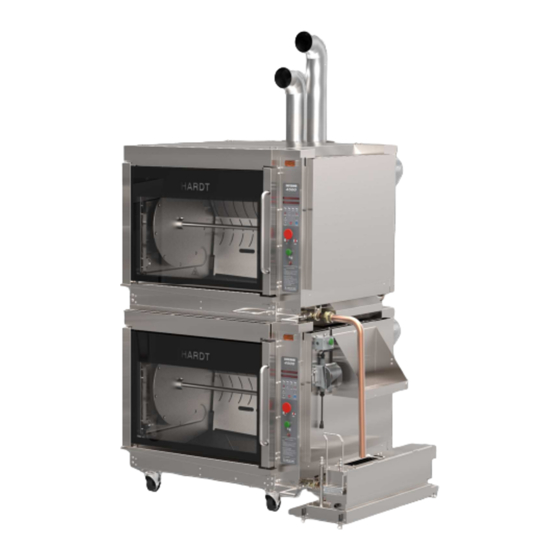

Page 7: Double-Stacked Rotisserie
Double-Stacked Rotisserie CHIMNEYS END OF PROGRAM LIGHT (YELLOW) CONTROL PANEL AUTO CLEAN DEGREASER INLET MANUAL DRAIN HOSE VALVE HANDLE AUTO CLEAN DEGREASER BOTTLE (COOK/CLEAN) GREASE DRAINS CASTERS TOP OVEN BOTTOM OVEN OPTIONAL ACCESSORIES POWER ADAPTER HEATED GREASE RESERVOIR SERIAL NAMEPLATE HALOGEN LIGHT PRESSURE ACCESS PANEL... -
Page 8: Control Panel Layout
PRESSING AND HOLDING FOR 3 SECS STOPS ALL ACTIONS EXCEPT AUTO CLEAN MANUAL ADVANCE SWITCH (GREEN) SLO (SAFETY LOCKOUT) ALARM LAMP (RED) BASIC OPERATION INSTRUCTIONS AND HARDT CONTACT INFORMATION READ THIS MANUAL FOR DETAILED OPERATION INSTRUCTIONS Figure 3-3 Page 8 of 22 CUS-013-0028-09... -
Page 9: Operation
Across the inner façade above the oven opening. 7. With power connected to the rotisserie, turn on the Inferno 4500 by pulling out the red main ON/OFF switch shown in Figure 3-3 on page 8. Figure 4-2 The rotisserie is now in “Idle Mode”... -
Page 10: Grease Collection
Hardt offers an optional Heated Grease Collection Reservoir that is used to facilitate the collection and disposal of grease from the rotisserie. If no reservoir is obtained from Hardt, alternate methods of grease collection and disposal are required. If the optional Heated Grease Collection Reservoir from... -
Page 11: Cooking Procedure
REFER TO SECTION 2.3 FOOD SAFETY ON PAGE 5 FOR SPECIAL NOTES ON PRODUCT INTERNAL TEMPERATURE. The procedures described here are basic. Hardt provides extensive cooking and food program support and training. Your organization may have specific instructions that should be followed instead of the ones listed here. -
Page 12: Loading & Unloading The Rotisserie
Loading & Unloading the Rotisserie CROSS CONTAMINATION OF RAW ONTO COOKED PRODUCT IS VERY DANGEROUS. DO NOT LOAD UNCOOKED PRODUCT INTO ROTISSERIE UNTIL COOKING CYCLE IS COMPLETE AND ALL COOKED PRODUCT IS REMOVED FROM ROTISSERIE. USE PROTECTIVE CLOTHING WHEN LOADING AND UNLOADING THE ROTISSERIE. 4.4.1 Loading the Skewers When the rotisserie reaches operating temperature, skewers can be loaded. -
Page 13: Available Accessories
Available Accessories Please refer to the following table when ordering accessories from Hardt. Table 2 Part Name Description Illustration A stainless steel skewer that supports the chicken ‘V’ Skewers without piercing the skin, allowing the natural juices that give the bird flavor to be retained. -
Page 14: Controller Functions
Controller Functions This section contains information for basic operation and programming of the Inferno 4500 system. 4.6.1 Notifications and Alarms (Press STOP once to end a buzzer. Press and hold STOP for 3 seconds to stop any action except an AUTO CLEAN cycle.) ... -
Page 15: Maintenance
5. Maintenance ENSURE YOU ARE WEARING INSULATED GLOVES AND AN APRON AT ALL TIMES WHEN WORKING WITH THE HOT ROTISSERIE. Allow a period of time for the rotisserie to reach a safe-to-touch temperature, but ensure that the oven is still warm to facilitate easier cleaning. Daily Cleaning 5.1.1 Beginning of the Day Ensure that the entire Rotisserie is clean by referring to section 5.1.4 Auto Clean Effectiveness Evaluation... - Page 16 Clean cycle as shown in Figure 5-1 USE ONLY ECOLAB CIP OR 2. If the level is too low, replace the bottle. HARDT CLEAN 3000 REFER TO YOUR COMPANY’S POLICY ON THE HANDLING OF HAZARDOUS MATERIALS WHEN REPLACING THE DEGREASER BOTTLE; FOR MORE INFORMATION, CONSULT THE DEGREASER’S MATERIAL SAFETY DATA SHEET.
-
Page 17: Auto Clean Effectiveness Evaluation
5.1.4 Auto Clean Effectiveness Evaluation It is important to consider the condition of the rotisserie after the Auto Clean cycle is finished to verify that the cleaning operations are functioning correctly. The following images illustrate three states of cleanliness and their related interpretation. -
Page 18: Weekly Inspection
Thoroughly inspect the venting components / chimneys supplied with the rotisserie for signs of damage (dents, perforations, etc.). Replace with certified Hardt components if required. Ensure that the electrical cord, water and gas lines are free from damage and kinks. -
Page 19: Material Cleaning Guidelines
Material Cleaning Guidelines 5.4.1 Guidelines for Cleaning Glass Surfaces Wipe off residues with a soft cloth or a paper towel. Remove baked-on residues using a wooden or plastic scraper. Avoid using a metal scraper as it may scratch the glass. ... -
Page 20: Troubleshooting
If the rotisserie goes into Safety Lockout again there is most likely a component failure. Turn the rotisserie off by pushing in the red main ON/OFF switch and contact your local authorized Hardt service provider. Page 20 of 22... -
Page 21: Replacing The Halogen Light Bulb
Replacing the Halogen Light Bulb 1. Turn the rotisserie off by pushing in the red main ON/OFF LOOSEN switch and disconnect the power cord from the wall (X 2) receptacle. 2. Allow the rotisserie to cool down. 3. Remove the halogen light access panel located on the left side of the rotisserie by loosening the thumb screws (by hand or using a screwdriver) (Figure 6-2). -
Page 22: Numeric Temperature Display Mode
Do not touch the replacement halogen light bulb with bare fingers or dirty gloves. 1. Install a new halogen light bulb. 2. Position the halogen light bulb support bracket so that the light is oriented towards the center shaft of the rotisserie and hand-tighten the two wing nuts.
