9.3

Back cover

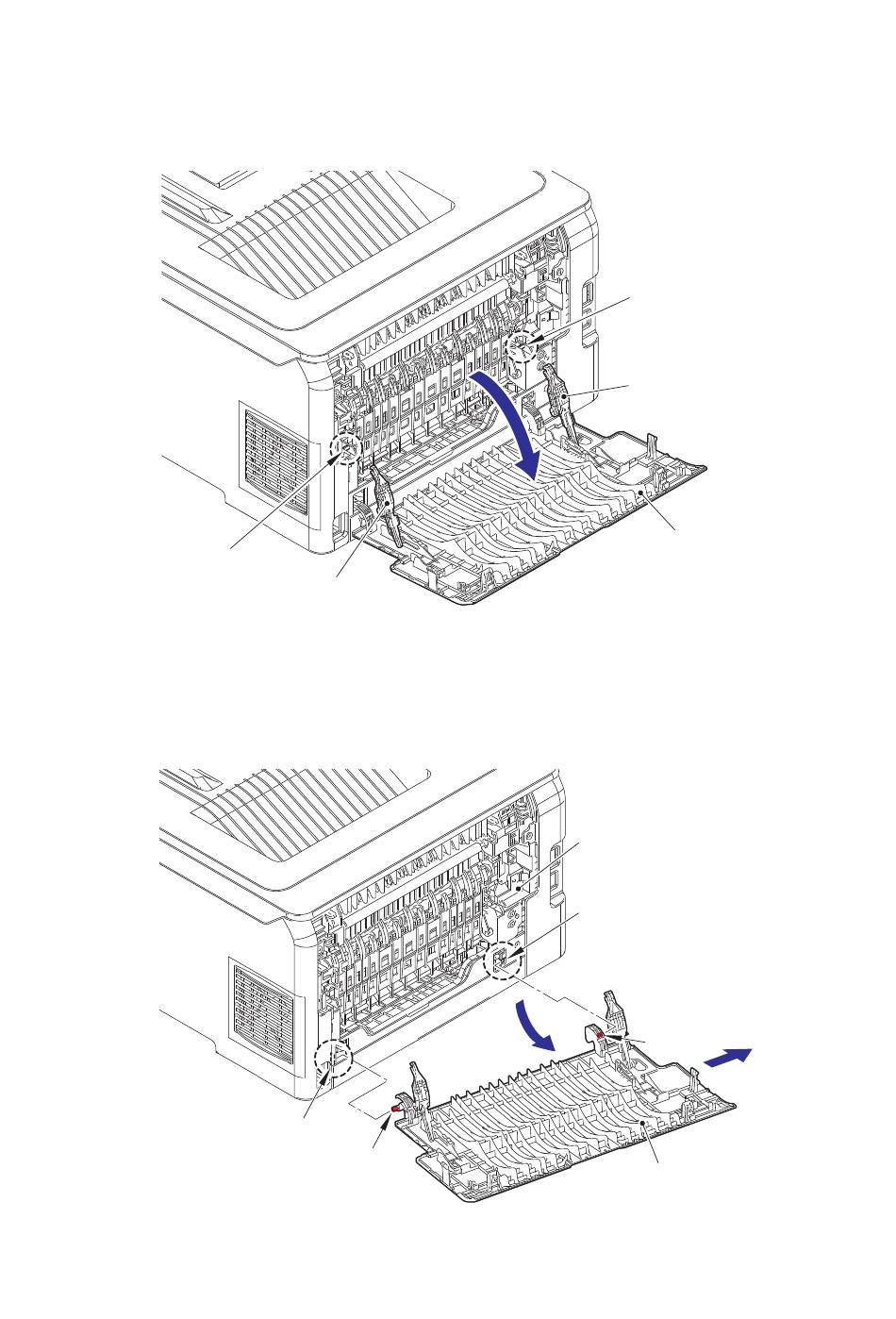

(1) Open the Back cover ASSY.
(2) Remove the Back cover stopper arm L/R from the A part.
A part
Back cover stopper arm R
(3) Release the Boss of the Back cover ASSY from the Bush on the Frame L to remove the
Back cover ASSY. (3a → 3b)
Fig. 3-3
Bush
Boss
Fig. 3-4
3-20
A part
Back cover stopper arm L
Back cover ASSY
Frame L
Bush
Boss
3a
Back cover ASSY
<Back side>
3b
<Back side>
