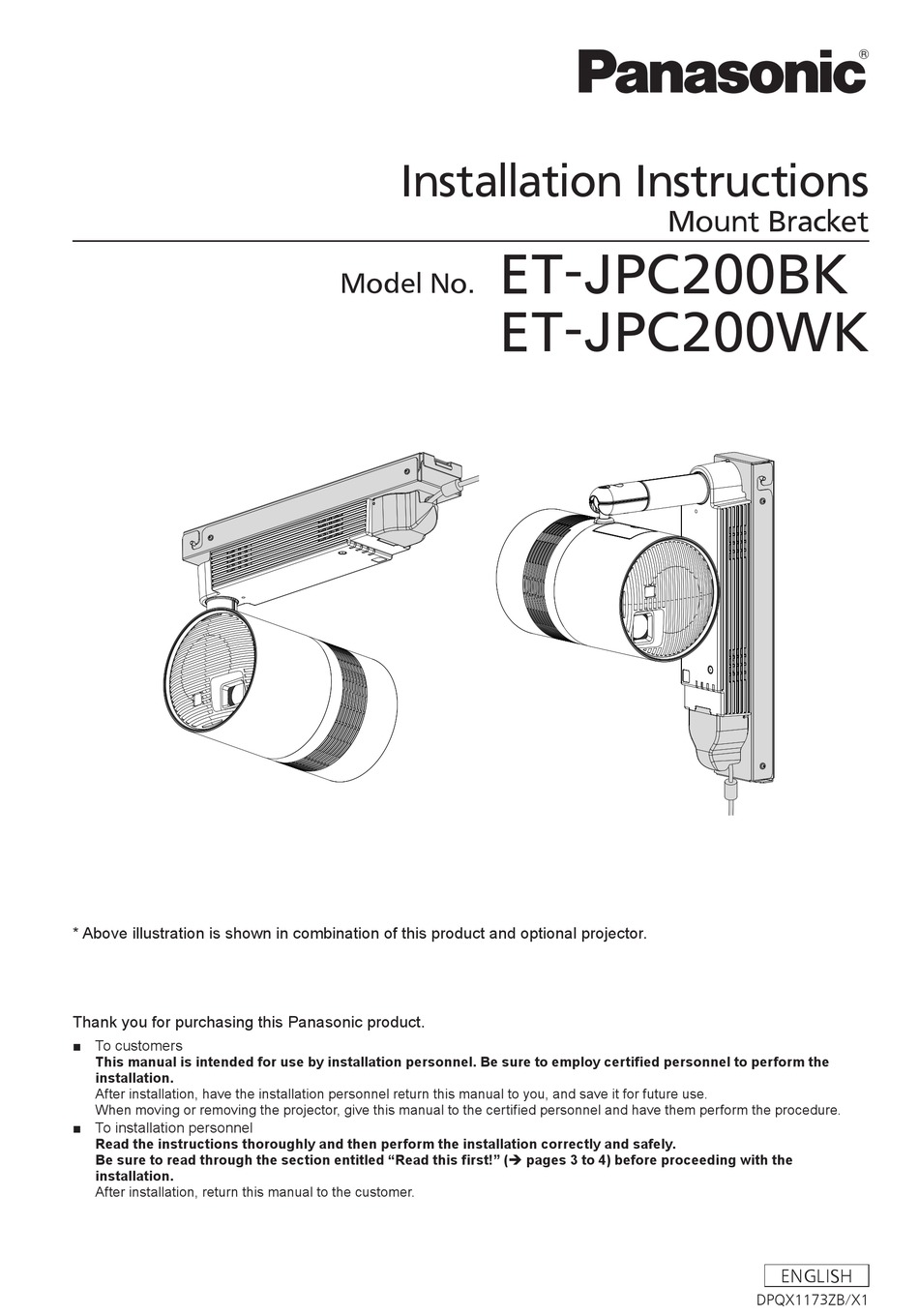

* Above illustration is shown in combination of this product and optional projector.
Thank you for purchasing this Panasonic product.
■ To customers
This manual is intended for use by installation personnel. Be sure to employ certified personnel to perform the
installation.
After installation, have the installation personnel return this manual to you, and save it for future use.
When moving or removing the projector, give this manual to the certified personnel and have them perform the procedure.
■ To installation personnel
Read the instructions thoroughly and then perform the installation correctly and safely.
Be sure to read through the section entitled "Read this first!" ( pages 3 to 4) before proceeding with the
installation.
After installation, return this manual to the customer.
Installation Instructions
ET-JPC200BK
Model No.
ET-JPC200WK
Mount Bracket
ENGLISH
DPQX1173ZB/X1
Advertisement
Table of Contents
Related Manuals for Panasonic ET-JPC200BK
Summary of Contents for Panasonic ET-JPC200BK
- Page 1 ET-JPC200WK * Above illustration is shown in combination of this product and optional projector. Thank you for purchasing this Panasonic product. ■ To customers This manual is intended for use by installation personnel. Be sure to employ certified personnel to perform the installation.
-
Page 2: Table Of Contents
Contents Read this first! ....................3 Installation precautions ..................5 Product composition ..................6 Before installation ..................... 7 Items to prepare ......................... 7 Installation orientation ......................8 Installation position ......................9 Installation ......................11 Main procedures ........................11 Preparing the adapter cover ....................11 Mounting the attachment plate to a wall or ceiling .............11 Changing the orientation of the main unit of the projector .......... -
Page 3: Read This First
Read this first! WARNING Ask a qualified technician or your dealer to perform the installation work. Inadequate installation may result in fire, electric shocks, or falling of the projector. z Follow the instructions specified in “Installation” of this manual, and perform secure installation. z To be installed by qualified personnel only. - Page 4 If the power cord itself is pulled, the lead may become damaged, and fire, short-circuits or serious electric shocks may result. „ Panasonic Connect Co., Ltd. disclaims all liability for any accidents or any damage caused „ by the installation of the attachment plate using methods that are not described in these Installation Instructions or methods that do not use the parts specified in these Instructions.
-
Page 5: Installation Precautions
Installation precautions „ Install this product in a place that is strong enough to withstand the weight of both the projector and product. „ Install this product in a place where the intake and exhaust of the projector will not be blocked. „... -
Page 6: Product Composition
(K2CM3YY00038) <1> Screw with captive washer (M4 x 8) <8> These are used to mounting or assembling the product. (ET-JPC200BK: XYN4+F8FJK) (ET-JPC200WK: 4112055002) Attention z After removing the product from the package, dispose of the power cord cap and packing material appropriately. -
Page 7: Before Installation
Before installation Items to prepare The items that you need to provide in advance in addition to the supplied parts to mount this product to a wall or ceiling are as follows. „ This product is a tool used for mounting the projector (optional) to a wall or ceiling. Use it to „... -
Page 8: Installation Orientation
Before installation (continued) Installation orientation Mount this product in the specified orientation to a wall or ceiling. Mounting this product in a wrong orientation may cause the falling of projector. „ When mounting it to a wall, set the pole side at the upper end and the lengthwise direction „... -
Page 9: Installation Position
Before installation (continued) Installation position Decide the installation position on the wall or ceiling while referring to “Projection related dimension diagrams”, “Projection distances” and “Mounting hole dimensions”. The following illustrations are examples of the projection lens surface of the main unit of the projector and the projection surface positioned so that they are facing each other straight. - Page 10 Before installation (continued) Projected image size Projection distance (L) Distance from the lens centre to the Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) end of image (H) 3.05 (120") 1.829 2.438 3.28 7.12 0.610 3.81 (150") 2.286 3.048 4.10 8.90...
-
Page 11: Installation
Installation Main procedures The main procedures for using this product to install a projector (optional) on a wall or ceiling are as follows. Before the installation work, be sure to shut off the power supply to the room by, for example, shutting off the wiring circuit breaker. - Page 12 Installation (continued) „ When mounting to a reinforced wall with wood screws „ A: Mounting holes for wood screws with nominal diameter Shaft of 3.1 mm (1/8") Wood screws with nominal diameter of 3.1 mm (1/8") Wood screws with Wood screw with nominal nominal diameter of diameter of 4.1 mm (5/32") 4.1 mm (5/32")
- Page 13 Installation (continued) [Reference] Wood screw pullout strength Unit (N) Wood screw (nominal diameter 4.1 mm (5/32") Wood screw (nominal diameter 3.1 mm (1/8") Tree type x thread engagement 20 mm (25/32")) x thread engagement 20 mm (25/32")) (Thickness of at least 20 mm (25/32ʺ)) Cross grain Straight grain...
- Page 14 Installation (continued) ■ When the hanging bolt installation location is of concrete Anchor nut or Anchor nut or curled plug curled plug Concrete Hexagonal nut Hexagonal nut Flat washer Flat washer Hanging bolt Hanging bolt Spring washer Spring washer Hexagonal nut Hexagonal nut Flat washer Flat washer...
- Page 15 Installation (continued) „ When the hanging bolt installation location is a wooden beam „ Spring washer Spring washer Hexagonal nuts Hexagonal nut Flat washer Flat washer Beam Hanging bolt Hanging bolt Hexagonal nuts Flat washer Flat washer Hexagonal nut Ceiling board Spring washer Attachment plate Spring washer...
- Page 16 Installation (continued) „ When mounting to a reinforced ceiling with wood screws „ Reinforcement Wood screw with nominal Attachment plate Wood screw with nominal Ceiling board diameter of 3.1 mm (1/8") diameter of 3.1 mm (1/8") Wood screw with nominal diameter of 4.1 mm (5/32") A: Mounting holes for wood screws with Falling prevention wire...
-
Page 17: Changing The Orientation Of The Main Unit Of The Projector
Installation (continued) Changing the orientation of the main unit of the projector This section describes changing the orientation of the main unit of the projector to make the installation work much easier. 1) Place the projector on a cloth or the like that has been laid on a flat surface. -
Page 18: Mounting The Projector Mount Bracket To The Projector
Installation (continued) Mounting the projector mount bracket to the projector This section describes mounting the projector mount bracket to the projector. 1) Place the projector on the work bench. Power supply unit z Place the power supply unit of the projector on a work bench that has a soft cloth or the like laid on it. - Page 19 Installation (continued) 4) Rotate the projector mount bracket. z Turn the projector mount bracket to match the orientation of the power supply unit of the projector. 5) Slide the projector mount bracket. z Slide the projector mount bracket so that it attaches to the <AC IN>...
-
Page 20: Mounting The Projector To The Attachment Plate
Installation (continued) Mounting the projector to the attachment plate Attach the projector mounted with the projector mount bracket to the attachment plate that already installed to the wall or ceiling. r Install the projector to a wall Attention z For wall mounting, set the pole of the projector at the upper end and the lengthwise direction of the power supply unit vertically, and then perform the mounting work. - Page 21 Installation (continued) 4) Attach the hook of the projector mount bracket to the attachment plate. z Take the shaft as pivot and slightly lift up the projector pole, the projector mount bracket hook can be connected to the attachment plate, and the screw holes of the projector mount bracket and the attachment plate can be aligned.
- Page 22 Installation (continued) r Install the projector to a ceiling 1) Changing the orientation of the main unit of Shaft the projector. z Refer to "Changing the orientation of the Attachment plate main unit of the projector" ( page 17), adjust the orientation of the main unit of the projector as shown in the left illustration and Groove then fasten the ball joint fixing screw.
-
Page 23: Connecting The Power Cord To The Projector
Installation (continued) Connecting the power cord to the projector This section describes connecting the supplied power cord to the projector. To prevent the disconnection of the power cord, firmly insert the connector all the way into the <AC IN> socket of the projector and then secure it in place. For details on the handling of the power cord, refer to “Read this first!”... - Page 24 Installation (continued) 4) Close the connector secure lock. z While the string is hooked onto the cover, push until the tabs of the connector secure lock click into place. Take care not to trap the string with a tab. z The string is for preventing the adapter cover from falling off.
-
Page 25: Adjusting The Projection Position
Installation (continued) Adjusting the projection position This section describes determining the projection position by adjusting the orientation of the main unit of the projector. 1) Loosen the ball joint fixing screw of the projec- Pole tor. z Loosen the ball joint fixing screw of the projector Shaft holder with the allen wrench (5.0 mm (3/16") across Ball joint fixing screw... -
Page 26: Specifications
Dimensions Height: 40 mm (1-9/16") Depth: 440.4 mm (17-11/32") Weight 1.3 kg (2.87 lbs.) ET-JPC200BK: Black (for use in combination with PT-JX200FBK) Outer color ET-JPC200WK: White (for use in combination with PT-JX200FWK) Power cord length 2.0 m (78-3/4") *1 : The dimensions are measured with this product being separately assembled, exclusive of the protrusion, power cord or adapter cover. -
Page 27: Assembly Dimension Diagram
Specifications(Continued) Assembly dimension diagram These dimensions are indicated when this product is mounted to an optional projector (product number: PT-JX200FBK / PT-JX200FWK). Unit: mm 97 (3-13/16") φ 170 (6-11/16") 173.4 (6-13/16") 343.4 (13-9/16") 92 (3-5/8") 84 (3-5/16") 22.5 Ball joint movable range: (7/8") approx. - Page 28 Panasonic Connect Co., Ltd. Web Site : https://panasonic.net/cns/projector/ TI0217JG1062 -PT © Panasonic Connect Co., Ltd. 2022 Printed in China...
