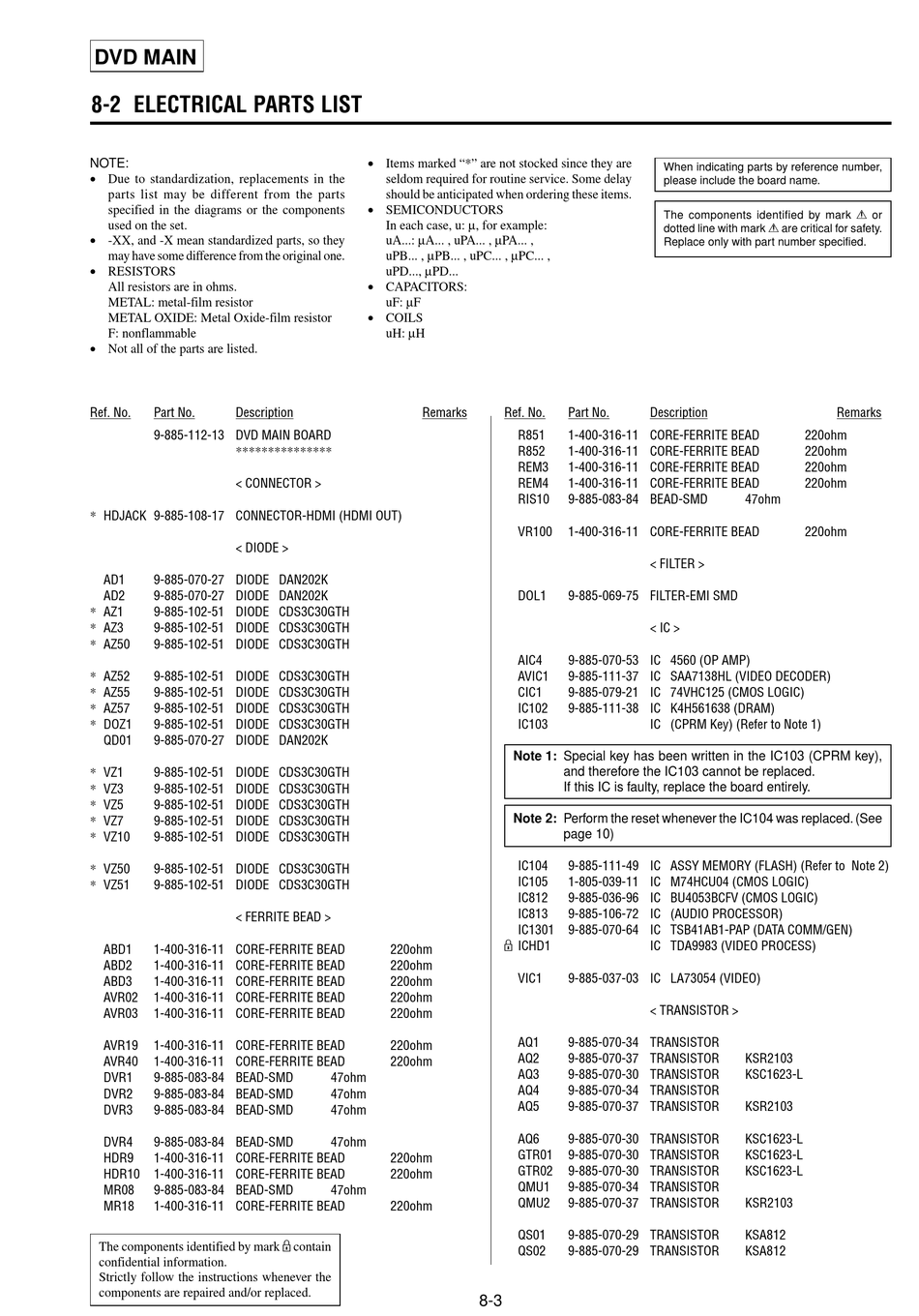

8-2 ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, and -X mean standardized parts, so they
may have some difference from the original one.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• Not all of the parts are listed.
Ref. No.
Part No.
Description
9-885-112-13 DVD MAIN BOARD
***************
< CONNECTOR >
* HDJACK 9-885-108-17 CONNECTOR-HDMI (HDMI OUT)
< DIODE >
AD1
9-885-070-27 DIODE DAN202K
AD2
9-885-070-27 DIODE DAN202K
* AZ1
9-885-102-51 DIODE CDS3C30GTH
* AZ3
9-885-102-51 DIODE CDS3C30GTH
* AZ50
9-885-102-51 DIODE CDS3C30GTH
* AZ52
9-885-102-51 DIODE CDS3C30GTH
* AZ55
9-885-102-51 DIODE CDS3C30GTH
* AZ57
9-885-102-51 DIODE CDS3C30GTH
* DOZ1
9-885-102-51 DIODE CDS3C30GTH
QD01
9-885-070-27 DIODE DAN202K
* VZ1
9-885-102-51 DIODE CDS3C30GTH
* VZ3
9-885-102-51 DIODE CDS3C30GTH
* VZ5
9-885-102-51 DIODE CDS3C30GTH
* VZ7
9-885-102-51 DIODE CDS3C30GTH
* VZ10
9-885-102-51 DIODE CDS3C30GTH
* VZ50
9-885-102-51 DIODE CDS3C30GTH
* VZ51
9-885-102-51 DIODE CDS3C30GTH
< FERRITE BEAD >
ABD1
1-400-316-11 CORE-FERRITE BEAD
ABD2
1-400-316-11 CORE-FERRITE BEAD
ABD3
1-400-316-11 CORE-FERRITE BEAD
AVR02
1-400-316-11 CORE-FERRITE BEAD
AVR03
1-400-316-11 CORE-FERRITE BEAD
AVR19
1-400-316-11 CORE-FERRITE BEAD
AVR40
1-400-316-11 CORE-FERRITE BEAD
DVR1
9-885-083-84 BEAD-SMD
DVR2
9-885-083-84 BEAD-SMD
DVR3
9-885-083-84 BEAD-SMD
DVR4
9-885-083-84 BEAD-SMD
HDR9
1-400-316-11 CORE-FERRITE BEAD
HDR10
1-400-316-11 CORE-FERRITE BEAD
MR08
9-885-083-84 BEAD-SMD
MR18
1-400-316-11 CORE-FERRITE BEAD
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• CAPACITORS:
uF: µF
• COILS
uH: µH
Remarks
220ohm
220ohm
220ohm
220ohm
220ohm
220ohm
220ohm
47ohm
47ohm
47ohm
47ohm
220ohm
220ohm
47ohm
220ohm
8-3
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No.
Part No.
Description
R851
1-400-316-11 CORE-FERRITE BEAD
R852
1-400-316-11 CORE-FERRITE BEAD
REM3
1-400-316-11 CORE-FERRITE BEAD
REM4
1-400-316-11 CORE-FERRITE BEAD
RIS10
9-885-083-84 BEAD-SMD
VR100
1-400-316-11 CORE-FERRITE BEAD
< FILTER >
DOL1
9-885-069-75 FILTER-EMI SMD
< IC >
AIC4
9-885-070-53 IC 4560 (OP AMP)
AVIC1
9-885-111-37 IC SAA7138HL (VIDEO DECODER)
CIC1
9-885-079-21 IC 74VHC125 (CMOS LOGIC)
IC102
9-885-111-38 IC K4H561638 (DRAM)
IC103
IC (CPRM Key) (Refer to Note 1)
Note 1: Special key has been written in the IC103 (CPRM key),
and therefore the IC103 cannot be replaced.
If this IC is faulty, replace the board entirely.
Note 2: Perform the reset whenever the IC104 was replaced. (See
page 10)
IC104
9-885-111-49 IC ASSY MEMORY (FLASH) (Refer to Note 2)
IC105
1-805-039-11 IC M74HCU04 (CMOS LOGIC)
IC812
9-885-036-96 IC BU4053BCFV (CMOS LOGIC)
IC813
9-885-106-72 IC (AUDIO PROCESSOR)
IC1301
9-885-070-64 IC TSB41AB1-PAP (DATA COMM/GEN)
9 ICHD1
IC TDA9983 (VIDEO PROCESS)
VIC1
9-885-037-03 IC LA73054 (VIDEO)
< TRANSISTOR >
AQ1
9-885-070-34 TRANSISTOR
AQ2
9-885-070-37 TRANSISTOR
AQ3
9-885-070-30 TRANSISTOR
AQ4
9-885-070-34 TRANSISTOR
AQ5
9-885-070-37 TRANSISTOR
AQ6
9-885-070-30 TRANSISTOR
GTR01
9-885-070-30 TRANSISTOR
GTR02
9-885-070-30 TRANSISTOR
QMU1
9-885-070-34 TRANSISTOR
QMU2
9-885-070-37 TRANSISTOR
QS01
9-885-070-29 TRANSISTOR
QS02
9-885-070-29 TRANSISTOR
Remarks
220ohm
220ohm
220ohm
220ohm
47ohm
220ohm
KSR2103
KSC1623-L
KSR2103
KSC1623-L
KSC1623-L
KSC1623-L
KSR2103
KSA812
KSA812
