2-1-3 Chassis Removal
5 POWER CORD
7 REMOVE 6 SCREWS
4 REMOVE CONNECTOR
6 REMOVE CONNECTOR
8 ASSY PWB MAIN FRONT
0 REMOVE 3 SCREWS
1 REMOVE 4 SCREWS
3 ASSY LOADER
qa ASSY PWB MAIN DVD
2 SHIELD LOADER
9 REMOVE 4 SCREWS

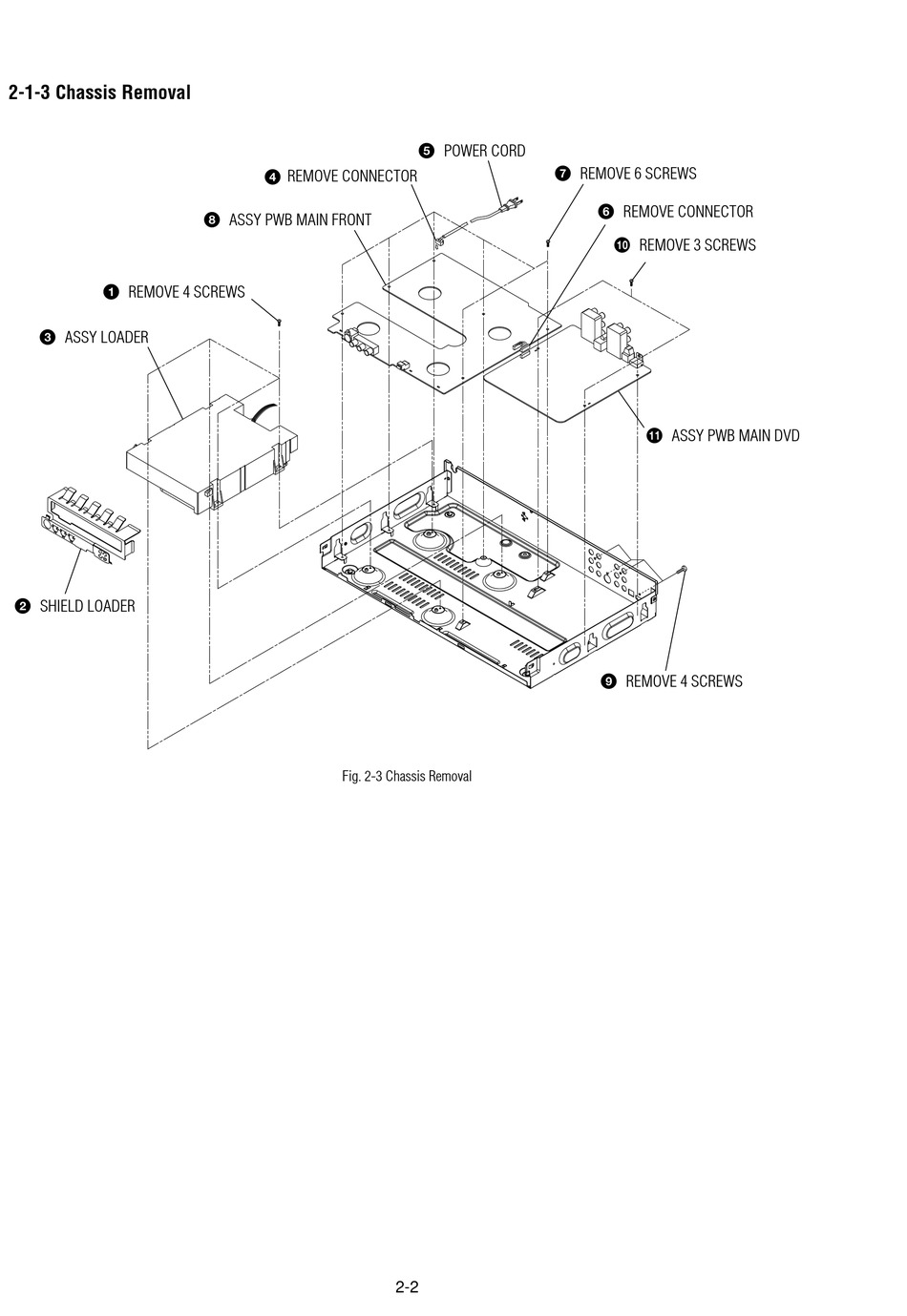

Fig. 2-3 Chassis Removal
