Pair With A Bluetooth Headset And Other Devices - Cisco Webex Desk Pro User Manual

Introduction

Pair with a Bluetooth Headset and other devices

You can use Bluetooth connection for both headsets and
other devices. For headsets, you can use Bluetooth to
either connect directly to a headset or through a USB
dongle.
You can switch between the speaker of the Desk Pro and
the devices connected through Bluetooth or USB. Select
the icon in the status bar of the user interface, and choose
from the available devices.
NOTE: You can't have both a headset and another device
Bluetooth connected simultaneously.
Bluetooth Headsets
Bluetooth profiles supported:
HFP (Hands-Free Profile)
•
A2DP (Advanced Audio Distribution Profile)
•
Bluetooth headset is supported directly with the
embedded Bluetooth radio or by using a USB Bluetooth
dongle.
Multiple headsets can be paired with the device, but only
one can be connected at a time.
The range is up to 10 m (30 ft). If you move outside the
range when in a call, the audio switches to the speakers
on the device.
Most headsets have built-in volume controls. When
in a call, the volume of the headset and device is
synchronized. When not in a call, the volume buttons on
the headset and device operate independently.
Supported Bluetooth features:
Answer incoming calls
•
Reject incoming calls
•
Hang up calls
•
Hold and resume calls
•
Volume up and down
•
Some headsets have mute control. This operates
independently of the mute control on the device.
15435.02 Cisco Webex Desk Pro User Guide JUNE 2020
All contents © 2020 Cisco Systems, Inc. All rights reserved
Pair a Bluetooth Headset
1. Activate Bluetooth pairing on the headset. If in doubt,
consult the instruction manual for the headset.
2. Tap the device name in the upper left corner of your
Desk Pro, tap Settings and Bluetooth. If Bluetooth is
disabled, turn it on. Bluetooth is enabled by default.
3. The Desk Pro scans for devices. Upon successful
discovery the Bluetooth headset should be displayed in
the device list.
4. Select the device and pairing begins. It may take a few
seconds for the pairing to complete.
5. If the pairing is successful, Desk Pro lists the headset as
connected. The pairing is completed.
USB Bluetooth Dongle
When using the dongle the headset is detected as a USB
headset.
Note that synchronization of headset volume and device
volume doesn't work when using a dongle.
See also https://help.webex.com/nkiifbo/.

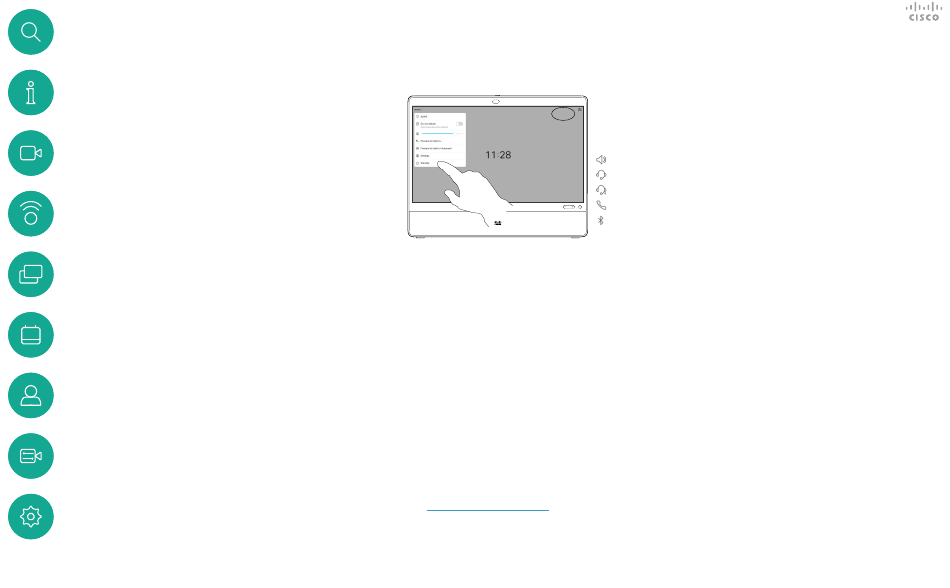

Icon appears here. Tap it to
change between Desk Pro
speakers and another device.
Speakers
Analog headset
USB headset
USB handset
Bluetooth device
Pair other devices
You can also pair other devices to your Desk Pro, such as
your mobile phone for listening music.
NOTE: You can't use Bluetooth to stream music while in a
call.
1. Tap the device name in the upper left corner of your
Desk Pro, tap Settings and Bluetooth. If Bluetooth is
disabled, turn it on. Bluetooth is enabled by default.
2. Toggle on Discoverable.
You only need to set Desk Pro as Discoverable
when you connect a new device. Desk Pro goes
automatically out of Discoverable mode after five
minutes.
3. Go to the Bluetooth settings on your device and scan for
available devices.
4. Select Desk Pro from the devices list and pairing begins.
It may take a few seconds for the pairing to complete.
5. If the pairing is successful, your Desk Pro is listed as
connected. The pairing is completed.
5
