Buffalo BS-GU2005 Hardware Manual

TM
BS-GU2005
Hardware Manual

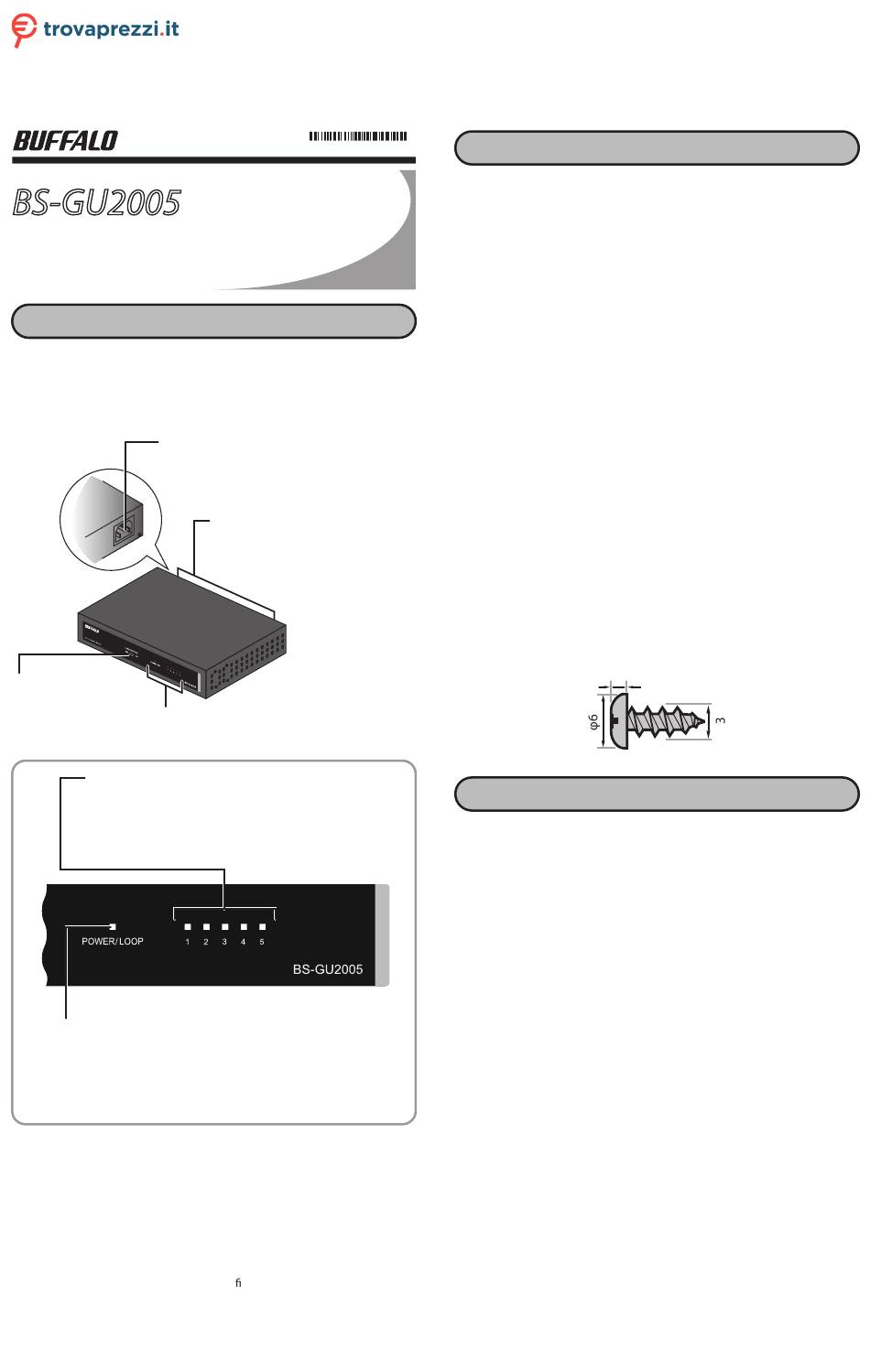

Package Contents
The package contains the items shown below. If any items are missing,
please contact the dealer where you purchased this product.
The appearance of this product may vary from the illustration.
• Switch (main unit)................................................................................................. 1
Power connector
Connect the included power cable to this connector.
Loop detection
switch
Indicators
This switches loop
detection on and off.
Link/Act/Speed LED
On (green): 1000 Mbps linked.
On (amber): 100 or 10 Mbps linked.
Blinking (green or amber): Transmitting data.
Blinking once per second (green or amber): A loop is detected.
Power/Loop LED
On (green): Power is on.
Blinking once per second (red): A loop is detected.
• Power cable............................................................................................................. 1
• Rubber feet.............................................................................................................. 4
• Serial number stickers......................................................................................... 2
• Hardware manual (this document) ................................................................ 1
• Warranty................................................................................................................... 1
Only use the cables and accessories that are included in the package. Don't
use other accessories or cables unless speci cally instructed to in the
documentation.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
o cerca il tuo prodotto tra le
35020641-01
LAN ports
These are ports for connecting
1000BASE-T/100BASE-TX/10BASE-T devices.
migliori offerte di Switch
Precautions for Installation
• Do not install the device in an unstable location such as on an unsteady
table or an inclined surface.
• Do not place another hub or object that generates heat on this unit.
• Please route all cables properly to prevent people from tripping over them.
• Ensure the air vents on the product are not blocked by other equipment or
walls.
• Only use the power cable included with the product. Using other power
cables may result in damage or fire.
Floor or Shelf Mounting
Attach the supplied rubber feet to the bottom corners of the unit before
use.
Mounting to a Metal Surface
To mount to a metal surface, such as the side of a steel desk, use the
"BS-MGK-A Magnet Kit" (sold separately). Attach the supplied rubber feet to
the bottom corners of the unit before using the magnet kit.
Caution: Do not put floppy discs, magnetic cards, or other magnetic storage
media near magnets. Doing so may delete or corrupt data.
Note: If the switch is secured by the magnet kit alone, it should be no more
than 75 cm (29.5 in) from the floor.
Mounting to a Wall
To mount the unit directly to the wall, use 2 screws (not included) with the
dimensions shown below. Install the screws 78 mm (3.07 in) apart and slide
the mounting holes on the base of the switch over them.
This unit can detect network loops that can cause interference in the network.
What Is a Loop?
If both ends of an Ethernet cable are connected to the same hub, or when
multiple connections exist between two hubs, data may be sent in a loop
around the network, wasting network capacity and never getting to its
destination. This continuously circulating data may interfere with other
network communication.
Loop Detection
Off: Loops are not detected.
On: If a network loop is detected, the power/loop, and link/act/speed LEDs for
the detected port blink once per second.
Notes:
- While loop detection is enabled, this switch will send a loop detection packet
through the network every two seconds. If these packets disrupt your network in
any way, disable loop detection.
- Loop detection cannot detect all types of loops.
Turning Loop Detection On and Off
1. Use the switch on the front of the switch to turn loop detection on or off.
2. Disconnect power cable and reconnect it.
When a Loop Is Detected
Reconnect your Ethernet cabling, making sure that there are no redundant
connections.
Buffalo BS-GU2005
Installation
2
Loop Detection
