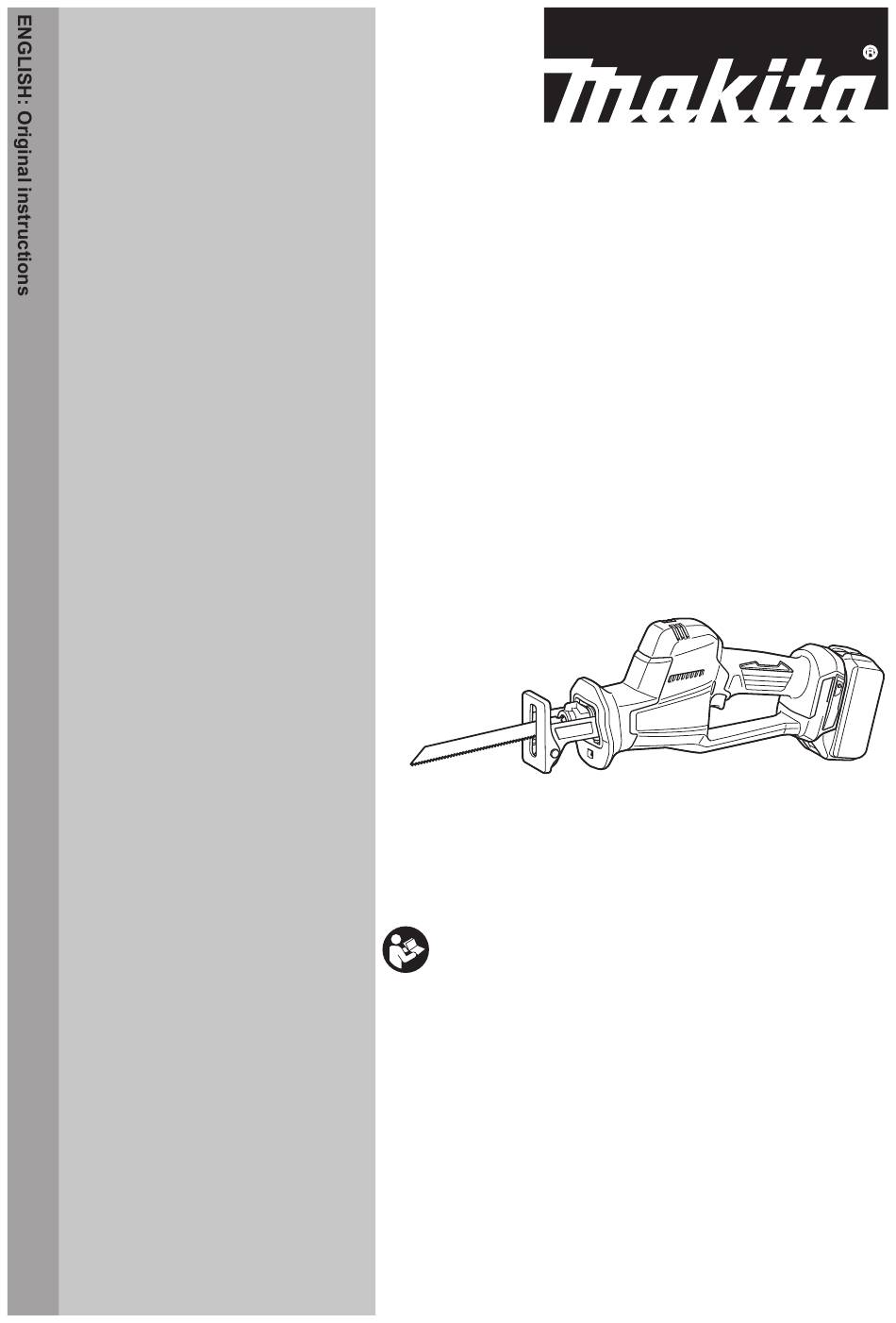

- Page 1 INSTRUCTION MANUAL Cordless Recipro Saw DJR189 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DJR189 Length of stroke 22 mm Strokes per minute 0 - 3,100 min Max. cutting capacities Pipe 130 mm Wood (with 300 mm blade) 255 mm Rated voltage D.C. 18 V Overall length (with BL1860B) 410 mm Net weight 2.2 - 2.5 kg •... -
Page 3: Ec Declaration Of Conformity
Electrical safety Vibration Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any The vibration total value (tri-axial vector sum) deter- adapter plugs with earthed (grounded) power mined according to EN62841-2-11: tools. Unmodified plugs and matching outlets will Work mode: cutting boards reduce risk of electric shock. - Page 4 Do not let familiarity gained from frequent use Use the power tool, accessories and tool bits of tools allow you to become complacent and etc. in accordance with these instructions, tak- ignore tool safety principles. A careless action ing into account the working conditions and the work to be performed.
- Page 5 MISUSE or failure to follow the safety disposal of battery. rules stated in this instruction manual may cause 12. Use the batteries only with the products serious personal injury. specified by Makita. Installing the batteries to non-compliant products may result in a fire, exces- sive heat, explosion, or leak of electrolyte. 5 ENGLISH...
-
Page 6: Functional Description
18. Keep the battery away from children. and result in damage to the tool and battery cartridge SAVE THESE INSTRUCTIONS. and a personal injury. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged. -
Page 7: Overload Protection
OFF position. Let the tool and battery(ies) cool down. NOTICE: Do not pull the switch trigger hard with- If no improvement can be found by restoring protection out depressing the lock-off button from B side. system, then contact your local Makita Service Center. This can cause switch breakage. Indicating the remaining battery capacity Only for battery cartridges with the indicator Fig.3 ► 1 . Lock-off button 2. -
Page 8: Electronic Function
In this case, cool down the tool before another operation. Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service center. Electronic function The tool is equipped with the electronic functions for easy operation. - Page 9 Insert the recipro saw blade into the blade clamp as far NOTE: If you remove the recipro saw blade without as it will go. The blade clamp sleeve rotates and fixes rotating the blade clamp lever fully, the lever may not the recipro saw blade. Make sure that the recipro saw be locked in the released position. In this case, rotate blade cannot be extracted even though you try to pull the blade clamp lever fully again, then make sure that it out. the blade clamp lever locked at the released position. NOTE: If the blade clamp lever is positioned inside the tool, switch on the tool just a second to let the blade out. Remove the battery cartridge from the tool...
-
Page 10: Operation
If the CAUTION: shoe is removed or held away from the workpiece These accessories or attachments during operation, strong vibration and/or twisting will are recommended for use with your Makita tool be produced, causing the blade to snap dangerously. specified in this manual. The use of any other accessories or attachments might present a risk of CAUTION: Always wear gloves to protect injury to persons. Only use accessory or attachment... - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885986-223 www.makita.com 20220428...
