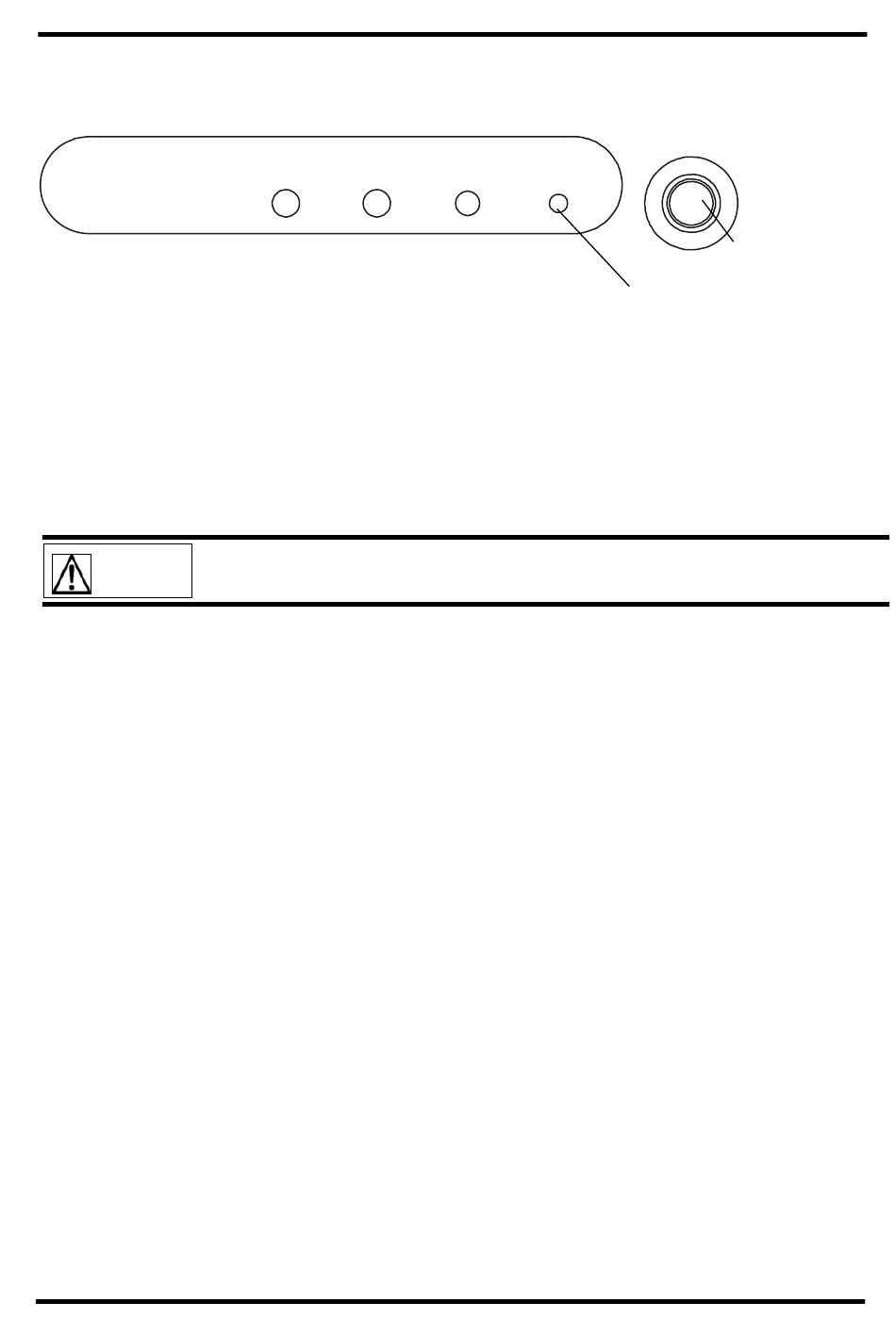

6.9 Hot-key and Reset Buttons
Hot-key Button
Outputs the [Ctrl] + [Alt] + [Shift] key Make/Break code.
This will also be the Hot-key mode if a 4-port KVM switch is connected.
Reset Button
Resets the keyboard and pointing device.
Also resets a 4-port KVM switch if one is connected. However, it will not reset any
secondary (slave) 4-port KVM switches.
CAUTION
6.10 Using a 4-port KVM Switch
The Console Drawer display parameters are the same regardless of video source, so the
image position may shift around due to the different video settings in various servers.
Generally, the resolution and refresh rate (vertical frequency) are the same for many servers,
therefore one set of parameters, which support those server CRT controllers, are stored in
the Console Drawer screen. If you change the Console Drawer display parameters to match
the video output of one server, the video from all or some of the other servers may be
negatively effected.
To correct for multiple display issues, try the following:
1. Change the refresh rate of servers that do not display correctly to a different value.
2. Select the best compromise screen display and save the values.
As multiple refresh rates for each resolution can usually be set, you can use various
combinations for each of the servers to achieve optimum results.
Caps
Num
Lock
Lock
KVM Switch Reset is only valid with the following series: FS-1004,
1008, and 1016.
Scroll
Reset
Lock
Hot-key
Hot-key Button
Reset Button
23
