- Page 1 GB Instructions manual 1 - 12 pages APROLI 280-700 Robusto External oil-hydraulic operator with articulated arm for swinging gates mounted on large pillars EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation

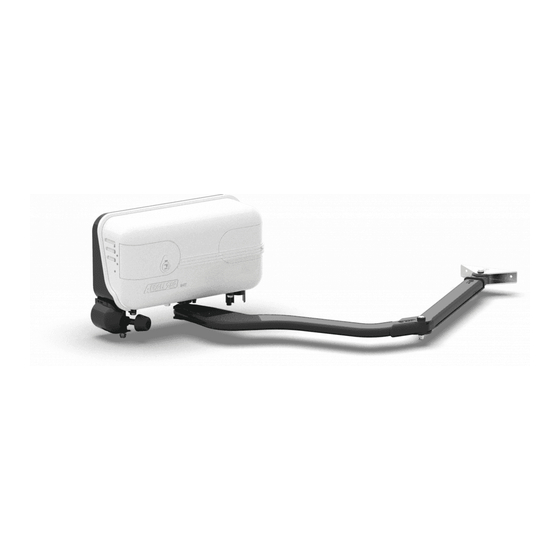

CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: APROLI 280/700 Robusto complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars GENERAL DESCRIPTION OF THE PRODUCT Aproli 280/700 Robusto is an oil-hydraulic operator for external application, fitted with an articulated arm made of steel, studied to open and close swinging gates mounted on pillars of large dimensions.
- Page 4 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars ELECTRICAL WIRING DIAGRAM AND LAYOUT OF THE ACCESSORIES Before installing Aproli 280/700 Robusto it is advisable that preparatory works be carried out for all of the accessories required at least to ensure safety and proper control of the system.
- Page 5 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars RIGHT- AND LEFT-HANDED APROLI 280/700 ROBUSTO Aproli 280/700 Robusto is distinguished into right- and left-handed depending on which gate side it is installed to (gate closed, view from inside): the distinction is very important as Aproli 280/700 Robusto comes, by factory default, with the rotation shaft already preset to be installed either on to the right or left side of the gate.
-
Page 6: Installation Distances
APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars INSTALLATION DISTANCES Aproli 280/700 Robusto comes with an arm whose gate fixing end can be adjusted into three lengths (460, 520 and 580 mm): 90°... - Page 7 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars FIXING APROLI 280/700 ROBUSTO TO THE SUPPORT BRACKET Mount Aproli 280/700 Robusto onto the support bracket; the right and left versions are marked Dx and Sx on the aluminium casting, as indicated in Pic.
- Page 8 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars FIXING THE ARM In order to mount the arm, it is required that the motor be supplied with voltage so it can rotate the square shaft towards the opening direction of the gate Aproli 280/700 Robusto Aproli 280/700 Robusto...
- Page 9 Piston diameter 80 mm Piston stroke 62 mm VERSIONS Oil type Oil Fadini - Item 708L - Non locking (reversible): an electric lock is needed Shaft rotation angle 130° - With bidirectional hydraulic locking device Weight of operator c/w arm...
- Page 10 APROLI 280/700 External oil-hydraulic operator with articulated arm Robusto for swinging gates mounted on large pillars...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 12 Operator: maintenance inspection at least every 6 months, while for the electronic equipment and safety systems an inspection at least once every month is required. The manufacturer, Meccanica Fadini snc, is not responsible for non-observance of good installation practice and incorrect maintenance of the installation.
