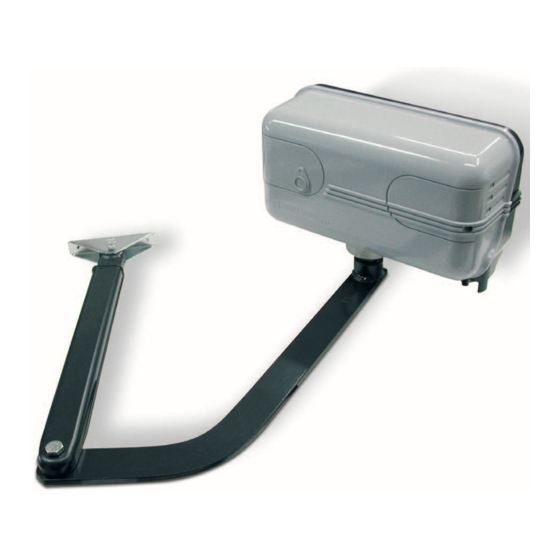

fadini APROLI 280 BATT Installation Manual
Hide thumbs
Also See for APROLI 280 BATT:
- Instruction manual (12 pages) ,
- Instruction manual (12 pages)
Related Manuals for fadini APROLI 280 BATT
Summary of Contents for fadini APROLI 280 BATT

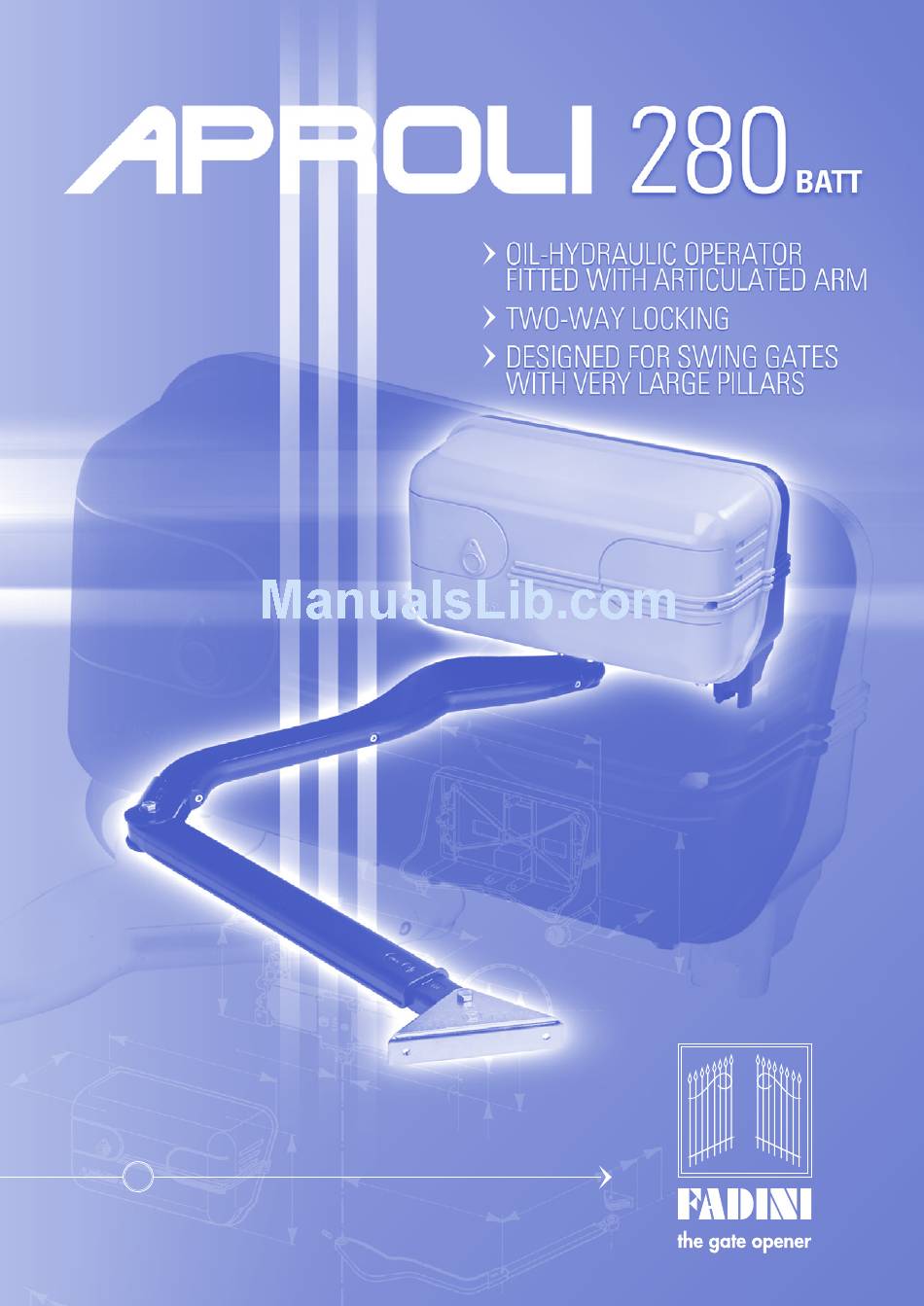

- Page 1 INSTALLATION MANUAL ®...
- Page 2 APROLI BATT CUTAWAY VIEW OF THE ELECTRIC MOTOR ASSEMBLY AND HYDRAULIC JACK AVAILABLE TYPES: NON LOCKING - LOCKING - WITH FLOW REGULATOR TWO-WAY LOCKING VALVE ASSEMBLY PRESSURE SAFETY VALVE “CLOSE” GREEN PRESSURE SAFETY VALVE “OPEN” OIL RESERVOIR TERMINAL PLUG COVER “C”...
- Page 3 It allows the correct performance of APROLI 280 BATT within a temperature range from –20°C to +80°C. APROLI 280 BATT is produced and tested in the...
- Page 4 PIC. 4 APROLI 280 BATT is easy to install. It can be supplied either fitted with hydraulic locking device for gates up to 2 m width, or without hydraulic locking with an electric lock for gate leaf up to 5 m.
- Page 5 APPLICATION OF TWO APROLI 280 BATT ON TO A DOUBLE SWINGING GATE. 90° OPENING. The recommended maximum gate width with APROLI 280 is 5 m. The locking type operator is recommended up to 2 m gate width. Beyond 2 m a lock is required to be fitted to the gate and the non locking type operator is advisable.
-
Page 6: Application Example
EXAMPLE OF APPLICATIONS TO PILLARS OF VARIOUS DIMENSIONS. DISTANCES ARE NOT BINDING AND ARE QUOTED FOR REFERENCE ONLY 20 mm FROM PILLAR SURFACE LINE GATE STOP IN CLOSED POSITION CLOSED GATE LEAF APPLICATION EXAMPLE 100° 400x400 mm PILLAR 2 m GATE LEAF - 110 Kg 20 mm FROM PILLAR PIC. - Page 7 20 mm FROM PILLAR SURFACE LINE GATE STOP IN CLOSED APPLICATION EXAMPLE POSITION CLOSED GATE LEAF 700x700 mm PILLAR 3 m GATE LEAF - 130 Kg ELECTRIC LOCK 100° 20 mm FROM PILLAR SURFACE LINE GATE STOP PIC. 10 IN CLOSED POSITION CLOSED GATE LEAF ELECTRIC...
- Page 8 ONE GATE LEAF ONLY would affect the micro-processor. NOTE WELL: THIS PANEL IS TESTED TO OPERATE GATES ONLY PULSE TWICE CONSECUTIVELY THROUGH FADINI ACCESSORIES. NO GUARANTEE FOR ALL OPERATIONS TO OPEN BOTH GATE LEAFS ACCESSORIES OF OTHER MAKE OR SPECIAL APPLICATIONS.
- Page 9 12 - PHOTOCELL TRANSMITTER DIFO 33. OUTSIDE (beyond 100 m distance 2.5 mm Ø cables are recommended) 13 - RIGHT-HAND OPERATOR TYPE APROLI 280 BATT 4 - RADIO RECEIVER CARD A 43/2R 14 - PHOTOCELL RECEIVER TYPE DIFO 33 OUTSIDE...
- Page 10 In case of power failure, to open the two leafs fitted with APROLI 280 BATT non-loking type, you have to release the electric lock with the key and push the gate leafs open by hand in a very smooth way. Should the operator be fitted with locking device, first pull the release lever "B"...
-
Page 11: Technical Specifications
APROLI 280 BATT SPECIAL VERSION CODE 287 The flow regulator has the purpose of mantaining SPEED constant the rotation speed of the shaft that operates the articulated arm. FLOW REGULATOR OPEN SPEED SPEED CONSTANT FLOW SPEED REGULATOR CLOSE SPEED PIC. 18... - Page 12 - Switch off the mains switch before removing the junction box cover where the electric cable of APROLI 280 BATT is terminated. - All the system must be earthed by using the yellow/green wire, marked by its specific symbol.
