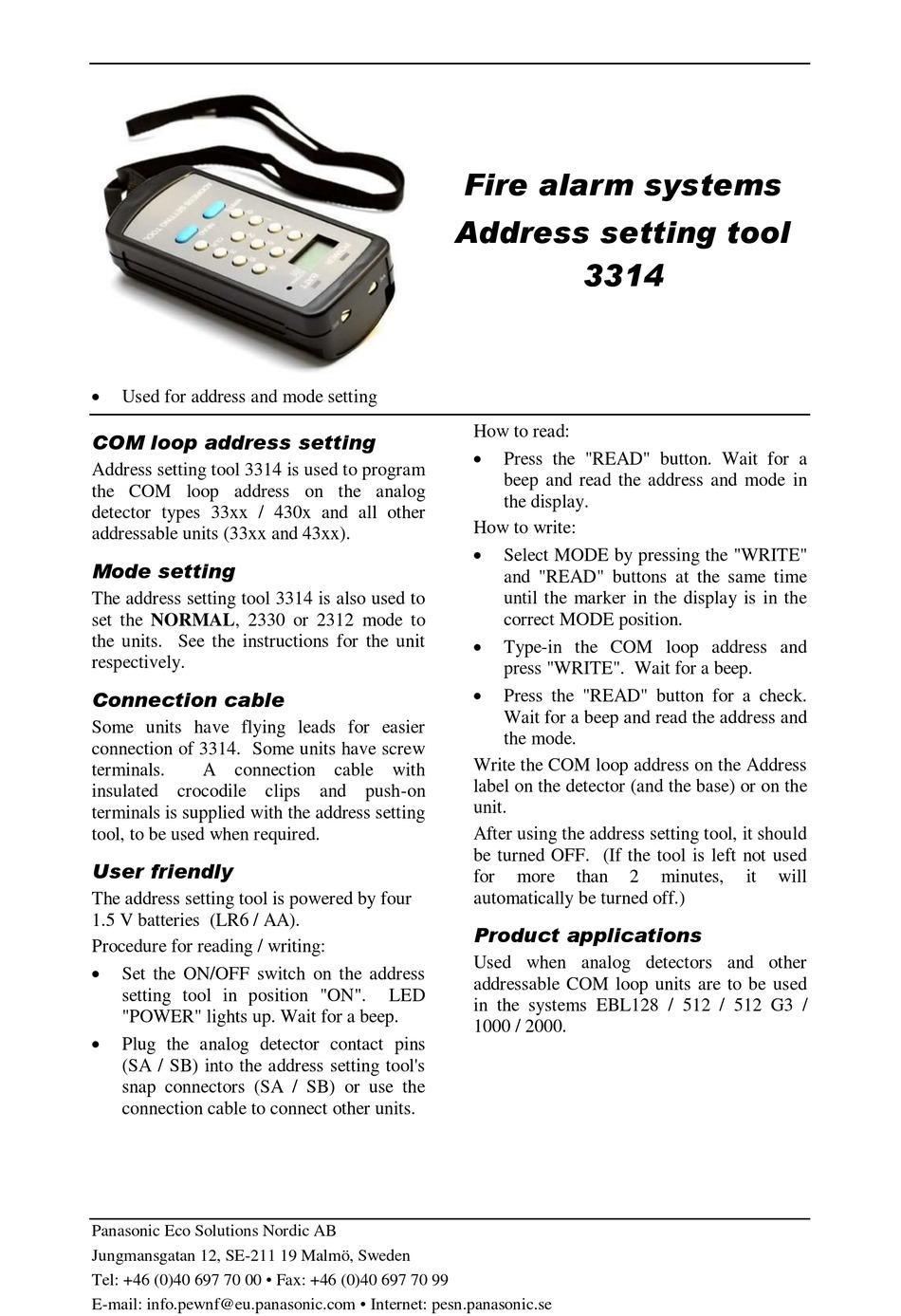

Panasonic 3314 Quick Start Manual


Used for address and mode setting
COM loop address setting
Address setting tool 3314 is used to program
the COM loop address on the analog
detector types 33xx / 430x and all other
addressable units (33xx and 43xx).
Mode setting
The address setting tool 3314 is also used to
set the NORMAL, 2330 or 2312 mode to
the units. See the instructions for the unit
respectively.
Connection cable
Some units have flying leads for easier
connection of 3314. Some units have screw
terminals. A connection cable with
insulated crocodile clips and push-on
terminals is supplied with the address setting
tool, to be used when required.
User friendly
The address setting tool is powered by four
1.5 V batteries (LR6 / AA).
Procedure for reading / writing:

Set the ON/OFF switch on the address
setting tool in position "ON".
"POWER" lights up. Wait for a beep.

Plug the analog detector contact pins
(SA / SB) into the address setting tool's
snap connectors (SA / SB) or use the
connection cable to connect other units.
Panasonic Eco Solutions Nordic AB
Jungmansgatan 12, SE-211 19 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
E-mail: info.pewnf@eu.panasonic.com • Internet: pesn.panasonic.se
Fire alarm systems
Address setting tool
How to read:

Press the "READ" button. Wait for a
beep and read the address and mode in
the display.
How to write:

Select MODE by pressing the "WRITE"
and "READ" buttons at the same time
until the marker in the display is in the
correct MODE position.

Type-in the COM loop address and
press "WRITE". Wait for a beep.

Press the "READ" button for a check.
Wait for a beep and read the address and
the mode.
Write the COM loop address on the Address
label on the detector (and the base) or on the
unit.
After using the address setting tool, it should
be turned OFF. (If the tool is left not used
for more
automatically be turned off.)
Product applications
Used when analog detectors and other
addressable COM loop units are to be used
LED
in the systems EBL128 / 512 / 512 G3 /
1000 / 2000.
3314
than 2 minutes, it will
