Summary of Contents for Philips CSP1000

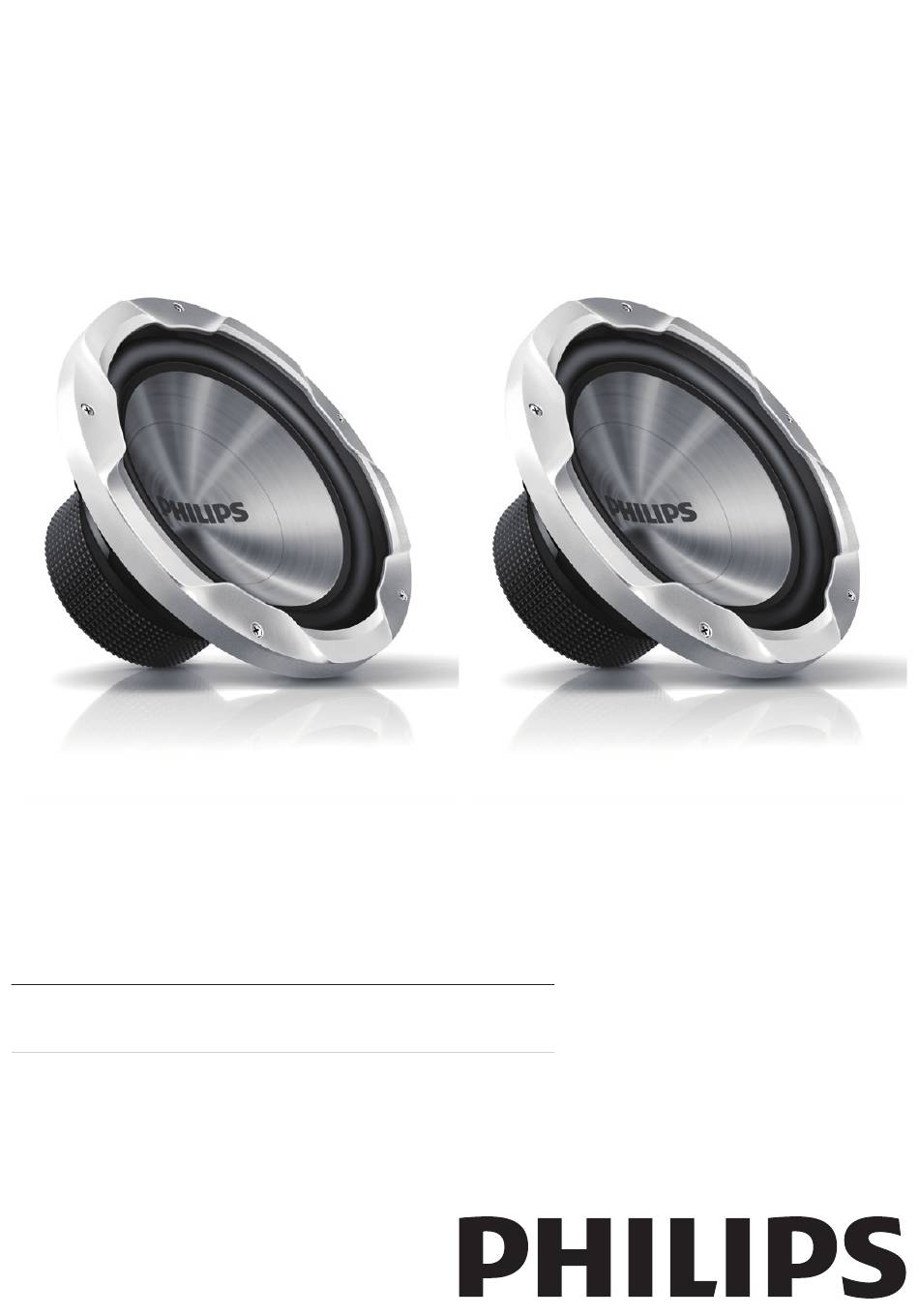

- Page 1 Register your product and get support at www.philips.com/welcome CSP1000 CSP1200 User manual...
- Page 3 10 ~ 15mm Speaker wire (not supplied) Amplifier...
- Page 5 Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2009 © Koninklijke Philips Electronics N.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time...
-
Page 6: Installation
Your car power subwoofer Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With the subwoofer, you can enjoy high quality sound performance with powerful bass and beats. What’s in the box Check and identify the contents of your package: Subwoofer Screw_4x50mm (x10) Frame 2. Installation A depth of at least 124mm is required to mount the subwoofer. Measure the depth of the area where you are to mount the subwoofer, and ensure that the subwoofer does not obstruct any other components of the car. - Page 7 Cut out the marked areaa and drill the bolt holes. Connect the subwoofer to the amplifier. Mount the subwoofer into the rear tray with the supplied screws. Option 2: Install in a sealed enclosure If the subwoofer cannot be mounted on the car, place it in a sealed enclosure. Make a sealed enclosure in dimension as below: The box: CSP1000 CSP1200 Height 338mm 358mm Length 522mm 568mm Width 232mm 238mm The mounting hole:...
-
Page 8: Product Information
Magnet mass (Oz) 55.4Oz 55.4Oz Mounting depth (mm) 124mm 146mm 4. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. - Page 9 © 2009 Koninklijke Philips Electronics N.V. All rights reserved. CSP1000_55_UM_V4.1...
