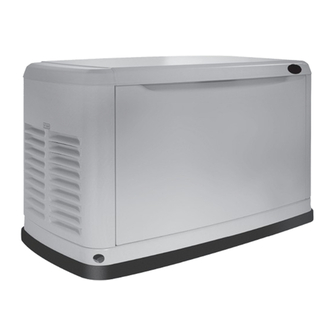

50 hz air-cooled generators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
GUIDELINES
50 Hz Air-cooled Generators
FOR THIS MANUAL IN SPANISH, PLEASE SEE THE
INCLUDED CD.
FOR THIS MANUAL IN FRENCH, PLEASE SEE THE
INCLUDED CD.
FOR THIS MANUAL IN RUSSIAN, PLEASE SEE THE
INCLUDED CD.
REFERENCE ALL APPROPRIATE DOCUMENTATION.
This manual should remain with the unit.
NOT INTENDED FOR USE IN CRITICAL LIFE SUPPORT

APPLICATIONS.
THIS PRODUCT CAN BE INSTALLED BY THE HOMEOWNER.
 
HOWEVER, IF YOU ARE UNCOMFORTABLE WITH THE SKILLS
OR TOOLS REQUIRED, HAVE A QUALIFIED ELECTRICIAN OR
CONTRACTOR PERFORM THE INSTALLATION.
DEADLY EXHAUST FUMES! OUTDOOR INSTALLATION ONLY!
 

Advertisement

Table of Contents
loading

Related Manuals for Honeywell G0062790

Summary of Contents for Honeywell G0062790

  • Page 1 INSTALLATION GUIDELINES 50 Hz Air-cooled Generators FOR THIS MANUAL IN SPANISH, PLEASE SEE THE INCLUDED CD. NOT INTENDED FOR USE IN CRITICAL LIFE SUPPORT  FOR THIS MANUAL IN FRENCH, PLEASE SEE THE APPLICATIONS. INCLUDED CD. THIS PRODUCT CAN BE INSTALLED BY THE HOMEOWNER. ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Frequently Asked Questions (FAQs) ............................1 Section 1 — Safety Rules & General Information ........................2 Introduction ................................2 Safety Rules ................................3 General Rules ................................ 4 Section 2 — Unpacking/Inspection/Familiarization ......................... 6 Required Tools ............................... 6 Unpacking ................................

  • Page 3: Frequently Asked Questions (Faqs)

    FREQUENTLY ASKED QUESTIONS: Q: Do I have to supply the generator with the 100% loaded BTU rated fuel supply and pipe size? A: Yes, the generator needs the 100% loaded BTU fuel rating to start, run and handle loads. The fuel pipe must be sized for 100% load, regardless of the load.

  • Page 4: Section 1 - Safety Rules & General Information

    Safety Rules & General Information Section 1 1.1 INTRODUCTION Thank you for purchasing this compact, high performance, air-cooled, engine-driven generator. It is designed to automatically supply electrical power to operate critical loads during a utility power failure. This unit is factory installed in an all-weather, metal enclosure that is intended exclusively for outdoor installation. This generator will operate using either vapor withdrawn liquid propane (LP) or natural gas (NG).

  • Page 5: Safety Rules

    1.2 SAFETY RULES Save These Instructions – The manufacturer suggests that these rules for safe operation be copied and posted near the unit’s  installation site. Safety should be stressed to all operators and potential operators of this equipment. Study these SAFETY RULES carefully before installing, operating or servicing this equipment. Become familiar with this Installation Manual and with the unit.

  • Page 6: General Rules

    1.2.2 ELECTRICAL HAZARDS • All generators covered by this manual produce dangerous electrical voltages and can cause fatal electrical shock. Utility power delivers extremely high and dangerous voltages to the transfer switch, as does the standby generator when it is in operation. Avoid contact with bare wires, terminals, connections, etc., while the unit is running.
  • Page 7 1.3.3 NEC REQUIREMENTS Local code enforcement may require that Arc Fault Circuit Interrupters (AFCIs) be incorporated into the transfer switch distribution panel. The Transfer Switch provided with this generator has a distribution panel that will accept AFCIs (pre-wired transfer switches only). Siemens Part No.

  • Page 8: Section 2 - Unpacking/Inspection/Familiarization

     If this generator is used to power electrical load circuits normally powered by a utility power source, it is required by code to install a transfer switch. The transfer switch must effectively isolate the electrical system from the utility distribution system when the generator is operating (NEC 700, 701 &...

  • Page 9: Unpacking

    2.2 UNPACKING 1. Remove carboard carton. 2. Remove the wood frame. Figure 2.1 — Crated Generator 3. Remove bolts and clamps. Exercise caution when removing the generator. Dragging it off the pallet WILL damage the base. The generator must be lifted from the wooden pallet to remove. FRONT ACCESS PANEL REMOVE CRATING CLAMPS (4)
  • Page 10 5. There are two locks securing the lid, one on each side. To properly open the lid, press down on the lid above the side lock and unlock the latch. Repeat for the other side. If pressure is not applied from the top, the lid may appear stuck. NOTE: Always verify that the side locks are unlocked before attempting to lift the lid.

  • Page 11: Parts Shipped Loose

    Figure 2.6 — Generator Back View 2.3 PARTS SHIPPED LOOSE • Keys • Flex Fuel Line • Battery Terminal Cap • Wire Shielding to separate AC from DC control wires • Main Line Circuit Breaker (MLCB) Terminal Caps • Install/Owner’s Manual (not shown) (CD if applicable) •...

  • Page 12: Section 3 - Site Selection And Preparation

    Site Selection and Preparation Section 3 3.1 SITE SELECTION No operable windows or openings in the wall permitted within 1.52 m (5 ft) from any point of the generator. 457 mm (18 in) Existing Wall 1524 mm (60 in) 1524 mm (60 in) Minimum Distance Clearance from operable 914 mm...
  • Page 13 Install the generator set, in its protective enclosure, outdoors, where adequate cooling and ventilating air is always available (Figure 1.9). Consider these factors: • The installation of the generator must comply strictly with NFPA 37, NFPA 54, NFPA 58 and NFPA 70 standards. •...

  • Page 14: Site Preparation

    Figure 3.2 — Southwest Research Institute Decal (located inside the generator, next to the generator’s data decal) http://www.swri.org/4org/d01/fire/listlab/listprod/director.htm Based on this testing and the requirements of NFPA 37, Sec 4.1.4, the guidelines for installation of the generators listed above are changed to 457mm (18 in.) from the back side of the generator to a stationary wall or building.
  • Page 15 Figure 3.3 — Compacted Gravel Site Figure 3.4 — Concrete Pad Site After completing your SITE SELECTION and PREPARATION, Step 3 time for SECTION 4 - GENERATOR PLACEMENT...

  • Page 16: Section 4 - Generator Placement

    Generator Placement Section 4 4.1 GENERATOR PLACEMENT With the Site Selection and Preparation performed, proceed with placement and installation of the generator itself. All of the air-cooled generators come with a composite pad. The composite pad elevates the generator and helps prevent water from pooling around the bottom of the generator (Figure 3.1).

  • Page 17: Section 5 - Fuel Conversion/Gas Requirements/Connections

    After completing GENERATOR PLACEMENT, proceed to Step 4 SECTION 5 — FUEL CONVERSION/GAS REQUIREMENTS/ CONNECTIONS Fuel Conversion/Gas Requirements/ Section 5 Connections 5.1 FUEL CONVERSION The generator was confi gured for natural gas operation at the factory. Press and turn knob 180° to switch over to LP Vapor. NOTE: The orange fuel conversion knob is located on the top of the fuel mixer on the V-twin engine and under the fuel mixer on the single cylinder engine.

  • Page 18: Fuel Consumption

    Prior to installation of the generator, the installer should consult local fuel suppliers or the fi re marshal to check codes and regulations for proper installation. Local codes will mandate correct routing of gaseous fuel line piping around gardens, shrubs and other landscaping to prevent any damage.

  • Page 19: Installing And Connecting Gas Lines

    5.4.1 NATURAL GAS PIPE SIZING To properly use this chart, fi nd the kVA rating of the generator in the left column, and trace to the right. The number to the right is the maximum length (measured in meters/feet) allowed for the pipe sizes on top. The pipe sizes are measured by inside diameter (ID) to include any fi ttings, valves (must be full fl...
  • Page 20 2. Most applications will require an external manual full flow shutoff valve on the fuel line. Figure 5.2 — Full Flow Shutoff Valve 3. When connecting the gas line to the generator, use the provided section of UL Listed or AGA-approved flexible fuel line in accordance with local regulations.
  • Page 21 4. Never bend the flexible fuel line to avoid using an elbow. Bending the flexible line decreases its ability to absorb vibrations and defeats its purpose, as well as constricts the actual fuel flow. See Figure 5.5. 5. Check for leaks by spraying all connection points with a soap solution made of dishwashing soap and water. You should not see the solution be “blown away”...

  • Page 22: Section 6 - Electrical Connections

    PRIMARY REGULATOR BEST PRACTICE SPECIFIED BY THE REGULATOR (SUPPLIED BY INSTALLING MANUFACTURER OR REQUIRED BY CODE CONTRACTOR) MANUAL SHUT OFF VALVES FUEL PRESSURE 19-22mm Hg (10-12 in. w.c.) TRAP LP - Megajoules = Cubic meters/hour X 93.15 BTU = Cubic feet/hour X 2500 Figure 5.7 —...
  • Page 23 CONTROL PANEL CONNECTIONS Terminal Numbering Decal Wire Numbers YELLOW #1 & #2 N1 & N2 - 240 VAC - Sensing for Utility Dropout and Pickup WHITE #3 T1 - Fused 240 VAC for Battery Charger (see NOTE) WHITE #4 T2 - Fused 240 VAC for Battery Charger (see NOTE) BLACK #3 0 - DC (-) Common Ground Wire RED #4...

  • Page 24: Main Ac Wiring

    MAIN AC WIRING Figure 6.2 — Main AC Wiring NOTE: Main AC wiring must be in accordance with local jurisdiction and codes. 6. Strip the insulation off the wire ends. Do not remove excessive insulation. 7. Remove the two cap plugs located behind the breaker door and to the right of the Main Breaker. 8.

  • Page 25: Section 7 - Control Panel/Activation/Start-Up/Testing

    Figure 6.3 – Battery Cable Connections NOTE: In areas where temperatures regularly fall below 0 °C (32 °F), it is recommended that a pad type battery heater be installed to aid in cold climate starting. This is available as a cold weather kit through an authorized service dealer. With the ELECTRICAL CONNECTIONS completed, Step 6 proceed to the fi...

  • Page 26: Generator Activation

    Figure 7.1 – 8/10/13 kVA Generator Control Panel Display Interface Menus The LCD display is organized as detailed below: • The “Home” page is the default page that will be displayed if no keys are pressed for fi ve (5) minutes. This page normally shows the current Status message and the current date and time.

  • Page 27: Before Initial Start-Up

    7.3 BEFORE INITIAL START-UP NOTE: These units have been run and tested at the factory prior to being shipped and do not require any type of break-in. Never operate the engine with the oil level below the “Add” mark on the dipstick. Doing this could damage the engine. ...

  • Page 28: Generator Tests Under Load

    5. Use an accurate AC voltmeter to check utility power source voltage across transfer switch terminals N1 and N2. Nominal line-to-line voltage should be 220 volts AC. If it’s not, verify AC output and wiring from utility source to N1 and N2 lugs at transfer switch. 6.

  • Page 29: Checking Automatic Operation

    7.7 CHECKING AUTOMATIC OPERATION To check the system for proper automatic operation, proceed as follows: 1. Ensure that the generator is OFF. 2. Install front cover of the transfer switch. 3. Turn ON the utility power supply to the transfer switch, using the means provided (such as a utility main line circuit breaker). NOTE: Transfer Switch will transfer back to utility position.

  • Page 30: Section 8 - Troubleshooting

    Troubleshooting Section 8 PROBLEM CAUSE CORRECTION The engine will not crank. 1. Fuse blown. 1. Correct short circuit condition by replacing 7.5 Amp fuse in generator control panel. 2. Loose, corroded or defective battery cables. 2. Tighten, clean or replace as necessary.* 3.

  • Page 31: Section 9 - Quick Reference Guide

    Quick Reference Guide Section 9 Problem Things to Check Active Alarm Solution Unit running in AUTO but no GREEN Check MLCB. NONE Check MLCB. If it is in the ON position, contact the power in house. servicing dealer. Unit shuts down during Check the LEDs/Screen for HIGH TEMPERATURE Check ventilation around the generator, intake, exhaust...

  • Page 32: Section 10 - Accessories

    Accessories Section 10 There are performance enhancing accessories available for air-cooled generators. Accessory Description Cold Weather Kit Recommended in areas where temperatures regularly fall below 32 ºF (0 ºC). Scheduled Maintenance Kit Includes all pieces necessary to perform maintenance on the generator along with oil recommendations. Auxiliary Transfer Switch Lockout Enables any of the transfer switches to completely lock out one large electrical load by tying into its control system.

  • Page 33: Section 11 - Installation Diagram

    Installation Diagram Section 11 11.1 INSTALLATION DRAWING 0J9945-B 679.5 768.3 [26.8] [23.5] [30.2] [26.0] [8.3] 266.7 n 30.2 [n1.2] [10.5] LIFTING HOLES 4 [12.1] 349.3 CORNERS [13.8] TRANSFER SERVICE SWITCH ENTRANCE 8KW - 17KW TRANSFER SWITCH (IF SUPPLIED) (IF SUPPLIED) "DO NOT LIFT BY ROOF"...
  • Page 34 INTAKE 457.2 [18.0] 914 [36.0] MINIMUM OPEN AREA ON SIDES AND FRONT OUTLET INTAKE VIEW 250.0 575.3 [9.8] [22.7] HOLE LOCATIONS FOR OPTIONAL MOUNTING A CONCRETE PAD 530.0 16.0 [5/8] DIA. [20.9] CLEARANCE HOLE (4) PLACES, 3/8 DIA. MASONRY ANCHOR BOLTS RECOMMENDED 44.8 446.6...

  • Page 35: Section 12 - Interconnection Diagram

    Interconnection Diagram Section 12 12.1 DRAWING 0K3290-A...
  • Page 36 S45 W29290 Hwy. 59 The Honeywell Trademark is used under license from Honeywell International Inc. Waukesha, WI 53189 Honeywell International Inc. makes no representation or warranties with respect to this product. honeywellgenerators.com This product is manufactured by Generac Power Systems, Inc.
