TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 5
5 Wiring Connection Diagram ---------------------------------- 9
6 Schematic Diagram ---------------------------------------------- 9
7 Exploded View and Replacement Parts List -----------10
Model No.
Europe
Oceania
PAGE
© Panasonic Electric Works Co., Ltd. 2008.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number PTD0810X47CE

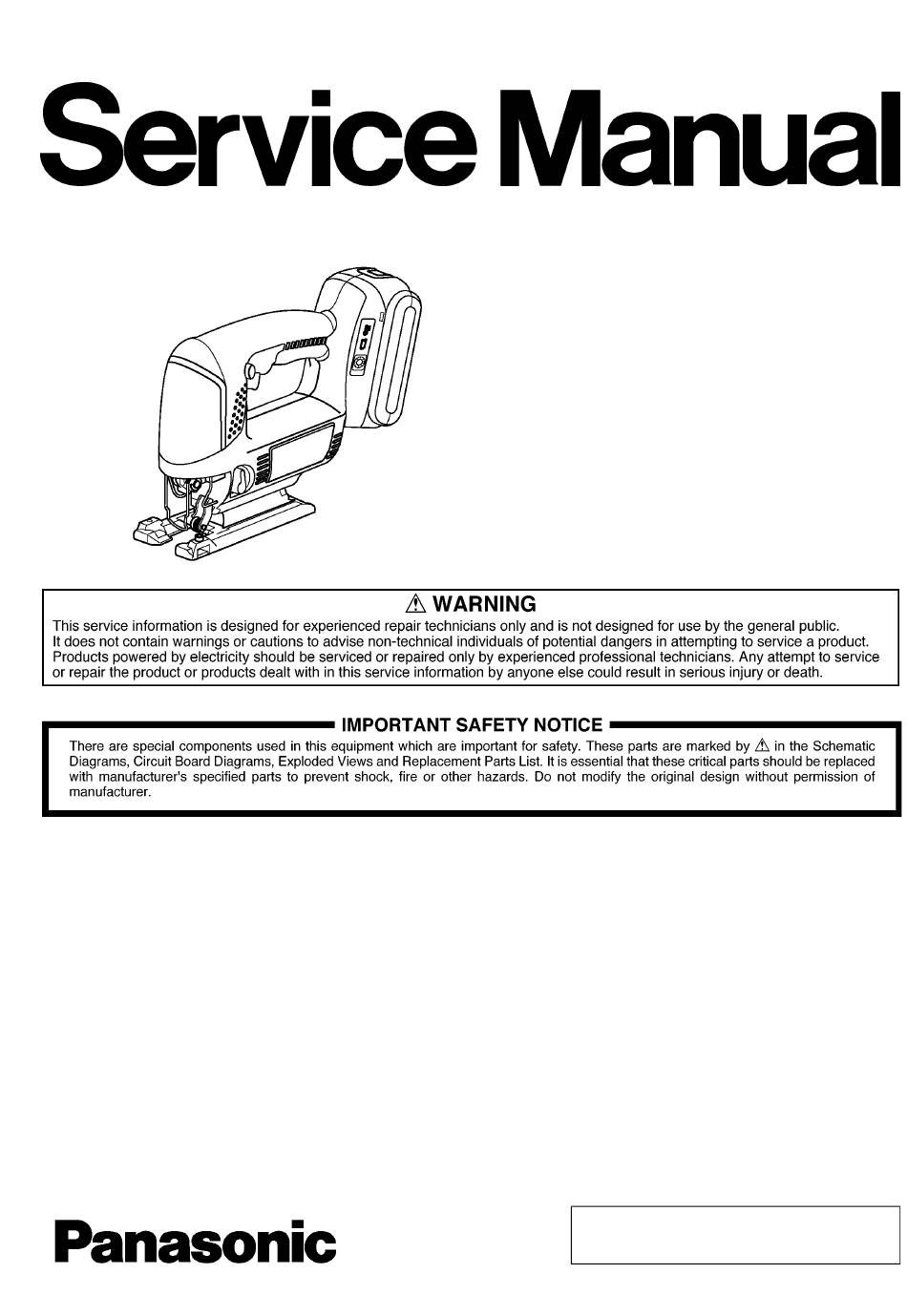

Cordless Jigsaw
EY4541
PAGE
Advertisement
Related Manuals for Panasonic 4541OLOA
Summary of Contents for Panasonic 4541OLOA
-
Page 1: Table Of Contents
4 Disassembly and Assembly Instructions ---------------- 5 5 Wiring Connection Diagram ---------------------------------- 9 6 Schematic Diagram ---------------------------------------------- 9 7 Exploded View and Replacement Parts List -----------10 © Panasonic Electric Works Co., Ltd. 2008. All rights reserved. Unauthorized copying and distri- bution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
3 Troubleshooting Guide (Refer to Wiring Connection Diagram) - Page 4 3.1. Trial Operation (after checking Troubleshooting Guide.)
-
Page 5: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions 4.1. How to Disassemble the Blade. Ref. No. 1A Procedure 1A Removal of blade. WARNING: To reduce the risk of injury, always remove battery pack before removing/installing the blade. 1. Lift up the blade attach/remove lever. 2. - Page 6 Procedure 1A → 1B → 1C Ref. No. 1C Removal of the housing. 1. Loosen 11 housing screws. 2. Hold the housing A and take the housing B up vertically. Procedure 1A → 1B → 1C → 1D Ref. No. 1D Removal of driving block.
- Page 7 Procedure 1A → 1B → 1C → 1D → 1E Ref. No. 1E Removal of the switch. 1. Pull out the lead wires from the side closed terminal. (for reassembly) 1. Connect the same color of lead wires (black or red) from switch and brush assembly with the side closed terminals.
- Page 8 Procedure 1A → 1B → 1C → 1D → 1E → 1F Ref. No. 1G Assembly of main unit. → 1G 1. Press fit the lead wire firmly. 2. Close the housing A and B.
-
Page 9: Wiring Connection Diagram
5 Wiring Connection Diagram 6 Schematic Diagram... -
Page 10: Exploded View And Replacement Parts List
7 Exploded View and Replacement Parts List Model No. : EY4541 Exploded View... - Page 11 Model No. : EY4541 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WEY4541K3079 HOUSING AB SET 1 (for EUROPE) WEY4541K3070 HOUSING AB SET 1 (for OCEANIA) WEYT510L1037 BRUSH HOLDER WEYT510L2317 BRUSH ASSEMBLY 2 (2PCS/PK) WEYT510L2397 HEAT SINK WEYT510L6037 TIGHT SCREW 2 (M3*6)
- Page 12 Model No. : EY4541 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WEYT510L0387 ROLLER ASSEMBLY WEYT510L0907 NEEDLE PIN 1 (F2*23.8) WEY4541L0917 NEEDLE PIN 2 (F2*6.8) WEYT510L3157 DUST PREVENT PLATE WEYT510L1637 FIXING BRACKET WEYT510L6337 BASE FIXING SCREW 1 M4*12 WEYT510L0607 2 (2PCS/PK)
