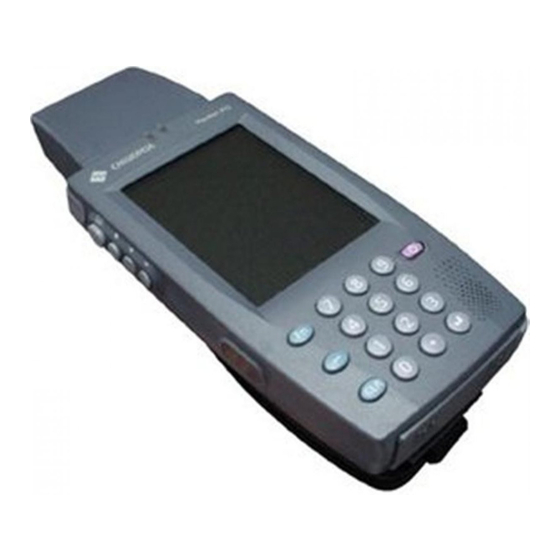

Getting Started with
the Pocket PC Terminal
(Hardware Manual)
7
Fn
4
–
1
CLR
0
P
8
9
5
6
2
3
User documentation consists of two
manuals:
Pocket PC User's Guide and Getting
Started with the Pocket PC Terminal .
Be sure to read this Getting Started
Manual first.
Be sure to read the Safety Precautions
contained in this Getting Started Manual
to ensure proper operation of this
product.
Keep this Getting Started Manual in a safe
place for future reference.
Advertisement
Table of Contents
Related Manuals for Casio IT-700/70
Summary of Contents for Casio IT-700/70
- Page 1 Getting Started with the Pocket PC Terminal (Hardware Manual) – User documentation consists of two manuals: Pocket PC User’s Guide and Getting Started with the Pocket PC Terminal . Be sure to read this Getting Started Manual first. Be sure to read the Safety Precautions contained in this Getting Started Manual to ensure proper operation of this product.
- Page 2 • All other product and company names mentioned herein may be the trademarks of their respective owners. • CAUTION-Battery pack is suitable for use only with Pocket PC Terminal, Model IT-700/70. • Dispose of used batteries according to the manufacturer’s instructions.
-
Page 3: Safety Precautions
Safety Precautions Congratulations upon your selection of this CASIO Product. Be sure to read the following Safety Precautions before trying to use it for the first time. Markings and Symbols The following are the meanings of the markings and symbols used in these Safety Precautions. - Page 4 Foreign Objects • Should any foreign matter get into the Pocket PC Terminal, immediately turn off the power and contact your original dealer or an authorized CASIO service provider. Continued use creates the danger of fire and electric shock. Dropping and Damage •...
-
Page 5: Optional Lithium-Ion Battery Pack
LCD Screen • Never apply strong pressure to the screen or subject it to strong impact. Doing so can crack the screen or LCD panel glass, which can cause the danger of personal injury. • Should the LCD panel glass break, never touch the liquid inside. Doing so can cause skin inflammation. - Page 6 • Never pierce the battery pack with nails, hit it with a hammer, or step on it. Doing so can create the danger of battery pack heat emission, explosion, and fire. • Never try to take apart the battery pack or modify it in any way. Doing so creates the danger of battery pack heat emission, explosion, and fire.
-
Page 7: Backup Battery Handling
• Should fluid from the battery pack accidentally get onto clothing or your skin, immediately rinse it off with clean tap water. Prolonged contact with battery pack fluid can cause skin irritation. • Keep the battery pack out of the reach of small children. Do not let small children remove the battery pack from the charger unit or the Pocket PC Terminal while it is powered on. -
Page 8: Ac Power Supply
• Should the power cord become severely damaged (to the point that wires are exposed or broken), contact your original dealer or a CASIO service provider about repair or replacement. Use of a damaged electrical cord creates the danger of fire and electric shock. -
Page 9: Backup Copies Of All Important Data
Terminal unattended for long periods. Backup Copies of All Important Data • Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Pocket PC Terminal, malfunction or repair of the Pocket PC Terminal or its peripherals, or due to batteries going dead. -
Page 10: Operating Precautions
Operating Precautions The Pocket PC Terminal is a precision digital instrument. Incorrect operation and rough handling can cause data storage problems and other malfunction. Be sure to read the following precautions to ensure proper operation. • Charge the battery pack as soon as possible when they start to become weak. Continued use while power is low can lead to loss of memory data. - Page 11 Model Number: IT-700M30E, IT-760IOE, IT-70M30E Trade Name: CASIO Responsible party: CASIO, INC. Address: 570 Mt. Plesant Avenue, Dover, New Jersey 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 EFTA: Switzerland, Iceland, Lichtenstein, Norway NONE CASIO COMPUTER CO., LTD. CASIO IT-700M30RC, IT-70M30RC Name and address NMi Certin B.V., PO Box 15, 9822 ZG Niekerk, The Netherlands CASIO ELECTRONICS CO . LTD. Unit6, 1000North Circular Road, London NW27JD United Kingdom 0181-450-9131 0181-452-6323...
- Page 13 Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Properly shielded and grounded cables and connectors must be used for connection to host computer and/or peripherals in order to meet FCC emission limits. AC adaptor with ferrite core must be used for RF interference suppression.
-
Page 14: Table Of Contents
System Requirements ... 14 System Diagram ... 16 Option List (Non-U.S. Market Models) ... 16 IT-700/70 Series Options (U.S. Market Models) ... 17 General Guide ... 18 Setting Up the Pocket PC Terminal ... 20 Aligning the Touch Screen ... 20 Adjusting Screen Contrast ... - Page 15 Installing the Hand Strap ... 30 IT-700/70 Specifications ... 31 Using the Optical Communication Unit (IT-760IOE) ... 33 General Guide ... 33 Optical Communication Unit Power Requirements ... 35 Using the Optical Communication Unit ... 35 DIP Switch Settings ... 37 Wall Mounting the Optical Communication Unit ...
-
Page 16: Computer System Requirements
Computer System Requirements Following are the minimum computer system requirements for installing and using the applications contained on the bundled Microsoft System Requirements The minimum desktop PC system requirements for installing and running Microsoft ActiveSync 3.1 are as follows: • Microsoft Windows 2000, Microsoft Windows NT Workstation 4.0 with Service Pack 3 or greater, or Microsoft Windows 95/98. - Page 17 Important • Notebook computers equipped with an infrared port and modem may not be configured so the COM port is the default serial interface. In this case, you need to change the COM port configuration so the COM port is used as the default serial interface.
-
Page 18: System Diagram
System Diagram – Option List (Non-U.S. Market Models) Optical Communication Unit IT-760IOE Optical Communication Unit AC Adaptor DT-825ADP-G DT-825ADP-U Laser Scanner DT-5057CBCR CompactFlash Storage Card CF-16SC-S (Flash ROM 16MB) CF-64SC-S (Flash ROM 64MB) CF-256SC-S (Flash ROM 256MB) Pocket PC Terminal IT-700M30E IT-700M30RC IT-70M30E... -
Page 19: It-700/70 Series Options (U.s. Market Models)
IT-700/70 Series Options (U.S. Market Models) Optical Communication Unit IT-760IOE Optical Communication Unit AC Adaptor DT-825ADP-U Dual Charger DT-5022CHG CompactFlash Card CF-16SC-S (Flash ROM 16MB) CF-64SC-S (Flash ROM 64MB) CF-256SC-S (Flash ROM 256MB) Battery Pack DT-5023BAT (Standard Battery Pack) Dual Charger AC Adaptor... -
Page 20: General Guide
General Guide Left – Indicator 1 Indicator 2 LCD/Touch Screen Program Key Action Key Up Key Front Right 14 15 Flashes in accordance with application software configuration. Flashes or lights to indicate arrival of the alarm time, data warning, etc. Shows characters, operation indicators, etc. - Page 21 Down Key IR Port Power Key Numeric Keypad Fn Key Minus Key CLR Key Decimal Point Key Execute Key Microphone Speaker Headphones Jack Serial Interface Stylus CompactFlash Card Slot 0 Hand Strap Hook Battery Pack Cover Release Battery Pack Cover Backup Battery Holder CompactFlash...
-
Page 22: Setting Up The Pocket Pc Terminal
Setting Up the Pocket PC Terminal Aligning the Touch Screen You should align the Touch Screen whenever you feel its response is not what it should be, or when the wrong function is performed when you tap the Touch Screen. 1. -
Page 23: Configuring The Auto Dimmer (It-700M30E/M30Rc)
Configuring the Auto Dimmer (IT-700M30E/M30RC) The auto dimmer helps to conserve battery power by dimming the screen whenever you do not perform any Pocket PC Terminal operation for a preset amount of time. Use the following procedure to configure auto dimmer settings. 1. -
Page 24: Using Ir Data Communication
Using IR Data Communication Infrared (IR) data communication can be used to pass data between two Pocket PC Terminals, etc. When performing IR data communication, make sure the IR port of the Pocket PC Terminal and the other unit are directly in line with each other. The IR data communication range is 0 (direct contact) to 1 meter (25cm for 4Mbps). -
Page 25: Power Requirements
Power Requirements The Pocket PC Terminal has a dual power supply, with a main battery to provide power for normal Pocket PC Terminal operations, and a memory backup battery to provide the power to retain memory contents. The main battery is a rechargeable battery pack, which is available in one of two different types;... -
Page 26: To Replace The Standard Battery Pack
To replace the Standard Battery Pack 1. Make sure that Pocket PC Terminal power is turned off. If power is on, press the Power key to turn it off. 2. Turn the Pocket PC Terminal over. 3. Slide the battery pack cover release to the [FREE] position, and then remove the cover. -
Page 27: To Replace A Large-Capacity Battery Pack
To replace a Large-capacity Battery Pack You must use the special large-capacity battery pack cover whenever you are using a large-capacity battery pack to power the Pocket PC Terminal. For information about removing and installing the large-capacity battery pack cover, see steps 4 and 6 under Replacing the Backup Battery The backup battery provides the power required to retain Pocket PC Terminal memory... - Page 28 Warning Make sure that the plus (+) and minus sides of the backup battery are facing correctly when you place it onto the backup battery holder. Caution Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
-
Page 29: Resetting The Pocket Pc Terminal
Resetting the Pocket PC Terminal The reset operation performs a process that is similar to that performed when you restart your computer. Any unsaved inputs or edits remaining when you reset the Pocket PC Terminal are lost, but settings and data stored in memory are retained. Perform the reset operation whenever you find that the Pocket PC Terminal does not operate normally due to misoperation or some other abnormality. -
Page 30: Full Reset (Memory Initialization)
Full Reset (Memory Initialization) Performing a full reset clears all data stored in Pocket PC Terminal memory (RAM) and returns all settings to their initial factory defaults. You should perform a full reset in the following cases. • When you want to delete all memory (RAM) contents initialize the Pocket PC Terminal •... - Page 31 3. Press the Action key again. • This performs the full reset the deletes all memory in Pocket PC Terminal memory (RAM). • Pressing the Action key again displays the start screen. Now perform the required Pocket PC Terminal configuration settings described in the Read This First.
-
Page 32: Installing The Hand Strap
Installing the Hand Strap The hand strap protects against dropping the Pocket PC Terminal when carrying it around. Important Use the following procedure to install the hand strap on the Pocket PC Terminal. 1. Pass both ends of the hand strap through the hand strap loops on the back of the Pocket PC Terminal. -
Page 33: It-700/70 Specifications
IT-700/70 Specifications Model: IT-700M30E, IT-700M30RC, IT-70M30E, IT-70M30RC CPU: VR4122 Memory: RAM 32MB Flash ROM 16MB (FlashFX built in) Microsoft IT-700: 240 × 320 dots Display: IT-700: TFT Color LCD (65,536 colors) IT-70: IT-70: Serial Port: Interface: CMOS level Synchronization: Asynchronous only... - Page 34 Approximate Battery Life: Main Battery: DT-5023BAT 5 hours (IT-700M30E)*; 3.5 hours Backup Battery: Four days when no power is supplied by main battery (When Splash Resistance: IPX2 (when connector covers and all other covers are closed) Operating Temperature: –5 to 50°C (23 to 122°F) Dimensions: 85(W) ×...
-
Page 35: Using The Optical Communication Unit (It-760Ioe)
Using the Optical Communication Unit (IT-760IOE) The Optical Communication Unit (IT-760IOE) provides a serial interface (RS-232C) connection between a Pocket PC Terminal and computer for downloading and uploading system data, files, etc. It can also be used to charge the battery pack loaded in the Pocket PC Terminal. - Page 36 RS-232C Interface RS-422 Interface (C-IN) RS-422 Interface (C-OUT) AC Adaptor Jack Hook Connection Detector Power Contacts System Operation Indicator Communication Status Indicator Charge Indicator Power Indicator IR Interface Power Switch Base DIP Switches Wall Hook Holes For uploading and downloading system data and files with a computer For communication between Optical Communication Units For connection of the AC adaptor Secures the Pocket PC Terminal in place when on a wall-...
-
Page 37: Optical Communication Unit Power Requirements
Optical Communication Unit Power Requirements Use the AC adaptor that comes with the Optical Communication Unit to power it. Be sure to connect the AC adaptor to the Optical Communication Unit before starting a data communication operation with a Pocket PC Terminal. Power is supplied to the Pocket PC Terminal from the Optical Communication Unit. - Page 38 Caution I Make sure you charge the battery pack in a location where the temperature is within the allowable range for charging. • The allowable range for charging the battery pack is shown below. Charging in a location where the temperature is outside this range can lower battery pack performance and service life, and can also lead to leaking and overheating of the battery pack.
-
Page 39: Dip Switch Settings
DIP Switch Settings The DIP switches are location on the back of the Optical Communication Unit. You can control the basic configuration of the Optical Communication Unit by turning the DIP switches on and off in various combinations. 1 2 3 4 5 6 7 8 9 10 I Pocket PC Terminal –... -
Page 40: Wall Mounting The Optical Communication Unit
Wall Mounting the Optical Communication Unit You can use the Wall Mount Unit that comes with the Optical Communication Unit to configure it for wall mounting. 1. Attach the terminal support to the Optical Communication Unit. 2. Secure the terminal support in place with the two screws. 3. - Page 41 5. Press in on the sides of the base at the four locations indicated by arrows in the illustration to disengage the base tabs, and then remove the base from the Optical Communication Unit. 6. Holding the base against the wall where you plan to affix it use a pencil or pen to mark the locations of each wall hook (spacer + screw).
-
Page 42: Daisy Chaining Multiple Optical Communication Units (It-760Ioe)
9. Hook the holes of the Optical Communication Unit base onto the wall hooks and slide the Optical Communication Unit down to secure it. Important Be sure to periodically check wall mounted Optical Communication Units for looseness and tighten the screws whenever necessary. Daisy Chaining Multiple Optical Communication Units (IT-760IOE) You can use optional Daisy Chain Cables (DT-888RSC) to daisy chain up to seven... -
Page 43: Optical Communication Unit (It-760Ioe) Specifications
Optical Communication Unit (IT-760IOE) Specifications Model: IT-760IOE IR port: Interface: IrDA Ver.1.0 Standard Synchronization: Asynchronous Data Rate: 38,400, 115,200bps RS-232C: Synchronization: Asynchronous Data Rate: 2,400 to 115,200bps RS-422: Synchronization: Asynchronous Data Rate: 9,600 to 115,200bps Power Supply: Output: DC5V 1A Charging System: Fixed voltage (with voltage control) Approximate Charge Time: 4 hours (Standard Battery Pack);... -
Page 44: Using The Pocket Pc Terminal Charger
Using the Pocket PC Terminal Charger You can use the optional Pocket PC Terminal Charger (IT-769CHGE) to charge the Pocket PC Terminal battery pack. The Pocket PC Terminal Charger comes with a Wall Mount Unit that you can use to configure the charger for wall mounting. •... - Page 45 AC Adaptor Jack Hook Connection Detector Power Contacts Charge Indicator Power Indicator Power Switch Base Wall Hook Holes For connection of the AC adaptor Secures the Pocket PC Terminal in place when on a wall- mounted Pocket PC Terminal Charger. Detects whether the Pocket PC Terminal is correctly mounted onto the Optical Communication Unit.
-
Page 46: Charger Unit Power Requirements
Charger Unit Power Requirements Use the AC adaptor that comes with the Charger Unit to power it. Using the Charger Unit 1. Plug the AC adaptor into a wall outlet. 2. After confirming that the Charger Unit is turned off, plug the AC adaptor cord into the AC adaptor jack on the top of the Charger Unit. -
Page 47: Wall Mounting The Charger Unit
Charge Indicator Lit Red: Flashing Red: Lit Green: Important • Make sure you perform charging within the allowable charging temperature range, which is 0°C to 40°C (32 to 104°F). Charging outside this range can lead to leaking of the battery pack and overheating. It can also lead to deterioration of battery pack performance and shortening of the battery pack life. -
Page 48: Pocket Pc Terminal Charger (It-769Chge) Specifications
Pocket PC Terminal Charger (IT-769CHGE) Specifications Power Supply: Output DC5V 1.0A Charging System: Fixed voltage (with voltage control) Approximate Charge Time: 4 hours (Standard Battery Pack); 8 hours (Large- Power Requirements: Special AC Adaptor (DT-825ADP) Consumption Current (Terminal Off): Approximately 800mA Operating Temperature: 0 to 40°C (32 to 104°F) Dimensions: 110(W) ×... -
Page 49: Using The Dual Charger
Using the Dual Charger The optionally available Dual Charger (DT-5022CHG) lets you charge two battery packs. In this configuration, charging of the second battery pack starts after charging of the first battery pack is complete. General Guide Charge Indicator AC Adaptor Jack Dual Charger Connection Terminal Connection... -
Page 50: Using The Dual Charger
Using the Dual Charger 1. Plug the optionally available special AC adaptor into a wall outlet. 2. Plug the AC adaptor cord into the AC adaptor jack of the Dual Charger. 3. Mount a Rechargeable Battery Pack onto the Dual Charger, making sure the battery pack’s terminals are oriented correctly. -
Page 51: Daisy Chaining Dual Charger Units
Daisy Chaining Dual Charger Units You can use the following procedure to daisy chain up to three Dual Charger units and power them with a single AC adaptor. 1. Remove the connector covers of Dual Charger units as required. Remove these covers. 2. -
Page 52: Dual Charger (Dt-5022Chg) Specifications
Dual Charger (DT-5022CHG) Specifications Model: DT-5022CHG Charging System: Fixed voltage (with voltage control) Approximate Charge Time: 2.5 hours (1 Standard Battery Pack); 5 hours (1 Power Requirements: Special AC Adaptor (MPC-577ADP) Consumption Current: Approximately 650mA Operating Temperature: 0 to 40°C (32 to 104°F) Dimensions: 110(W) ×... -
Page 53: Using A Compactflash Card
Using a CompactFlash Card The Pocket PC Terminal supports use of the CompactFlash Type I card and Type II card (3.3V). The following describes how to load and replace a CompactFlash card. Important You must remove the Slot 0 card cover when using a laser scanner or another type of card whose use makes it impossible to close the card cover. -
Page 54: Loading A Card Into Slot 1
Loading a Card into Slot 1 Slot 1 is mainly intended for use as a memory expansion slot. Since you have to remove the main battery (battery pack) in order to load or remove a card from Slot 1, you should use it for a card you plan to leave loaded in the Pocket PC Terminal for long periods. - Page 55 7. Replace the Slot 1 cover. • Do not push the special tape all the way into the slot. Leave the end sticking out so you can use it the next time you need to remove the card from the slot. 8.
-
Page 56: Using A Laser Scanner
Using a Laser Scanner Installing an optional Laser Scanner Card (DT-5057CBCR) into the Pocket PC Terminal provides you with the ability to read various types of bar codes. General Guide Bar Code Reader Important • Do not touch the bar code reader with your fingers or allow it to become scratched or damaged. -
Page 57: Installing The Laser Scanner Card
Installing the Laser Scanner Card 1. Remove the Slot 0 card cover. With the card cover opened part way, carefully raise it so the cover’s hooks come out of the holes in the Pocket PC Terminal, and then remove the cover. 2. -
Page 58: Reading Bar Codes
Reading Bar Codes CASIO provides a library of functions to control the laser scanner. Software developers can use these functions to incorporate bar code laser scanning into applications. Contact your CASIO distributor for example bar code scanning software. -
Page 59: Warning Label
Important • If you have a problem reading a bar code, try changing the angle of the label or Pocket PC Terminal, or the distance between them. • The laser scanner can read bar codes from a distance of 60 to 420 mm under the conditions described below. -
Page 60: Bar Code Scanning Positions
Bar Code Scanning Positions Locate the bar code reader close to the bar code when the bar code is small. For larger bar codes, move the bar code reader further away so the beam can cover the entire bar code. Margin Margin Correct... -
Page 61: Laser Scanner Card Specifications
Laser Scanner Card Specifications Model: DT-5057CBCR Readable Bar Codes: JAN, EAN, UPC, NW-7, CODE39, ITF, CODE93, CODE128, MSI, IATA, Industrial 2 of 5 Readable Distance: 60 to 420mm (with protective cover installed) Interface: CompactFlash Card Type II (3.3V) Consumption Current: Approximately 140mA Operating Temperature: –5 to 50°C (23 to 122°F) Dimensions: 52(W) ×... -
Page 62: Using A Rechargeable Battery Pack
Using a Rechargeable Battery Pack Two types Rechargeable Battery Packs are available. You can select the type you need to suit the amount of time you need to run the Pocket PC Terminal, and the operating environment (options, etc.) When using the Large-capacity Rechargeable Battery Pack, you must change the battery pack cover to the large-capacity battery pack cover. - Page 63 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan PN410346-002 Printed on recycled paper. MO0101-003002C Printed in Japan...
