3. Firmly push the monitor down into the
docking system until you feel the moni-
tor lock into place.

Removing the Monitor

1. Place the Compact M40 so you can
grasp both quick-release knobs.
2. Pull both knobs out and away from the
docking fins. In the same motion as
pulling the knobs out, turn the knobs
together in either direction to disen-
gage the locks.
Note: The locks are disengaged when
the yellow indicator labels are visible
under the knobs.
3. Grip the docking handle and pull the
digital reporting monitor straight up.

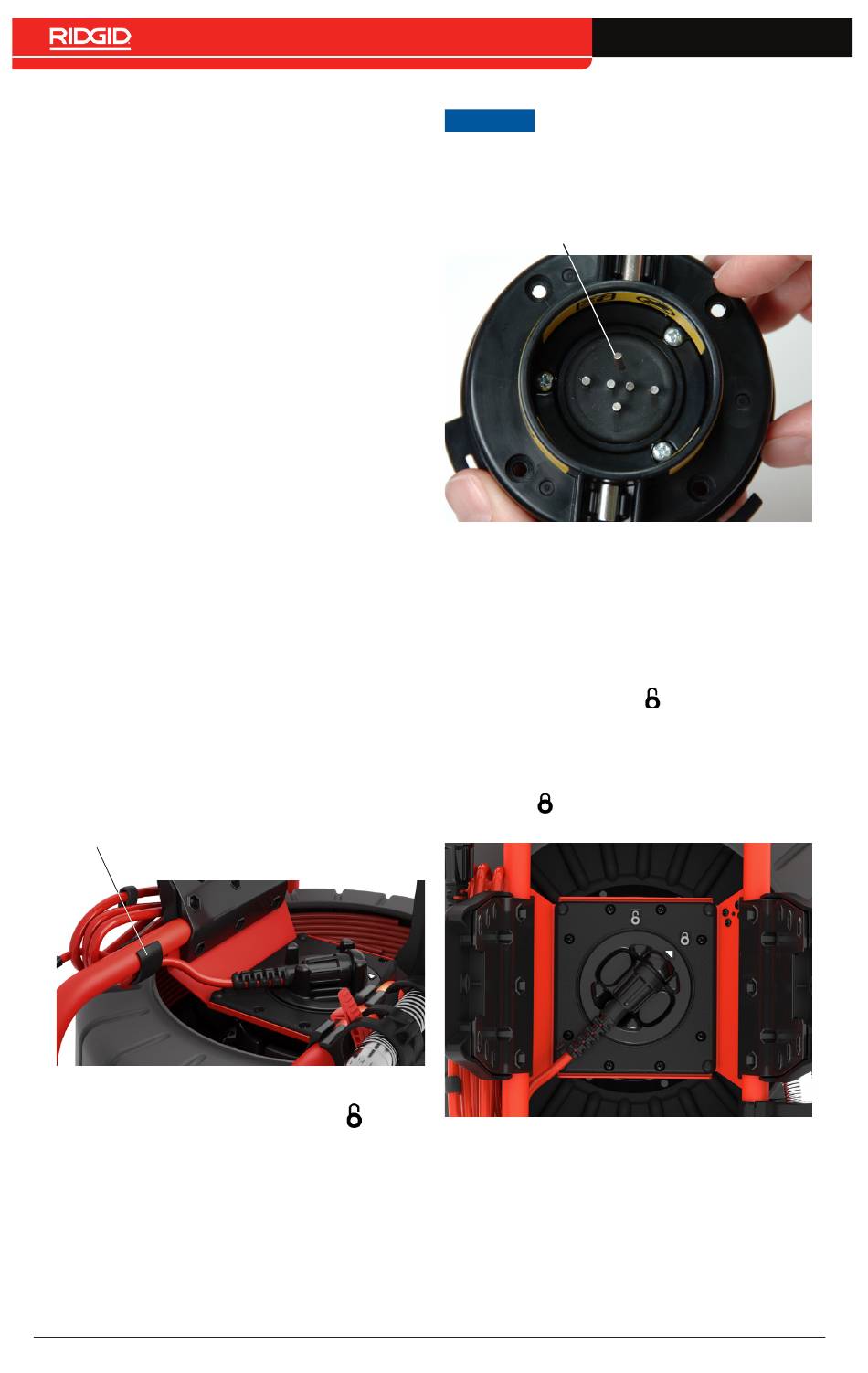

System Cable Removal

1. Disconnect the system cable from the
reporting monitor and remove the mon-
itor from the docking system.
2. Unwrap the system cable from the
cable wraps.
3. Pop the frame cable anchor off the
frame.
Cable Anchor
4. Turn the slip-ring dial counter-clock-
wise to the unlocked position
5. Pull straight out.
12 – English – Compact M40
NOTICE
Broken Contact Pin
System Cable Installation
To install the system cable, follow these
steps:
1. Align the arrow on the slip-ring dial with
the unlock symbol
insert the slip-ring dial into the slip-ring
cavity.
2. Turn the slip-ring dial to the locked po-
sition
.
3. Snap the cable anchor onto the frame.
4. Wrap the system cable around the
cable wraps.
Do not touch the contact
pins inside the slip-ring dial.
Stressing the contact pins
can cause them to break.
on the frame and
.
