11 Routing Cables

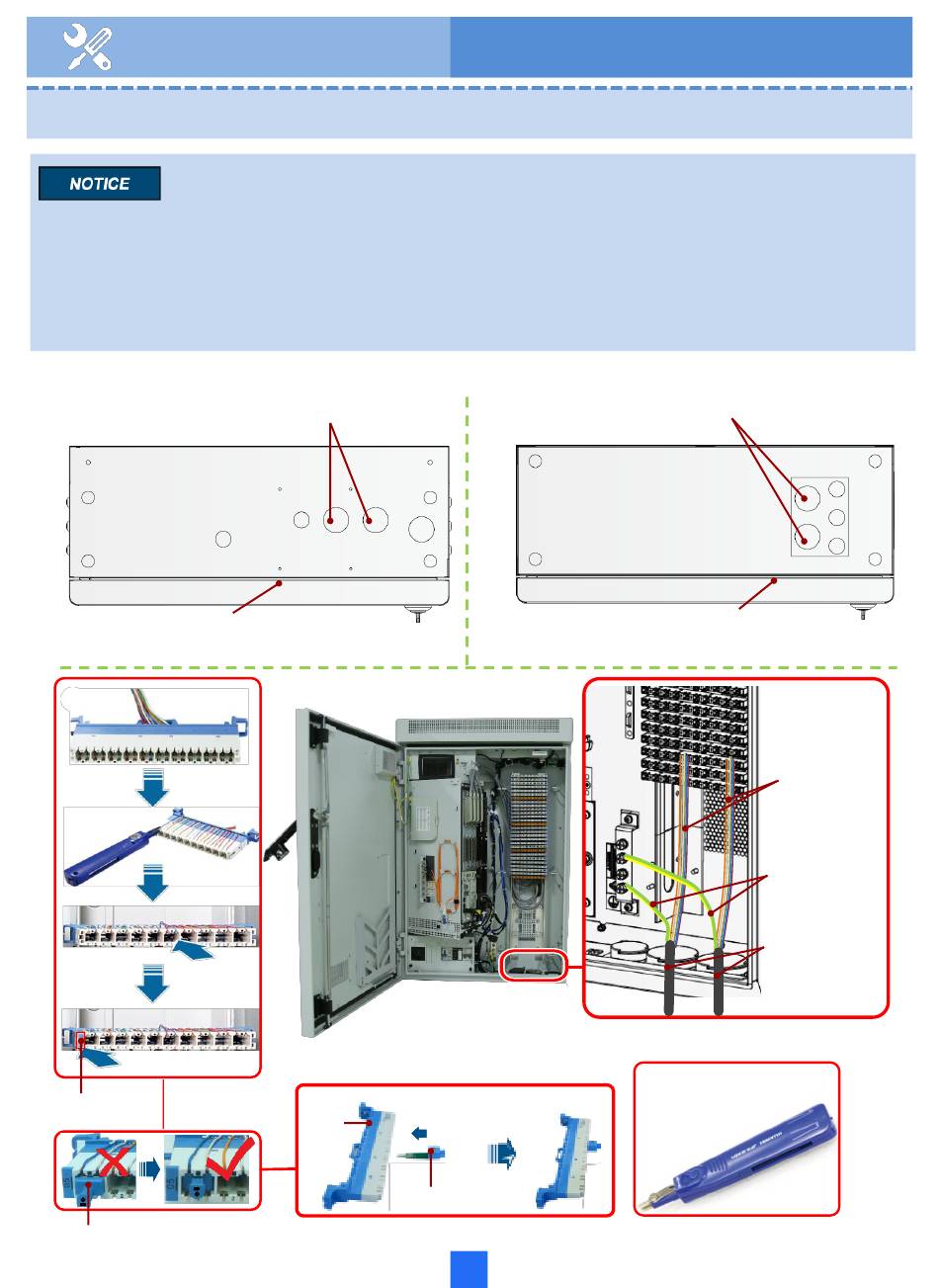

11.3 Routing Subscriber Cables

• After routing external user cables into the cabinet, reserve an extra length so as to clamp the cables to the
cable side terminal block on the MDF.
• You must preprocess the external subscriber cables after routing the external subscriber cable into the
cabinet. For detailed operation, see Appendix A Preprocess the External Subscriber Cables.
• When the service is enabled in the future, the protective unit must be installed for the cable side terminal
block correctly.
Cabinet bottom (top view)
Cable hole for subscriber cable
Front door side of the cabinet
Labeling block
Protective unit
MDF
Protective unit
26
Battery compartment bottom (top view)
Cable hole for subscriber cable
Front door side of the cabinet
Wire cutter
Subscriber
cables
Ground cable
for subscriber
cables
To the
distribution box
outside of the
cabinet
