TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4.1. Disassembly Instructions -------------------------------- 4
4.2. Assembly Instructions ------------------------------------ 6
5 Wiring Connection Diagram ---------------------------------- 7
6 Schematic Diagram ---------------------------------------------- 8
7.1. Exploded View --------------------------------------------- 9
7.2. Replacement Parts List ---------------------------------10

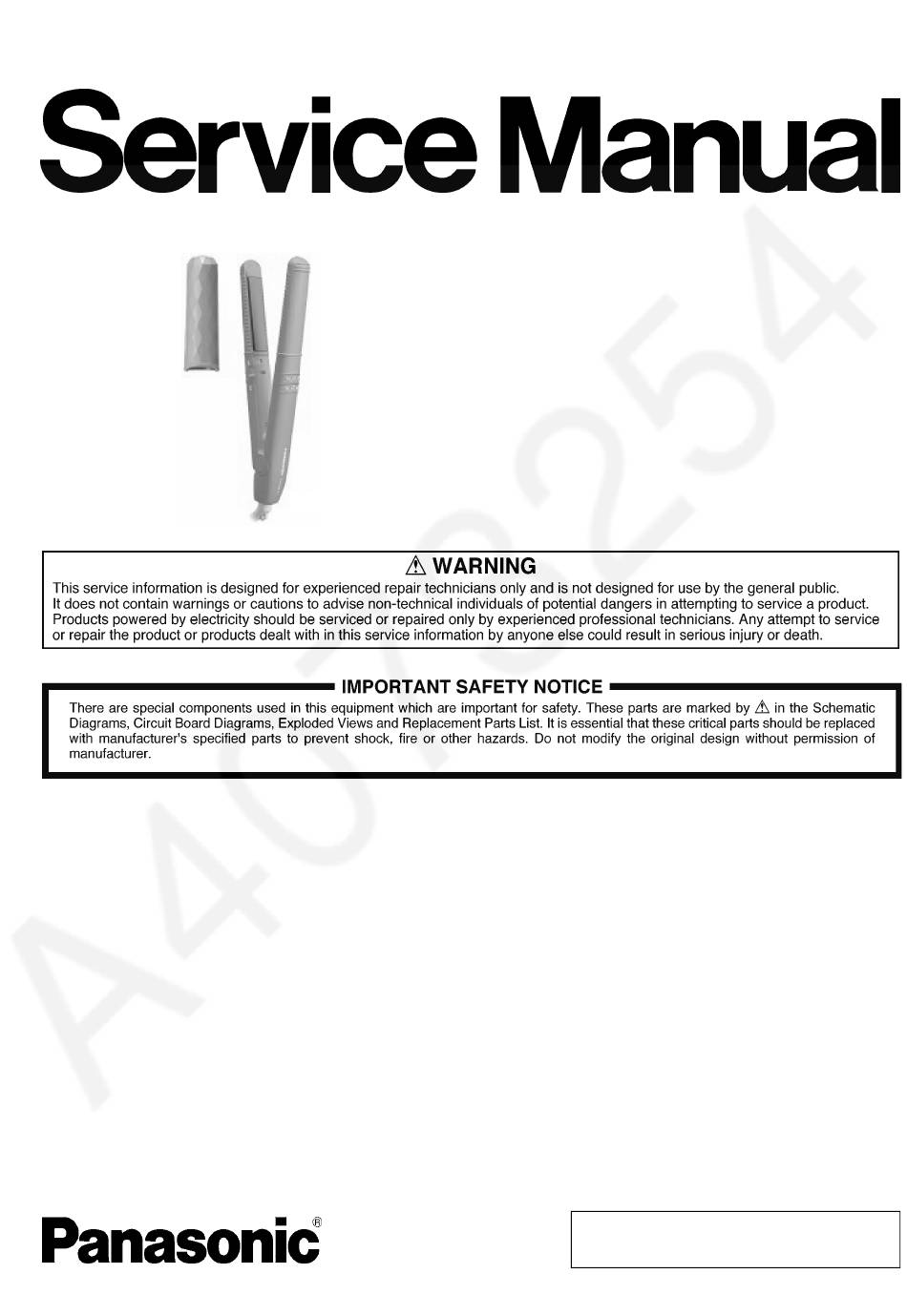

Compact Multi Straightener
Model No.
Asia
PAGE
© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number PEWT1207A36CE
EH-HW17
PAGE

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic EH-HW17

  • Page 1: Table Of Contents

    5 Wiring Connection Diagram ---------------------------------- 7 6 Schematic Diagram ---------------------------------------------- 8 7 Exploded View and Replacement Parts List ------------ 9 7.1. Exploded View --------------------------------------------- 9 7.2. Replacement Parts List ---------------------------------10 © Panasonic Corporation 2012 Unauthorized copy- ing and distribution is a violation of law.
  • Page 2: Warning

    1 Warning Caution: - Pb free solder has a higher melting point that standard solder Typicall the melting point is 50 - 70°F (30 - 40°C) a higher. Please use soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature soldering iron, please be careful not to heat too long.
  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide (Refer to SCHEMATIC DIAGRAM)
  • Page 4: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions 1. Insert a small flat head screwdriver into the Groove of the 3. Remove the spring by pull out of the Housing side and Shaft Cover as shown in Figure 4. Press plate side as shown in Figure 6. 4.
  • Page 5 6. Remove the Iron Plate Ass'y B/K of Press Plate side as 8. Take off the Housing B as shown in Figure 11. shown in Figure 9. 7. Remove the 2 tapping screws and 1 torx screw as shown in Figure 10. 9.
  • Page 6: Assembly Instructions

    4.2. Assembly Instructions 1. Arrange Lead wire into rib of the Press Plate. 2. Arrange Lead wire into rib of the Housing A. 3. Assembly Housing B together with the Housing A. • Ensure that the Power Cord is attached to the Connector Cover. (Apply grease floil at the Power Cord terminal ) 4.
  • Page 7: Wiring Connection Diagram

    5 Wiring Connection Diagram...
  • Page 8: Schematic Diagram

    6 Schematic Diagram...
  • Page 9: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List 7.1. Exploded View...
  • Page 10: Replacement Parts List

    7.2. Replacement Parts List EH-HW17(Asia ) Safety Ref. Part No. Part Name & Description Q’ty Remarks EHHW17CBW CAP (BLACK) EHHW17CPW CAP (PINK) EHHW17CWW CAP (WHITE) EHHW17HSABW HOUSING A (BLACK) EHHW17HSAPW HOUSING A (PINK) EHHW17HSAWW HOUSING A (WHITE) EHHW17STYW STONE (YELLOW)
  • Page 11 Safety Ref. Part No. Part Name & Description Q’ty Remarks EHHW17S135PW INDIVIDUAL PACKAGE (FOR PINK,-P135 : TAIWAN ) EHHW17S415PW INDIVIDUAL PACKAGE (FOR PINK,-P415 : INDONESIA ) EHHW17S615PW INDIVIDUAL PACKAGE (FOR PINK,-P615 : OMAN) EHHW17S01IPW INDIVIDUAL PACKAGE (FOR PINK,P615I : INDIA) EHHW17S645PW INDIVIDUAL PACKAGE (FOR PINK,-P645 : VIETNAM)
