Draytek VDSL2 Quick Start Manual page 11

LED
Left
P5 /
LED
WAN2
Right
LED
The port "P5 / WAN2" is switchable. It can be used for LAN connection or WAN
connection according to the settings configured in WUI.
Switch on Rear Side

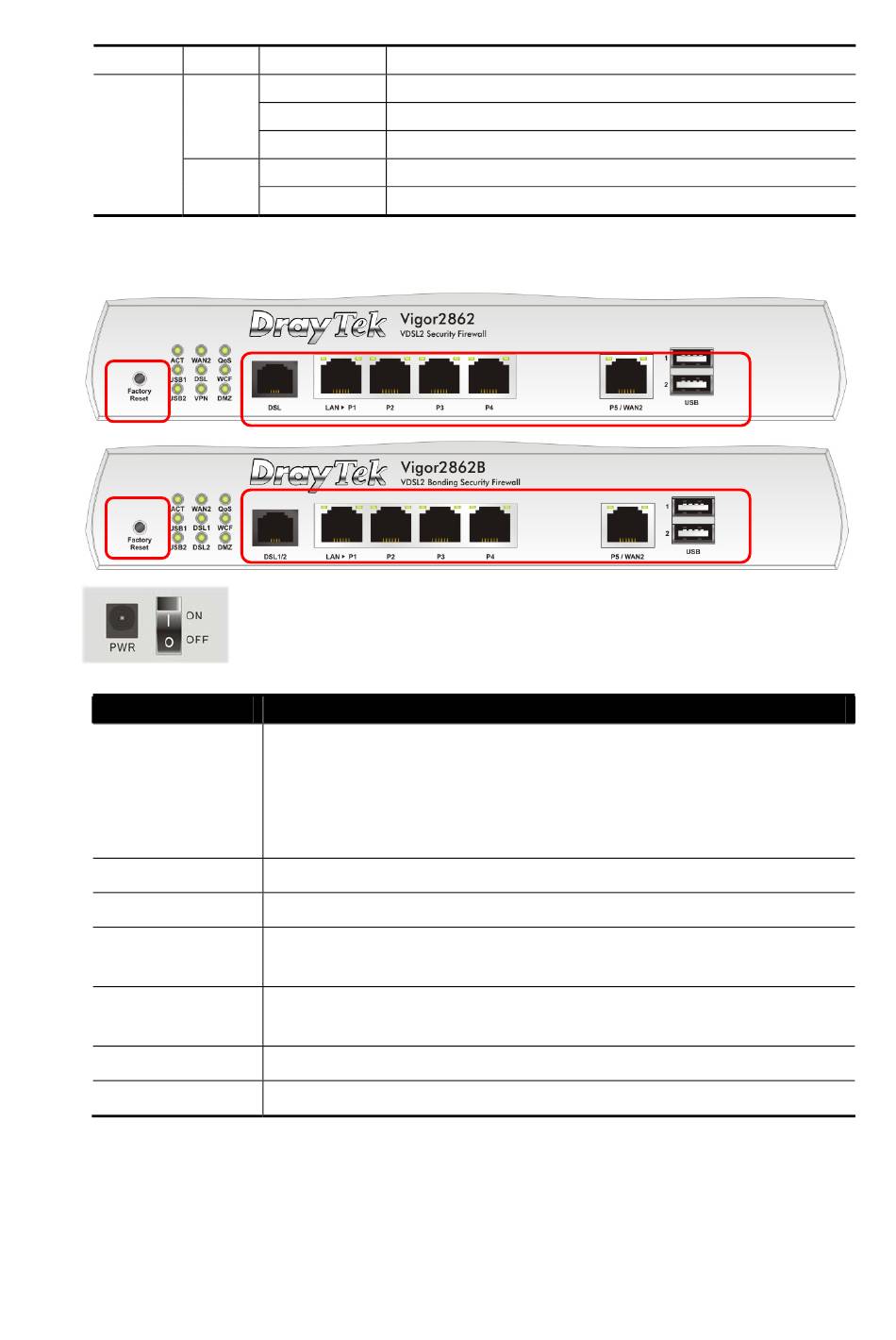

Interface
Factory Reset
DSL / DSL 1/2
LAN P1-P4
P5 / WAN2
USB1~2
PWR
ON/OFF
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps
Description
Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for more than
5 seconds. When you see the ACT LED begins to blink
rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
Connecter for accessing the Internet.
Connecters for local network devices.
Connecter for local network devices or modem for
accessing Internet.
Connecter for a USB device (for 3G/4G USB Modem or
printer or thermometer).
Connecter for a power adapter.
Power Switch.
