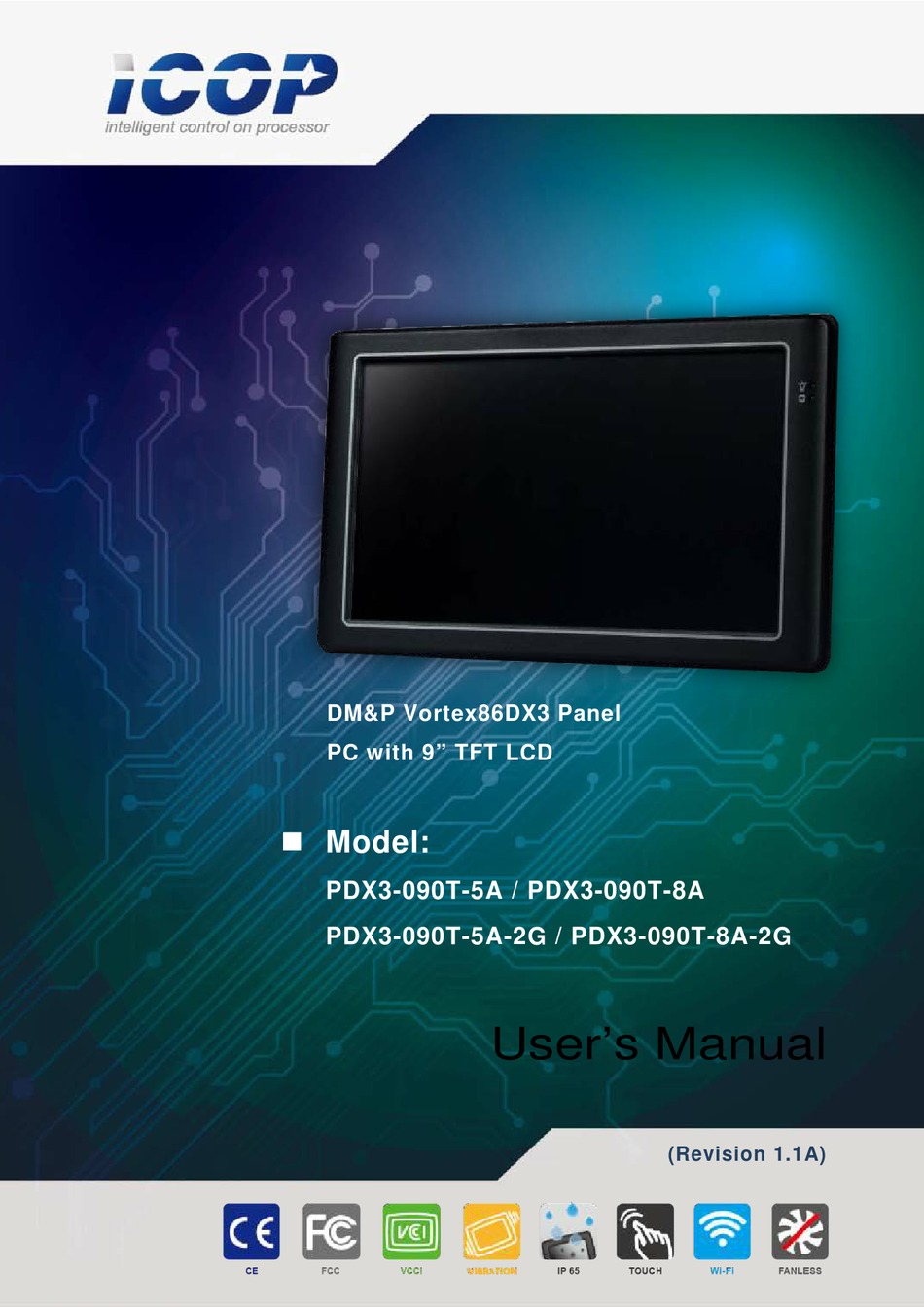

- Page 1 DM&P Vortex86DX3 Panel PC with 9” TFT LCD Model: PDX3-090T-5A / PDX3-090T-8A PDX3-090T-5A-2G / PDX3-090T-8A-2G User’s Manual (Revision 1.1A)
- Page 2 Revision Date Version Description 2016/11/18 Version 1.0 Initial Release 2017/01/10 Version 1.1 Specification correction...
- Page 3 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2017 ICOP Technology Inc. Manual No. IUMPDX3090-01 Ver.1.1A Jan, 2017 Trademarks Acknowledgment Vortex86DX3...
-
Page 4: Table Of Contents
Table of Contents Table of Contents ..................... iii .General Information ................1 Product Description ............1 Product Specification ............2 Inspection standard for TFT-LCD Panel ......4 Product Dimension ............. 7 Panel Mounting Instruction ..........8 Ordering Information ............10 Packing List ............... -
Page 5: General Information
1 .General Information 1.1 Product Description PDX3-090T is an ultra-compact platform for the present demanding embedded and productive applications. It has new Vortex86DX3 SoC CPU which consumes only minimum power requirement when running at 1GHz, and DDR3 memory provides faster data transfer rate. By using 9” TFT LCD, PDX3-090T becomes the perfect choice for a limited budget. -
Page 6: Product Specification
1.2 Product Specification Table 1-1 Product Specification CPU Board Specifications DM&P Vortex86DX3 - 1GHz L1:16KB I-Cache, 16KB D-Cache Cache L2: 512KB Cache BIOS AMI BIOS Memory 1GB/2GB DDR3 onboard Software programmable from Watchdog Timer 30.5u to 512 seconds x 2 sets Integrated 10/100M Ethernet Audio HD Audio-Realtek ALC262 CODEC... - Page 7 Operating Humidity 0% ~ 90% relative humidity, non-condensing Dimensions 236.6 x 146 x 35mm (9.31 x 5.75 x 1.38 inches) Weight 790g Front Panel IP 65 Protection Certification CE / FCC / VCCI / Vibration / Shock LCD Specifications Display Type 9”...
-
Page 8: Inspection Standard For Tft-Lcd Panel
1.3 Inspection standard for TFT-LCD Panel Table 1-2 Inspection Standard DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 Note1 SPOT 0.5mm＜φ 0.03mm<W≦0.1mm, L≦ N≦3 FIBER Note1 VISUAL INTER 1.0mm＜W, 1.5mm＜L DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’... - Page 9 [Note 1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter. White / Black Spot Polarizer Bubble Fig 1-1 Fig 1-2 [Note 2] Bright dot is defined through 6% transmission ND Filter as following. Fig 1-3 PDX3-090T DM&P Vortex86DX3 Panel PC with 9”...
- Page 10 [Note 3] C Area: Center of display area O Area: Outer of display area [Note 4] Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dart adjacent dot. And they will be counted 2 defect dots in total quantity.
-
Page 11: Product Dimension
1.4 Product Dimension Fig 1-4 Product Dimension PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD... -
Page 12: Panel Mounting Instruction
1.5 Panel Mounting Instruction Cut a mounting hole in the panel. (Refer to PDX3-090T Dimensions on page 7) (Note 1) Check and remove the twelve M3 screws in a diagonal pattern as image below if necessary. Place PDX3-090T face-down on a clean, flat surface. Slide the panel cutout around the back of PDX3-090T, until the panel rests directly on the gasket. - Page 13 Note 1: It is strongly recommended that a professional machine shop cut the mounting hole in the panel. Note 2: The length for all twelve M3 screws will be according to the thickness of mounting panel. For example: The length of standard M3 screws for PDX3-090T is 6mm.
-
Page 14: Ordering Information
1.6 Ordering Information Table 1-3 Ordering Information PART NUMBER DESCRIPTION PDX3-090T-5A 9” Panel PC w/1GB DDR3 / 2USB / Line-Out / LAN / COM / CF / MicroSD / Power Adapter PDX3-090T-8A 9” Panel PC w/1GB DDR3 / 2USB / Line-Out / LAN / COM / CF / MicroSD /... -
Page 15: Packing List
1.7 Packing List Table 1-4 Packing List PART NUMBER PACKAGE PDX3-090T-5A PDX3-090T-5A Power-20W-3PIN PDX3-090T-8A PDX3-090T-8A PDX3-090T-5A-2G PDX3-090T-5A-2G Power-20W-3PIN PDX3-090T-8A-2G PDX3-090T-8A-2G PDX3-090T-5A-I PDX3-090T-5A-I Power-20W-3PIN PDX3-090T-8A-I PDX3-090T-8A-I PDX3-090T-5A-2G-I PDX3-090T-5A-2G-I Power-20W-3PIN PDX3-090T-8A-2G-I PDX3-090T-8A-2G-I WLAN KIT USB-WLAN-IPEX-KIT (Optional) WIRELESS-ANTENNA-157 WIRELESS-CABLE-150MM PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD... -
Page 16: System Installation
2 .System Installation 2.1 CPU Board Outline Fig 2-1 PDX3 CPU Board PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD... -
Page 17: Connector Summary
2.2 Connector Summary Table 2-1 Summary Table Description Type of Connections Pin nbrs. CF Master/Slave Switch Slide Switch ON/OFF External USB Connector 6-pin External USB Connector 6-pin USB (Optional) 2.0mm 5-pin wafer 5-pin PS/2 Keyboard 2.54mm 5-pin box header 5-pin PS/2Keyboard External Mini DIN Socket 6-pin... -
Page 18: Connector Pin Assignments
J8: PS/2 Keyboard J1: CF Master/Slave Switch 2.3 Connector Pin Assignments Pin # Signal Name Pin # Signal Name KBCLK KBDAT Pin # Signal Name Master Slave J3: USB J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin #... - Page 19 J14: VGA J31: 4-Wires Touch connector Pin # Signal Name Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT HSYNC J32: USB (WLAN Optional) VSYNCD J24: MIC-IN Pin # Signal Name Pin # Signal Name USBD2- Pin # Signal Name...
-
Page 20: External I/O Overview
{ PDX3-090T-8A / PDX3-090T-8A-2G } 2.4 External I/O Overview { PDX3-090T-5A / PDX3-090T-5A-2G } Fig 2-2 PDX3-090T-8A I/O overview Fig 2-3 PDX3-090T-5A I/O overview {Note} 1. WLAN is optional 2. COM1 RS232/422/485 is selected by BIOS setting 3. MicroSD Socket is optional (Either one of CF or Micro SD) PDX3-090T DM&P Vortex86DX3 Panel PC with 9”... -
Page 21: External I/O Pin Assignment
Power Switch 2.5 External I/O Pin Assignment USB Port Pin # Status Pin # Signal Name Power Connector (5A) USB0- USB0+ Pin # Signal Name GGND GGND PS/2 Keyboard Power Connector (8A) Pin # Signal Name Pin # Signal Name KBCLK +8 ~ 35V PMCLK... - Page 22 J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/422TX-/RS485- RXD1/422TX+/RS485+ TXD1 / 422RX+ DTR1 / 422RX- DSR1 RTS1 CTS1 RJ45 Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- PDX3-090T DM&P Vortex86DX3 Panel PC with 9”...
-
Page 23: System Mapping
2.6 System Mapping Table 2-2 Technical Data Sheet System Mapping Memory Mapping Address Description Usage 00000000-0009FFFF System RAM 000A0000-000AFFFF EGA/VGA Video Memory 000B0000-000B7FFF MDA RAM, Hercules Graphics Display RAM 000B8000-000BFFFF CGA Display RAM 000C0000-000C7FFF EGA/VGA BIOS ROM 000C8000-000CFFFF Boot ROM Enable 000CC000-000CFFFF Console Redirection Enable 000D0000-000DFFFF... - Page 24 0061h Port B + NMI Control Port 0062h - 0063h 8051 download 4K Address Counter 0064h Keyboard / Mouse Status / Command Port 0065h WatchDog0 Reload Counter 0070h - 0071h CMOS RAM Port 0072h - 0075h MTBF Control Register 0078h - 007Ch GPIO Port 0,1,2,3,4 Default Setup 0080h - 008Fh DMA Page Register...
- Page 25 IRQ Mapping IRQ# Description Usage IRQ0 System Timer IRQ1 Keyboard Controller IRQ2 Cascade for IRQ8 - 15 IRQ3 Unassigned IRQ4 Serial Port 1 IRQ5 IRQ6 Audio IRQ7 Ethernet 10/100M LAN IRQ8 Real Time Clock IRQ9 Unassigned IRQ10 IRQ11 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14...
-
Page 26: Watchdog Timer
2.7 Watchdog Timer There are two watchdog timers in PDX3-090T, we also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://tech.icop.com.tw or download the PDF file: dmp.com.tw/tech PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD... -
Page 27: Driver Installation
3 .Driver Installation The Vortex86DX3 processor is integrated RDC Display chip which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. The Vortex86DX3 processor is integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. -
Page 28: Pdx3-090T Development Note
The PDX3-090T provides the VGA and LAN drivers for Linux, Windows CE, Windows XP Professional, Windows 7, and Windows Embedded standard (WES2009 / WES7). Please get the drivers from ICOP official website: tech.icop.com.tw PDX3-090T also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: dmp.com.tw/tech/... - Page 29 Go to the advanced BIOS setting and make the “Onboard IDE Operate Mode” is “Legacy Mode” < Windows XP and Windows 7 installation note > Please visit technical website to get more information: tech.icop.com.tw PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD...
-
Page 30: Bios Default Setting
3.2 BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press < End > Key, when the power on Press < Del > to enter the AMI BIOS setup Press <... -
Page 31: Warranty
Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2017 PDX3-090T DM&P Vortex86DX3 Panel PC with 9” WSVGA TFT LCD...
