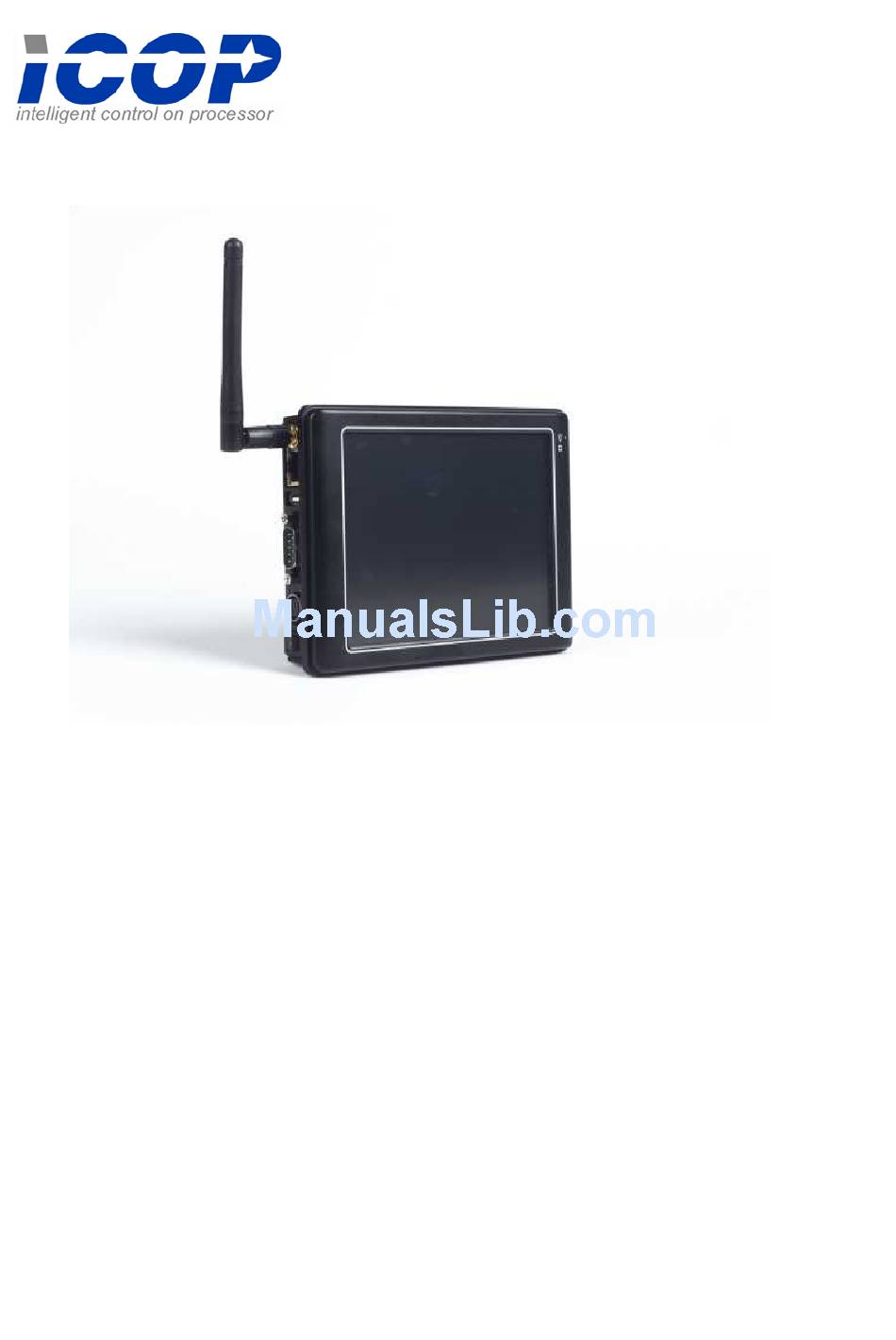

- Page 1 PDX-057T-D5A / PDX-057T-D5A-512 PDX-057T-D8A / PDX-057T-D8A-512 DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD User’s Manual (Revision 1.1A)
-
Page 2: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2011 ICOP Technology Inc. -
Page 3: Safety Information
Safety Information Read these Safety instructions carefully. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Do not expose your Panel PC to rain or moisture, in order to prevent shock and fire hazard. -
Page 4: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iv C h a p t e r 1 General Information..…………………………………1 Product Description .......... - Page 5 This page is blank...
-
Page 6: Chapter 1 General Information
C h a p t e r General Information Product Description PDX-057T is an ultra compact platform for the present demanding embedded and productive applications. It has new Vortex86DX SoC CPU which consumes only minimum power requirement when running at 1GHz, and DDR2 memory provides faster data transfer rate. By using 5.7”... -
Page 7: Product Specifications
1.2 Product Specification CPU Board Specifications DM&P Vortex86DX 1GHz L1:16KB I-Cache, 16KB D-Cache Cache L2: 128KB Cache BIOS AMI BIOS Memory 256/512MB DDR2 onboard Watchdog Timer Software programmable from 30.5u to 512 seconds x 2 sets Integrated 10/100M Ethernet Audio CM119 Line-Out Compact Flash Type I/II slot Internal Drives... - Page 8 LCD Specifications Display Type 5.7” TFT LCD Backlight Unit Display Resolution 640(W) x 480(H) Brightness (cd/m 500 nits Contrast Ratio 300:1 Display Color 262,144 Dot Pitch (mm) 0.06 x 0.18 Vertical 100 Viewing Angle Horizontal 140 Backlight Lifetime 25,000 hrs Touchscreen Type Analog Resistive...
-
Page 9: Product Dimension
1.3 Product Dimension PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD... -
Page 10: Ordering Information
1.4 Ordering Information Part Number Description PDX-057T-D5A-512 5.7” Panel PC w/512MB DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/Power Adapter PDX-057T-D8A-512 5.7” Panel PC w/512MB DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/8-35 DC support PDX-057T-D5A 5.7” Panel PC w/256MB DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/Power Adapter PDX-057T-D8A 5.7” Panel PC w/256MB DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/8-35VDC support 1.5 Packing List Part Number Package ... -
Page 11: Chapter 2 System Installation
C h a p t e r 2 System Installation 2.1 CPU Board Outline PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD... -
Page 12: Connector Summary
2.2 Connector Summary Summary Table Description Type of Connections Pin nbrs. CF Master/Slave Switch On/OFF Slide Switch 6-pin External USB Connector 6-pin External USB Connector USB (Touchscreen) 5-pin 2.0mm 5-pin wafer J-TAG 6-pin 1.25mm 6-pin wafer PS/2 Keyboard 5-pin 2.54mm 5-pin box header PS/2 Keyboard/Mouse 6-pin External Mini DIN Socket... -
Page 13: Connector Pin Assignments
2.3 Connector Pin Assignments J1: CF Master/Slave Switch Pin # Signal Name Master Slave J3: USB Pin # Signal Name Pin # Signal Name USBD2- USBD2+ J4: USB Pin # Signal Name Pin # Signal Name USBD3- USBD3+ J5: USB (Touchscreen) Pin # Signal Name USBD1-... - Page 14 J8: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J9: PS/2 Keyboard/Mouse Pin # Signal Name Pin # Signal Name KBCLK MSCLK KBDATA MSDATA J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/ 422TX- / RS485- RXD1 / 422TX+ / RS485+...
- Page 15 HSYNC 3.3V VSYNC GPIOB PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD...
- Page 16 J24: MIC-IN Pin # Signal Name MICVREF MIC-IN PWR: Power Connector (5A) Pin # Signal Name PWR: Power Connector (8A) Pin # Signal Name + 8 ~ 35V PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD...
-
Page 17: External I/O Overview
2.4 External I/O Overview PDX-057T-D8A / PDX-057T-D8A-512 PDX-057T-D5A / PDX-057T-D5A-512 (Note1: Wireless is optional) (Note2: COM1 RS232/422/485 is selected by BIOS setting) PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD... -
Page 18: External I/O Pin Assignment
2.5 External I/O Pin Assignment Power Switch Pin # Status Power Connector (5A) Signal Name Pin # Power Connector (8A) Signal Name Pin # +8 ~ 35V J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/422TX-/RS485- RXD1/422TX+/RS485+... - Page 19 Audio Line-Out Signal Pin # Name LOUTL Open Touch Open Touch VREFOUT Pin # Signal Name USB0- USB0+ GGND GGND RJ45 Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- PS/2 Keyboard/Mouse Pin # Signal Name KBCLK PMCLK KBDAT PMDAT...
-
Page 20: System Mapping
2.6 System Mapping PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD... - Page 21 PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD...
- Page 22 PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD...
-
Page 23: Watchdog Timer
2.7 Watchdog Timer There are two watchdog timers in PDX-057T, we also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ PDX-057T DM&P Vortex86DX Panel PC with 5.7” VGA TFT LCD... -
Page 24: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86DX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. The Vortex86DX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. -
Page 25: Pdx-057T Development Note
3.1. PDX-057T Development Note <Primary /Secondary IDE: Master or Slave> Micro SD: Primary Master CF Slot: Secondary IDE: Master or Slave (User can use slide switch (in side of CF slot) to adjust Master or Slave <Window CE6.0 development guide> Windows Embedded CE 6.0 BSP, trial CE image and development notes, please visit Vortex86DX CPU website to get more information: http://www.dmp.com.tw/tech/vortex86dx/... - Page 26 #include "stdafx.h" unsigned char inportb(short addr) unsigned char cValue; _asm mov dx, addr in ax, dx mov cValue, al return cValue; void outpourtb(int addr, unsigned char val) __asm push edx mov edx, DWORD PTR addr mov al, BYTE PTR val out dx, al pop edx PDX-057T...
- Page 27 void BackLightON() // Set register 4AH bit1 to 0 to enable GPIOB outportb(0x3d4, 0x4a); unsigned c = inport(0x3d5) & 0xfd; outportb(0x3d4, 0x4a); outportb(0x3d5, c); // Set register 48H bit1 outportb(0x3d4, 0x48); c = inport(0x3d5) | 0x02; outportb(0x3d4, 0x48); outportb(0x3d5, c); void BackLightOFF() // Set register 4AH bit1 to 0 to enable GPIOB outportb(0x3d4, 0x4a);...
-
Page 28: Bios Default Setting
Note: 1-Wi-Fi module is optional: http://www.icop.com.tw/pddetail.aspx?id=67&pid=4 2 -PDX-057T COM1: support RS232/422/485, please contact your regional sales. 3 -PDX-057T series (CPU Speed: 1GHZ): Support Linux, Windows CE 5.0, CE 6.0, Windows XP Professional, and Windows Embedded standard (XPE). (Linux can use with Compact Flash card only.) 3.2. -
Page 29: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
