Page 1 The importance of wearing a seat belt, helmet, protective eyewear and other protective gear, how to make sure you and your Honda are ready to drive, plus load limits and guidelines on carrying cargo and towing a trailer.
Page 2 ID numbers, technical specifications, and other technical facts. Information on warranties, emissions controls, how to get a service manual, and how to contact Honda. Alphabetical listing of topics in the manual. Handy facts about fuel, engine oil, tire sizes, and air pressure.

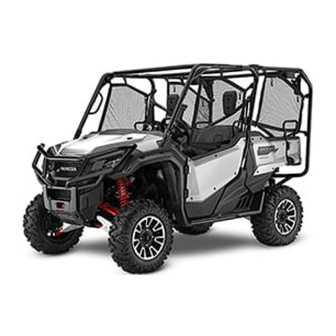

Page 3 2017 Honda PIONEER SXS1000 M3 Three Passenger M3P Three Passenger with Power Steering M3L Three Passenger with Power Steering, Limited Edition M5P Five Passenger with Power Steering M5D Five Passenger with Power Steering, Deluxe M5L Five Passenger with Power Steering, Limited Edition...
Page 4 If you have any questions, or if you ever need special service or repairs, remember that your dealer knows your Honda SXS best and is dedicated to your complete satisfaction. Please report any change of address or ownership to your dealer so we will be able to contact you concerning important product information.
Page 5 • The following codes in this manual indicate each country. SXS1000M3 United States of America, Australia, New Zealand United States of America SXS1000M3P United States of America, Australia, A, II A New Zealand AC, II AC United States of America Canada SXS1000M3L United States of America, Australia,...
Page 6 SXS1000M5L United States of America, Australia, New Zealand United States of America Canada • The illustrations herein are based on the SXS1000M5L A type. • The specifications may vary with each locale. USA only California Proposition 65 Warning This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 7 Your safety, and the safety of others, is very important. And operating your Honda safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
Page 8 — such as “Important Safety Reminders” or “Important Safety Precautions.” — “Driver & Passenger Safety,” beginning on page 1. — how to operate this vehicle correctly and safely. In addition to the above, your owner's manual is full of information that can help you safely operate and maintain your vehicle.
Page 9 This section presents some of the most important information and recommendations to help you drive your Honda safely. Please take a few moments to read these pages. This section also shows you the location of safety labels on your vehicle.
Page 10 There is much that you can do to protect yourself and passenger(s). You’ll find many helpful recommendations throughout this manual. The following are those we consider to be most important. The driver should be at least 16 years old and tall enough to wear the seat belt properly and reach all the controls.
Page 11 Having a breakdown can be difficult, especially if you are stranded far from your base. To help avoid problems, inspect your Honda before each use and perform all recommended maintenance. Alcohol and driving don’t mix. Even one drink can affect your judgment and your ability to respond to changing conditions.
Page 12 We strongly recommend that you use only Honda Genuine or Signature Accessories that have been specifically designed or approved and tested for your vehicle. Because Honda cannot test all other accessories, you must be personally responsible for the proper selection, installation, and use of non-Honda accessories.
Page 13 We strongly advise you not to remove any original equipment or modify your Honda in any way that would change its design or operation. Such changes could seriously impair your vehicle’s handling, stability, and braking and make it unsafe to drive.
Page 14 You, and anyone else who operates or rides in the vehicle, should read and understand this information before driving. The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement. Indicates something apparent.
Page 15 (USA - 49 states, Canada, (USA - 50 states [meets Australia, New Zealand models) California] models) loading warning Improper Use of Off-Highway Vehicles Can Cause Severe Injury or Death Only sit in designated seating positions and wear your seatbelt. Always wear an approved helmet and protective gear. Close doors and latch nets before driving.
Page 16 Model: Honda Test GVWR: The ROPS meets the requirements of 29 CFR Part 1928.53 (OSHA) OSHA...
Page 17 general warning tag...
Page 18 SXS1000M3/M3P//M5P/M5D general warning shift & drive select (USA - 49 states, Canada, (USA - 50 states Australia, New Zealand models) [meets California] models) Improper tire pressure, overloading or overly worn or damaged Improper tire pressure, overloading or overly worn or damaged tires cancause loss of control.
Page 19 SXS1000M3L/M5L general warning shift & drive select (USA - 50 states (USA - 49 states, Canada, [meets California] models) Australia, New Zealand models) Improper tire pressure, overloading or overly worn or damaged Improper tire pressure, overloading or overly worn or damaged tires cancause loss of control.
Page 21: Table Of Contents
The items listed below are described in this section. Operation Component Locations ..........15 Indicators & Displays ..............19 Neutral Indicator..............21 Reverse Indicator ..............21 Electric Power Steering (EPS) Indicator........21 4WD Differential Lock Indicator ..........21 High Coolant Temperature Indicator ........21 PGM-FI Malfunction Indicator Lamp (MIL) ........
Page 22 Hill Start Assist (HSA) Switch (SXS1000M3L/M5L)..... 50 Shift Paddles (except for SXS1000M3) ........51 Steering Wheel Adjustment Lever (except for SXS1000M3)..52 Doors ..................54 Side Nets ..................56 Side Nets Set Up ..............57 Front Side Nets ................ 59 Rear Side Nets (SXS1000M5P/M5D/M5L only)......
Page 23 front side net (page 56) passenger handhold (page 73) front seat belt (page 67) front door (page 54)
Page 24 rear seat belt (SXS1000M5P/M5D/M5L only) (page 67) rear side net (SXS1000M5P/M5D/M5L only) rear seat (page 56) (SXS1000M5P/M5D/M5L only) (page 63) tilt bed lever (page 81) cargo bed (page 79) tailgate levers (page 79) rear door (SXS1000M5P/M5D/M5L only) trailer hitch receiver (page 83) (page 54)
Page 25: Indicators & Displays
SXS1000M3/M3P/M5P/M5D park/shift select lever indicators & displays (page 43) (page 19) drive mode select lever upshift paddle downshift (page 44) (except for paddle SXS1000M3) (except for AT/MT switch, SPORT (page 51) SXS1000M3) switch (except for (page 51) SXS1000M3) (page 48) ignition switch headlight switch (page 40)
Page 26 SXS1000M3L/M5L park/shift select lever indicators & displays (page 43) (page 19) drive mode select lever (page 44) upshift paddle downshift (page 51) paddle AT/MT switch, SPORT (page 51) switch (page 48) steering wheel adjustment lever (page 52) accessory power socket headlight switch (page 77) (page 41)
Page 27 The indicators and displays on your Honda SXS keep you informed, alert you to possible problems, and make your driving safer and more enjoyable. Refer to the indicators frequently. Their functions are described on the following pages. Lamp Check The indicators come on and go off sequentially when you turn the ignition switch to the ON (q) position.
Page 28: Neutral Indicator
seat belt indicator high coolant temperature indicator electric power PGM-FI steering (EPS) malfunction indicator indicator lamp (except for multi-function display (MIL) SXS1000M3) 4WD differential lock indicator neutral (except for SEL/SET switch indicator SXS1000M3L/M5L) reverse indicator low oil pressure indicator SXS1000M3L/M5L only hill start assist (HSA) Indicator I - 4WD Indicator...
Page 29 This indicator comes on and stays on when the transmission is in neutral. This indicator comes on and stays on when the transmission is in reverse. (except for SXS1000M3) This indicator comes on when the ignition switch is turned on and remains on until the engine is started.
Page 30 This indicator comes on when the ignition switch is turned on and remains on until the engine is started. This indicator comes on and stays on when the engine oil pressure is low enough to cause engine damage. If this indicator comes on while you are driving, stop as soon as possible, turn the engine off and check for oil leaks and oil level.
Page 31: Speedometer
Multi-function This display includes the following display functions. Speedometer Shows riding speed in miles or kilometers per hour (page 26). Tachometer Shows the engine rpm (page 27). Fuel gauge Shows approximate fuel supply available (page 28). Odometer display Shows the odometer, tripmeter, coolant temperature gauge, hourmeter, maintenance tripmeter and maintenance hourmeter (page 29).
Page 32 Display Check When the ignition switch is turned ON (q), the multi-function display will temporarily show all the modes and digital segments and initial message. So, you can make sure the liquid crystal display is functioning properly. If any part of this display does not come on during the key on check, have your dealer check for problems.
Page 33: Maintenance Minder Indicator
The multi-function display consists of the following function displays: • Speedometer • Gear position indicator • Tachometer • AT indicator • Fuel gauge • MT/LOW indicators (except for • Odometer display SXS1000M3) • Maintenance minder • SPORT indicator (except for indicator SXS1000M3) •...
Page 34 This display shows speed in miles or kilometers per hour. Mileage Unit Change The speedometer, odometer, tripmeter and maintenance tripmeter show in either “MPH” and “MILE” or “KM/H” and “KM”. To change the mileage unit, press and hold the SEL/SET switch for more than 5 seconds in odometer mode (page 29) with the vehicle stopped.
Page 35 This display shows the engine speed in revolutions per minute (rpm). Do not operate the engine in the tachometer red zone. Excessive engine speed can adversely affect engine life. tachometer tachometer red zone...
Page 36 The fuel gauge shows the approximate fuel supply available. The fuel tank capacity is: 7.9 US gal (30 ℓ) fuel gauge When the last segment blinks, you should refill the tank as soon as possible. The amount of fuel remaining when the blinking starts is approximately: 1.69 US gal (6.4 ℓ) Fuel gauge failure:...
Page 37 This display includes odometer, tripmeter, coolant temperature gauge, hourmeter, maintenance tripmeter, and maintenance hourmeter. Each time you press the SEL/SET switch, mode will change as shown in the illustration. Odometer (page 30) Hourmeter (page 33) Tripmeter (page 30) Maintenance tripmeter (page 34) Coolant temperature gauge (page 31)
Page 38 Odometer The odometer shows the total miles or kilometers ridden with the ODO display. The odometer locks at 999,999 when the readout exceeds 999,999. ODO display odometer Tripmeter The tripmeter shows the number of miles or kilometers ridden with the TRIP display, since you last reset the tripmeter. The tripmeter returns to 0.0 when the read-out exceeds 999.9.
Page 39 Coolant temperature gauge The coolant temperature gauge shows engine coolant temperature with the coolant temperature display. When the segment begins to move above the C (Cold) display, the engine is warm enough for the SXS to be ridden. When the coolant temperature is low, the coolant temperature gauge will display “Lo”.
Page 40 Coolant temperature gauge failure: If the coolant temperature system has an error, the coolant temperature gauge will blink and appear in the display, and high coolant temperature indicator will turned on. If this occurs, see your dealer as soon as possible. high coolant temperature indicator coolant temperature gauge...
Page 41 Hourmeter The hourmeter display shows accumulated hours while the ignition is ON (q). The hourmeter locks at 99,999.9 when the read-out exceeds 99,999.9. hourmeter display hourmeter...
Page 42 The maintenance minder indicator appears in the display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule (page 127). Reset the indicator after each scheduled maintenance is performed. If the scheduled maintenance is performed before the maintenance minder indicator appears, be sure to reset the maintenance minder after performing the scheduled maintenance.
Page 43 The digital clock shows the hour and minutes with the 12-hour clock display. To set the time: 1. Turn the ignition switch to ON (q). 2. Change the hourmeter display (page 29). 3. Press and hold the SEL/SET switch. The clock will start blinking. 4.
Page 44 The gear position indicator shows the selected shift position by the shift select lever (page 43). The indicator displays: P for park, N for neutral, R for reverse, H for high-range, L for low-range, and 1 – 6 for gear positions (shift paddles operation) “–”...
Page 45 These indicators display the transmission mode of the SXS. The indicators display: AT for automatic shift mode, MT for manual shift mode (except for SXS1000M3). To switch between AT mode and MT mode, press the AT/MT switch (page 48). When MT mode is selected in low-range (L), the LOW indicator also comes on.
Page 46: Drive Mode Indicator (Sxs1000M3L/M5L)
The drive mode indicator shows the selected drive mode by the drive mode select lever (page 44, 106). 4WD differential lock indicator This indicator comes on when the differential gears are engaged. drive mode indicator 4WD differential lock indicator drive mode select Turf Diff lever position...
Page 47 The drive mode indicator shows the selected drive mode by the drive mode select lever (page 44, 106). drive mode indicator drive mode select Turf I - 4WD lever position drive mode indicator...
Page 48: Ignition Switch
The ignition switch is a three-position, key-operated switch used to start and stop the engine. (w) — The engine and all electrical circuits are off. The key can be inserted and removed only when it is in this position. (q) — The electrical circuits are on. You can use the accessory power socket in this position.
Page 49: Headlight Switch (Sxs1000M3/M3P/M5P/M5D)
The headlight switch is located on the front console, to the left of the steering wheel. This switch turns the headlights and taillights on and off, and changes between low beam or high beam. headlight switch LO (i) HI (u) OFF (t) (t) —...
Page 50: Headlight Switch (Sxs1000M3L/M5L)
(SXS1000M3L/M5L) The headlight switch is located on the right side of the shift select lever. This switch turns the headlights and taillights on and off, and changes between low beam or high beam. For example, if you change the headlight position from OFF to HI, push the HI side of headlight switch twice.
Page 51: Shift Select Lever
Your Honda SXS is equipped with an automatically controlled 6-speed transmission. The shift select lever, located to the right of the steering wheel, has five positions: park (P), reverse (R), neutral (N), high-range (H), and low-range (L). shift positions shift select lever...
Page 52: Drive Mode Select Lever (Sxs1000M3/M3P/M5P/M5D)
The drive mode select lever, located to the right of the shift select lever, has four drive mode positions: Turf, 2WD, 4WD and 4WD Diff Lock. drive mode positions drive mode select lever Diff Lock Turf To check your present drive mode, look at the drive mode indicator and 4WD differential lock indicator.
Page 53 You should change drive modes only when the vehicle is stopped and the engine is idling. NOTICE Changing drive modes while the vehicle is moving could damage the drivetrain. After changing the drive mode, drive several yards, making right and left turns, and make sure that indicators work properly.
Page 54: Drive Mode Select Lever (Sxs1000M3L/M5L)
The drive mode select lever, located to the right of the shift select lever, has three drive mode positions: Turf, 2WD and I - 4WD (page 106). drive mode positions drive mode select lever I - 4WD Turf To check your present drive mode, look at the drive mode indicator. drive mode select Turf I - 4WD...
Page 55 You should change drive modes only when the vehicle is stopped and the engine is idling. NOTICE Changing drive modes while the vehicle is moving could damage the drivetrain. After changing the drive mode, drive several yards, making right and left turns, and make sure that indicators work properly.
Page 56: At/Mt Switch (Except For Sxs1000M3)
The AT/MT switch is located on the right side of the shift select lever. When the shift select lever is in the high range (H) or low range (L) position, you can switch between AT mode and MT mode by pressing the AT/MT switch.
Page 57: Sport Switch (Except For Sxs1000M3)
The SPORT switch is under the AT/MT switch. When AT mode is selected and the shift select lever is in the high- range (H) position, you can switch between turning SPORT mode on and off by pressing the SPORT switch. When the shift select lever is in the low-range (L) position, SPORT mode will not turn on even if the SPORT switch is pressed.
Page 58 The Hill Start Assist (HSA) switch is below the drive mode select lever. HSA keeps the brake pressure applied briefly to help prevent the vehicle from rolling on inclines as you move your foot from the brake pedal to the accelerator pedal. HSA switch To operate HSA: 1.
Page 59 Your Honda SXS is equipped with a pair of shift paddles that are located behind the steering wheel. downshift paddle (-) upshift paddle (+) Pull the upshift paddle (+) to shift to a higher gear position and the downshift paddle (-) to shift to a lower gear position.
Page 60 Your Honda SXS is equipped with a height-adjustable steering wheel. Adjust the steering wheel position so that you can comfortably grip the steering wheel in an appropriate driving posture. WARNING Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash.
Page 61: Steering Wheel Adjustment Lever (Except For Sxs1000M3)
Adjust 1. Hold the steering wheel and pull the steering wheel adjustment lever up towards you. 2. While pulling the steering wheel adjustment lever towards you, adjust the steering wheel position. Make sure you can see the gauges and indicators at the adjusted position.
Page 62 If a door is damaged or does not close securely, see your dealer for repair or replacement. Do not drive the Honda SXS with the doors open or removed. SXS1000M5P/M5D/M5L only Do not open the rear door while the cargo bed is raised. Opening the rear doors while the cargo bed is raised, will cause the seats to flip up unexpectedly.
Page 63 If the doors rattles when closed, turn the door stopper counterclockwise to adjust the doors. Each door has a double latching mechanism. Adjust the door stoppers so that it latches on the second click. The left and right doors can be adjusted in the same manner. Adjust 1.
Page 64 Your Honda SXS is equipped with side nets to prevent branches, or other debris from getting inside the driver’s compartment, and to keep the driver’s and passenger’s hands and arms inside the occupant protective structure (OPS) if the vehicle ever tips or overturns.
Page 65: Doors
The left and right side nets can be set up in the same manner. Inspect the side nets and their mounting hardware for damage as specified in the maintenance schedule on page 127. Front 1. Fasten the side net buckle. 2.
Page 66 Rear (SXS1000M5P/M5D/M5L only) 1. Hook the side net snap hooks and fasten the side net buckle. 2. Tighten the belt on the side net D-ring. belt side net D-ring side net snap hook side net side net buckle side net snap hook Side net snap hooks wear limit Inspect the side net snap hooks for wear.
Page 67 The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle. 2. Hook the side net D-ring onto the side net hook while lifting the side net. Close 1. Unhook the side net D-ring from the side net hook. 2.
Page 68 The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle and lower side net snap hook. 2. Hook the side net onto the side net hook while lifting the side net.
Page 69 The side nets can be rolled up to make cleaning and maintaining your Honda SXS a little easier. Front Side Nets Roll Up 1. Release the side net buckle and side net D-rings. 2. Roll up the side net tightly, folding in the buckle and side net D-ring belts on the way.
Page 70 Rear Side Nets Roll Up (SXS1000M5P/M5D/M5L only) 1. Release the side net buckle. 2. Unhook the side net snap hooks and slide the D-ring out of the stay. 3. Roll up the side net tightly, folding in the buckle and snap hooks on the way.
Page 71 SXS1000M5P/M5D/M5L: Your Honda SXS is equipped with a bench seat in front, and two Quick-Flip rear seats that fold into the cargo bed. Your Honda SXS has five seating positions and is designed to carry one driver and up to four passengers.
Page 72 Unfolding 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 62). 2. Open the rear door (page 54). 3. Lift up the rear seat back until it latches into position. 4. Unhook the strap ring from the stay.
Page 73 Storing 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 62). 2. Open the rear door (page 54). 3. Fold up the lower seat back and hook the strap ring to the stay.
Page 74 If the rear seat back has excessive vibration in the stored position or if the doors are hard to close, adjust the rear seat stopper. Rear seat stopper is located below the rear door opener handle. 1. Loosen the bolts. 2.
Page 75 Your Honda SXS is equipped with lap/shoulder seat belts in each seating position. A seat belt keeps you connected to the vehicle so you won’t be thrown out during a crash or rollover. Together with a proper helmet, a seat belt is your best protection against serious injuries in any type of crash, so make sure all occupants always buckle up before driving.
Page 76 How you wear a seat belt also matters. For the best protection: Front 1. Insert the latch plate into the buckle, then tug on the belt to make sure it is securely latched. latch plate buckle 2. Check that the belt is not twisted, because a twisted belt can cause injuries.
Page 77 Rear (SXS1000M5P/M5D/M5L only) 1. Insert the end latch plate into the outboard buckle first. 2. Insert the middle latch plate into the inboard buckle, then tug on the belt to make sure they are both securely latched. OUTBOARD INBOARD latch plate latch plate buckle buckle...
Page 78: Seat
Rear Seat Belt Holders (SXS1000M5P/M5D/M5L only) For the rear seat belts, there are seat belt holders to secure the seat belts when using the cargo bed. How to secure the seat belt: Hook each of the two latch plates of the rear seat belt to the seat belt holder.
Page 79 Seat Belt Locking Mechanism The seat belts in your Honda SXS are equipped with a belt locking mechanism. The belt locking mechanism is in the holder of the latch plate. When the seat belt is subjected to intense forces during a crash or rollover, part of the holder locks the belt.
Page 80 If you have been driving in an extremely muddy or dusty area, be sure to inspect your belt and remove any dirt or debris before letting the belt retract into the retractor. Failure to do so could clog the retractor and make it inoperable. Each seat belt has an emergency locking retractor.
Page 81: Passenger Handhold
The occupant protective structure (OPS) has a handhold to give a passenger extra support when the vehicle travels over rough or bumpy terrain. The passengers can also brace their feet against the floorboard. FRONT RIGHT FRONT CENTER passenger passenger handhold handholds REAR (SXS1000M5P/M5D/M5L only) passenger...
Page 82 (SXS1000M3/M3P/M5P/M5D) Your Honda SXS has a document compartment, two glove boxes and two drink holders where you can carry small, lightweight items. document compartment drink holder glove boxes drink holder To open the document compartment, turn the knob clockwise. To close the document compartment, turn the knob counterclockwise.
Page 83 (SXS1000M3L/M5L) Your Honda SXS has a document compartment, an under seat storage, four glove boxes, and two drink holders where you can carry small, lightweight items. document compartment drink holder glove boxes drink holder To open the document compartment, turn the knob clockwise. To close the document compartment, turn the knob counterclockwise.
Page 84 To access the under seat storage, remove the front seat (page 139). Cargo should not exceed: UNDER SEAT under seat storage The under seat storage is equipped with a drain plug. When driving through water, the plug should be installed to help prevent water from entering through the bottom of the storage area.
Page 85: Accessory Power Socket
The accessory power socket is located in the center of the lower dash. The socket is intended for 12-volt DC accessories rated for 120 watts (10 amps) or less. Exceeding the limit can blow the accessory socket fuse (see page 248). The socket can be used to power such items as a trouble light, spotlight, CB radio, or cell phone, but not a heat-generating accessory, such as a car cigarette lighter.
Page 86 (SXS1000M3L/M5L) socket cap accessory power socket To use the accessory power socket, the engine must be running. NOTICE Using any heat-generating accessory or improperly rated accessory can damage the socket. Remember to close the cap when you are finished using an accessory, and keep water or other fluids away from the socket.
Page 87: Tailgate Levers
To lower the tailgate, pull each tailgate lever out and unhook the hook as shown below. Reverse the process to secure the tailgate in the upright position. LIFT THE HOOK. hook PULL THE LEVER. tailgate lever TILT GENTLY. Do not drive the Honda SXS with the tailgate lowered.
Page 88: Tie-Down Hooks
The cargo bed has tie-down hooks for securing items in the bed. Before using the tie-down hooks, select a firm level surface and move the shift select lever into the park (P) position. SXS1000M5P/M5D/M5L tie-down hook SXS1000M3/M3P/M3L tie-down hook...
Page 89 Before raising the cargo bed, select a firm level surface and move the shift select lever into the park (P) position. Your Honda SXS has a tilt bed lever, on the left front side of the bed. Using the lever, the front end of the bed will lift up, making it easier to dump items out the rear or to maintain the air cleaner, lubricate the cargo bed pivots and cargo bed strikers.
Page 90: Tilt Bed Lever
SLOWLY LIFT UP THE CARGO BED. top of the bed tilt bed lever To lower the cargo bed, make sure that the area under the front of the cargo bed is clear, then manually push down on the top of the bed.
Page 91 Your Honda SXS is equipped with a trailer hitch receiver that accepts a 2 inch drawbar. You can purchase an approved drawbar from your Honda dealer. See page 95 for page Towing a Trailer. trailer hitch receiver...
Page 92 Your Honda SXS is equipped with an Electronic Brakeforce Distribution (EBD). To improve vehicle stability when the brakes are applied, EBD adjusts the braking force distribution between the front and rear brakes according to traction conditions. During hard stops the brake pedal may become stiff, then quickly...
Page 93 Before driving your SXS, you need to make sure you and your vehicle are both ready. This section discusses how to evaluate your driving readiness and what items you should check on your vehicle. It also includes important information about loading cargo. Are You Ready to Drive?.............
Page 94 Before driving your Honda SXS for the first time, we urge you to carefully read this owner’s manual and the labels on your vehicle and make sure you understand all the safety information. The driver should be at least 16 years old and tall enough to wear their seat belt properly (page 67) and operate all the controls.
Page 95 To help prevent head injury from striking an occupant protective structure (OPS) or other hard object, we recommend that occupants always wear a helmet secured with a chin strap. To protect the eyes from brush and flying objects, we also recommend that occupants wear impact-resistant goggles or a face shield.
Page 96 Because all vehicles have unique characteristics, it’s important to learn how this one operates and handles. We recommend that you take time to practice using the different controls, and get accustomed to how the vehicle accelerates, brakes, and turns in different driving modes, on different surfaces, and on different terrain conditions.
Page 97 Before driving your Honda SXS, it’s important to inspect the vehicle and correct any problem you find. A pre-drive inspection is a must, not only for safety, but because having a breakdown can be a major inconvenience. If your vehicle has overturned or been involved in a crash, do not drive it until it has been inspected by your dealer.
Page 98 Check the following items before driving your Honda SXS: Oil Level Check the engine and sub-transmission oil levels and add oil, if needed (pages 151, 161). Also check under the vehicle for leaks. Coolant Check the coolant level (page 170). If it is low, add a 50/50 mixture of silicate-free coolant and distilled water.
Page 99 Steering Check the steering to make sure it turns smoothly in both Gearbox and directions. Check for any tears in the boots. Boots If any tears are found, see your dealer. Underbody Check for and remove any debris stuck in the underbody;...
Page 100 Accumulated debris and vegetation that contact the exhaust/ catalyst can catch on fire. Always conduct a pre-ride inspection and remove accumulated debris. Remember to take care of any problem you find or have your dealer correct it before you drive your Honda SXS.
Page 101 Your vehicle was designed to carry cargo. However, carrying a load that is too heavy or improperly loaded can adversely affect your vehicle’s handling, stability, and stopping distance and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.
Page 102 • Make sure the tires are properly inflated (page 203). • Place all items on the floor of the cargo bed, and as far forward and centered as possible. • Use the tie-down hooks (page 80) to secure any items that could shift position while you are driving.
Page 103 Your vehicle can pull a trailer as well as carry cargo, provided you follow the load limits and guidelines below. There are two main types of limits that apply to towing a trailer: Maximum total trailer weight = 2,000 lb (907 kg) This includes the weight of the trailer and everything in it or on it.
Page 104 To achieve a proper tongue load, start by placing 60 percent of the load toward the front of the trailer and 40 percent toward the rear, then readjust the load as needed. • Always use a proper trailer hitch. Do not tow by attaching a rope or cable to the vehicle’s frame.
Page 105 This section gives information on how to start and stop your engine. It also provides guidelines for operating on different types of terrain, driving with cargo, and towing a trailer. Basic Operation ................98 Starting & Stopping the Engine..........98 Shifting Gears................
Page 106 For safety, we recommend that you start the engine in a well- ventilated area. If that is not practical, move the vehicle outdoors as soon as possible. The engine’s exhaust contains carbon monoxide, a colorless and odorless gas that can cause illness and even death. WARNING Running the engine of your vehicle while in an enclosed or even partially enclosed area can cause...
Page 107 Starting the engine: 1. Move the shift select lever into the park (P) position. 2. Press on the brake pedal. 3. To start the engine, without touching the accelerator pedal, insert the key and turn the ignition switch to the START (p) position.
Page 108 You can move forward or in reverse by shifting the shift select lever from P or N, to R, H, or L. Your Honda SXS is equipped with a dual clutch transmission, which is an automatically controlled 6-speed transmission. (Except for SXS1000M3)
Page 109 Shift Position and Meter Display gear: P meter: gear: R meter: gear: N meter: gear: 1-6 gear: H mode: AT mode: MT gear: H meter: meter: mode: AT, SPORT meter: gear: L gear: 1-6 mode: AT mode: MT meter: meter: shift the shift select lever push the AT/MT switch (except for SXS1000M3) push the SPORT switch (except for SXS1000M3)
Page 110 Selecting a Shift Position Your Honda SXS has five shift select lever positions: park (P), reverse (R), neutral (N), high-range (H), and low-range (L). Used when parking or starting the engine. Used when driving in reverse. Used when idling the engine during a temporary stop.
Page 111 Selecting a AT/MT Mode (except for SXS1000M3) Your Honda SXS has 2 transmission modes: AT mode and MT mode. AT mode: This mode automatically shifts the gears with optimal timing according to your riding conditions. You can temporarily shift up or down by operating the shift paddles while driving in AT mode.
Page 112 Temporarily changing gears by operating the shift paddle while AT mode is selected (except for SXS1000M3) You can temporarily change gears by operating the shift paddles even while AT mode is selected. When operating the shift paddles while AT mode is selected, the “H”...
Page 113 Driving by operating the shift paddles while MT mode is selected (except for SXS1000M3) To upshift the transmission, pull the right side upshift paddle once. To downshift the transmission, pull the left side downshift paddle once. GEAR SHIFTING SEQUENCE downshift paddle (-) upshift paddle (+) After starting the engine and letting it warm up, follow this procedure:...
Page 114 This mode supplies power to the rear wheels only. This mode is for driving on turf. This mode supplies power to the rear wheels, and locks the rear differential. This mode is best for surfaces that provide good traction. This mode supplies power to the front and rear wheels, and locks the rear differential.
Page 115 SXS1000M3/M3P/M3L/M5L Look for a clear, level parking area with a firm surface. Avoid parking on a slope or on loose or slippery surfaces, if possible. If you must park on a slope, block the wheels to help keep the vehicle from sliding.
Page 116 Follow all safe-driving guidelines in this owner’s manual. Before driving your Honda SXS for the first time, please review the “Driver & Passenger Safety” section (page 1), the “Before Driving” section (page 85), and the precautions below.
Page 117 RBDC is available at www.ROHVA.org. Off-highway Use Only Your Honda SXS was designed for use on a wide variety of terrain and situations. However, it should not be driven on any public road, paved or unpaved, because it is not equipped to legally or safely drive on such roads.
Page 118 Your Honda SXS was designed and intended for off-road use. In the event that you must drive on a paved surface, be aware that your Honda SXS will feel and handle different than it does on dirt. The tires will also wear much faster.
Page 119 Surface Considerations The kind of surface you drive on can have important effects on how your vehicle handles. For example, on loose or soft surfaces you’ll need more time and distance to accelerate, turn, or brake to a stop. Avoid any sudden sharp turn, particularly on pavement and other hard surfaces.
Page 120 • Do not drive across a steep slope with a trailer. Making Turns The basic turning technique for Honda SXS is to drive at low speed and gradually adjust the amount of steering to suit the surface. Do not make sudden sharp turns, either off-road or on pavement.
Page 121 Hills present some of the greatest challenges and hazards, especially if you are carrying cargo or pulling a trailer. If you are new to off- road driving, start with gentle inclines, take time to learn how your vehicle handles on slopes, and read the information that follows. Even if you have previous off-road driving experience, the guidelines below should serve as important reminders.
Page 122 Driving Up a Hill If you decide that it is safe to drive your Honda SXS up a hill: • Select an appropriate drive mode for the hill. When ascending steep hills, shift the shift select lever into low-range (L) position.
Page 123 If you decide it is safe to drive down a hill: • Hold the steering wheel firmly and drive straight back down the hill. • Gently apply the brakes to help control speed, but do not “ride” the brakes. Crossing a Hill Before traversing a hill, consider these facts: •...
Page 124 NOTICE Water entering the air intake system can cause severe engine damage. If your Honda SXS becomes immersed in water (water level is above the floorboard), do not start the engine. Take your Honda SXS to your dealer for service.
Page 125 If you drive your Honda SXS at night, always drive slower and more cautiously than you would in daylight.
Page 126 BLANK PAGE...
Page 127 To help keep your Honda SXS in good shape, this section includes a Maintenance Schedule for required service and step-by-step instructions for specific maintenance tasks. You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good.
Page 128 Air Cleaner Outer Cover Removal ..........140 Rear Mudguard Lid Removal............. 141 Clip Removal ................142 Jack Up Point & Support Point ..........144 Service Procedures Fluids, Filters & Lubricants Fuel ..................145 Engine Oil & Filters ..............148 Front Final Gear Oil..............165 Rear Final Gear Oil ..............
Page 129 Always follow the inspection and maintenance recommendations and schedules in this owner’s manual. If your Honda SXS overturns or is involved in a crash, be sure your dealer inspects all major parts, even if you are able to make some repairs.
Page 130 Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.
Page 131 Keep cigarettes, sparks, and flames away from all fuel-related parts. Remember that your Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement.
Page 132 Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and...
Page 133 Maintenance Minder Messages on the Multi-function Display The maintenance minder indicator appears in the multi-function display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule.
Page 134 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 280). ** In the interest of safety, we recommend these items be serviced only by your dealer.
Page 135 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 280). Note 1 Inspect valve clearance as needed, if engine is noisy.
Page 136 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 280). ** In the interest of safety, we recommend these items be serviced only by your dealer.
Page 137 Keeping an accurate maintenance record will help ensure that your Honda SXS is properly maintained. Retain detailed receipts to verify the maintenance was performed. If the Honda SXS is sold, these receipts should be transferred with the Honda SXS to the new owner.
Page 138 Service Preparations Indicates something visible. Indicates something concealed. owner’s manual brake pedal (page 136) (page 200) sub-transmission accelerator pedal front seat (page 182) oil fill cap/dipstick (page 139) (page 161) spark plugs (page 184) air cleaner (page 173)
Page 139 fuse box battery sub air cleaner main fuse (page 212) (page 176) (page 248) front hood (page 137) tool kit (page 135) fuel fill cap (page 146) front final gear oil fill cap front final gear oil drain bolt (pages 165, 166)
Page 140 Indicates something visible. Indicates something concealed. engine oil dipstick rear suspension damping adjuster (page 151) (SXS1000M3L/M5L only) (page 194) brake fluid engine oil fill cap reservoir tank (page 151) (page 197) brake light switch rear final gear oil fill cap (page 201) rear final gear oil drain bolt (pages 167, 168)
Page 141 coolant reserve tank front suspension damping adjuster (page 169) (SXS1000M3L/M5L only) (page 193) driveshaft boots sub-transmission oil drain bolt (page 211) (page 163)
Page 142 Indicates something visible. Indicates something concealed. rear suspension spring pre-load adjuster (SXS1000M3/M3P only) (page 191) spark arrester (page 187) driveshaft boots (page 211)
Page 143 The tool kit is stored under the front hood. To access the tool kit, remove the front hood (page 137), and remove the rubber band. After using the tool kit, be sure to use the rubber band to fasten the tool kit securely.
Page 144 Store your owner’s manual in the storage compartment on the inside of the glove box. The owner’s manual should be stored in the plastic bag. Be careful not to flood this area when washing your Honda SXS. RIGHT SIDE glove box...
Page 145 Refer to Safety Precautions on page 123. The front hood must be removed to access the tool kit, to add coolant, to clean the sub air cleaner, to lubricate the shift select lever pivots and drive mode select lever pivots, battery maintenance and to replace a fuse.
Page 146 If the front hood rattles when closed, turn the hood stopper counterclockwise to adjust front hood. Adjust 1. Remove the front hood (page 137). 2. Turn the hood stoppers counterclockwise to extend them, and clockwise to retract them. 3. Make sure the front hood is installed securely. hood stopper...
Page 147 Refer to Safety Precautions on page 123. The front seat must be removed, to check the sub-transmission oil, to add the sub-transmission oil and for throttle cable adjustment. Removal 1. Open the doors (page 54). 2. Pull the seat lock lever at the front center of the seat. 3.
Page 148 Refer to Safety Precautions on page 123. The air cleaner outer cover must be removed to replace the air cleaner and for spark plug maintenance. Removal 1. Lift the cargo bed (page 81). 2. Remove the clips (page 142). 3. Remove the prong from the grommet. Installation 1.
Page 149 Refer to Safety Precautions on page 123. The rear mudguard lid must be removed to add the engine oil, and to access the emergency valve and emergency lever. Removal 1. Lift the cargo bed (page 81). 2. Remove the clips (page 142). Installation 1.
Page 150 Clip removal and installation: Removal 1. Press down on the center pin to release the lock. 2. Pull out the clip of the hole. Installation 1. Push the bottom of the center pin. 2. Insert the clip into the hole. 3.
Page 151 Removal 1. Pull up the center pin to release the lock. 2. Pull out the clip of the hole. Installation 1. Insert the clip into the hole. 2. Press down the center pin securely to lock the clip.
Page 152 Refer to Safety Precautions on page 123. When jacking up and supporting this vehicle, the following jack-up points and support points should be used. WARNING The vehicle can easily roll off a jack, seriously injuring anyone underneath. Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.
Page 153 86 (or higher) Use only unleaded fuel in your Honda. The use of leaded fuel will damage the catalytic converter(s). If you drive your Honda in a country where leaded fuel might be available, take precautions to use only unleaded fuel.
Page 154 Fuel tank capacity: 7.9 US gal (30 ℓ) When there is only one segment left in the fuel gauge (page 28), fuel will be low and you should refuel as soon as possible. Refer to Safety Precautions on page 123. RIGHT SIDE fuel fill cap bottom of filler neck...
Page 155 • Wipe up spills immediately. 4. After refueling, turn the fuel fill cap clockwise securely and close the door. If you replace the fuel fill cap, use only a Honda Genuine replacement part. NOTICE Gasoline can damage camouflage coating, painted, and matte painted surfaces.
Page 156 Engine oil quality is a major factor that affects both the performance and the service life of the engine. Using the proper oil (page 149) and filter, and regularly checking, adding, and changing oil will help extend your engine’s life. Even the best oil wears out.
Page 157 * Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving or resource conserving on the circular API service label. • Your Honda SXS does not need oil additives. Use the recommended oil. • Do not use oils with graphite or molybdenum additives. They may adversely affect clutch operation.
Page 158 Other viscosities shown in the following chart may be used when the average temperature in your riding area is within the indicated range. JASO T 903 standard The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines.
Page 159 Refer to Safety Precautions on page 123. Check the engine oil level each day before operating your Honda SXS and add, if needed. Before riding your SXS, check the engine oil level. 1. Park your Honda SXS on a firm, level surface.
Page 160 6. If required, remove the rear mudguard lid (page 141) and oil fill cap, and then add the specified oil into the fill cap hole, up to the upper level mark on the dipstick. Do not overfill. 7. Reinstall the oil fill cap and dipstick, and then install the rear mudguard lid.
Page 161 Refer to Safety Precautions on page 123. Your Honda SXS’s oil filter has very specific performance requirements. Use a new Honda Genuine oil filter specified for your model or a filter of equal quality. NOTICE Using the wrong oil filter may result in leaks or engine damage.
Page 162 Drain the Engine Oil: 1. Make sure the Honda SXS is parked on a firm, level surface. Shift the shift select lever into the park (P) position, and jack up and support your Honda SXS (page 144). 2. Lift the cargo bed (page 81).
Page 163 5. Place an oil drain pan under the crankcase. 6. Remove the engine oil drain bolts and sealing washers. UNDER BODY sub-transmission oil drain hole FOWARD BACKWARD sealing washer engine oil engine oil drain bolt drain bolt (oil tank) (oil pan) sealing washer NOTICE Be sure not to drain sub-transmission oil unless intending to do so.
Page 164 8. Apply engine oil to a new O-ring and install it to the engine oil filter cover. Install a new oil filter. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter,...
Page 165 10. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 231). NOTICE Improper disposal of drained fluids is harmful to the environment. 11. When changing the DCT oil filter, proceed to step 12 in Install a New DCT Oil Filter on the next page.
Page 166 13. Apply engine oil to a new O-ring and install it to the DCT oil filter cover. Install a new oil filter. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter,...
Page 167 15. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 231). NOTICE Improper disposal of drained fluids is harmful to the environment. (cont’d)
Page 168 16. Reinstall the drain bolts and sealing washers, and tighten the bolts to the specified torques: 22 lb·ft (30 N·m, 3.1 kgf·m) 17. Lower your Honda SXS safely. 18. Fill the crankcase with the recommended oil, approximately: engine oil filter change: 6.08 US qt (5.75 ℓ) engine &...
Page 169 Honda SXS and add, if needed. Before riding your SXS, check the sub-transmission oil level. 1. Park your Honda SXS on a firm, level surface. 2. Remove the front seat (page 139). 3. Remove the oil fill cap/dipstick from the transmission cover and wipe it clean.
Page 170 UNDER SEAT CENTER oil fill cap/dipstick upper level mark lower level mark 5. If the oil level is near or below the lower level mark, add the specified oil into the oil fill cap hole, fill to the upper level mark in the dipstick.
Page 171 (page 231). If you do not have the skills or the tools, see your dealer. 1. Make sure the Honda SXS is parked on a firm, level surface. Shift the shift select lever into the park (P) position, and jack up and support your Honda SXS (page 144).
Page 172 5. Reinstall the drain bolt and sealing washer, and tighten the bolt to the specified torque: 22 lb·ft (29 N·m, 3.0 kgf·m) 6. Lower your Honda SXS safely. 7. Fill the sub-transmission case with the recommended oil, approximately: 1.27 US qt (1.2 ℓ) 8.
Page 173 Refer to Safety Precautions on page 123. Check the final gear oil level every 1,800 miles (3,000 km) or 300 hours of operating your Honda SXS and add, if needed. 1. Park your Honda SXS on a firm, level surface.
Page 174 Change the oil with the front final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.
Page 175 Refer to Safety Precautions on page 123. Check the rear final gear oil level every 1,800 miles (3,000 km) or 300 hours of operating your Honda SXS, and add if needed. 1. Park your Honda SXS on a firm, level surface.
Page 176 Change the oil with the rear final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.
Page 177 Using tap water may cause engine damage. The factory provides a 50/50 solution of antifreeze and distilled water in this Honda SXS. This coolant solution is recommended for most operating temperatures and provides good corrosion protection.
Page 178 Refer to Safety Precautions on page 123. Check the engine coolant level every day before operating your Honda SXS and add, if needed. 1. Make sure the vehicle is parked on a firm, level surface. 2. With the engine at normal operating temperature, check the coolant level in the reserve tank.
Page 179 3. Remove the front hood (page 137). 4. Remove the reserve tank cap. Always add coolant to the reserve tank. Do not attempt to add coolant by removing the radiator cap. UNDER FRONT HOOD LEFT FRONT reserve tank cap 5. Add coolant to the reserve tank as required to bring the coolant level to the MAX level mark.
Page 180 Refer to Safety Precautions on page 123. Coolant should be replaced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual. WARNING Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Page 181 Your dealer can help you determine the correct service interval for your driving conditions. Your Honda SXS’s air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. NOTICE...
Page 182 NOTICE Clean the air cleaner housing cover prior to removal. Remove the air cleaner to the right side. When removing the air cleaner, be careful not to allow foreign objects to drop into the air intake ducts. 1. Lift the cargo bed (page 81). 2.
Page 183 4. Pull the air cleaner out to the right side by removing the bolt. When removing the air cleaner, be careful not to allow foreign objects to drop into the air intake ducts. air cleaner air intake ducts bolt air cleaner housing 5.
Page 184 1. Remove the front hood (page 137). 2. Open the sub air cleaner housing cover. 3. Pull the sub air cleaner out. 4. If there is any dirt or foreign object attached to the sub air cleaner, clean it by tapping it. If it is damaged or deteriorated, see your dealer for replacement.
Page 185 To keep moving parts functioning properly, coat them with a multipurpose grease (without Teflon or molybdenum additives, such as CRC 6-56 or equivalent). Provide lubrication when moving parts do not work smoothly. Also lubricate according to the maintenance schedule (page 128). Consult your dealer for more information about lubrication procedures.
Page 186 Lubricate the cargo bed strikers as shown in the following illustration. Lift the cargo bed (page 81). cargo bed strikers Lubricate the front seat latch as shown in the following illustration. Remove the front seat (page 139). front seat latch...
Page 187 (except for SXS1000M3) Lubricate the steering wheel tilt pivots as shown in the following illustration. Remove the clips (page 143) and the lower cover. steering wheel tilt pivots lower cover clips Lubricate the brake pedal pivot and accelerator pedal pivot as shown in the following illustration.
Page 188 Lubricate the shift select lever pivots as shown in the following illustration. Remove the front hood (page 137). UNDER FRONT HOOD shift select lever pivots Lubricate the drive mode select lever pivots as shown in the following illustration. Remove the front hood (page 137). UNDER FRONT HOOD drive mode select lever pivots drive mode select lever...
Page 189 Lubricate the door latch as shown in the following illustration. Open the door (page 54). (SXS700M5P/M5D/M5L only) door latch door latch Lubricate the rear seat latch as shown in the following illustration. (SXS1000M5P/M5D/M5L only) rear seat latch...
Page 190 Engine Refer to Safety Precautions on page 123. Your Honda SXS is equipped with an accelerator pedal position sensor. When the openings of the accelerator pedal and throttle valve do not match, the PGM-FI Malfunction Indicator Lamp (MIL) comes on and limits the vehicle to a safe controllable speed.
Page 191 Adjustment 1. Remove the front seat (page 139). 2. Remove the clips (page 143). UNDER FRONT SEAT clips rubber dust cover CENTER 3. Fold open the rubber dust cover. 4. Slide the sleeve back to expose the throttle cable adjuster. 5.
Page 192 standard spark plug SILMAR7A9S (NGK) Use only the recommended type of spark plug in the recommended heat range. NOTICE Using spark plugs with an improper heat range can cause engine damage. This SXS uses spark plugs that have an iridium coated center electrode.
Page 193 Refer to Safety Precautions on page 123. 1. Lift the cargo bed (page 81). 2. Remove the air cleaner outer cover (page 140). 3. Clean any dirt from around the spark plug base. 4. Disconnect the spark plug cap. Take care to avoid damaging the spark plug wire when disconnecting the cap.
Page 194 8. With the plug washer attached, thread the spark plug in by hand to prevent cross-threading. 9. Tighten the spark plug: • If the old plug is good: 1/12 turn after it seats. • If installing a new plug, tighten it twice to prevent loosening: a) First, tighten the plug: 1/4 turn after it seats.
Page 195 Refer to Safety Precautions on page 123. The spark arrester must be serviced every 600 miles (1,000 km) or 100 operating hours to maintain its efficiency. (USA & Canada only) Regular servicing prevents carbon build up (which can diminish engine performance) and also complies with USDA regulations for regular maintenance to assure proper function.
Page 196 3. Use a brush to remove carbon deposits from the spark arrester screen. Be careful to avoid damaging the spark arrester screen. The spark arrester must be free of breaks and holes. Replace it, if necessary. Check the gasket and replace it if necessary. spark arrester screen 4.
Page 197 Stop the engine and check for any sign of exhaust gas leakage. Listen for exhaust leaks near the muffler, which is located by the left rear wheel well. check for exhaust leakage...
Page 198 The way you drive your Honda SXS and the type of ride you want to experience can also influence your suspension needs. Lower spring pre-load provides a softer ride and is usually preferred for light loads and smooth terrain.
Page 199 The spring pre-load adjuster has 5 positions for different load or riding conditions. Before adjusting the spring pre-load, jack up your Honda SXS (page 144) to avoid damaging the adjusters. Use the pin spanner to adjust the shock spring pre-load.
Page 200 Position 1: for a light load and smooth terrain. Position 2: standard position. Positions 3 to 5: for when the SXS is more heavily loaded. (Also increase spring pre-load for stiffer suspension.) Make sure that both shock absorbers are adjusted to the same position.
Page 201 The front suspension can be adjusted for driver, passengers and driving conditions by changing the damping. Do not attempt to disassemble, service, or dispose of the damper. See your dealer. The instructions found in this owner’s manual are limited to adjustments of the shock assemblies. Refer to Safety Precautions on page 123.
Page 202 The rear suspension can be adjusted for rear passengers, carrying heavier cargo by changing the damping. Do not attempt to disassemble, service, or dispose of the damper; see your dealer. The instructions found in this owner’s manual are limited to adjustments of the shock assemblies. Refer to Safety Precautions on page 123.
Page 203 This SXS utilizes a multi-component frame design that is non-serviceable. Under no circumstances should the frame lug fasteners be loosened or removed. If a bolt has been loosened or removed, see your Honda dealer before operating the vehicle. frame lug fasteners...
Page 204 Honda DOT 4 Brake Fluid The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid of equal quality and performance. Use fresh brake fluid from a sealed container. Be sure to read the label before opening the sealed container.
Page 205 Refer to Safety Precautions on page 123. Brake Fluid Level If your inspection indicates a low fluid level, have your dealer inspect the brake system for possible leaks or worn brake pads. The brake fluid level will drop as the brake pads wear. Do not add or replace brake fluid, except in an emergency.
Page 206 2. Return the brake fluid reservoir tank cap cover to its normal position. Worn brake pads should be replaced. If the pads are not worn, have your brake system inspected for leaks. Wipe up spills immediately. Avoid contact with skin or eyes. If brake fluid comes in contact with your eyes, wash them out with clean water and immediately call a doctor.
Page 207 Refer to Safety Precautions on page 123. Brake pad wear will depend upon the severity of usage and driving conditions. The pads will wear faster in wet or muddy conditions. Inspect the pads during all regular service intervals to determine the pad wear.
Page 208 Refer to Safety Precautions on page 123. Check that the brake pedal moves smoothly and does not feel abnormally spongy. Refer to the maintenance schedule. CHECK THAT THE BRAKE PEDAL MOVES SMOOTHLY. brake pedal...
Page 209 Refer to Safety Precautions on page 123. Periodically check the operation of the brake light switch. It is located near the brake fluid reservoir. The brake light should turn on just before the brake works. Adjustment is done by holding the switch body and turning the adjusting nut.
Page 210 To safely operate your Honda SXS, your tires must be the proper type and size, in good condition with adequate tread, and correctly inflated. WARNING Using tires that are excessively worn, improperly inflated, damaged, or overloaded can cause a crash in which you can be seriously hurt or killed.
Page 211 Generally, underinflated tires wear unevenly, adversely affect handling, and are more likely to fail from being overheated. Overinflated tires make your Honda SXS drive harshly, are more prone to damage from surface hazards, and wear unevenly.
Page 212 Always check air pressure when your tires are “cold.” If you check air pressure when your tires are “warm” — even if your Honda SXS has only been driven for a few miles — the readings will be higher. If you let air out of warm tires to match the recommended cold tire pressures, the tires will be underinflated.
Page 213 WARNING Operating this Honda SXS with improper tires, uneven tire pressure, damaged tires, or overloading the tires may cause loss of control, and you could be seriously injured or killed.
Page 214 Also, if you hit a hard object while driving, stop as soon as you safely can and carefully inspect the tires for damage. Tread Wear SXS1000M3/M3P/M5P SXS1000M3L/M5D/M5L (Steel wheel model) (Aluminum wheel model) wear indicator groove depth groove depth location mark 3/16 in (4 mm) 3/16 in (4 mm) To check the condition of a tire tread, measure the groove depth in...
Page 215 If you choose to have a tire repaired, be sure the repair work is performed by a professional. If you have a tire professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
Page 216 Refer to Safety Precautions on page 123. The tires that came on your Honda SXS were designed to match the performance capabilities of the vehicle and provide the best combination of handling, braking, and comfort. It is best to replace all four tires. However, if that is not possible, you must replace the tires in pairs (front or rear) with tires of the same size and type as the originals.
Page 217 MAXXIS BIGHORN 2.0 When you replace a tire, remember: Have the tire replaced by your Honda dealer, if possible. If you have a tire professionally replaced at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
Page 218 Check that the wheel nuts are tight and there are no cracks or deformation in the wheel. CHECK FOR CRACKS OR DEFORMATION. SXS1000M3/M3P/M5P SXS1000M3L/M5D/M5L (Steel wheel model) (Aluminum wheel model) CHECK THAT THE WHEEL CHECK THAT THE WHEEL NUTS ARE TIGHT NUTS ARE TIGHT...
Page 219 Refer to Safety Precautions on page 123. Check the rubber boots for tears or traces of splattered grease. If necessary, have your dealer replace them. FRONT steering shaft boots front arm ball front arm ball driveshaft boots joint boots joint boots REAR driveshaft boots...
Page 220 Honda SXS, or do not drive frequently, we recommend that you charge the battery frequently (see Battery Charging, page 216). If you do not expect to drive your Honda SXS for at least two weeks, we recommend you remove the battery, or at least disconnect the battery cables (negative cable first).
Page 221 Refer to Safety Precautions on page 123. If you plan to store your Honda SXS, we recommend you remove the battery and store it where it can be charged every 30 days to maintain its service life. If you do not remove the battery, we recommend disconnecting the battery cables (negative cable first).
Page 222 The battery is located under the front hood. Removal 1. Make sure the ignition switch is OFF (w). 2. Remove the front hood (page 137). 3. Remove the battery holder by removing the bolts. Then, remove the rubber cover. 4. Disconnect the negative (-) terminal lead from the battery first, then disconnect the positive (+) terminal lead.
Page 223 Installation Reinstall in the reverse order of removal. Be sure to connect the positive (+) terminal first, then the negative (-) terminal. Make sure the clock is set to the proper time after the battery is reconnected (page 35).
Page 224 We recommend using a charger designed specifically for your Honda, which can be purchased from your dealer. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s...
Page 225 Frequent cleaning also identifies you as an owner who values his Honda SXS. A clean Honda SXS is also easier to inspect and service. Refer to Safety Precautions on page 123. • To clean your Honda SXS, you may use: –...
Page 226 3. Wash your Honda SXS with a sponge or soft towel. As you wash, check for heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
Page 227 7. As a precaution, drive your Honda SXS at a slow speed and apply the brakes several times. This will help dry the brakes and restore normal braking performance. (SXS1000M3L/M5D/M5L) The headlights' inside lens may fog temporarily after washing or while riding in the rain.
Page 228 Refer to Safety Precautions on page 123. Avoid using spray cleaner products on the tires or suspension components. Suggestions for using spray cleaners: Dust and fingerprint Apply a spray cleaner/polish smudges. and wipe paint, chrome, glass, and clear plastic. Light road grime. Spray any difficult-to-reach or very dirty areas with a spray cleaner/degreaser.
Page 229 Refer to Safety Precautions on page 123. Aluminum may corrode from contact with dirt, mud, or road salt. Clean the wheels after riding through any of these substances. Use a wet sponge and mild detergent. Avoid stiff brushes, steel wool, or cleaners containing abrasives or chemical compounds.
Page 230 (USA & Canada only) If a surface on your Honda SXS is chipped or scratched, your dealer has touch-up paint to match your Honda SXS’s color. Be sure to use your Honda SXS’s color code (page 263) when you buy touch-up paint.
Page 231 Here’s some helpful advice on how to prepare for an off-road adventure, how to transport and store your Honda, and how to be an environmentally responsible Honda SXS owner. Preparing for a Drive..............224 What to Take to the Operating Area........224 What to Take on the Trail ............
Page 232 (Canada only), driver’s clubs, and off-road magazines are good sources of information. Along with your Honda SXS and personal safety gear, you should take along some tools and supplies in case you have a problem. For some of the difficulties you might encounter, see Taking Care of the Unexpected, which begins on page 233.
Page 233 What you take with you during a ride depends on the kind of terrain, how long you expect to drive, how far you might go from help, and how experienced you or your companions are in making repairs. If you decide to take some tools, spare parts, or other supplies on the trail, be sure you can carry them safely and know how to use them.
Page 234 Do not tow your Honda SXS behind a car or other vehicle except on a trailer. Follow these procedures: 1. (SXS1000M3/M3P/M5P/M5D) Shift the shift select lever into the park (P) position and the drive mode select lever into 4WD Diff Lock position.
Page 235 If you won’t be driving for an extended period, such as during the winter, thoroughly inspect your Honda SXS and correct any problem before storing it. That way, needed repairs won’t be forgotten and it will be easier to get your Honda SXS running again.
Page 236 Refer to Safety Precautions on page 123. 1. Change the engine oil and filters (page 153). 2. Make sure the cooling system is filled with a 50/50% antifreeze solution (page 169). 3. Fill the fuel tank. Make sure the fuel fill cap is properly installed. 4.
Page 237 9. Place your Honda SXS on blocks to lift all tires off the floor. 10. Cover your Honda SXS with a porous material. Avoid using plastic or similar non-breathing, coated materials that restrict air flow...
Page 238 Refer to Safety Precautions on page 123. 1. Uncover and clean your Honda SXS. 2. If your Honda SXS has been stored for more than four months — change the engine oil (page 153). 3. If your Honda SXS has been stored for more than two months —...
Page 239 Owning and operating a Honda SXS can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve off-road driving. Following are tips on how you can be an environmentally responsible Honda SXS owner.
Page 241 If You Lose Your Key ..............255 If the Battery Is Low ..............256 If a Component Fails..............258 If Your Honda SXS Becomes Immersed in Water ....... 259 If the Vehicle Speed Does Not Exceed 15 mph (24 km/h) ..260...
Page 242 Remember to take along your owner’s manual, the tool kit that came with your Honda SXS, and any other items (such as tire repair supplies and additional tools) that might help you solve a problem on your own.
Page 243 • Do not continue driving if you are hurt or your Honda SXS is not in safe driving condition. Additional recommendations for specific problems follow.
Page 244 Proper operation and maintenance can prevent starting and engine performance problems. In many cases, the cause of the problem may be a simple operational oversight. If you have a problem starting the engine — or experience poor engine performance — the following information may help you. If you can’t correct the problem, see your dealer.
Page 245 SYMPTOM: POSSIBLE CAUSE WHAT TO DO transmission not in Shift into park (P) or neutral park (P) or neutral (N) (N) position or press on the position brake pedal. blown fuse Replace with a new fuse of the same rating (page 248). battery lead loose Tighten the battery lead.
Page 246 SYMPTOM: POSSIBLE CAUSE WHAT TO DO high coolant Check the high coolant temperature temperature indicator. Refer If the High Coolant Temperature Indicator Lights page 246. runs erratically, misfires May damage catalytic converter. See your dealer. blubbers (rich fuel See your dealer. mixture) sooty exhaust (rich fuel See your dealer.
Page 247 If the gear position indicator is blinking, perform the following: 1. If you are driving your Honda SXS, stop at a safe place. 2. Shift the shift select lever to the park (P) position. 3. Check the pattern displayed on the gear position indicator, and then perform the following.
Page 248 If “-” continues to blink: Change the gear position by using the gear change tool, and tighten the emergency valve. Perform the following procedure. 1. Turn the ignition switch to the OFF (w) position, and then stop the engine. 2. Turn the ignition switch to the ON (q) position. Do not turn it to the START (p) position.
Page 249 8. Return the gear change tool to the tool kit. 9. Check that “E” is blinking. Next, tighten the emergency valve. Proceed to “E” is blinking. If “–” is not displayed in the gear position indicator and you change the gear position by using the gear change tool, the DCT system will automatically stop.
Page 250 6. Turn the ignition switch to the START ( ll ) position, and then start the engine. 7. Check that the gear position “1”, “2”, “3”, “4”, “5” or “6” is blinking. 8. At high-range (H) or low-range (L), you can drive only in the gear position that is blinking.
Page 251 We strongly recommend that you do not try to drive with a flat tire. The Honda SXS will be hard to handle, and if the tire comes off the rim, it may lock up the wheel and cause you to crash or...
Page 252 Removal 1. Park your Honda SXS on a firm, level surface. 2. Loosen — but do not remove — the wheel nuts. 3. Raise the front (or rear) wheels off the ground (page 144). 4. Remove the wheel nuts.
Page 253 3. Position the wheel nuts so that the tapered sides face the wheel rim. 4. Hand-tighten the wheel nuts on the wheel, then lower the Honda SXS to the ground before tightening the nuts in a crisscross (rather than circular) pattern to the specified torque: 80 lbf·ft (108 N·m, 11 kgf·m) If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly.
Page 254 Normally, the high coolant temperature indicator will only light momentarily when you turn the ignition ON (q). Occasionally, it may flicker at or near idling speed. High coolant temperature may be caused by restriction of air flow to the radiator (such as mud caked on the radiator), extended idling, an oil leak, a coolant leak, a low oil level, a low coolant level, or extended operation under adverse conditions.
Page 255 • Check for an oil leak. • Check the oil level. If necessary, add the recommended oil (page 149) to the upper level mark. If you must leave your Honda SXS to get oil, secure it as much as possible.
Page 256 All of the electrical circuits on your Honda SXS have fuses to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your Honda SXS stops working, the first thing you should check for is a blown fuse.
Page 257 Main Fuse Access 1. To prevent an accidental short circuit, turn the ignition switch OFF (w) before checking or replacing the fuses. 2. Remove the front hood (page 137). 3. Remove the fuse box cover. 4. To access the main fuse, remove the bolts, and then pull the main fuse out.
Page 258 Circuit Fuse Access 5. To check or replace a circuit fuse, pull the fuses out one by one with the fuse puller located behind the fuse box cover. If the fuse is blown, replace it with a spare fuse of the same rating. If you do not have a replacement fuse with the proper rating for the circuit, install one with a lower rating.
Page 259 Electric Power Steering (EPS) Fuse Access (except for SXS1000M3) 1. Turn the ignition switch to OFF (w) before checking the fuse. 2. Remove the front hood (page 137). 3. To access the EPS fuse, remove the fuse cover. If the EPS fuse is blown, see your dealer for this service. 4.
Page 260 Brake Traction Control System (BTCS) Fuse Access (SXS1000M3L/ M5L only) 1. Turn the ignition switch to OFF (w) before checking the fuse. 2. Remove the front hood (page 137). 3. To access the BTCS fuse, remove the fuse cover. If the BTCS fuse is blown, see your dealer for this service. 4.
Page 261 If you do not have a spare fuse and you cannot drive the Honda SXS without fixing the problem, take a fuse of the same rating or a lower rating from one of the other circuits that you can do without temporarily.
Page 262 If there is minor damage, or you are unsure about possible damage but decide to try driving the Honda SXS back to your base, drive slowly and cautiously. Sometimes, crash damage is hidden or not immediately apparent.
Page 263 If you don’t know your key number, call the dealer where you purchased your Honda SXS. They may have it listed in their records. If they don’t, transport your Honda SXS to them or the nearest dealer. The dealer will probably have to remove the ignition switch assembly to find the key number so they can make a key for you.
Page 264 If the battery is low, the starter motor doesn’t operate or works poorly, and you can’t start the engine. Jump starting your Honda SXS should be avoided. Instead, the battery should be removed and recharged (page 216). If you can’t charge the battery or it appears unable to hold a charge, contact your dealer.
Page 265 1. To prevent an accidental short circuit, turn the ignition switch OFF (w). 2. Remove the front hood (page 137). 3. Using a fully charged 12-volt battery, connect the positive (+) side of the jumper cable to the charged battery, and connect the positive (+) side on the other end of the jumper cable to the positive (+) terminal of vehicle battery.
Page 266 • If you damage the accelerator cable or other critical component, your Honda SXS may be unsafe to drive. Carefully assess the damage and make any repairs that you can. But if there is any doubt, it’s best to be conservative and safe.
Page 267 1. Move your Honda SXS to dry land or at the very least, to a water level below 10 inches (25 cm). 2. Check the sub air cleaner condition.
Page 268 If the driver's side seat belt is not latched properly, the maximum vehicle speed will be limited to no more than 15 mph (24 km/h) by the seat belt interlock system (page 67). Also the seat belt indicator and speedometer digits blink. Make sure that the driver's side seat belt is latched properly.
Page 269 This section contains dimensions, capacities, and other technical data, plus information on government requirements and how to break-in your Honda SXS. Vehicle Identification ..............262 Specifications ................264 Break-in Guidelines..............270 Emission Control Systems (USA & Canada only) ......271 Oxygenated Fuels (USA &...
Page 270 The VIN and engine serial number may be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual. The VIN is stamped on the left side of the frame, located under the rear cargo bed.
Page 271 The color label is attached to the center front side of the frame, located under the front hood. The color code is helpful when ordering replacement parts. You may record the color and code in the Quick Reference section at the rear of this manual.
Page 272 overall length SXS1000M3/M3P 116.8 in (2,966 mm) SXS1000M3L 117.8 in (2,992 mm) SXS1000M5P/M5D 116.6 in (2,961 mm) SXS1000M5L 117.6 in (2,987 mm) overall width 63.0 in (1,599 mm) overall height SXS1000M3/M3P/M3L 76.1 in (1,932 mm) SXS1000M5P/M5D/M5L 76.4 in (1,940 mm) wheelbase SXS1000M3/M3P/M3L 80.2 in (2,038 mm)
Page 273 API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent cooling system Pro Honda HP Coolant (USA &...
Page 274 passenger SXS1000M3/M3P/M3L capacity operator and two passengers SXS1000M5P/M5D/M5L operator and four passengers maximum weight USA - 49 states, Canada, Australia, capacity New Zealand models 1,649 lb (748 kg) USA - 50 states [meets California] models 1,248 lb (566 kg) operator, passenger, all cargo and accessories displacement 60.9 cu-in (999 cm...
Page 275 primary reduction 1.883 final reduction front 3.384 rear 3.375 transmission ratio 2.764 2.047 1.583 1.230 0.968 0.800 sub-transmission 2.666 ratio high 1.880 reverse 2.222 final drive shaft caster 3° trail 0.6 in (16 mm) tire size front: SXS1000M3/M3P/M5P 27X9.00-12 NHS BLACKSTONE OTR HP-009 SXS1000M3L/M5D/M5L 27X9.00R14 NHS...
Page 276 battery GYZ16H 12 V-16 Ah (10HR) generator 0.6 kW/5,000 rpm headlight SXS1000M3/M3P/M5P 12 V 60/55 W × 2 SXS1000M3L/M5D/M5L brake/tail light neutral indicator reverse indicator high coolant temperature indicator PGM-FI malfunction indicator lamp (MIL) electric power steering (EPS) indicator (except for SXS1000M3) seat belt indicator differential lock...
Page 277 main 50 A circuit SXS1000M3/M3P/M5P/M5D 30 A, 20 A, 15 A × 4, 10 A × 3 SXS1000M3L/M5L 30 A × 2, 20 A, 15 A × 4, 10 A × 3 EPS (except for 40 A SXS1000M3) BTCS 40 A (SXS1000M3L/ M5L only) engine oil filter...
Page 278 Help assure your Honda SXS’s future reliability and performance by paying extra attention to how you drive during the first operating day or 15 miles (25 km). During this period, avoid full-throttle starts and rapid acceleration.
Page 279 The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment Canada (EC) require that your SXS comply with applicable exhaust emissions standards during its useful life, when operated and maintained according to the instructions provided. The Vehicle Emission Control Information Label is attached on the right front side of the front fender under the front hood.
Page 280 Carbon monoxide does not react in the same way, but it is toxic. Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons. The exhaust emission control system includes an oxygen sensor, a three-way catalytic converter and a PGM-FI system.
Page 281 Federal regulations prohibit removing or disabling a device or element of design that may affect your engine’s emission performance unless your Honda off-road utility vehicle will be used exclusively in competition. If you modify your engine for use in sanctioned competition events, you must deface or destroy the...
Page 282 TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED: State laws prohibit, or Canadian provincial laws may prohibit, the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use;...
Page 283 Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.
Page 284 METHANOL (methyl or wood alcohol) up to 5% by Volume You may use gasoline containing methanol containing up to 5% methanol by volume as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems.
Page 285 Engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is not yet complete.
Page 286 The catalytic converter acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent. The catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set fire to any combustible materials that come near it.
Page 287 Warranty Coverage (USA & Canada only) ......... 281 Warranty Service (USA & Canada only) ........282 Contacting Honda (USA & Canada only) ........283 Your Honda Dealer (USA & Canada only)........284 The Honda Rider’s Club (USA only) ........... 285...
Page 288 The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order authorized manuals.) Also available but not necessary to service your model is the Honda Common Service Manual which explains theory of operation and basic service information for various systems on Honda motorcycles, scooters, ATVs, SXSs and PWCs.
Page 289 There are responsibilities, restrictions, and exclusions which apply to these warranties. Please read the Warranties Booklet given to you by your Honda dealer at the time of purchase. Be sure to keep your Honda owner’s card with your Warranties Booklet.
Page 290 (such as brakes, tires, etc.). If you believe you have a problem with your Honda SXS, call the service department of your dealer. Make an appointment for an inspection and diagnosis. Remember, as the owner of the Honda SXS, you will be asked to authorize that inspection.
Page 291 Your owner’s manual was written to cover most of the questions you might ask about your Honda. Any questions not answered in the owner’s manual can be answered by your dealer. If your dealer doesn’t have the answer right away, they will get it for you.
Page 292 Once you purchase your new Honda, get familiar with the organization of your Honda dealer so you can utilize the full range of services available. The service department is there to perform regular maintenance and unexpected repairs. It has the latest available service information from Honda.
Page 293 The Honda Rider’s Club of America (HRCA) sponsors local riding chapters at Authorized Honda Dealerships across the country.
Page 294 ............2 air cleaner outer cover removal ..........140 air cleaner, filter ..................173 sub filter ................176 air pressure, tire ................203 American Honda, contacting ............283 apparel, protective ..............87 appearance care ...............217 AT indicator ................37 AT/MT switch ................48 authorized manuals ..............280 battery ..................212...
Page 295 climbing hills ................113 clip removal ................142 color label ................263 compartment, owner’s manual ..............136 storage ..................74 tool kit ..................135 component fails ................258 consumer information ..............279 coolant temperature gauge ............31 crash, if you ................254 crossing a hill ................115 customer service ...............283 dipstick ................151, 161 doors ..................54 drive mode ................106 drive mode indicator ..............38...
Page 296 engine, number .................262 oil ..................148 pinging ..................145 starting ..................98 stopping ..................98 sub-transmission ..............161 won’t start ................236 environment ................231 final gear oil ..............165, 167 flat tire ..................243 frame ..................195 fuel, fill cap ...................146 oxygenated ................275 recommendation ..............145 tank capacity .................146 fuses ..................248 gap, spark plug ..............185, 266 gasohol ..................275 gasoline ..................145...
Page 297 hill, approaching a hill ..............113 crossing a hill .................115 driving down a hill ..............114 driving up a hill ..............114 stopping on a hill ..............114 hourmeter ..................33 identification, vehicle ..............262 ignition switch ................40 indicators, 4WD drive mode indicator ............38 AT indicator ................37 differential lock indicator ............21 electric power steering (EPS) indicator ........21 gear position indicator .............36...
Page 298 key, lost ..................255 number .................255 kit, tool ..................135 labels, safety .................6 limit, cargo ................3, 93 loading guidelines ..............94 LOW indicator ................37 low oil pressure indicator ............22 lubrication, engine oil ................149 final gear oil ..............165, 167 points ..................178 maintenance, importance ................121 maintenance minder indicator .........34, 125 precautions ................123 record ...................129...
Page 299 neutral indicator .................21 noise emission control systems ..........274 numbers, serial .................262 obstacles, avoiding ..............115 odometer ...................30 odometer display ................29 oil, engine ...................149 final gear ...............165, 167 high coolant temperature indicator ........21, 246 owner’s manual storage ............136 oxygenated fuels ..............275 parking ..................107 passenger, handhold .................73 no carrying in cargo bed ............3...
Page 300 safety, driving precautions ..............108 important precautions ............123 labels ..................6 schedule, maintenance .............124 seat, belts ..................67 removal .................139 serial numbers ................262 service, customer ................283 manuals ................280 warranty ................282 shift paddle ................51 shifting ..................43 side nets ..................56 spark arrester ................187 spark knock ................145 spark plugs ................184 specifications ................264 speedometer ................25, 26...
Page 301 ............205, 206 tool kit ..................135 trailer hitch .................83 trailer towing, operational guidelines .............95 weight limits ................95 transporting your Honda ............226 tripmeter ..................30 trouble, unexpected ..............233 troubleshooting, starting ............236 turning, on level ground ............112 vehicle identification no. (VIN) ..........262...
Page 302 warning labels ................6 warranty, coverage ................281 extended ................281 service ...................282 washing your SXS ..............218 water, driving through ..............116 weight limit ................93 wheel removal ................244...
Page 303 The following is a brief, but important collection of information you need to know about your Honda. You’ll also find space to record important notes. The engine of your Honda can be the most expensive component to repair. Proper maintenance, especially the use of the recommended fluids and filters, prevents premature wear and damage.
Page 304 Engine No. Color Label Owner’s Name Address City/State Phone Dealer’s Name Address City/State Phone Service Mgr.
Page 305 API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent Engine oil filter and oil exchange: 6.08 US qt (5.75 ℓ)
Page 306 14 psi (100 kPa) Spark Plugs standard: SILMAR7A9S (NGK) Coolant Ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50 solution with Pro Honda HP Coolant or an equivalent distilled water Fuses main: 50 A circuit: SXS1000M3/M3P/M5P/M5D 30 A, 20 A,15 A × 4, 10 A ×...
Page 307 These symbols are used in Driver Controls section: START — ignition switch ON — ignition switch OFF — ignition switch OFF — headlight switch Low beam — headlight switch High beam — headlight switch Park — Reverse — Neutral — High P, R, N, H, L —...
