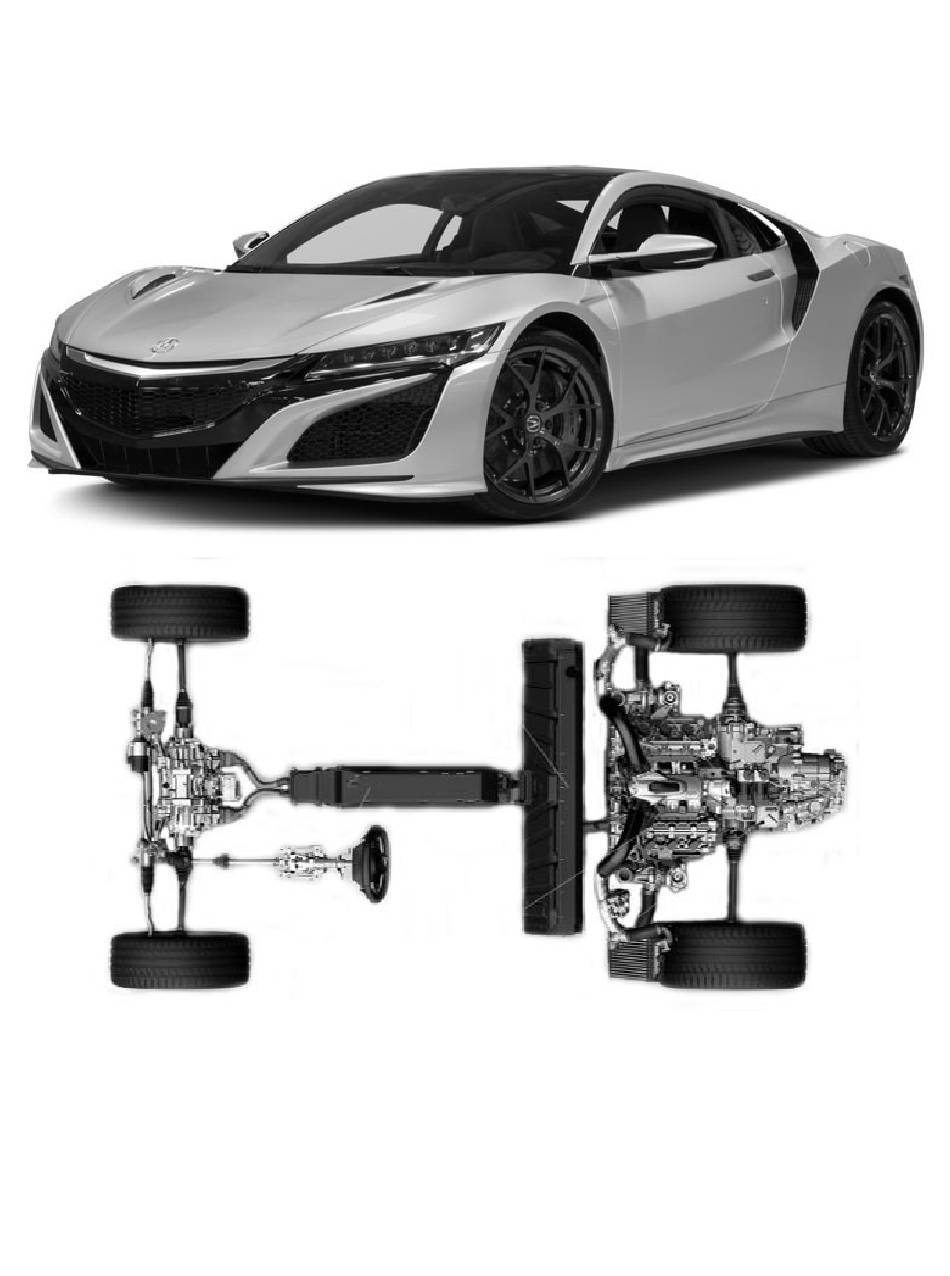

- Page 1 2017-2019 Acura NSX Towing and Road Service Guide Quality and Education Services AAA Automotive October 11, 2018 For the latest updates from AAA, visit: AAAcampus.aaa.biz...
-
Page 2: Table Of Contents
Index Specifications Start/Stop Switch Electronic Key/Mechanical Key Door Locks Rear Hatch Release Hood Release Fuel Door Release Car Carrier Loading Front Towing Eyebolt Electronic Parking Brake Tires and Jacking Jump-Starting Procedures Important Notice: This publication should not be used while driving. The procedures in this publication should only be used by qualified and trained personnel. -
Page 3: Specifications
2017-2019 ACURA NSX SPECIFICATIONS: Dimensions: Width: 87 inches Length: 176 inches Specifications 3,803 Curb Weight (pounds) Drive Line Type All-Wheel Drive (AWD) Length 176 inches Width 87 inches Height 48 inches Fuel Type Premium Gasoline, octane rating of 91 or higher Overview The NSX is an all-wheel drive, hybrid vehicle. -
Page 4: Start/Stop Switch
START/STOP (IGNITION) BUTTON OPERATION: The Start/Stop button is located on the dash, right of the steering wheel. Secure the vehicle. • Accessories: With your foot off the brake pedal, press the Start/Stop button once. The button will blink red when the accessories are on. Motor On / Engine Off: With your foot pressing the •... -
Page 5: Door Locks
DOOR LOCKS: Using the Handle: 1. As the door is approached with the key fob, the door handles will pop out automatically and the door will unlock when pulled. 2. If the handle fails to pop out, press the edge of the handle closest to the front of the car to get the handle to pop out. -
Page 6: Hood Release
HOOD RELEASE: Opening the Hood: 1. This vehicle is equipped with a mechanical hood release on the driver’s side kick panel. Pull the release lever. 2. Lift the hood slightly and slide the hood safety catch, located below the right of center point of the hood to the driver’s side. -
Page 7: Car Carrier Loading
CAR CARRIER LOADING AND TRANSPORTING: Special Precautions: • Car carrier equipment is the only method the manufacturer provides for loading and transporting this vehicle. Using other towing equipment will result in possible damage to the vehicle. This vehicle has a low profile. Ramping and extreme care must be used to avoid damage to the front • and rear lower panels. The front diffuser is easily damaged, so all contact should be avoided when loading and unloading. •... -
Page 8: Front Towing Eyebolt
CAR CARRIER LOADING PROCEDURES: Car Carrier Loading Procedures: • Before loading, secure the vehicle, ensure the transmission is in Neutral and the parking brake is released if possible. Front Attachment Location: This vehicle is equipped with a towing eyebolt that should be used for loading and unloading. - Page 9 CAR CARRIER LOADING PROCEDURES: Secondary Safety Strap: • It is highly recommended to attach a secondary backup nylon strap to the vehicle during loading and unloading. This is a pre- caution in the event the eyebolt attachment should fail. • Using a short nylon strap, wrap the lower control arm with one end and attach the other end to the winch line hook (see illus- tration for details).
-
Page 10: Electronic Parking Brake
CAR CARRIER LOADING PROCEDURES: Skates: In the event Neutral cannot be selected or a failure with the parking brake mechanism causes the wheels not to roll, wheel dollies such as “GoJaks” or tire skates can be used under the non-rolling wheels to assist with loading the vehicle. -
Page 11: Tires And Jacking
TIRES AND JACKING: This vehicle comes equipped with a tire inflator kit from the factory. These items can be found in the tool kit located inside the rear hatch. Inflator Kit: 1. Compressor 2. Sealant Bottle 3. Locking Wheel Nut Adapter NOTE: Prior to jacking the vehicle, make sure the vehicle is secured using wheel chocks. -
Page 12: Jump-Starting Procedures
JUMP-STARTING PROCEDURES: The battery is located under the hood near the center of the bulkhead under a protective plastic cover. Follow the jump-starting procedures listed below: • Follow all normal jump-starting precautions as out- lined in the AAA/CAA Towing & Service Manual and the owner’s manual.
