INSTRUCTION BOOK
GB
6510K7-m
CA
949600473

Advertisement

Table of Contents
loading

Related Manuals for AEG 6510K7-M

Summary of Contents for AEG 6510K7-M

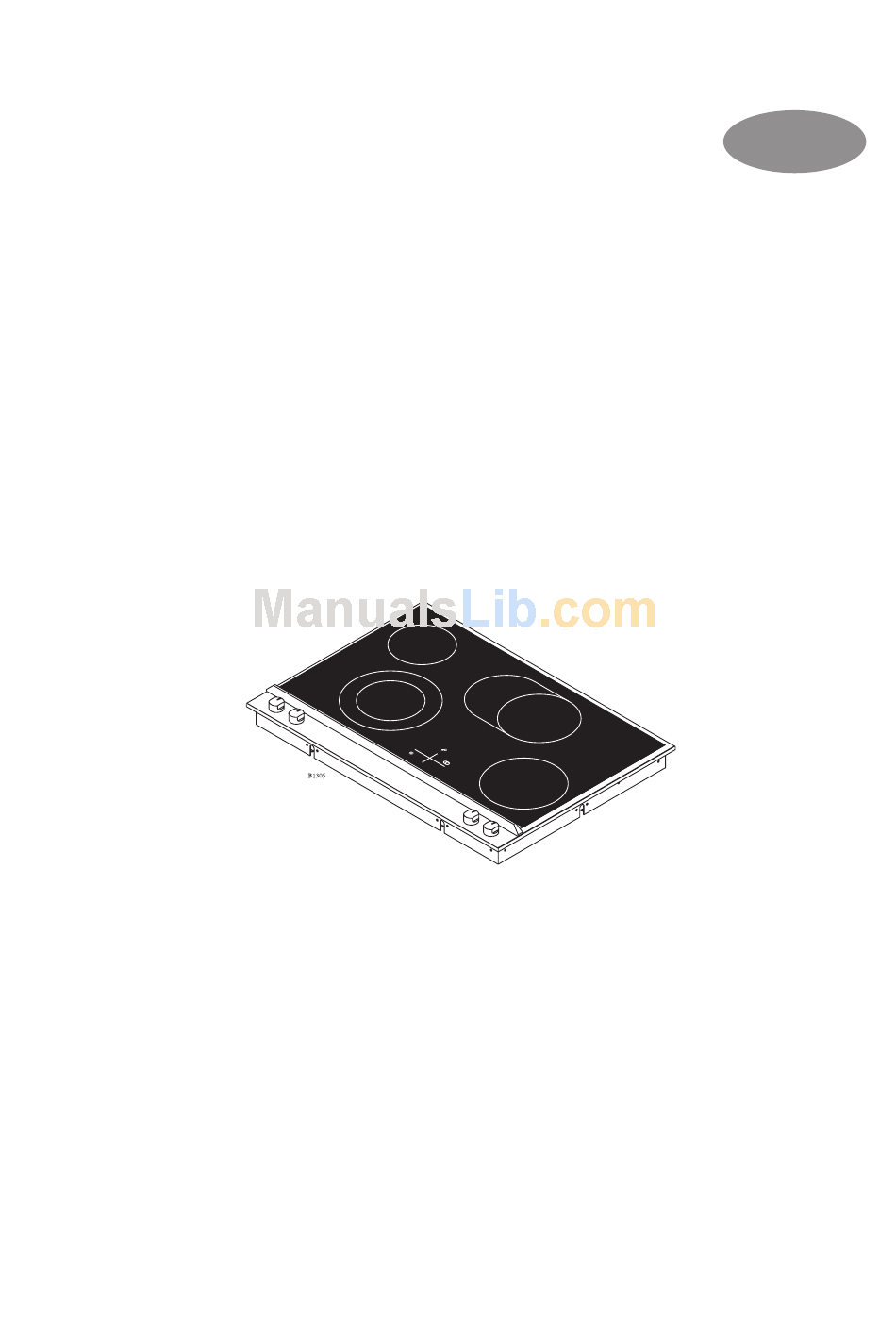

  • Page 1 INSTRUCTION BOOK 6510K7-m 949600473...
  • Page 2 Congratulations from AEG Dear Customer, Congratulations with your new Hob. It is important that you become familiar with the functions and features of the Hob. You should therefore read these operating instructions as they will help you get the most out of your new Hob.

  • Page 3: For The Installer

    Table of contents Contents For the user For the installer How to read the operating instructions: 1... 2...Step by step Safety information Page no Hint and tips Environmental information...

  • Page 4: Safety Information

    Ensure that all the control knobs are in the OFF position when not in use. Do not use the hob if it is damaged in any way, contact your local AEG Service Centre. Never use plastic or aluminium dishes on the hob.

  • Page 5: Description Of The Product

    Description of the product Panel...

  • Page 6: Ceramic Glass Surface

    Ceramic glass surface The ceramic glass surface has four cooking zones. When a zone is turned on, it will illuminate at various intervals depending on the heat setting selected. Even at the highest setting the zone is disconnected occasionally to ensure that the surface is not over-heated.

  • Page 7: Before Use

    Connection of child safety device on zones Turn the 2 control buttons to at the same time. The display will show: When you turn on a zone the display will show: To turn on a zone, turn the 2 control buttons to at the same time.
  • Page 8 Protection of the glass ceramic surface A protective film should be applied to the glass ceramic surface before use. This will make it easier to clean the surface, as well as preventing substances from being burnt onto the surface. This is what to do: 1.

  • Page 9: How To Use

    Switch symbols (to the left) control for regulating the small cooking zone at the rear control for regulating the double cooking zone at the front. control for regulating the large cooking zone at the rear control for regulating the small cooking zone at the front.

  • Page 10: Cooking Zones

    Residual-Heat indicator When you switch off a zone, an "H" in the display indicates that the zone is still hot. The residual heat indicator will continue to be illuminated as long as the temperature exceeds 80˚C. Cooking zones The control knobs are continuously adjustable from 1 to 9 (9 is the highest setting).
  • Page 11 CHEC control Autostop If you forget to turn a cooking zone off after use, it will be disconnected automatically after a specific period of time. The higher the setting, the shorter the time before the zone is disconnected. Setting When the autostop function is activated the display will show: The zones cannot be used.
  • Page 12 Recommended settings when using AUTOMAX...
  • Page 13 Disconnection of AUTOMAX: If you do not wish to use AUTOMAX, observe the following procedure: 1. Turn the control button to A 2. Then turn the control button to the required setting. Setting the large zone on the double zones 1.
  • Page 14 When you turn on a zone the display will show: Observe the following procedure to use a zone: 1. Turn the 2 buttons to at the same time. 2. Use one of the zones within 10 seconds. The light under the symbol in the display will disappear.
  • Page 15 Advice and hints for using the cooking zones If you use the advice below you will save energy and make your cleaning tasks easier. Adjust the cooking zones correctly. Select the highest setting for the cooking zones until the food is brought to the boil.
  • Page 16 Do not slide saucepans across the surface of the hob - always lift the pan when placing it on, or removing it from the ceramic surface. Wipe the bottom surface of the pots and pans with a clean dry cloth before placing them on the ceramic surface.

  • Page 17: Cleaning And Maintenance Of

    Cleaning and maintenance of For reasons of hygiene and safety, the cooking zones must be kept clean. Grease stains and spilled food generate smoke when heated, and can even cause fire. Splashguard The splashguard can be removed to make it easier to clean the surface. What to do: 1.

  • Page 18: Stainless Steel Surfaces

    Stainless steel surfaces Clean the appliance after use with a soft cloth well wrung out in warm water, use a small amount of liquid detergent for stubborn soiling. Stainless steel parts may become straw coloured with use, use a proprietary stainless steel cleaner to remove this straw discolouration.
  • Page 19 The decorative pattern on the ceramic surface can become scratched and marred with use, depending upon maintenance, but does not adversely affect performance. Such blemishes are not covered by the warranty and do not affect the operation of the hob. Spills and melts must be removed immediately, while the surface is still warm, using the scraper supplied with...
  • Page 20 Mounting Caution: In order to avoid a hazard this appliance must be installed according to these instructions for installation The appliance unit can be mounted in any type of kitchen with a work top whose thickness is between 28 mm and 40 mm.
  • Page 21 It is not necessary to attach the reinforcement beam to the work top surface, as it is held in place by a specially designed moulding, which is incorporated in the hob units flanges. The units externally measured length 145 mm: Cooker hood 290 mm: Two-zone standard electric hob...

  • Page 22: Electrical Installation

    Electrical installation The electrical connection may only be performed by a qualified electrician/ competent person. The electrical connection must be carried out in accordance with prevailing regulations for appliances using heavy current. The connection must comply with any specific requirements specified by the local electricity supply authority.

  • Page 23: Technical Data

    Technical data Cell Voltage 240 V Electrical connection 240V - 60Hz Total wattage 7400W Instant heat effect Left front 14/21 cm 1000/2200 W Left Back 18 cm Right back 14 cm Right front 17/26,5 cm1400/2200 W This unit is labelled to indicate conformity with the lowvoltage directive (73/23/EEC) and the EMC directive (89/336/EEC).

  • Page 24: Before Calling Service - Technical Advice

    Before calling service – Technical advice Sympton The hob is not working The hob becomes hot The fuses keep blowing The cooking zones do not heat sufficiently Service Solution Check your earth leak circuit breaker. Check fuses. The ceramic hob will reach a temperature of 80˚C.
  • Page 25 If after all these checks, your hob still does not operate correctly, contact your local AEG Service Centre. In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

  • Page 26: Deep Fat Frying

    Deep fat frying For safety purposes, when deep fat frying, fill the pan 1/3 full of oil. Do not cover the pan with a lid and do not leave the pan unattended. In the event of a fire, switch off at the electricity supply and cover the pan with a lid or damp cloth to assist in smothering the flames.
  • Page 27 It is better to use two pans rather than overfill one, or use half quantities. 3. What to use Use firm fruit or vegetables and wash well before using. 4. Types of sugar Preserving sugar gives clear jam, however granulated sugar is cheaper and gives equally good flavour.
  • Page 28 AEG EURO-LINE APPLIANCES LENGTH OF WARRANTY: TWO YEAR FULL WARRANTY from original date of purchase, including parts and labour, to the first purchaser of this appliance THIS GUARANTEE DOES NOT COVER COMMERCIAL USE. TEN YEAR LIMITED WARRANTY: Replacement parts only (no labour) for The name Euro-Line Appliances, for service matters, incorporates work performed by authorized service agents or service companies.
  • Page 29 EURO-LINE APPLIANCES WILL NOT PAY WHEN THE FOLLOWING OCCURS: 1. Damage resulting from fires, acts of God, alteration, improper installation, or installation not in accordance with local building codes. 2. Pickup or delivery of major appliances requiring service. The appliances are designed to be repaired in the home.

  • Page 30: Service And Repair

    Service and Repair To save you time and money please have the following information ready in case you have to call for service: Name of the dealer from which you purchased the appliance ______________ Model number (shown on the rating plate) __________________ Serial number (shown on the rating plate) __________________ Date of purchase __________________ You should also retain the original purchase receipt to support any claim made...
  • Page 31 PLEASE RETURN THIS PORTION WARRANTY CARD PRODUCT: __________________________________ PURCHASER: ________________________________ Name: ________________________--______________ Address: _________________________--____________ City: _______________- Prov.: __________________ Postal Code: ______________ Signature: ________________________-___________ Purchase Date: _________ Invoice No.: ____________ Purchased from: ______________________________ RETURN THIS FOR VALIDATION _________________________ EURO-LINE APPLIANCES 2150 Winston Park Drive - Unit 20 Oakville, ON L6H 5V1 _________________________...
