*Parts List in this manual updated to reflect these changes.
New LG Compressor 120V R134A 1/8HP CSB035LJCM with external start/run
capacitor.

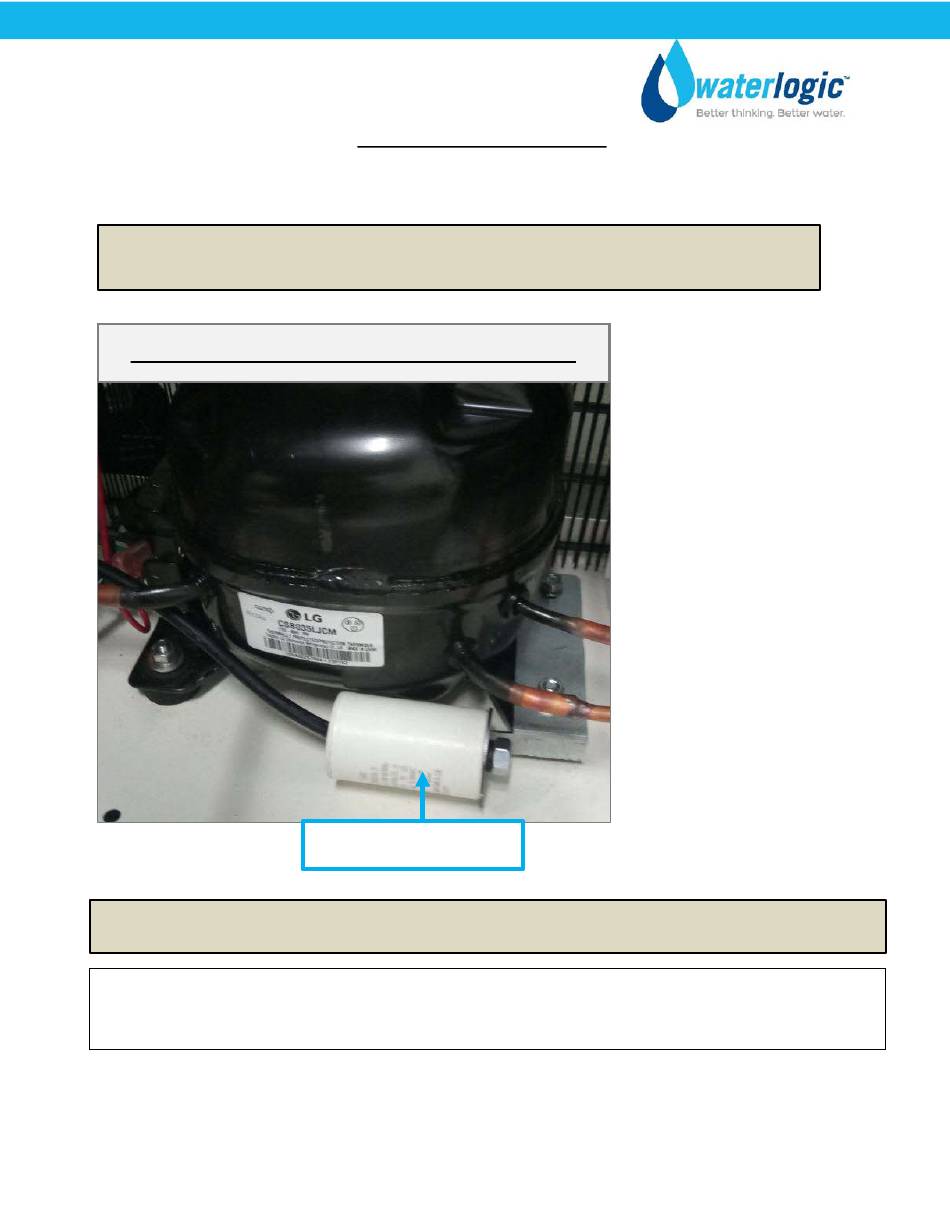

New LG Compressor with External Start/Run Capacitor
New LG CSB035LJCM 120V R134A 1/8HP Compressor Repair Parts
Part # CO-0017-L00-00 LG Compressor 120V CSB035LJCM-PTC Relay
Part # CO-0018-L00-00 LG Compressor 120V CSB035LJCM-Overload Protector
Part # CO-0019-L00-00 LG Compressor 120V CSB035LJCM-Capacitor
WL200 Manual
LG COMPRESSOR UPGRADE
External Capacitor
New LG CSB035 LJCM
Compressor
Repair/Replacement Parts for are
not interchangeable with
older/other compressors.
Older version of LG compressor is
obsolete and no longer available.
Page 13 - Revision: 4-29-2019
Advertisement
Related Manuals for WaterLogic WL200
Summary of Contents for WaterLogic WL200
- Page 1 External Capacitor New LG CSB035LJCM 120V R134A 1/8HP Compressor Repair Parts Part # CO-0017-L00-00 LG Compressor 120V CSB035LJCM-PTC Relay Part # CO-0018-L00-00 LG Compressor 120V CSB035LJCM-Overload Protector Part # CO-0019-L00-00 LG Compressor 120V CSB035LJCM-Capacitor WL200 Manual Page 13 - Revision: 4-29-2019...
- Page 2 Turning the adjustment screw clockwise to lower the set point temperature. Do not adjust past the “Max Cold” position at 3:00 position to avoid freezing the cold tank. Turning the adjustment screw counter-clockwise to raise the set point temperature. WL200 Manual Page 14 - Revision: 4-29-2019...
- Page 3 *Filter Element PN FT-0055-WLT schedule. FT-0053-IL-WLT Replacement parts can be obtained from Waterlogic or an Authorized Waterlogic Dealer. See Parts Layouts, Drawings, and Lists for additional repair parts. Surface Cleaning Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid based) or abrasive agents on any part of the product to avoid damage.
-
Page 4: Wetted Parts
WL200 COUNTER TOP DRAWINGS with PART NUMBERS Wetted Parts WL200 Manual Page 16 - Revision: 4-29-2019... -
Page 5: Recommended Spare Parts
10 units purchased Drip Tray - Charcoal with Waterlogic Logo 12-8055 PL-1156 Recommend stocking 4 each per every 10 units purchased ScaleKleen 01-2076 Recommend stocking 2 each per Shown every 10 units purchased WL200 Manual Page 17 - Revision: 4-29-2019... - Page 6 CT-2001-B Counter Top Only Quartz Sleeve (100mm) CT-2062-CN Counter Top Only Black O-Ring for Quartz Sleeve 10-2500 CT-2006 Counter Top Only 12-3117 Power Transformer 120V EL-5003-A Upper Shelf 12-3165 ST-8150-B Counter Top Only WL200 Manual Page 18 - Revision: 4-29-2019...
- Page 7 Front Upper Insert Panel - PL-0084- Charcoal L00-CL Filter Bracket 12-3175 ST-8152 Counter Top Only Leak System Inlet Solenoid 12-3195 ST-8244 Bracket Unit Rubber Feet 12-3150 PL-1251-CN Counter Top Only Bottom Tray 12-3170 ST-8151 Counter Top Only WL200 Manual Page 19 - Revision: 4-29-2019...
- Page 8 CO-9015 28.1 12-1001 Filter Dryer CO-9008 Bulkhead Union ¼” x ¼” John 10-3067 PU-4028 Guest P/N PI1208S Side Panel 12-8062 ST-8245 Counter Top Only Wire Condenser Special 12-3100 CO-9031 Counter Top Only Order WL200 Manual Page 20 - Revision: 4-29-2019...
- Page 9 EL-5019-A Switch Silver Back Panel 12-8061 ST-8216 Counter Top Only Purchase JG LLD PE Tube - Blue from John O.D.1/4"John Guest P/N PE-08- PU-4031 Guest BI-1000F-B 10-3007 Power Cord – 120V EL-5001-B Shown WL200 Manual Page 21 - Revision: 4-29-2019...
- Page 10 WL200 TOWER DRAWINGS with PART NUMBERS Wetted Parts WL200 Manual Page 22 - Revision: 4-29-2019...
- Page 11 Drip Tray Grill – Charcoal 12-8150 Recommend stocking 4 each per every 10 PL-1152 units purchased Drip Tray - Charcoal with Waterlogic Logo 12-8055 Recommend stocking 4 each per every 10 PL-1156 units purchased WL200 Manual Page 23 - Revision: 4-29-2019...
- Page 12 Silver Side Panel 12-8000 ST-8157 Tower Only 12-8058 Side Panel Plastic Handle PL-1123 Front Lower Panel 12-8052 PL-1148 Tower Only Front Lower Insert Panel 12-8053 PL-1149 Tower Only Filter Bracket 12-8005 ST-8138 Tower Only WL200 Manual Page 24 - Revision: 4-29-2019...
- Page 13 CO-0018- 34A.5 Overload Protector L00-00 L00-00 CO-9001-A / 10-2200 Compressor 34B.1 10-2200 Compressor (R134a 1/8HP) 120V/60Hz CO-9001-A 34B.2 10-3003 Compressor Starter Relay CO-9016 34B.3 10-5018 Compressor Overload CO-9015 21.1 12-1001 Filter Dryer CO-9008 WL200 Manual Page 25 - Revision: 4-29-2019...
- Page 14 Red Power and Compressor Switch EL-5019-A Top Cover 12-8054 PL-1150 Tower Only 4L Single Cold Tank Assembly 12-1100 CT-2017 Tower Only Upper Shelf 12-8003 ST-8136-R2 Tower Only 12-3117 Power Transformer 120V EL-5003-A Leak Detection PCB EN-6111-A WL200 Manual Page 26 - Revision: 4-29-2019...
- Page 15 33.1 10-3017 PCB Stand-off Pin EN-6059 Purchase JG LLD PE Tube - Blue O.D.1/4"John from John PU-4031 Guest P/N PE-08-BI-1000F-B Guest 10-3007 Power Cord – 120V EL-5001-B Shown WL200 Manual Page 27 - Revision: 4-29-2019...
- Page 16 WL200 COUNTER TOP WATER FLOW DIAGRAM WL200 Manual Page 28 - Revision: 4-29-2019...
- Page 17 WL200 TOWER WATER FLOW DIAGRAM Water In Solenoid Valve Condenser WL200 Manual Page 29 - Revision: 4-29-2019...
- Page 18 WL200 COUNTER TOP ELECTRICAL DIAGRAM DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High Voltage. Only trained and qualified technicians should attempt live testing. WL200 Manual Page 30 - Revision: 4-29-2019...
- Page 19 WL200 TOWER ELECTRICAL DIAGRAM DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High Voltage. Only trained and qualified technicians should attempt live testing. WL200 Manual Page 31 - Revision: 4-29-2019...
