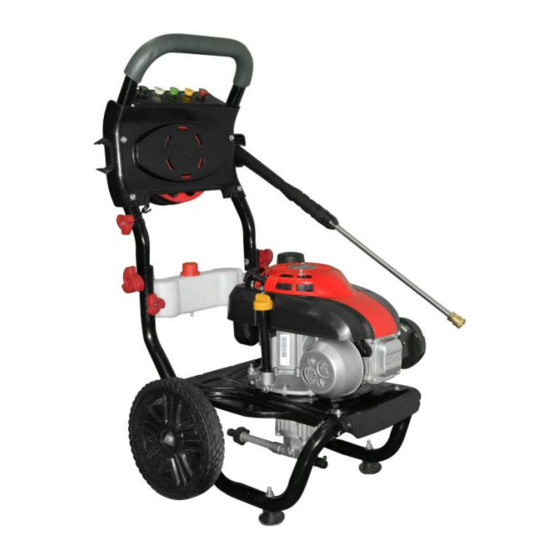

- Page 1 Operation Manuals WR67160 141cc Petrol Pressure Washer Do not operate this unit until you have read owner’s manual. ...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instruction………………………………………………..Pg.3 Washer specification…………………………………………………………Pg.7 Assembly Instruction…………………………………………………………Pg.7 Operating Instruction…………………………………………………………Pg.7 Explanation…………………………………………………………………...Pg.9 Maintenance…………………………………………………………………..Pg.10 Storage………………………………………………………………………...Pg.10 Trouble Shooting Guide………………………………………………………Pg.11 ... -
Page 3: Important Safety Instruction
Important Safety Instruction Safety Symbol Instruction This manual must be read before beginning installation of the unit High Pressure water jets are potentially dangerous if used incorrectly. In particular, do not direct the water jet towards people or animals, electrical equipment of the unit itself. Hazard Danger Risk of injury or property damage when transporting or storing... - Page 4 Hazard Danger risk of explosion or fire What can happen How to prevent it Spilled petrol and its vapors can become ignited Shut off engine and allow it to cool before adding fuel to from cigarette sparks, electrical arcing, exhaust the tank.
- Page 5 Hazard Danger Risk of Electrical Shock What can happen How to prevent it Spray directed at electrical outlets or Unplug any electrically operated product before switch, or objects connected to an attempting to clean it. Direct spray away from electrical circuit, could result in a fatal electric outlets and switches.
- Page 6 Hazard Danger Risk of chemical burns What can happen How to prevent it Use of acid toxic or corrosive chemical, Do not use acids, petrol kerosene, or any other poisons, insecticides, or any kind of flammable materials in this product. Use only flammable solvent with this product could household detergents.
-
Page 7: Washer Specification
Washer Specification Max. Pressure 2200/155 (PSI/Mpa) Flow (L/min) 7.5L/min R.P.M. 3200 Power(HP) Displacement (CC) 0.8L Fuel Capacity (L) Dimension (cm) 65*52*53 Assembly Instruction Step 1. Installing handle assembly Attach handle assembly to the frame by using two bolts M6x40 and two nuts M6 The engine on this machine is delivered without oil. - Page 8 Step 3. Add fresh, high quality, unleaded petrol with a pump octane rating of 86 or higher in a well ventilated outdoor area. Do not overfill. Wipe up spilled fuel before starting the engine. Refer to engine manual for correct procedure.
-
Page 9: Explanation
Explanation Washer Pump: Increase the pressure of the water supply. Engine: Drive the washer pump High Pressure Water Hose: Carries the pressurized water from the pump to the gun and lance. Gun: Connects with lance to control water flow rate, direction, and pressure. Lance: Lance is equipped with a female quick fix-up on the end. -
Page 10: Maintenance
40°nozzle - White. This nozzle delivers a 40 degree spray pattern and a less powerful stream of water. It covers a wide area of cleaning; this nozzle should be used for most general cleaning jobs. Chemical Nozzle – black. This nozzle is used to apply chemicals or cleaning solutions. It has the least power stream. Maintenance Warning: When performing maintenance, you may be exposed to hot surfaces, water pressure, or moving parts that can cause serious injury or death! -
Page 11: Trouble Shooting Guide
10. Reconnect spark plug wire. Alternative Procedure If you cannot perform the Optimum Winterizing Procedure, you can still protect your pressure washer from winter-damage: 1. Disconnect all water connections. 2. Press trigger to bleed any remaining water in the pump. 3. - Page 12 Lower water supply Water supply must be at least 19 LPM Leak at high pressure water hose fitting Tighten. Apply Sealant tape if necessary Nozzle obstructed See Nozzle cleaning paragraph in the maintenance section for the correct procedure No or low Pressure Water filter screen clogged Remove and clean filter (initial use)
- Page 13 Oil seals worn Check and replace Loose oil drain plug Tighten Oil Leaking at pump Worn oil drain plug o-ring Check and replace incorrect oil used Drain and fill with correct amount and type of oil Vent plug is clogged Clean vent plug, blow air through it to remove any blockage.
