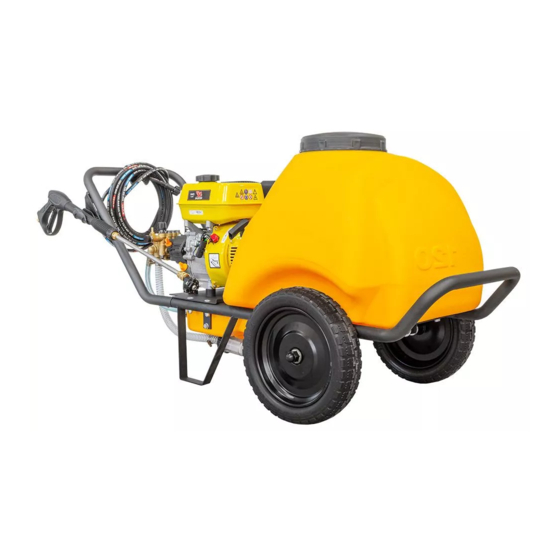

- Page 1 Operation Manual GF120 Engine driven Translation of the original operation manual *The picture serves for reference only and it may not represent an exact match of the device delivered...
-
Page 2: Table Of Contents
– washing of machinery, vehicles, structures, tools, facades, gardening tools, etc. combined with a high-pressure water supply (with added cleaning agents, wherever required); – operation with accessories using spare parts approved by Waspper s.r.o. - In an environment where the device will not be exposed to direct splashing of contaminated water with solid particles. -
Page 3: Safety
Hazard levels DANGER - Indication of an immediate danger potentially resulting in serious injuries or death. CAUTION - Indication of a potential hazardous situation that may result in light injuries. WARNING - Indication of a potential hazardous situation that may result in material damage. Safety features CAUTION - Safety features are designed to protect their users from injuries and these may not be altered in any way or even put out of order... -
Page 4: Engine
defined in the Troubleshooting section! Any dry cycling of the pump for a period exceeding 30 seconds may result in damage! Any material damage caused due to inobservance of this instruction renders the warranty void. Engine MUST The engine be filled with the correct amount of engine oil supplied with the delivery before its first commissioning. - Page 5 CAUTION! starter cord recoil (engine resistance against the direction of starter cord pull) will draw your shoulder and hand towards the engine faster than you are able to release is, this may result in spraining, contusion or breakage of your limb. Once the engine has started up, shift the choke control lever RUN position SLOWLY.
- Page 6 THERE IS AN OIL LEAKAGE HAZARD! It is recommended to change the engine oil at the end of the season. That will extend the engine service life. Engine oil change It is recommended to change the engine oil after use of this equipment (according to the Maintenance Schedule) Switch the engine off.
-
Page 7: Pump
Pump Your pump features an all-metal frame to ensure its long service life and flawless operation. The pump contains rotating parts mounted in very precise housings. It is therefore INEVITABLE that water fed into pump remains free of any mechanical contaminants. These contaminants would grind the contact surfaces inside the pump to increase the play between its internal components and reduce the output pressure. - Page 8 Figure A shows the pump's vent plug, which should be screwed onto transport plug (B) located on top of the pump housing. The transport plug is only for transport and the device must not be used without replacing it with the vent plug! Replace the red plug with a black...
-
Page 9: Troubleshooting
Use of self-priming detergent The pump has the ability to automatically inject the detergent with pressure from the container. A black nozzle for the application of detergent is required to run this function (cat. number: ASBS0- N0065). Only with the use of the nozzle, the pump starts to inject the detergent itself through the hole indicated by the arrow. -
Page 10: Warranty
For the list of approved servicing centres, see our website at: The efforts made by Waspper s.r.o. are aimed at sustainable development of technical parameters and user- friendly parameters of its products. For this reason, the manufacturer reserves the right to alter the design and control features without any prior notification to the end customers. - Page 11 EU Declaration of Conformity The company Waspper s.r.o. hereby declares that the high-pressure washers defined below comply with the relevant EU directives on occupational health and safety of the device operators. Any alteration of the device without the prior consent from the manufacturer will render this declaration void.
- Page 12 1. The manufacturer - Waspper s.r.o. - is liable for inherent defects of the product purchased, if such defects become evident within the warranty period. Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com.
- Page 13 Preparation of the device before the first start! Check the oil level in the engine Engine is oil-free from production! Unscrew the oil plug with a gauge and pour the engine oil supplied with the cleaner. Pour 0.6L oil into the engine.
