Honeywell OvaLED R Manual

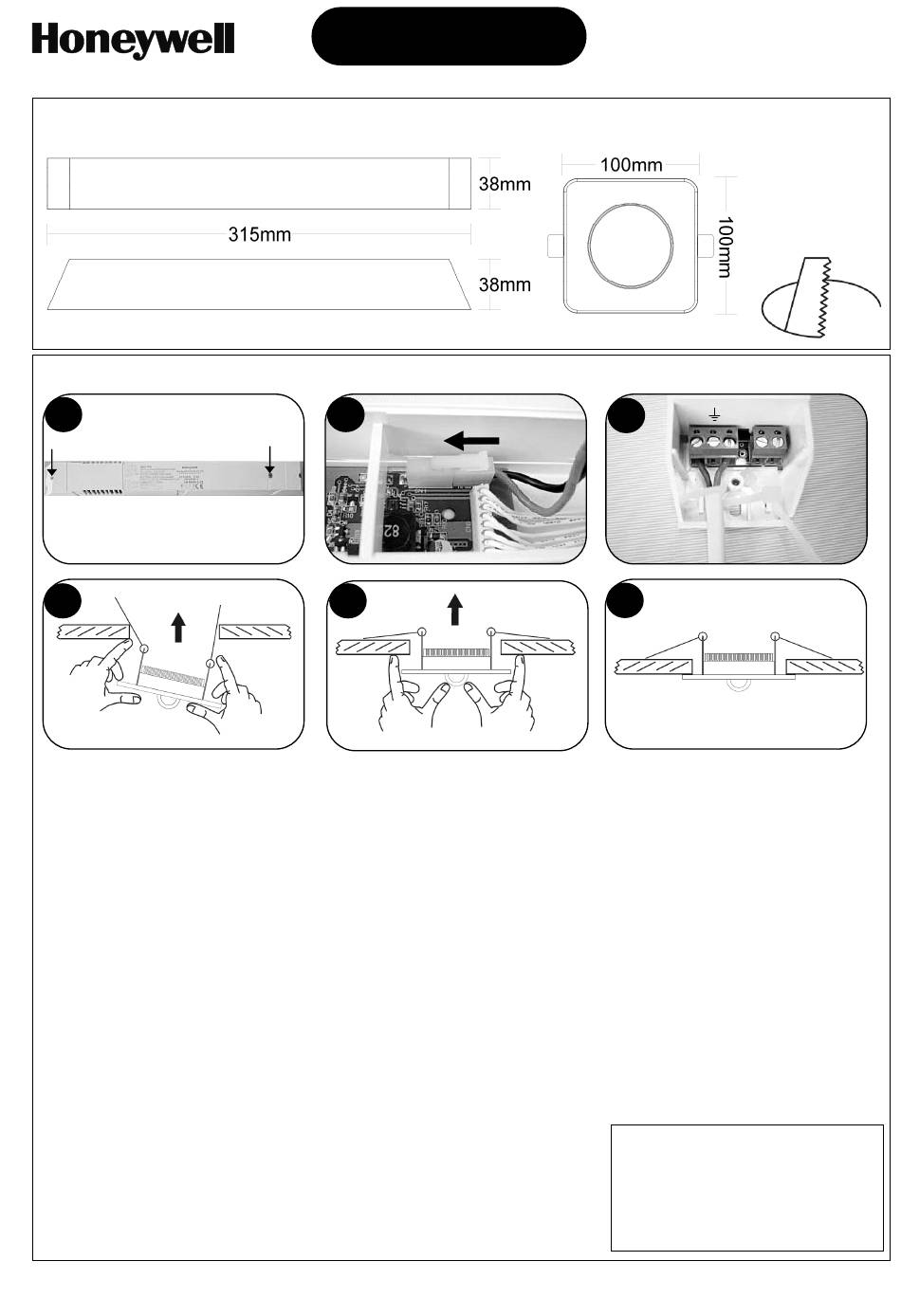

Dimensional drawings:
Installation:
1
B
4
To install this luminaire, a hole Ø 70 mm must be cut in the suspended ceiling.
For correct mounting, observe the light direction.
Step 1: Unfasten the mounting screws, A for battery compartment and B for electrical connections.
Remove the respective covers.
Step 2: Connect the battery and place the battery inside the compartment. Refit the cover and fasten the
removed screw (A) in step 1.
Step 3: Connect the mains cables to the terminal blocks, L for live wire N for neutral. The ground terminal
is optional. The C1 and C2 terminals are used for elBus communication (optional) or voltage free
contact (optional). After the connection of the cables, secure them with the provided ties. Refit the
cover (B) and fasten the removed screw in step 1. Place the main unit on the false ceiling and
follow the next steps.
Step 4: Bend one spring, to get into the holes of the suspended ceiling.
Step 5: Bend the other spring and push the luminaire upwards until it is securely mounted.
Step 6: The device is now ready to operate. The TEST button is located next to the indication diodes.
Battery replacement:
Disconnect mains, carefully pull the luminaire and main unit down,
make sure that the springs do not snap. Unscrew the battery cover
(step 1, screw A). Disconnect the battery and install a new one of
the same type and characteristics. Refit the cover and fasten the screw.
Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway
OvaLED R
Square Spot
2
A
5
Ø 70mm
3
L N C2 C1
6
Important notice when installing
luminaires within the same area!!!
To avoid that luminaires perform their
battery test at the same day, connect
the battery packs with more than 1,5
minutes inbetween.
GB
